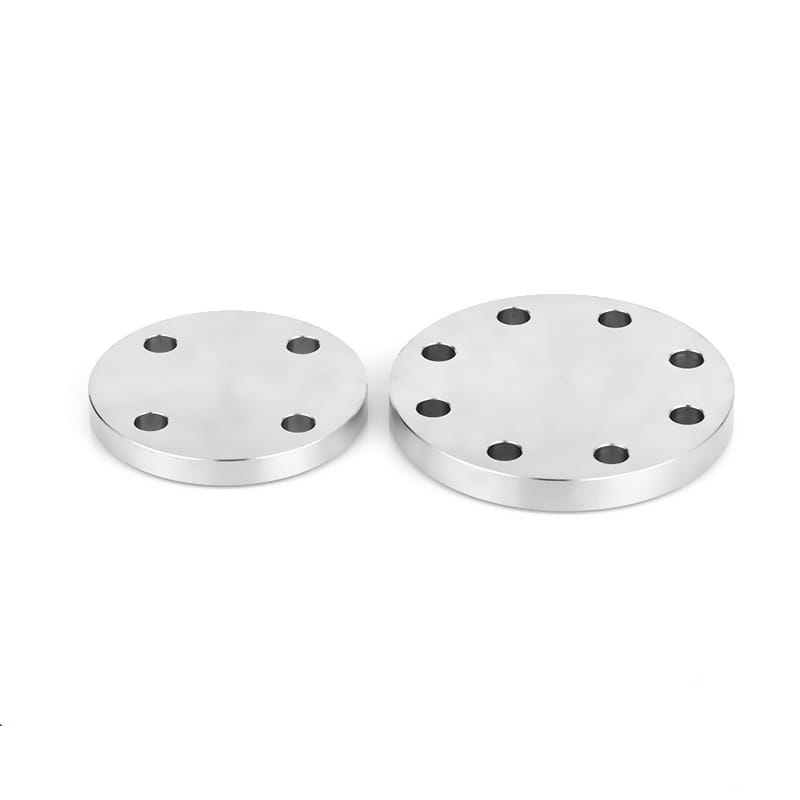

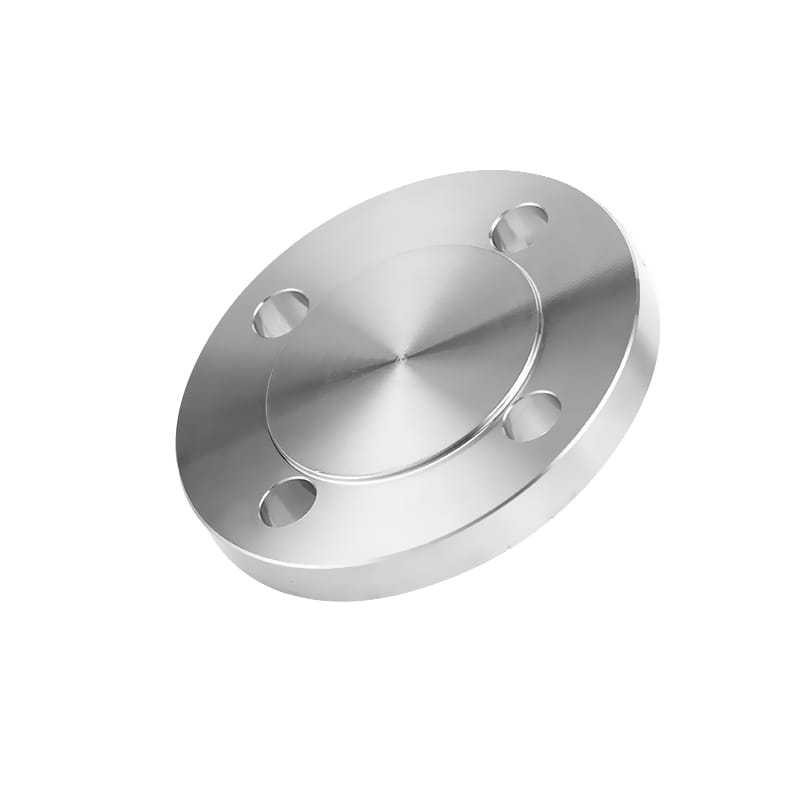

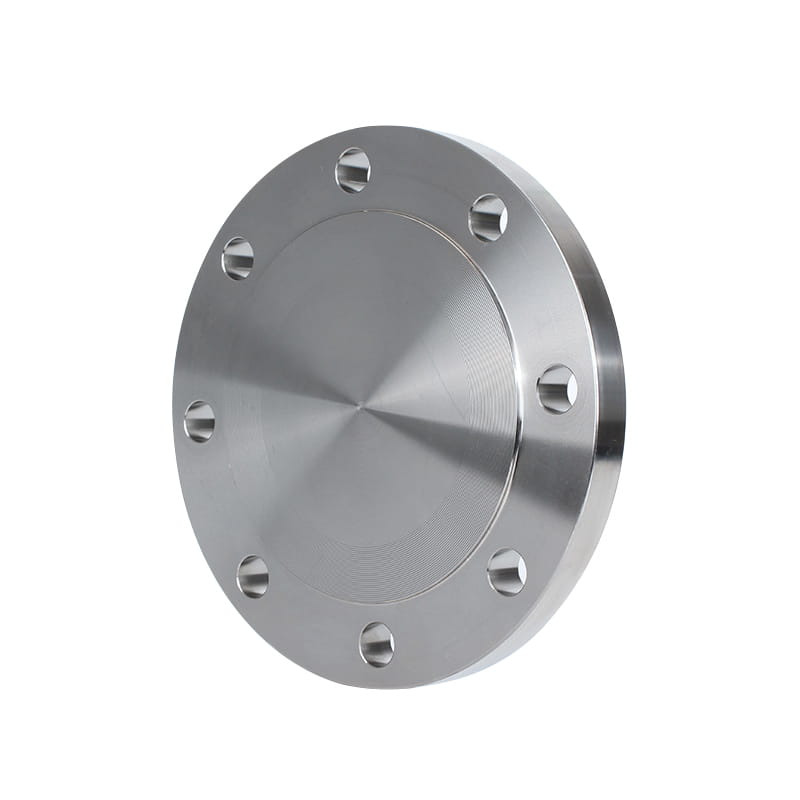

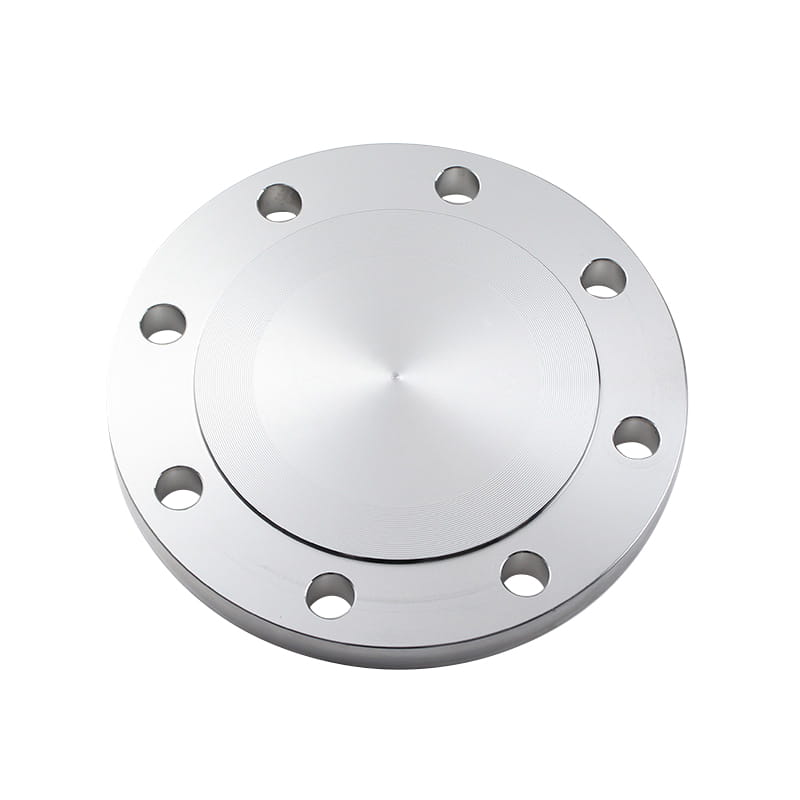

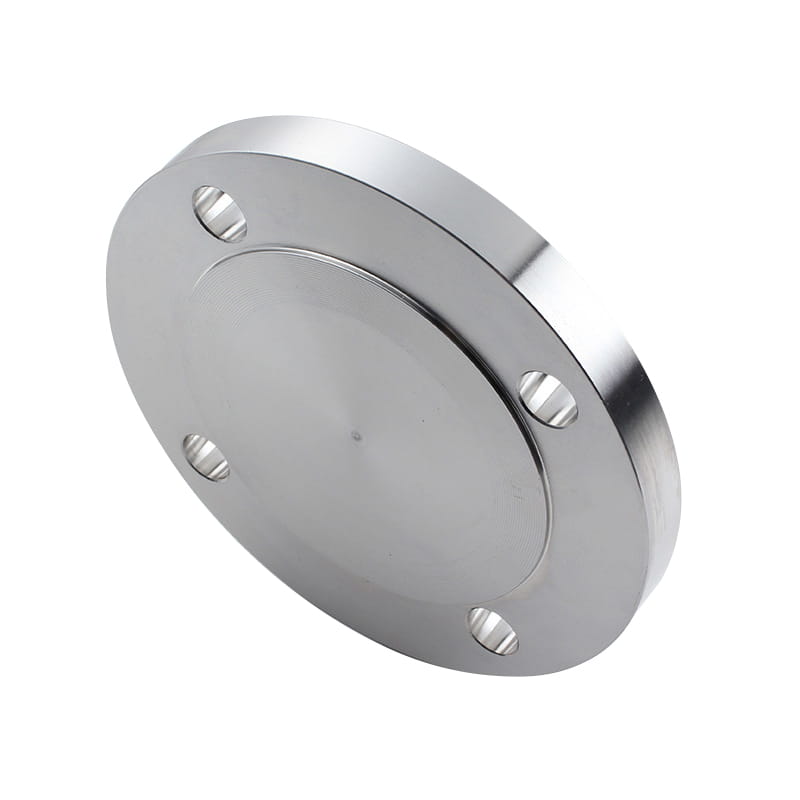

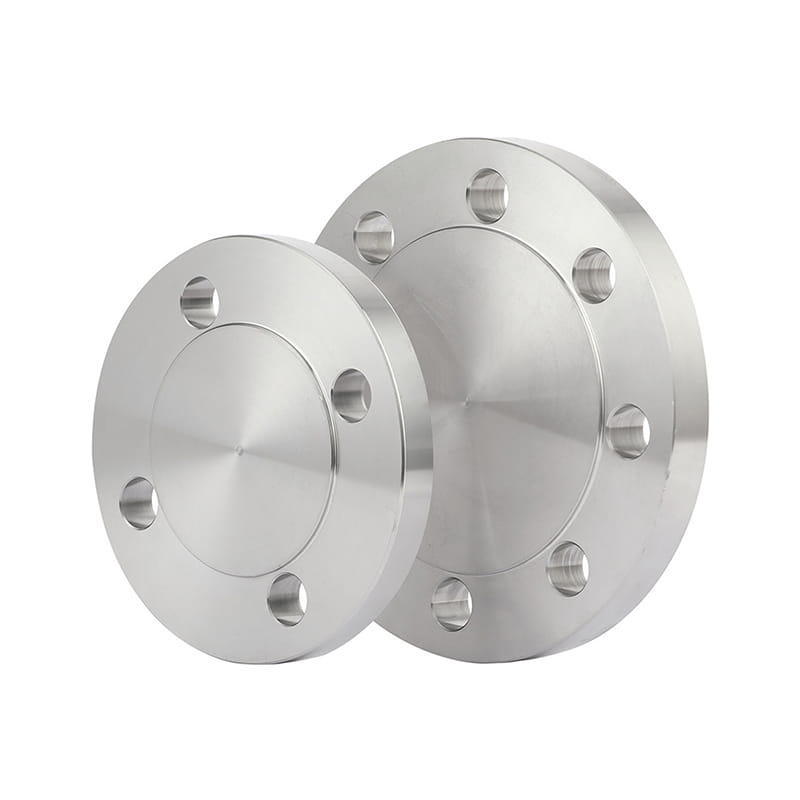

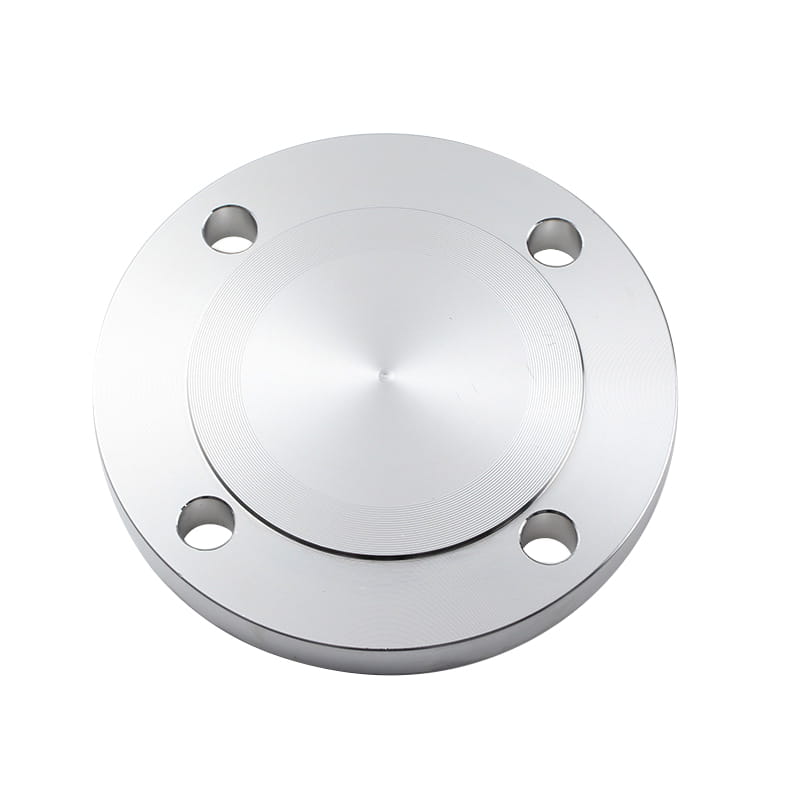

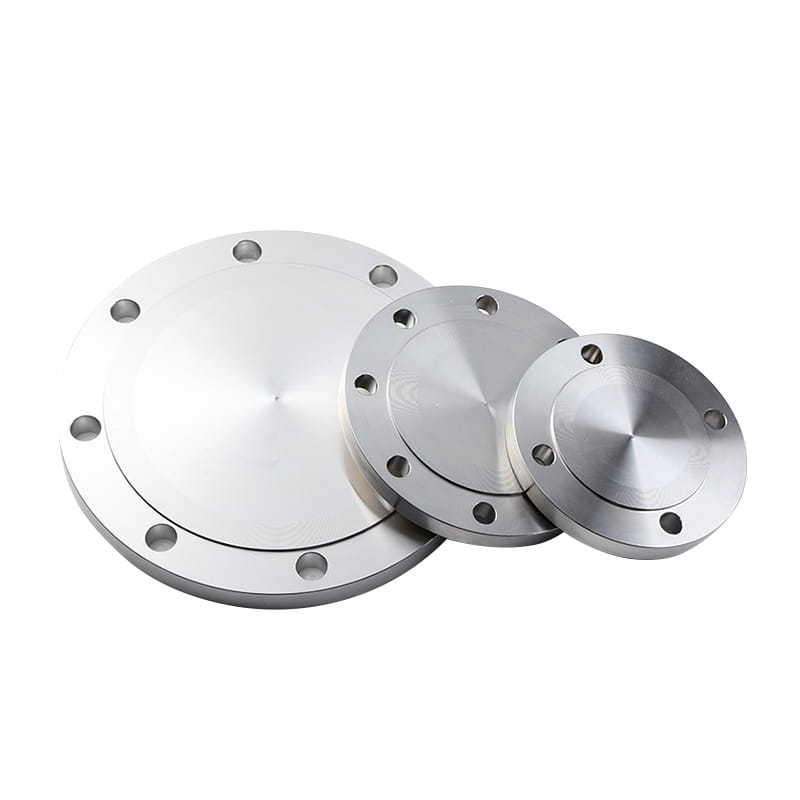

Blind flange plays a vital role in the pipeline system. It is characterized by a solid plate without a bore, effectively sealing the end of a pipe or vessel. It is an important part of pipeline maintenance, testing, and isolation.
Designed in various materials such as carbon steel, stainless steel, and alloy steel, they offer durability and resilience under diverse operating conditions and pressure levels. Common types include raised face(RF) and flat face（FF）, with the former ensuring a secure seal to minimize leakage risks.
Widely utilized in industries like oil and gas, petrochemical, and chemical processing, blind flanges provide versatility for applications requiring temporary or permanent closure of pipeline termination points. Their standardized dimensions and compatibility with different pipe sizes make them an efficient solution for ensuring system integrity and safety during inspection, cleaning, or modification activities.
Introduction
|
Standard |
ANSI/ASME B16.5, DIN, JIS, BS, GB |
|
Material |
Stainless steel (typically ASTM A182 F304, F316, F321, F347) |
|
Surface |
Anti-Rust Oil, Painting ( Black, Yellow), Galvanizing, Power Coating |
|
Type |
Forging, mechanical cutting |
|
size |
1/8" NB - 48"NB |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden Box, Customized according to customer requirements |
|
Application |
Stainless steel blind flanges are commonly used in various application scenarios in industries such as oil and gas, chemical, petrochemical, and power generation. |

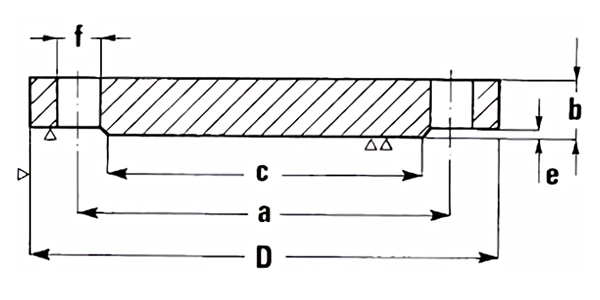

Blind Flanges-PN6
|
DN |
D |
a |
c |
b |
e |
f |
BOLT |
No HOLES |
|
10 |
75 |
50 |
35 |
12 |
2 |
11 |
M10 |
4 |
|
15 |
80 |
55 |
40 |
12 |
2 |
11 |
M10 |
4 |
|
20 |
90 |
65 |
50 |
14 |
2 |
11 |
M10 |
4 |
|
25 |
100 |
75 |
60 |
14 |
2 |
11 |
M10 |
4 |
|
32 |
120 |
90 |
70 |
14 |
2 |
14 |
M12 |
4 |
|
40 |
130 |
100 |
80 |
14 |
3 |
14 |
M12 |
4 |
|
50 |
140 |
110 |
90 |
14 |
3 |
14 |
M12 |
4 |
|
65 |
160 |
130 |
110 |
14 |
3 |
14 |
M12 |
4 |
|
80 |
190 |
150 |
128 |
16 |
3 |
18 |
M16 |
4 |
|
100 |
210 |
170 |
148 |
16 |
3 |
18 |
M16 |
4 |
|
125 |
240 |
200 |
178 |
18 |
3 |
18 |
M16 |
8 |
|
150 |
265 |
225 |
202 |
18 |
3 |
18 |
M16 |
8 |
|
200 |
320 |
280 |
258 |
20 |
3 |
18 |
M16 |
8 |
|
250 |
375 |
335 |
312 |
22 |
3 |
18 |
M16 |
12 |
|
300 |
440 |
395 |
365 |
22 |
4 |
22 |
M20 |
12 |
|
350 |
490 |
445 |
415 |
22 |
4 |
22 |
M20 |
12 |
|
400 |
540 |
490 |
465 |
22 |
4 |
22 |
M20 |
16 |
|
450 |
595 |
550 |
520 |
24 |
4 |
22 |
M20 |
16 |
|
500 |
645 |
600 |
570 |
24 |
4 |
22 |
M20 |
20 |
|
600 |
755 |
705 |
670 |
30 |
5 |
26 |
M24 |
20 |
|
700 |
860 |
810 |
775 |
40 |
5 |
26 |
M24 |
24 |
|
800 |
975 |
920 |
880 |
44 |
5 |
30 |
M27 |
24 |
|
900 |
1075 |
1020 |
980 |
48 |
5 |
30 |
M27 |
24 |
|
1000 |
1175 |
1120 |
1080 |
52 |
5 |
30 |
M27 |
28 |
|
1200 |
1405 |
1340 |
1295 |
60 |
5 |
33 |
M30 |
32 |
|
1400 |
1630 |
1560 |
1510 |
68 |
5 |
36 |
M33 |
36 |
|
1600 |
1830 |
1760 |
1710 |
76 |
5 |
36 |
M33 |
40 |
|
1800 |
2045 |
1970 |
1920 |
84 |
5 |
39 |
M36 |
44 |
|
2000 |
2265 |
2180 |
2125 |
92 |
5 |
42 |
M39 |
48 |
Blind Flanges-PN10
|
DN |
D |
a |
c |
b |
e |
f |
BOLT |
No HOLES |
|
10 |
90 |
60 |
40 |
16 |
2 |
14 |
M12 |
4 |
|
15 |
95 |
65 |
45 |
16 |
2 |
14 |
M12 |
4 |
|
20 |
105 |
75 |
58 |
18 |
2 |
14 |
M12 |
4 |
|
25 |
115 |
85 |
68 |
18 |
2 |
14 |
M12 |
4 |
|
32 |
140 |
100 |
78 |
18 |
2 |
18 |
M16 |
4 |
|
40 |
150 |
110 |
88 |
18 |
3 |
18 |
M16 |
4 |
|
50 |
165 |
125 |
102 |
18 |
3 |
18 |
M16 |
4 |
|
65 |
185 |
145 |
122 |
18 |
3 |
18 |
M16 |
8 |
|
80 |
200 |
160 |
138 |
20 |
3 |
18 |
M16 |
8 |
|
100 |
220 |
180 |
158 |
20 |
3 |
18 |
M16 |
8 |
|
125 |
250 |
210 |
188 |
22 |
3 |
18 |
M16 |
8 |
|
150 |
285 |
240 |
212 |
22 |
3 |
22 |
M20 |
8 |
|
200 |
340 |
295 |
268 |
24 |
3 |
22 |
M20 |
8 |
|
250 |
395 |
350 |
320 |
26 |
3 |
22 |
M20 |
12 |
|
300 |
445 |
400 |
370 |
26 |
4 |
22 |
M20 |
12 |
|
350 |
505 |
460 |
430 |
26 |
4 |
22 |
M20 |
16 |
|
400 |
565 |
515 |
482 |
26 |
4 |
26 |
M24 |
16 |
|
450 |
615 |
565 |
532 |
26 |
4 |
26 |
M24 |
20 |
|
500 |
670 |
620 |
585 |
28 |
4 |
26 |
M24 |
20 |
|
600 |
780 |
725 |
685 |
34 |
5 |
30 |
M27 |
20 |
|
700 |
895 |
840 |
800 |
38 |
5 |
30 |
M27 |
24 |
|
800 |
1015 |
950 |
905 |
42 |
5 |
33 |
M30 |
24 |
|
900 |
1115 |
1050 |
1005 |
46 |
5 |
33 |
M30 |
28 |
|
1000 |
1230 |
1160 |
1110 |
52 |
5 |
36 |
M33 |
28 |
|
1200 |
1455 |
1380 |
1330 |
60 |
5 |
39 |
M36 |
32 |
|
1400 |
1675 |
1590 |
1535 |
|
5 |
42 |
M39 |
36 |
|
1600 |
1915 |
1820 |
1760 |
|
5 |
48 |
M45 |
40 |
|
1800 |
2115 |
2020 |
1960 |
|
5 |
48 |
M45 |
44 |
|
2000 |
2325 |
2230 |
2170 |
|
5 |
48 |
M45 |
48 |
