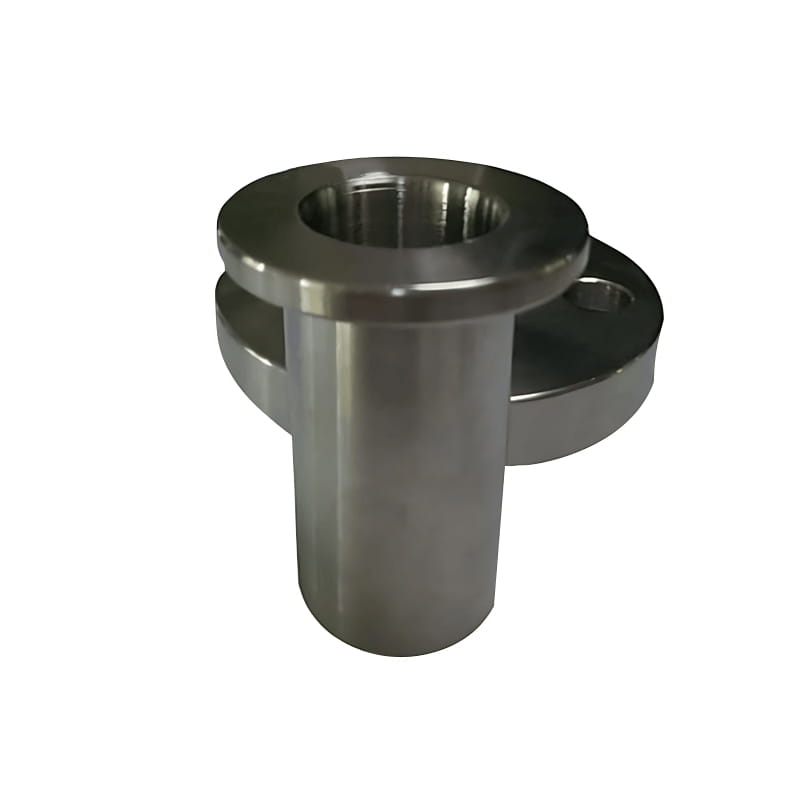

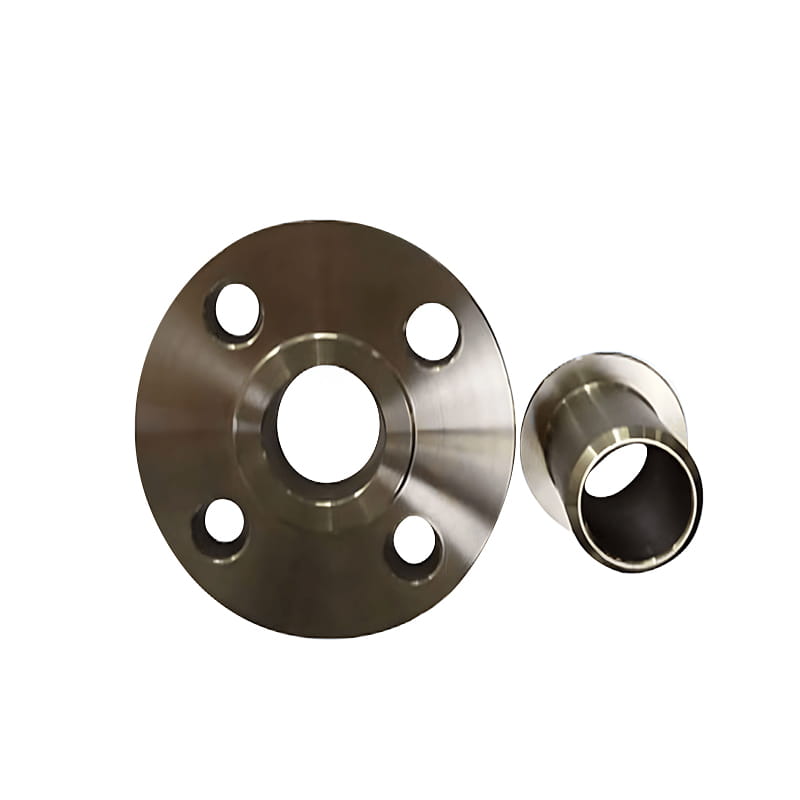

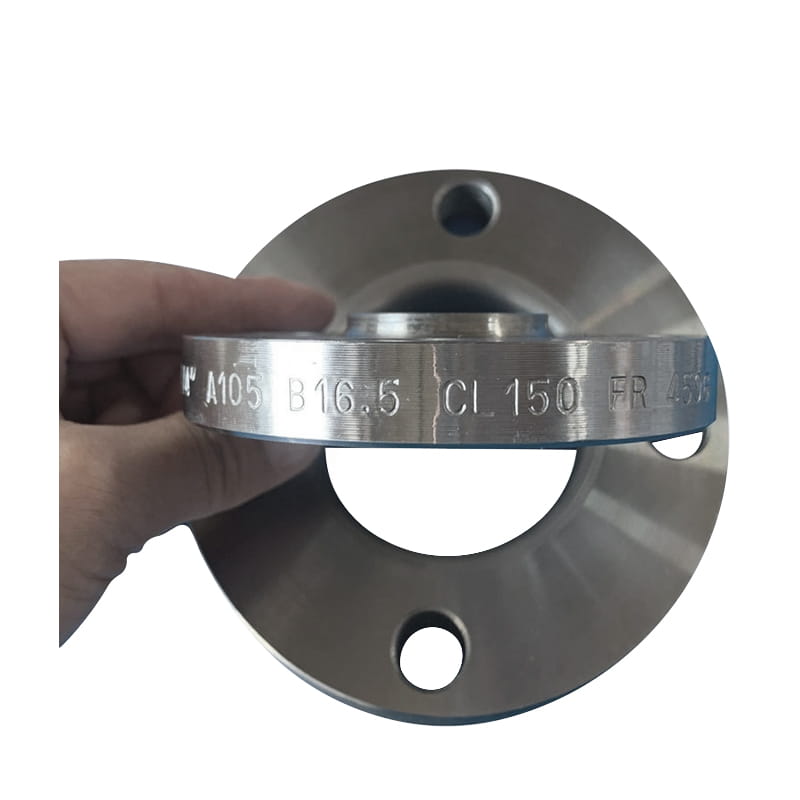

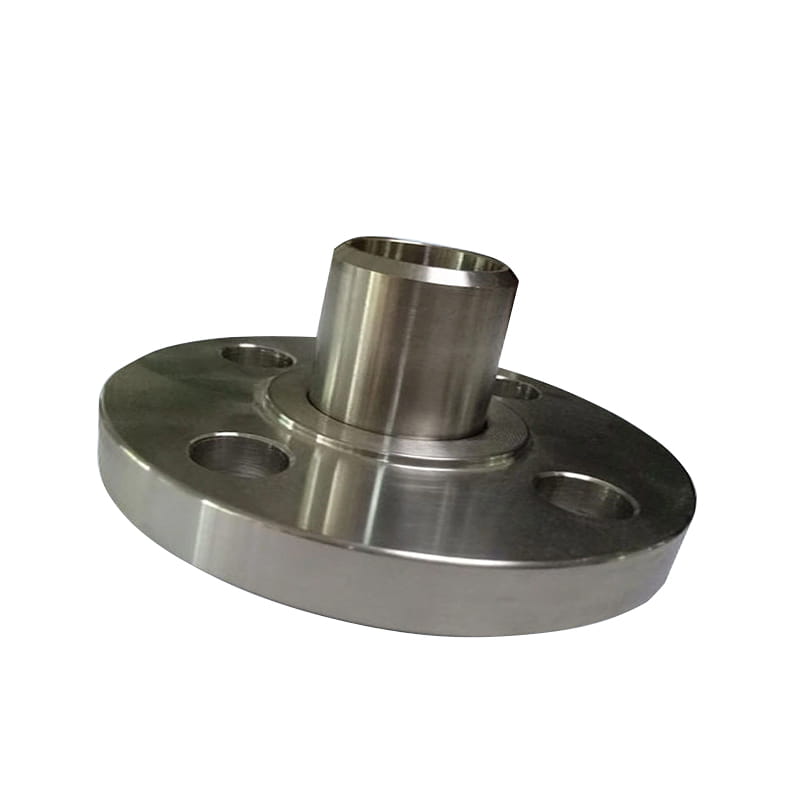

A lap joint flange is a two-segment assembly, with a stub end that has a lap-joint ring flange put over it. The stub end is then butt welded to the pipe, and the flange ring can be turned to align with the mating flange.

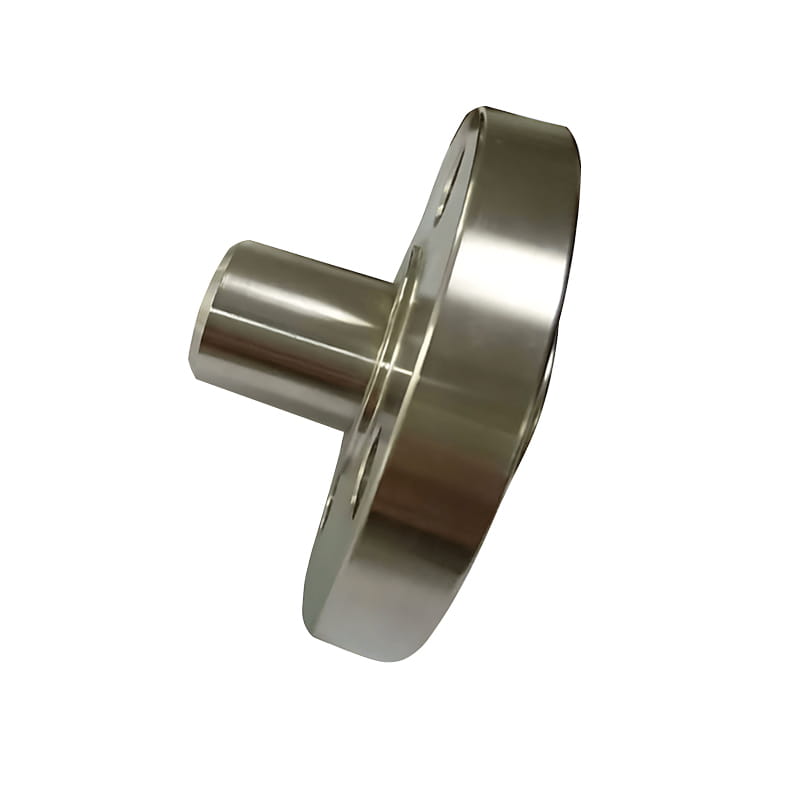

The stub end can be viewed as a length of pipe sleeve with one end butt welded and the other end flared at the right angle to the pipe axis. The lap joint flange and stub end compose a two-piece composite lap joint connection.
These flanges are nearly identical to a "Slip Flange" except for a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the Stub End. Their pressure-holding ability is a little better than that of "Slip On Flange". However, fatigue life is only one-tenth of "Welding Neck Flange".
Lap joint flanges slip over the pipe, and are not welded or otherwise fastened to it. They are a type of flange assembly commonly used in low-pressure systems or applications where frequent disassembly may be required.
Introduction
|
Standard |
ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820 |
|
Material |
Stainless Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200 / 201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titanium (1 & 2) Etc. |
|
Surface |
Anti-Rust Oil, Painting (Black, Yellow), Galvanizing, Power Coating |
|
Type |
Forging, CNC processing |
|
size |
½ inch - 24 inch |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plywood Pallet, Wooden Pallet, Wooden Case, etc. |
|
Application |
Electric Power, Oil Field, Shipbuilding, Offshore, Water Systems, Natural Gas, Pipe Projects, etc. |

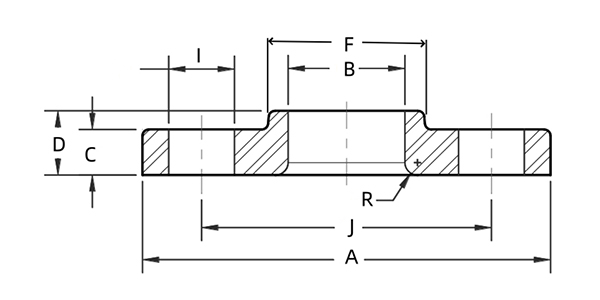

Class 150 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
88.90 |
22.90 |
11.20 |
15.70 |
3.00 |
30.20 |
4 |
15.70 |
60.45 |
0.38 |
|
¾ |
26.70 |
98.60 |
28.20 |
12.70 |
15.70 |
3.00 |
38.10 |
4 |
15.70 |
69.85 |
0.55 |
|
1 |
33.40 |
108.00 |
35.10 |
14.20 |
17.50 |
3.00 |
49.30 |
4 |
15.70 |
79.25 |
0.76 |
|
1 ¼ |
42.20 |
117.30 |
43.70 |
15.70 |
20.60 |
4.80 |
58.70 |
4 |
15.70 |
88.90 |
1.01 |
|
1 ½ |
48.30 |
127.00 |
50.00 |
17.50 |
22.40 |
6.40 |
65.00 |
4 |
15.70 |
98.60 |
1.30 |
|
2 |
60.30 |
152.40 |
62.50 |
19.10 |
25.40 |
7.90 |
77.70 |
4 |
19.10 |
120.70 |
2.03 |
|
2 ½ |
73.00 |
177.80 |
75.40 |
22.40 |
28.40 |
7.90 |
90.40 |
4 |
19.10 |
139.70 |
3.25 |
|
3 |
88.90 |
190.50 |
91.40 |
23.90 |
30.20 |
9.70 |
108.00 |
4 |
19.10 |
152.40 |
3.81 |
|
3 ½ |
101.60 |
215.90 |
104.10 |
23.90 |
31.75 |
9.70 |
122.20 |
8 |
19.10 |
177.80 |
4.76 |
|
4 |
114.30 |
228.60 |
116.80 |
23.90 |
33.30 |
11.20 |
134.90 |
8 |
19.10 |
190.50 |
5.25 |
|
5 |
141.30 |
254.00 |
114.50 |
23.90 |
36.60 |
11.20 |
163.60 |
8 |
22.40 |
215.90 |
6.02 |
|
6 |
168.30 |
279.40 |
171.50 |
25.40 |
39.60 |
12.70 |
192.00 |
8 |
22.40 |
241.30 |
7.40 |
|
8 |
219.10 |
342.90 |
222.30 |
28.40 |
44.50 |
12.70 |
246.10 |
8 |
22.40 |
298.50 |
12.10 |
|
10 |
273.00 |
406.40 |
277.40 |
30.20 |
49.30 |
12.70 |
304.80 |
12 |
25.40 |
362.00 |
16.40 |
|
12 |
323.80 |
482.60 |
328.20 |
31.75 |
55.60 |
12.70 |
365.30 |
12 |
25.40 |
431.80 |
26.10 |
|
14 |
355.60 |
533.40 |
360.20 |
35.10 |
79.25 |
12.70 |
400.10 |
12 |
28.40 |
476.30 |
34.50 |
|
16 |
406.40 |
596.90 |
411.20 |
36.60 |
87.40 |
12.70 |
457.20 |
16 |
28.40 |
539.80 |
44.60 |
|
18 |
457.20 |
635.00 |
462.30 |
39.60 |
96.80 |
12.70 |
505.00 |
16 |
31.75 |
577.90 |
48.70 |
|
20 |
508.00 |
698.50 |
514.40 |
42.90 |
103.10 |
12.70 |
558.80 |
20 |
31.75 |
635.00 |
61.60 |
|
24 |
609.60 |
812.80 |
616.00 |
47.80 |
111.30 |
12.70 |
663.40 |
20 |
35.10 |
749.30 |
86.60 |
Class 300 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
95.20 |
22.90 |
14.20 |
22.30 |
3.00 |
38.10 |
4 |
15.70 |
66.55 |
0.62 |
|
¾ |
26.70 |
117.30 |
28.20 |
15.70 |
25.40 |
3.00 |
47.70 |
4 |
19.00 |
82.50 |
1.10 |
|
1 |
33.40 |
123.90 |
35.10 |
17.50 |
26.90 |
3.00 |
53.80 |
4 |
19.00 |
88.90 |
1.33 |
|
1 ¼ |
42.20 |
133.30 |
43.70 |
19.00 |
26.90 |
4.80 |
63.50 |
4 |
19.00 |
98.50 |
1.65 |
|
1 ½ |
48.30 |
155.4 |
50.00 |
20.60 |
30.20 |
6.40 |
69.85 |
4 |
22.30 |
114.30 |
2.44 |
|
2 |
60.30 |
165.10 |
62.50 |
22.30 |
33.20 |
7.90 |
84.00 |
8 |
19.10 |
127.00 |
2.83 |
|
2 ½ |
73.00 |
190.50 |
75.40 |
25.40 |
38.10 |
7.90 |
100.00 |
8 |
22.30 |
149.30 |
4.25 |
|
3 |
88.90 |
209.50 |
91.40 |
28.40 |
42.90 |
9.70 |
117.30 |
8 |
22.30 |
168.10 |
5.78 |
|
3 ½ |
101.60 |
228.60 |
104.10 |
30.20 |
44.40 |
9.70 |
133.30 |
8 |
22.30 |
184.10 |
7.27 |
|
4 |
114.30 |
254.00 |
116.80 |
31.70 |
47.70 |
11.20 |
146.00 |
8 |
22.30 |
200.10 |
9.55 |
|
5 |
141.30 |
279.40 |
114.50 |
35.00 |
50.80 |
11.20 |
177.80 |
8 |
22.30 |
234.90 |
12.20 |
|
6 |
168.30 |
317.50 |
171.50 |
36.50 |
52.30 |
12.70 |
206.20 |
12 |
22.30 |
267.70 |
15.50 |
|
8 |
219.10 |
381.00 |
222.30 |
41.10 |
61.90 |
12.70 |
260.30 |
12 |
25.40 |
330.20 |
24.10 |
|
10 |
273.00 |
444.50 |
277.40 |
47.70 |
95.20 |
12.70 |
320.50 |
16 |
28.40 |
387.30 |
34.40 |
|
12 |
323.80 |
520.70 |
328.20 |
50.80 |
101.60 |
12.70 |
374.60 |
16 |
31.70 |
450.80 |
50.40 |
|
14 |
355.60 |
584.20 |
360.20 |
53.80 |
111.20 |
12.70 |
425.40 |
20 |
31.70 |
514.3 |
70.90 |
|
16 |
406.40 |
647.70 |
411.20 |
57.15 |
120.60 |
12.70 |
482.60 |
20 |
35.00 |
571.50 |
89.50 |
|
18 |
457.20 |
711.20 |
462.30 |
60.45 |
130.00 |
12.70 |
533.40 |
24 |
35.00 |
628.60 |
111.00 |
|
20 |
508.00 |
774.70 |
514.40 |
63.50 |
139.70 |
12.70 |
587.20 |
24 |
35.00 |
685.80 |
137.00 |
|
24 |
609.60 |
914.40 |
616.00 |
69.80 |
152.40 |
12.70 |
701.50 |
24 |
41.10 |
812.80 |
204.00 |
Class 400 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
95.30 |
22.90 |
14.20 |
22.40 |
3.00 |
38.10 |
4 |
15.70 |
66.55 |
0.72 |
|
¾ |
26.70 |
117.30 |
28.20 |
15.70 |
25.40 |
3.00 |
47.80 |
4 |
19.10 |
82.60 |
1.25 |
|
1 |
33.40 |
124.00 |
35.10 |
17.50 |
26.90 |
3.00 |
53.80 |
4 |
19.10 |
88.90 |
1.50 |
|
1 ¼ |
42.20 |
133.40 |
43.70 |
20.60 |
28.40 |
4.80 |
63.50 |
4 |
19.10 |
98.60 |
2.00 |
|
1 ½ |
48.30 |
155.40 |
50.00 |
22.40 |
31.75 |
6.40 |
69.85 |
4 |
22.40 |
114.30 |
2.92 |
|
2 |
60.30 |
165.10 |
62.50 |
25.40 |
36.60 |
7.90 |
84.10 |
8 |
19.10 |
127.00 |
3.55 |
|
2 ½ |
73.00 |
190.50 |
75.40 |
28.40 |
41.10 |
7.90 |
100.10 |
8 |
22.40 |
149.40 |
5.23 |
|
3 |
88.90 |
209.60 |
91.40 |
31.75 |
46.00 |
9.70 |
117.30 |
8 |
22.40 |
168.10 |
6.95 |
|
3 ½ |
101.60 |
228.60 |
104.10 |
35.10 |
49.30 |
9.70 |
133.40 |
8 |
25.40 |
184.20 |
8.78 |
|
4 |
114.30 |
254.00 |
116.80 |
35.10 |
50.80 |
11.20 |
146.10 |
8 |
25.40 |
200.20 |
10.90 |
|
5 |
141.30 |
279.40 |
114.50 |
38.10 |
53.80 |
11.20 |
177.80 |
8 |
25.40 |
235.00 |
13.70 |
|
6 |
168.30 |
317.50 |
171.50 |
41.10 |
57.15 |
12.70 |
206.20 |
12 |
25.40 |
269.70 |
18.00 |
|
8 |
219.10 |
381.00 |
222.30 |
47.80 |
68.30 |
12.70 |
260.40 |
12 |
28.40 |
330.20 |
28.30 |
|
10 |
273.00 |
445.00 |
277.40 |
53.80 |
101.60 |
12.70 |
320.50 |
16 |
31.75 |
387.40 |
38.80 |
|
12 |
323.80 |
520.70 |
328.20 |
57.15 |
108.00 |
12.70 |
374.70 |
16 |
35.10 |
450.90 |
56.60 |
|
14 |
355.60 |
584.20 |
360.2 |
60.45 |
117.30 |
12.70 |
425.50 |
20 |
35.10 |
514.40 |
78.60 |
|
16 |
406.40 |
647.70 |
411.20 |
63.50 |
127.00 |
12.70 |
482.60 |
20 |
38.10 |
571.50 |
100.00 |
|
18 |
457.20 |
711.20 |
462.30 |
66.55 |
136.70 |
12.70 |
533.40 |
24 |
38.10 |
628.70 |
122.00 |
|
20 |
508.00 |
774.70 |
514.40 |
69.85 |
146.10 |
12.70 |
587.20 |
24 |
41.10 |
685.80 |
145.00 |
|
24 |
609.60 |
914.40 |
616.00 |
76.20 |
158.80 |
12.70 |
701.50 |
24 |
47.80 |
812.80 |
217.00 |
Class 600 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
95.30 |
22.90 |
14.20 |
22.40 |
3.00 |
38.10 |
4 |
15.70 |
66.55 |
0.72 |
|
¾ |
26.70 |
117.30 |
28.20 |
15.70 |
25.40 |
3.00 |
47.80 |
4 |
19.10 |
82.60 |
1.25 |
|
1 |
33.40 |
124.00 |
35.10 |
17.50 |
26.90 |
3.00 |
53.80 |
4 |
19.10 |
88.90 |
1.50 |
|
1 ¼ |
42.20 |
133.40 |
43.70 |
20.60 |
28.40 |
4.80 |
63.50 |
4 |
19.10 |
98.60 |
2.00 |
|
1 ½ |
48.30 |
155.4 |
50.00 |
22.40 |
31.75 |
6.40 |
69.85 |
4 |
22.40 |
114.30 |
2.92 |
|
2 |
60.30 |
165.10 |
62.50 |
25.40 |
36.60 |
7.90 |
84.10 |
8 |
19.10 |
127.00 |
3.55 |
|
2 ½ |
73.00 |
190.50 |
75.40 |
28.40 |
41.10 |
7.90 |
100.10 |
8 |
22.40 |
149.40 |
5.23 |
|
3 |
88.90 |
209.60 |
91.40 |
31.75 |
46.00 |
9.70 |
117.30 |
8 |
22.40 |
168.10 |
6.95 |
|
3 ½ |
101.60 |
228.60 |
104.10 |
35.10 |
49.30 |
9.70 |
133.40 |
8 |
25.40 |
184.20 |
8.78 |
|
4 |
114.30 |
273.10 |
116.80 |
38.10 |
53.80 |
11.20 |
152.40 |
8 |
25.40 |
215.9 |
14.40 |
|
5 |
141.30 |
330.20 |
114.50 |
44.50 |
60.45 |
11.20 |
189.00 |
8 |
28.40 |
266.70 |
24.30 |
|
6 |
168.30 |
355.60 |
171.50 |
47.80 |
66.55 |
12.70 |
222.30 |
12 |
28.40 |
292.10 |
28.50 |
|
8 |
219.10 |
419.10 |
222.30 |
55.60 |
76.20 |
12.70 |
273.10 |
12 |
31.75 |
349.30 |
43.10 |
|
10 |
273.00 |
508.00 |
277.40 |
63.50 |
111.30 |
12.70 |
342.90 |
16 |
35.10 |
431.80 |
70.50 |
|
12 |
323.80 |
558.80 |
328.20 |
66.55 |
117.30 |
12.70 |
400.10 |
20 |
35.10 |
489.00 |
86.10 |
|
14 |
355.60 |
603.30 |
360.20 |
69.85 |
127.00 |
12.70 |
431.80 |
20 |
38.10 |
527.10 |
100.00 |
|
16 |
406.40 |
685.80 |
411.20 |
76.20 |
139.70 |
12.70 |
495.30 |
20 |
41.10 |
603.30 |
145.00 |
|
18 |
457.20 |
743.00 |
462.30 |
82.60 |
152.40 |
12.70 |
546.10 |
20 |
44.50 |
654.10 |
177.00 |
|
20 |
508.00 |
812.80 |
514.40 |
88.90 |
165.10 |
12.70 |
609.60 |
24 |
44.50 |
723.90 |
225.00 |
|
24 |
609.60 |
939.80 |
616.00 |
101.60 |
184.20 |
12.70 |
717.60 |
24 |
50.80 |
838.20 |
318.00 |
Class 900 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
120.60 |
22.90 |
22.30 |
31.70 |
3.00 |
38.10 |
4 |
22.30 |
82.50 |
1.71 |
|
¾ |
26.70 |
130.00 |
28.20 |
25.40 |
35.00 |
3.00 |
44.40 |
4 |
22.30 |
88.90 |
2.30 |
|
1 |
33.40 |
149.30 |
35.10 |
28.40 |
41.10 |
3.00 |
52.30 |
4 |
25.40 |
101.60 |
3.40 |
|
1 ¼ |
42.20 |
158.70 |
43.70 |
28.40 |
41.10 |
4.80 |
63.50 |
4 |
25.40 |
111.20 |
3.85 |
|
1 ½ |
48.30 |
177.80 |
50.00 |
31.70 |
44.40 |
6.40 |
69.85 |
4 |
28.40 |
123.90 |
5.28 |
|
2 |
60.30 |
215.90 |
62.50 |
38.10 |
57.15 |
7.90 |
104.60 |
8 |
25.40 |
165.10 |
9.78 |
|
2 ½ |
73.00 |
244.30 |
75.40 |
41.10 |
63.50 |
7.90 |
123.90 |
8 |
28.40 |
190.50 |
13.60 |
|
3 |
88.90 |
241.30 |
91.40 |
38.10 |
53.80 |
9.70 |
127.00 |
8 |
25.40 |
190.50 |
11.30 |
|
4 |
114.30 |
292.10 |
116.80 |
44.40 |
69.85 |
11.20 |
158.70 |
8 |
31.70 |
234.90 |
19.20 |
|
5 |
141.30 |
349.20 |
114.50 |
50.80 |
79.25 |
11.20 |
190.50 |
8 |
35.00 |
279.40 |
31.20 |
|
6 |
168.30 |
381.00 |
171.50 |
55.60 |
85.80 |
12.70 |
234.90 |
12 |
31.70 |
317.50 |
40.50 |
|
8 |
219.10 |
469.90 |
222.30 |
63.50 |
114.30 |
12.70 |
298.40 |
12 |
38.10 |
393.70 |
71.50 |
|
10 |
273.00 |
546.10 |
277.40 |
69.85 |
127.00 |
12.70 |
368.30 |
16 |
38.10 |
469.90 |
104.00 |
|
12 |
323.80 |
609.60 |
328.20 |
79.25 |
142.70 |
12.70 |
419.10 |
20 |
38.10 |
533.40 |
139.00 |
|
14 |
355.60 |
641.30 |
360.20 |
85.80 |
155.40 |
12.70 |
450.80 |
20 |
41.10 |
558.80 |
161.00 |
|
16 |
406.40 |
704.80 |
411.20 |
88.90 |
165.10 |
12.70 |
508.00 |
20 |
44.40 |
615.90 |
194.00 |
|
18 |
457.20 |
787.40 |
462.30 |
101.60 |
190.50 |
12.70 |
565.10 |
20 |
50.80 |
685.80 |
267.00 |
|
20 |
508.00 |
857.20 |
514.40 |
107.90 |
209.50 |
12.70 |
622.30 |
20 |
53.80 |
749.30 |
334.00 |
|
24 |
609.60 |
1041.40 |
616.00 |
139.70 |
266.70 |
12.70 |
749.30 |
20 |
66.55 |
901.70 |
618.00 |
Class 1500 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
120.60 |
22.90 |
22.30 |
31.70 |
3.00 |
38.10 |
4 |
22.30 |
82.50 |
1.71 |
|
¾ |
26.70 |
130.00 |
28.20 |
25.40 |
35.00 |
3.00 |
44.40 |
4 |
22.30 |
88.90 |
2.30 |
|
1 |
33.40 |
149.30 |
35.10 |
28.40 |
41.10 |
3.00 |
52.30 |
4 |
25.40 |
101.60 |
3.40 |
|
1 ¼ |
42.20 |
158.70 |
43.70 |
28.40 |
41.10 |
4.80 |
63.50 |
4 |
25.40 |
111.20 |
3.85 |
|
1 ½ |
48.30 |
177.80 |
50.00 |
31.70 |
44.40 |
6.40 |
69.85 |
4 |
28.40 |
123.90 |
5.28 |
|
2 |
60.30 |
215.90 |
62.50 |
38.10 |
57.15 |
7.90 |
104.60 |
8 |
25.40 |
165.10 |
9.78 |
|
2 ½ |
73.00 |
244.30 |
75.40 |
41.10 |
63.50 |
7.90 |
123.90 |
8 |
28.40 |
190.50 |
13.60 |
|
3 |
88.90 |
266.70 |
91.40 |
47.70 |
73.15 |
9.70 |
133.30 |
8 |
31.70 |
203.2 |
17.80 |
|
4 |
114.30 |
311.10 |
116.80 |
53.80 |
90.40 |
11.20 |
162.00 |
8 |
35.00 |
241.30 |
27.50 |
|
5 |
141.30 |
374.60 |
114.50 |
73.15 |
104.60 |
11.20 |
196.80 |
8 |
41.10 |
292.10 |
51.50 |
|
6 |
168.30 |
399.70 |
171.50 |
82.50 |
119.10 |
12.70 |
228.60 |
12 |
38.10 |
317.50 |
62.00 |
|
8 |
219.10 |
482.6 |
222.30 |
91.90 |
142.70 |
12.70 |
292.10 |
12 |
44.40 |
393.70 |
105.00 |
|
10 |
273.00 |
584.20 |
277.40 |
107.90 |
177.80 |
12.70 |
368.30 |
12 |
50.80 |
482.60 |
179.00 |
|
12 |
323.80 |
673.10 |
328.20 |
123.90 |
218.90 |
12.70 |
450.80 |
16 |
53.80 |
571.50 |
269.00 |
|
14 |
355.60 |
749.30 |
360.20 |
133.30 |
241.30 |
12.70 |
495.30 |
16 |
60.45 |
635.00 |
365.00 |
|
16 |
406.40 |
825.50 |
411.20 |
146.00 |
260.30 |
12.70 |
552.40 |
16 |
66.55 |
704.80 |
459.00 |
|
18 |
457.20 |
914.40 |
462.30 |
162.00 |
276.30 |
12.70 |
596.90 |
16 |
73.15 |
774.70 |
598.00 |
|
20 |
508.00 |
984.20 |
514.40 |
177.80 |
292.10 |
12.70 |
641.30 |
16 |
79.25 |
831.80 |
712.00 |
|
24 |
609.60 |
1168.40 |
616.00 |
203.20 |
330.20 |
12.70 |
726.00 |
16 |
91.90 |
990.60 |
1090.00 |
Class 2500 lb
|
Nominal Pipe Size |
Outside Diameter |
Overall Diameter |
Inside Diameter |
Flange Thickness |
Overall Length |
Lap Radius |
Hub Diameter |
Number of Holes |
Bolt Hole Diameter |
Diameter of Circle of Holes |
Weight |
|
in |
mm |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
R(mm) |
F(mm) |
H(mm) |
I(mm) |
J(mm) |
kg/ piece |
|
½ |
21.30 |
133.40 |
22.90 |
30.20 |
39.60 |
3.00 |
42.90 |
4 |
22.40 |
88.90 |
2.92 |
|
¾ |
26.70 |
139.70 |
28.20 |
31.75 |
42.90 |
3.00 |
50.80 |
4 |
22.40 |
95.30 |
3.40 |
|
1 |
33.40 |
158.80 |
35.10 |
35.10 |
47.80 |
3.00 |
57.15 |
4 |
25.40 |
108.00 |
4.77 |
|
1 ¼ |
42.20 |
184.20 |
43.70 |
38.10 |
52.30 |
4.80 |
73.15 |
4 |
28.40 |
130.00 |
7.08 |
|
1 ½ |
48.30 |
203.20 |
50.00 |
44.50 |
60.45 |
6.40 |
79.25 |
4 |
31.75 |
146.10 |
9.93 |
|
2 |
60.30 |
235.00 |
62.50 |
50.80 |
69.85 |
7.90 |
95.30 |
8 |
28.40 |
171.50 |
14.70 |
|
2 ½ |
73.00 |
266.70 |
75.40 |
57.15 |
79.25 |
7.90 |
114.30 |
8 |
31.75 |
196.90 |
21.30 |
|
3 |
88.90 |
304.80 |
91.40 |
66.55 |
91.90 |
9.70 |
133.40 |
8 |
35.10 |
228.60 |
32.30 |
|
4 |
114.30 |
355.60 |
116.80 |
76.20 |
108.00 |
11.20 |
165.10 |
8 |
41.10 |
273.10 |
52.50 |
|
5 |
141.30 |
419.10 |
114.50 |
91.90 |
130.00 |
11.20 |
203.20 |
8 |
47.80 |
323.90 |
82.60 |
|
6 |
168.30 |
482.60 |
171.50 |
108.00 |
152.40 |
12.70 |
235.00 |
8 |
53.80 |
368.30 |
127.00 |
|
8 |
219.10 |
552.50 |
222.30 |
127.00 |
177.80 |
12.70 |
304.80 |
12 |
53.80 |
438.20 |
186.00 |
|
10 |
273.00 |
367.10 |
277.40 |
165.10 |
228.60 |
12.70 |
374.70 |
12 |
66.55 |
539.80 |
352.00 |
|
12 |
323.80 |
762.00 |
328.20 |
184.20 |
254.00 |
12.70 |
441.50 |
12 |
73.15 |
619.30 |
501.00 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Polishing Stainless Steel Lap Joint Flange Assembly suppliers and OEM/ODM Polishing Stainless Steel Lap Joint Flange Assembly manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
Stainless Steel Pipe For Chemical are a common choice for chemical applications due to their excellent strength, corrosion resistance, and versatility. However, when exposed to acidic or alkaline chem...
View MoreStainless steel precision tubes are widely recognized for their superior dimensional accuracy, mechanical properties, and corrosion resistance, making them essential in many industrial sectors such as...
View MoreWelding is an art as much as it is a science, especially when it comes to stainless steel tube joints. The integrity and performance of these joints are heavily influenced by the welding techniques em...
View MoreWe'll never share your email address and you
can opt out at any time, we promise.
Specializing in the production of Stainless
Steel Pipe
NO.188 Binkang Road, Xixing Street, Binjiang District, Hangzhou City, Zhejiang Province, China
+86 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Hangzhou Branch Rights Reserved.
Custom Polishing Stainless Steel Lap Joint Flange Assembly Suppliers
English
русский
