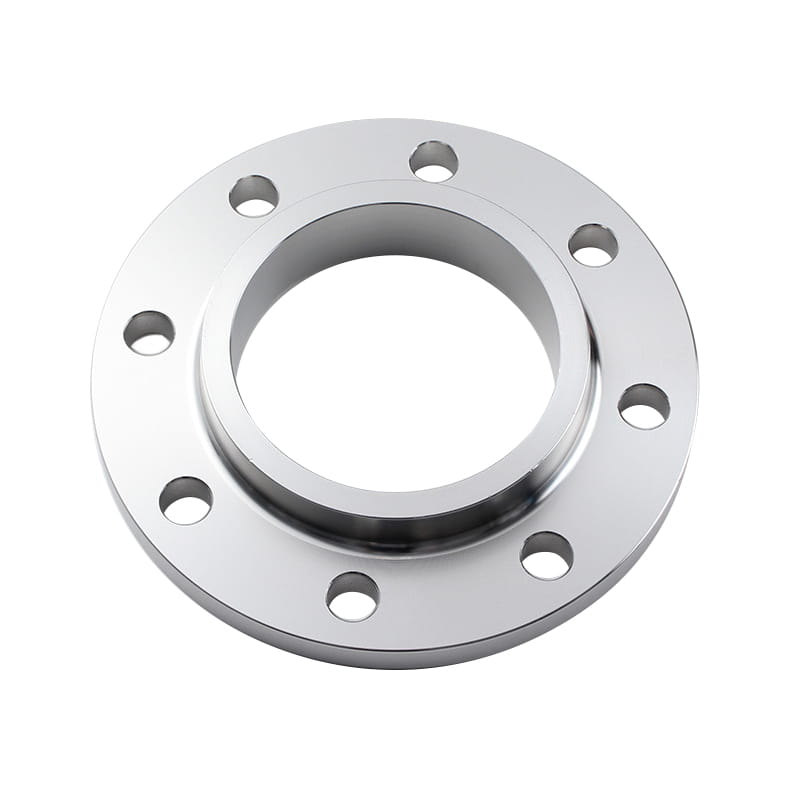

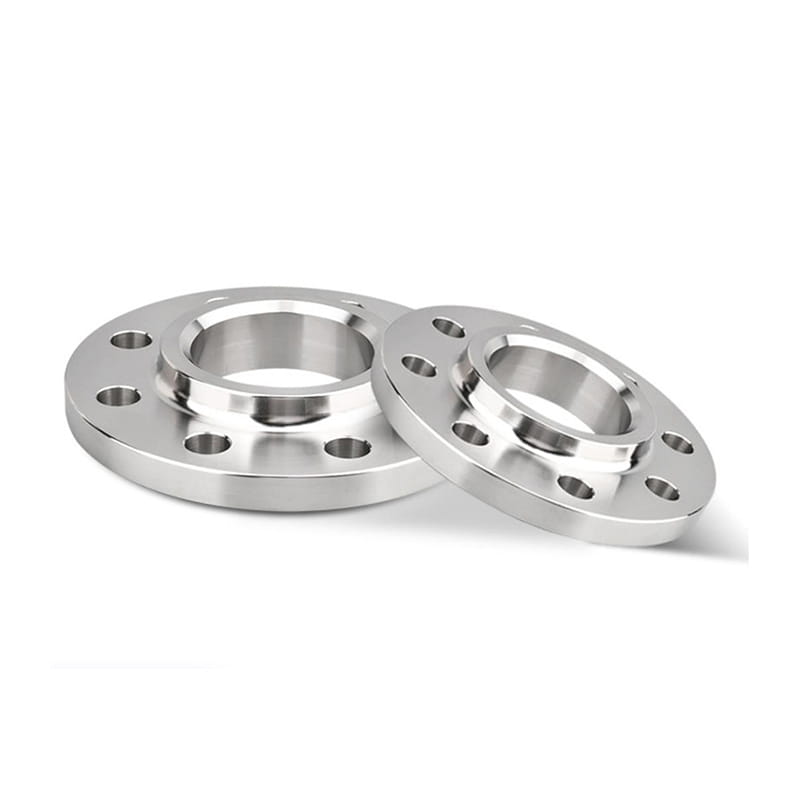

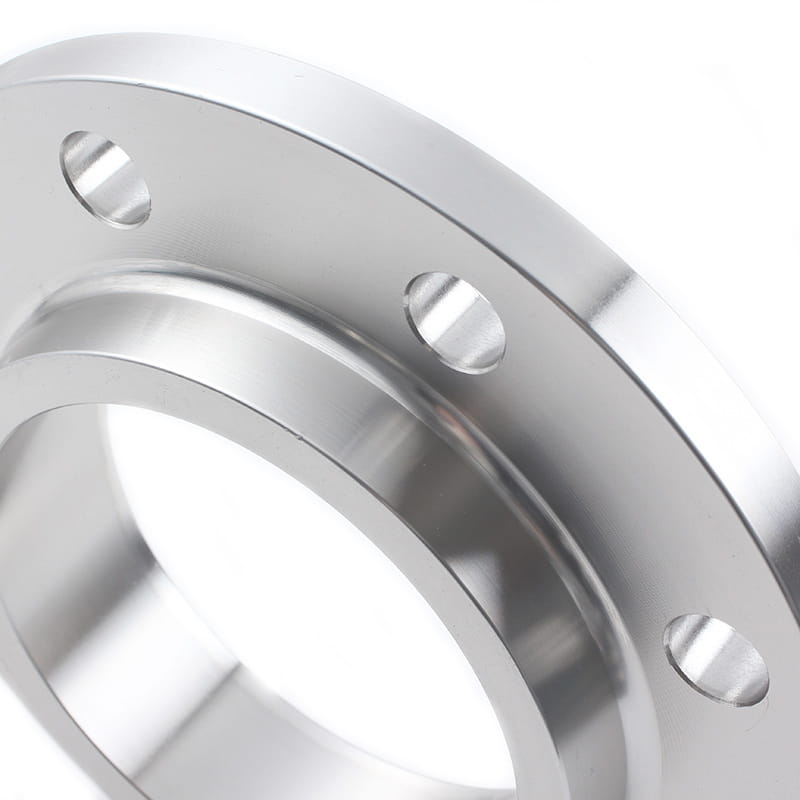

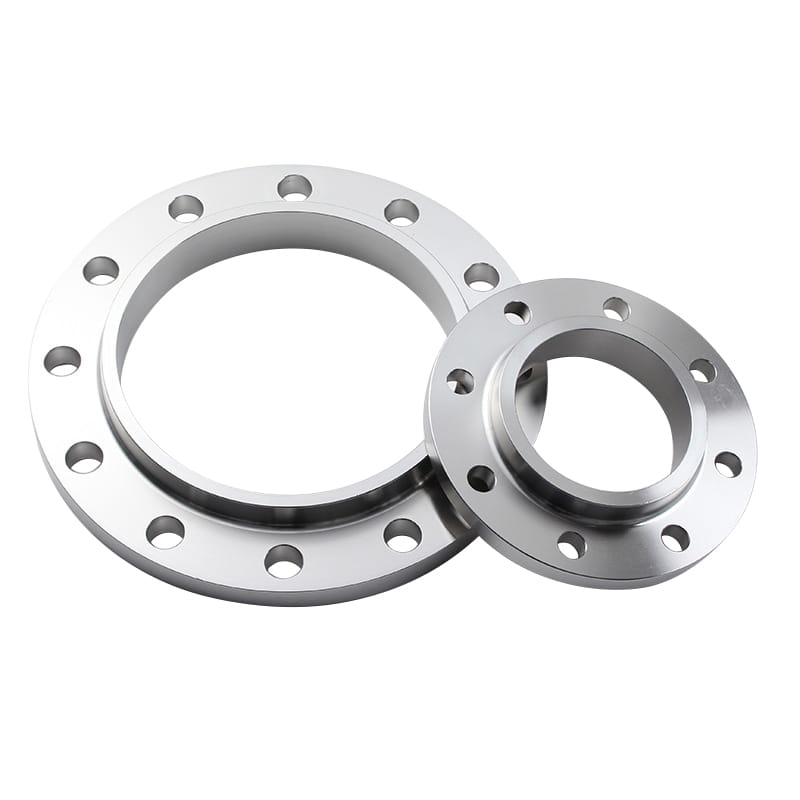

Slip-on flange, also called SO flange. They are a popular type of pipe flange designed to accept pipe into the bore/center of the flange for welding around both the Outer Diameter (OD) of the pipe and on the interior side of the connection.
This flange type is extremely common in lower-pressure applications. This is because a slip-on style flange will accept a pipe with a fillet weld connection, whereas a weld neck flange will have a reinforced hub at the base and form a weld bevel connection directly to the butt weld end of a pipe. This tapered hub allows for stronger service in a mechanical stress environment.
The advantages of slip-on flanges relate to lower procurement costs, less required skill for making the weld, lower accuracy requirement for pipe cutting, and no weld preparation requirements for a pipe end weld.
Slip-on flanges are mainly used for fluids at low pressure or with little risk of leakage. Such as petrochemical, oil and gas, cooling water lines, firefighting water lines, low-pressure compressed air lines, and process lines for substances such as steam, condensates, etc.
Introduction
|
Standard |
ASME/ANSI, API, DIN, GOST, BS, AS, JIS, JPI, UNI, SABS, etc |
|
Material |
Carbon Steel, Alloy steel, 304, 316, 304L, 316L, 321, 347, CF8C., etc |
|
Surface |
RF, FF, FM, MFM, TG, RJ, etc. |
|
Type |
Forged, Steel cutting |
|
size |
DN15-DN600 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Each flange or pipe fittings is individually packaged with bubble protective film and placed in a wooden box. |
|
Application |
petrochemical, oil and gas, cooling water lines, firefighting water lines, etc. |
|

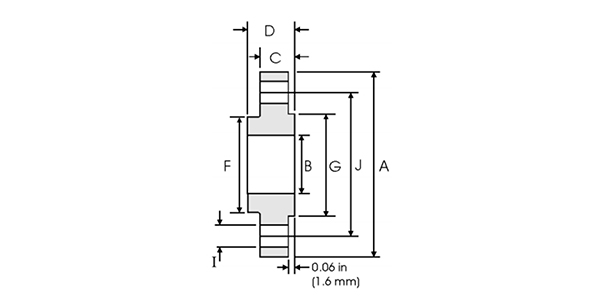

Nom. Pipe Size |
Outside Diameter (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
F (mm) |
G (mm) |
Holes (mm) |
I (mm) |
J (mm) |
Weight (kg) |
|
½ |
21.30 |
88.90 |
22.40 |
11.20 |
15.70 |
30.20 |
35.10 |
4 |
15.70 |
60.45 |
0.39 |
|
¾ |
26.70 |
98.60 |
27.70 |
12.70 |
15.70 |
38.10 |
42.90 |
4 |
15.70 |
69.85 |
0.56 |
|
1 |
33.40 |
108.00 |
34.50 |
14.20 |
17.50 |
49.30 |
50.80 |
4 |
15.70 |
79.25 |
0.78 |
|
1¼ |
42.20 |
117.30 |
43.20 |
15.70 |
20.60 |
58.70 |
63.50 |
4 |
15.70 |
88.90 |
1.03 |
|
1½ |
48.30 |
127.00 |
49.50 |
17.50 |
22.40 |
65.00 |
73.15 |
4 |
15.70 |
98.60 |
1.32 |
|
2 |
60.30 |
152.40 |
62.00 |
19.10 |
25.40 |
77.70 |
91.90 |
4 |
19.10 |
120.70 |
2.06 |
|
2½ |
73.00 |
177.80 |
74.70 |
22.40 |
28.40 |
90.40 |
140.60 |
4 |
19.10 |
139.70 |
3.28 |
|
3 |
88.90 |
190.50 |
90.70 |
23.90 |
30.20 |
108.00 |
127.00 |
4 |
19.10 |
152.40 |
3.85 |
|
3½ |
101.60 |
215.90 |
103.40 |
23.90 |
31.75 |
122.20 |
139.70 |
8 |
19.10 |
177.80 |
4.81 |
|
4 |
114.30 |
228.60 |
116.10 |
23.90 |
33.30 |
134.90 |
157.20 |
8 |
19.10 |
190.50 |
5.30 |
|
5 |
141.30 |
254.00 |
143.80 |
23.90 |
36.60 |
163.60 |
185.70 |
8 |
22.40 |
215.90 |
6.07 |
|
6 |
168.30 |
279.40 |
170.70 |
25.40 |
39.60 |
192.00 |
215.90 |
8 |
22.40 |
241.30 |
7.45 |
|
8 |
219.10 |
342.90 |
221.50 |
28.40 |
44.50 |
246.10 |
269.70 |
8 |
22.40 |
298.50 |
12.10 |
|
10 |
273.00 |
406.40 |
276.30 |
30.20 |
49.30 |
304.80 |
323.90 |
12 |
25.40 |
362.00 |
16.50 |
|
12 |
323.80 |
482.60 |
327.10 |
31.75 |
55.60 |
365.30 |
381.00 |
12 |
25.40 |
431.80 |
26.20 |
|
14 |
355.60 |
533.40 |
359.10 |
35.10 |
57.15 |
400.10 |
412.80 |
12 |
28.40 |
476.30 |
34.60 |
|
16 |
406.40 |
596.90 |
410.50 |
36.60 |
63.50 |
457.20 |
469.90 |
16 |
28.40 |
539.8 |
44.8 |
|
18 |
457.20 |
635.00 |
461.80 |
39.60 |
68.30 |
505.00 |
533.40 |
16 |
31.75 |
577.90 |
48.90 |
|
20 |
508.00 |
698.50 |
513.10 |
42.90 |
73.15 |
558.80 |
584.20 |
20 |
31.75 |
635.00 |
61.90 |
|
24 |
609.60 |
812.80 |
616.00 |
47.80 |
82.60 |
663.40 |
692.20 |
20 |
35.10 |
749.30 |
86.90 |
