A bent pipe is a pipe fitting installed between two sections of pipe or tubing to allow for a change of direction. It is able to reduce pipeline pressure changes while still moving material through complex piping systems. Short-radius tubes are bent by a set of bending equipment, usually using two processes: cold bending and hot pushing.
Stainless Steel 180° short radius tube bend has been made of high-quality stainless steel. The rigid pipe provides a stronger, longer-lasting, lower overall cost solution and is more visually appealing than a flexible hose. At the same time, they can be manufactured in different sizes, shapes, and thicknesses to meet specific design requirements.
Usually, the materials of 180-degree short radius tube bend include duplex stainless steel, stainless steel, alloy steel, etc. They are widely used in oil and gas, petrochemicals, refineries, power plants, shipbuilding, metallurgy, paper, and other industries.
Introduction
|
180° Short Radius Tube Bends |
|
|
Item |
Stainless Steel 180°Short Radius Tube Bends |
|
Standard |
ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc |
|
Material |
ANSI WP304, 304L, 316, 316L, 316Ti, 317, 317L, 321, 321H, 904L, 310S, S31803, 2205, F51, 347H |
|
Surface |
Hot DIP Galvanized |
|
Type |
Welding |
|
size |
DN10-150 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
General Exporting Cartons+Pallets |
|
Application |
For use in Pulp and Paper, Water Treatment, Sewage Treatment, Chemical, Biotech, Pharmaceuticals, Food, Mining, Architectural, Transportation, etc. |

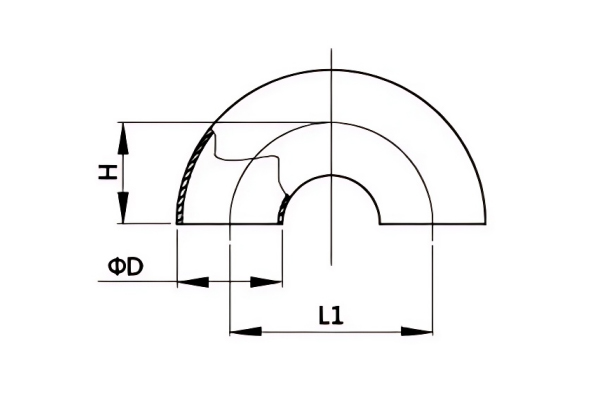

Unit: mm
|
Size |
L1 |
D |
H |
Wt.Ea |
|
DN10 |
52.0 |
12.0 |
26.0 |
1.65 |
|
DN15 |
70.0 |
18.0 |
35.0 |
1.65 |
|
40.0DN20 |
80.0 |
22.0 |
40.0 |
1.65 |
|
DN25 |
100.0 |
28.0 |
50.0 |
1.65 |
|
DN32 |
110.0 |
34.0 |
55.0 |
1.65 |
|
DN40 |
120.0 |
40.0 |
60.0 |
1.65 |
|
DN50 |
140.0 |
52.0 |
70.0 |
1.65 |
|
DN65 |
160.0 |
70.0 |
80.0 |
1.65 |
|
DN80 |
180.0 |
85.0 |
90.0 |
1.65 |
|
DN100 |
200.0 |
104.0 |
100.0 |
2.10 |
|
DN125 |
375.0 |
128.1 |
187.5 |
2.10 |
|
DN150 |
450.0 |
154.0 |
225.0 |
2.80 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China U Shape Bend 304 Stainless Steel 180°Short Radius Tube Bends suppliers and OEM/ODM U Shape Bend 304 Stainless Steel 180°Short Radius Tube Bends manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
