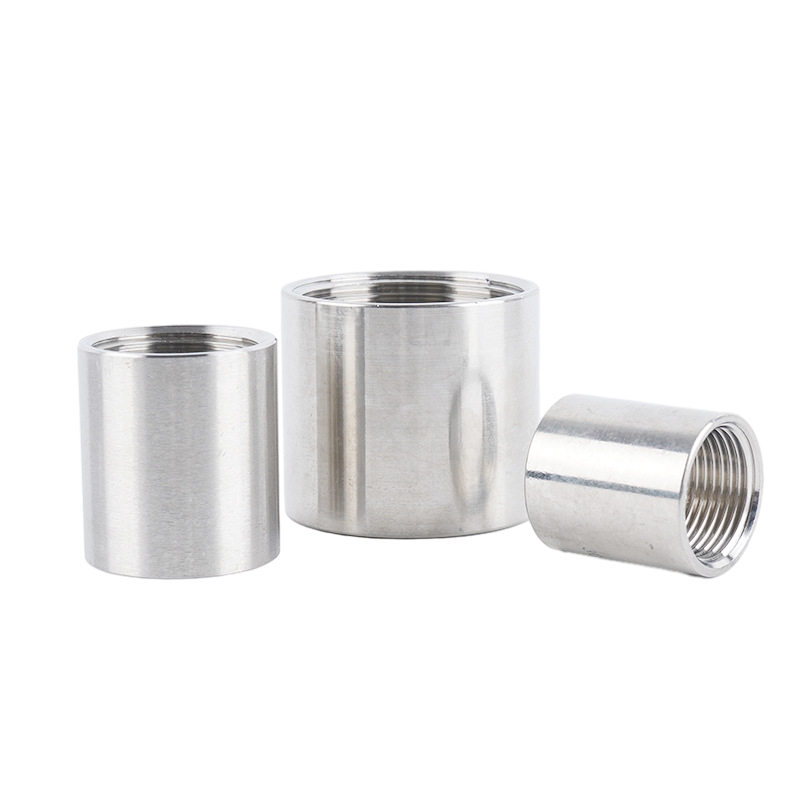

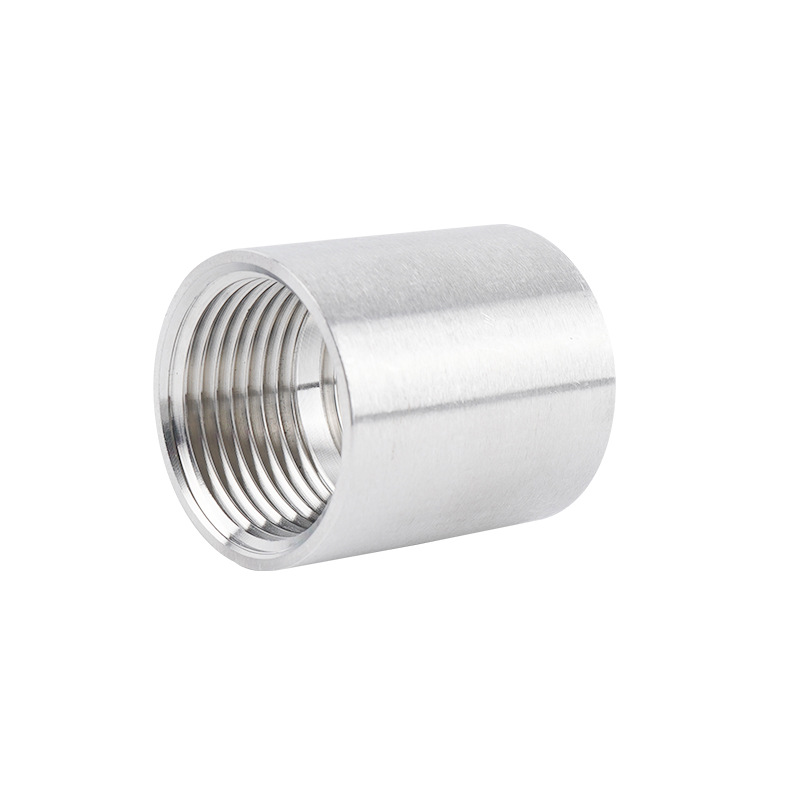

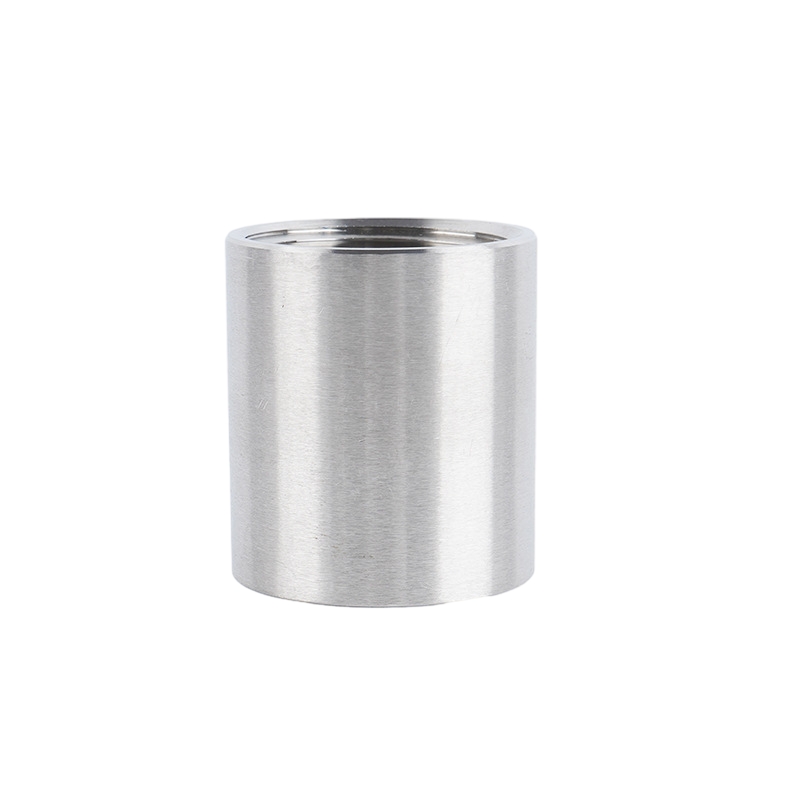

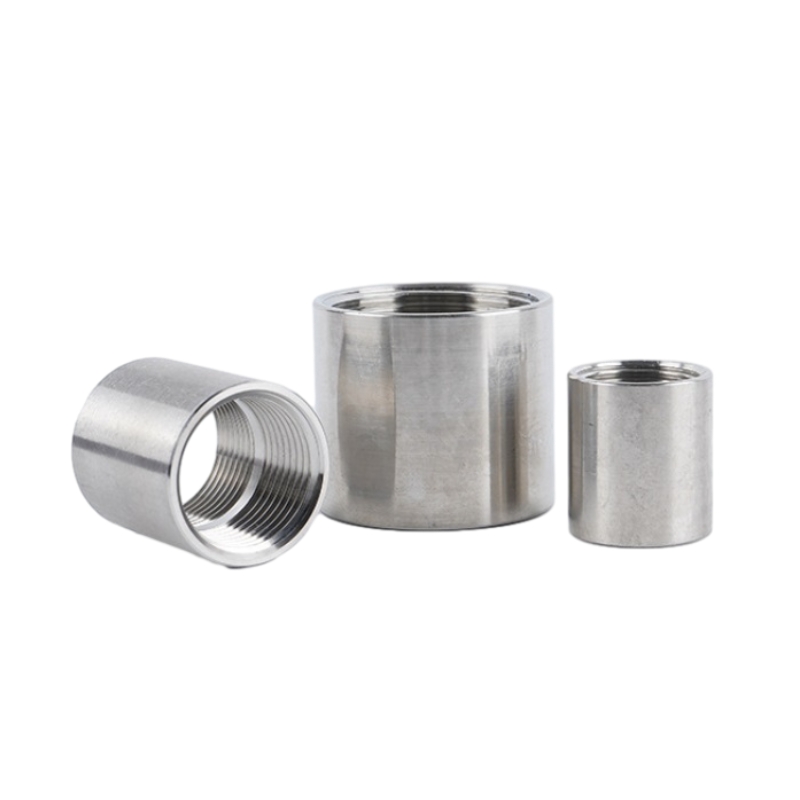

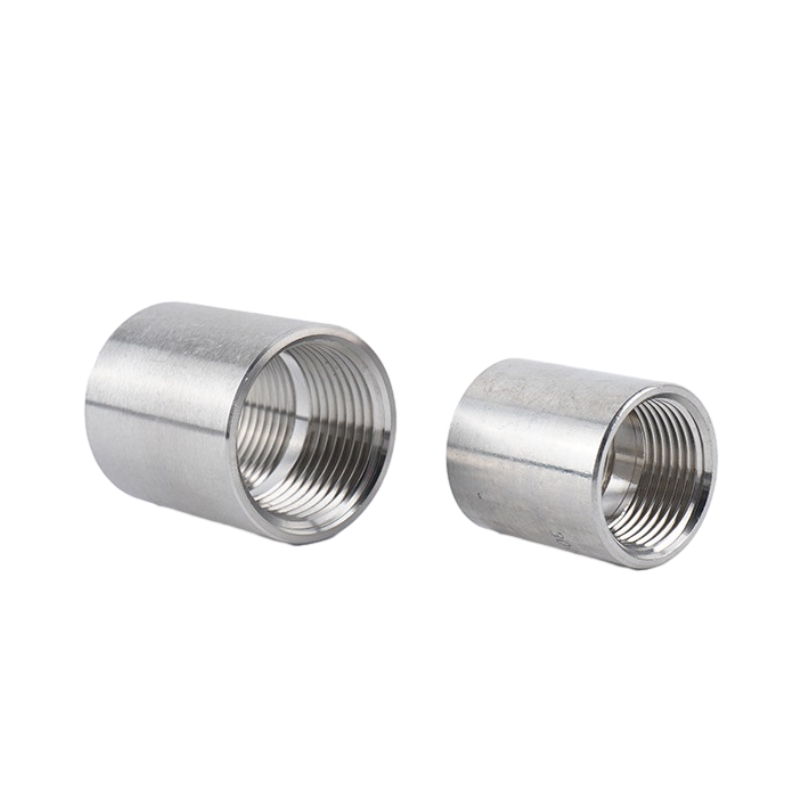

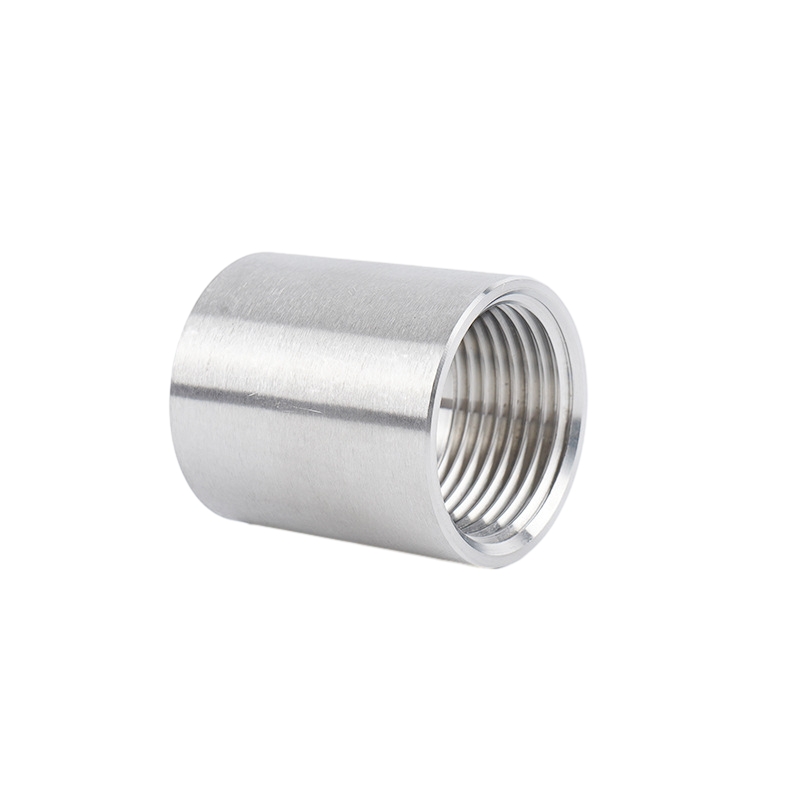

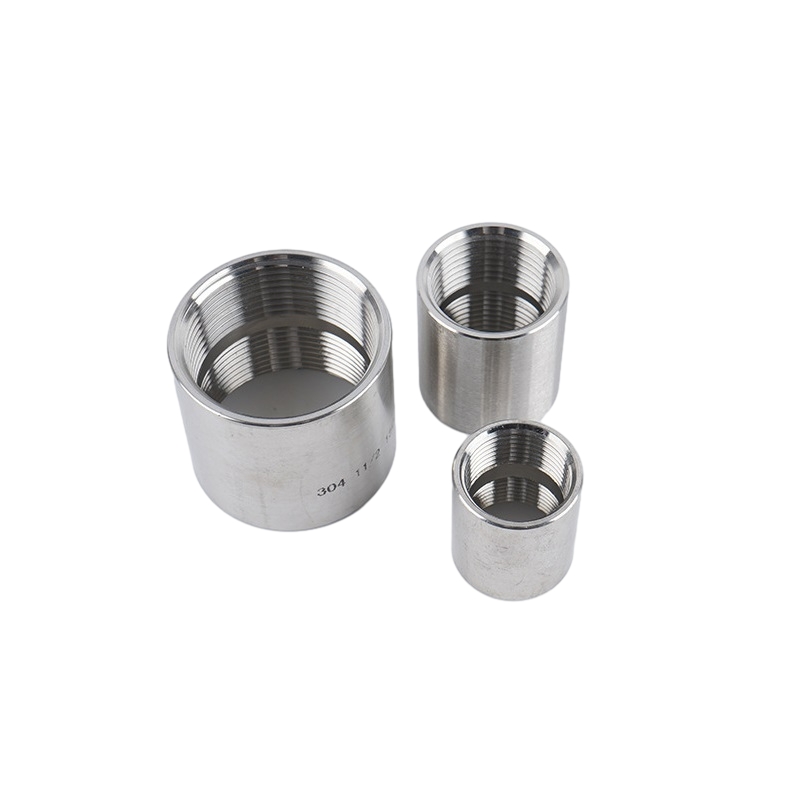

The threaded couplings have a straight channel and an internal thread connection. They are suitable for piping systems in many industries, used to extend pipes, connect pipes, or connect with other accessories, through the straight channel of the inner wire joint, so that the fluid can pass through the joint smoothly.
They can be manufactured with many kinds of steel, such as carbon, galvanized, stainless, or black. Since stainless steel has excellent corrosion resistance and high-temperature resistance and is suitable for the transportation and control of a variety of media, it is considered the best material and is widely used.
Unlike other pipe-fitting connectors, it is highly flexible and adjustable. Stainless steel thread couplings usually have threads and are used to mate with the threaded portion of the pipe or pipe to achieve fastening and connection.
Stainless steel threaded couplings are sized based on specific needs and applications. Common specifications include grade of material, thread type, thread size, pipe diameter, length and surface treatment, etc. According to the design and requirements of the piping system, select the appropriate size to achieve a tight and stable connection effect.
Introduction
|
Item |
Stainless Steel Threaded Couplings |
|
Standard |
ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, BS3799, ASTM A733, etc. |
|
Material |
SS201, SS304/CF8, SS316/CF8M and so on |
|
Surface |
CNC machined, anti-rust oil, brushed |
|
Type |
Cast |
|
size |
DN6-100 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Pallets/Plywood Cases |
|
Application |
The petrochemical industry; aviation and aerospace industry; pharmaceutical industry, gas exhaust; power plant; ship building; water treatment, etc. |
|

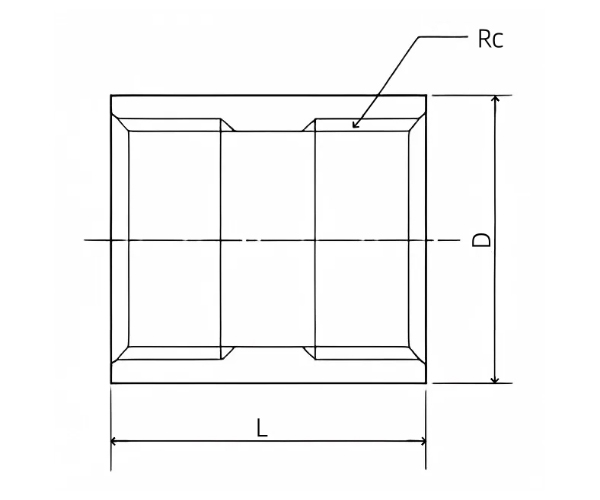

Size |
Thread |
Size(mm) |
||
|
A(mm) |
B(IN) |
Rc |
D |
L |
|
6 |
1/8 |
Rc 1/8 |
15 |
23 |
|
8 |
1/4 |
Rc 1/4 |
19 |
29 |
|
10 |
3/8 |
Rc 3/8 |
22 |
30 |
|
15 |
1/2 |
Rc 1/2 |
27 |
36.5 |
|
20 |
3/4 |
Rc 3/4 |
33 |
38.5 |
|
25 |
1 |
Rc 1 |
40 |
43.5 |
|
32 |
1 1/4 |
Rc 1 1/4 |
49 |
49.5 |
|
40 |
1 1/2 |
Rc 1 1/2 |
55.5 |
52.5 |
|
50 |
2 |
Rc 2 |
68 |
62.5 |
|
65 |
2 1/2 |
Rc 2 1/2 |
83 |
73 |
|
80 |
3 |
Rc 3 |
97 |
81 |
|
100 |
4 |
Rc 4 |
125 |
93 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China 3000 lb Stainless Steel Cast Female Threaded Couplings Pipe Fitting suppliers and OEM/ODM 3000 lb Stainless Steel Cast Female Threaded Couplings Pipe Fitting manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
