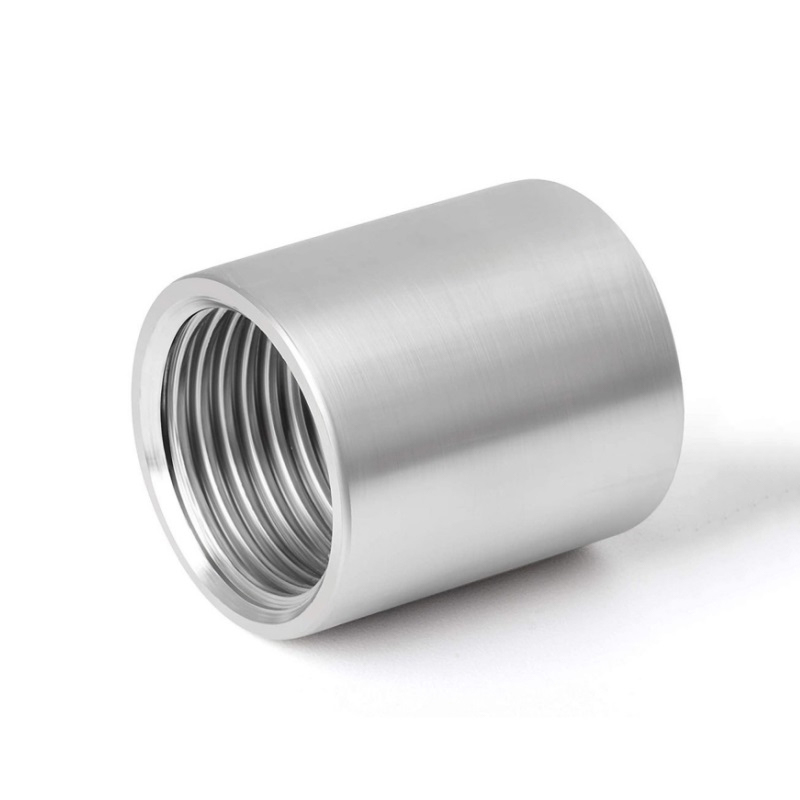

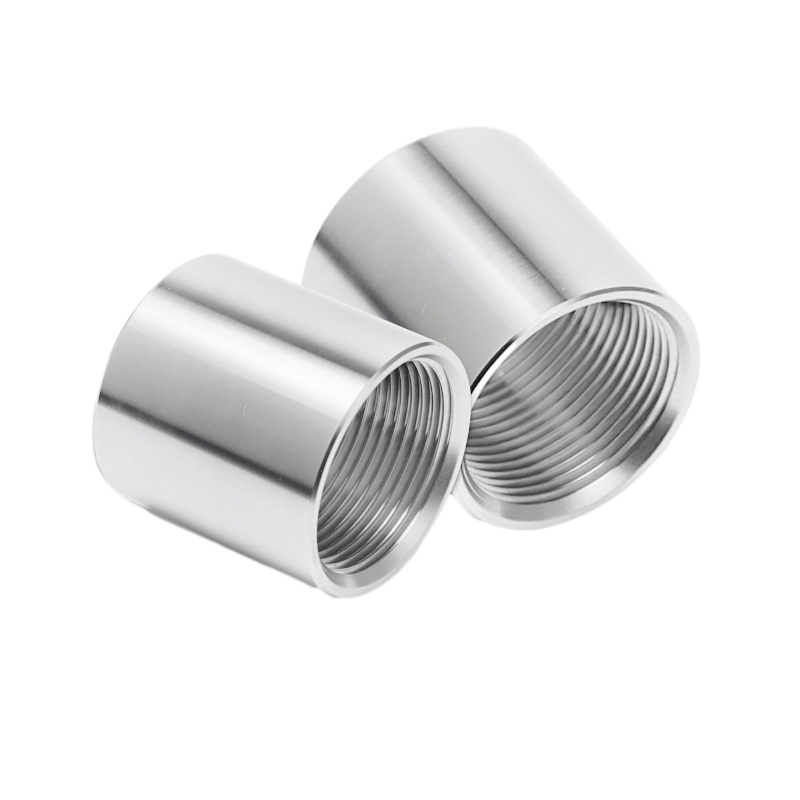

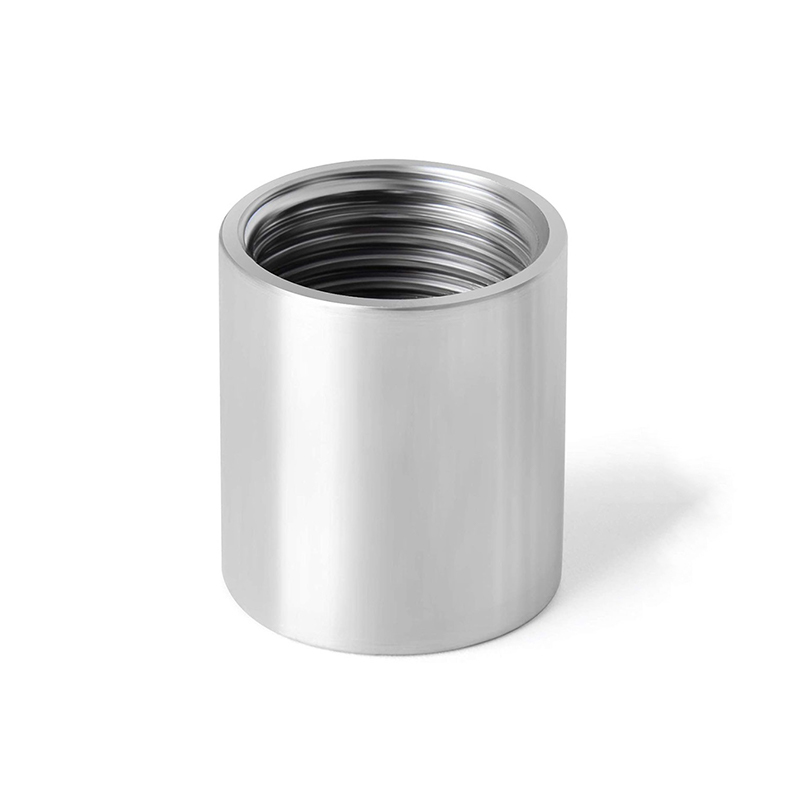

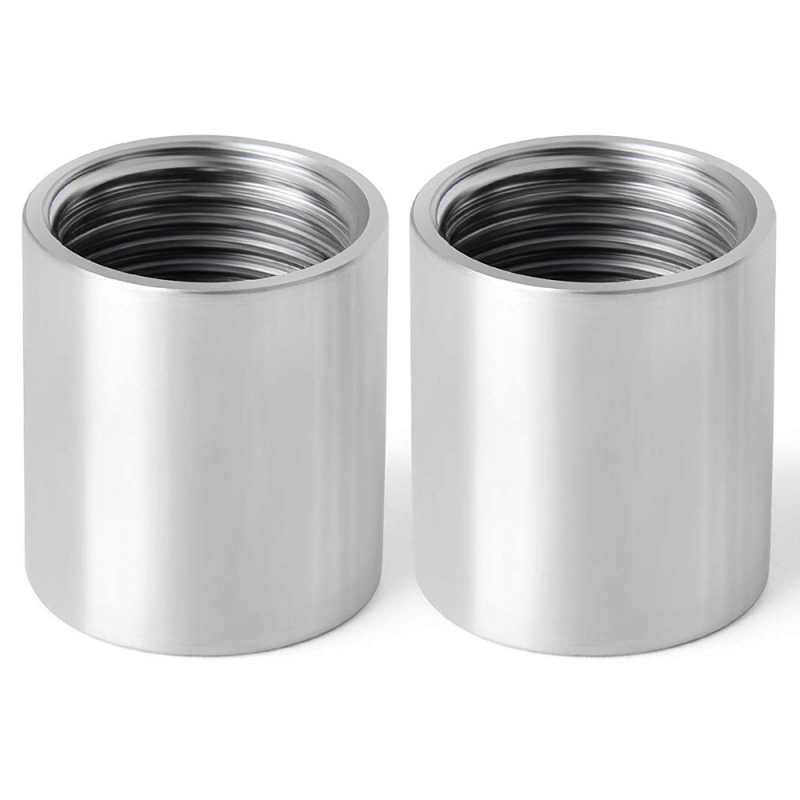

Half Coupling is also called Half Socket which is a Pipe Fitting for extending and connecting pipes. Female NPT threads for connecting to the male pipe. The half coupling has threads for creating tighter seals than straight threads.
Stainless steel 304, and 316 stand out for their enhanced durability and resistance to corrosive elements, making them a reliable choice for demanding applications.
Type 304 stainless steel is a chromium-nickel material that resists corrosion caused by water, heat, salt water, acids, minerals, and peat soil. Type 316 stainless steel has a higher nickel content than 304 stainless steel, which, combined with molybdenum, provides greater corrosion resistance.
To ensure the quality and compatibility of different systems.150# stainless steel half couplings are ideal for general use and reduce the risk of operational disruption due to part failure or incompatibility. Use Class 3000 fittings in high-pressure applications, and use PTFE tape to secure the seal.
Stainless steel threaded half coupling suitable for a variety of applications in harsh environments. Like electric power, chemical engineering, shipbuilding, nuclear energy, garbage disposal, natural gas; petroleum oil etc.
Introduction
|
Item |
Stainless Steel Half Coupling |
|
Standard |
ASME A182, ASME B16.11, ASME B1.20.1, ISO 9001:2008 |
|
Material |
304 Stainless Steel |
|
Surface |
Polished |
|
Type |
Cast, silica colloidal solution craft |
|
size |
DN6-100 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Carton/ Plywood cases |
|
Application |
Hot and Cold Water, Oil, Gas, and other medium |

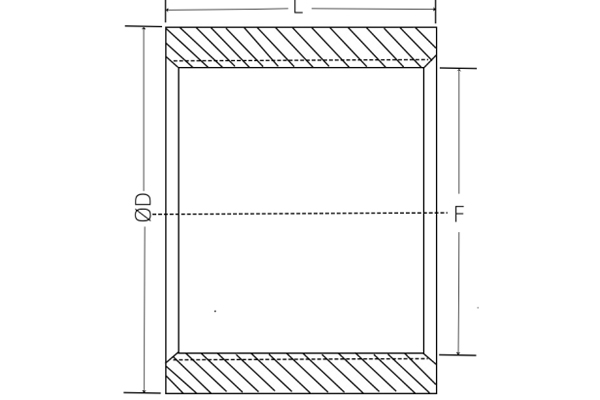

Unit: mm
|
DN |
Size |
F |
Ø D |
L |
Wt.Ea |
|
6 |
1/8" |
9.2 |
13.2 |
24.0 |
2.3 |
|
8 |
1/4" |
11.8 |
15.8 |
25.0 |
2.3 |
|
10 |
3/8" |
15.2 |
20 |
26.0 |
2.4 |
|
15 |
1/2" |
19 |
24.1 |
30.0 |
2.6 |
|
20 |
3/4" |
24.2 |
30.5 |
32.0 |
2.8 |
|
25 |
1" |
31 |
36.5 |
38.0 |
3 |
|
32 |
1 1/4" |
39 |
45 |
43.0 |
3 |
|
40 |
1 1/2" |
45 |
51.5 |
45.0 |
3 |
|
50 |
2" |
57 |
63 |
50.0 |
3 |
|
65 |
2 1/2" |
72 |
81 |
55.0 |
3.8 |
|
80 |
3" |
85.5 |
94.5 |
62.0 |
4.2 |
|
100 |
4" |
110 |
119 |
72.0 |
4.2 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China NPT Female Threaded Half Coupling 3,000# Cast Ss Pipe Fittings suppliers and OEM/ODM NPT Female Threaded Half Coupling 3,000# Cast Ss Pipe Fittings manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
