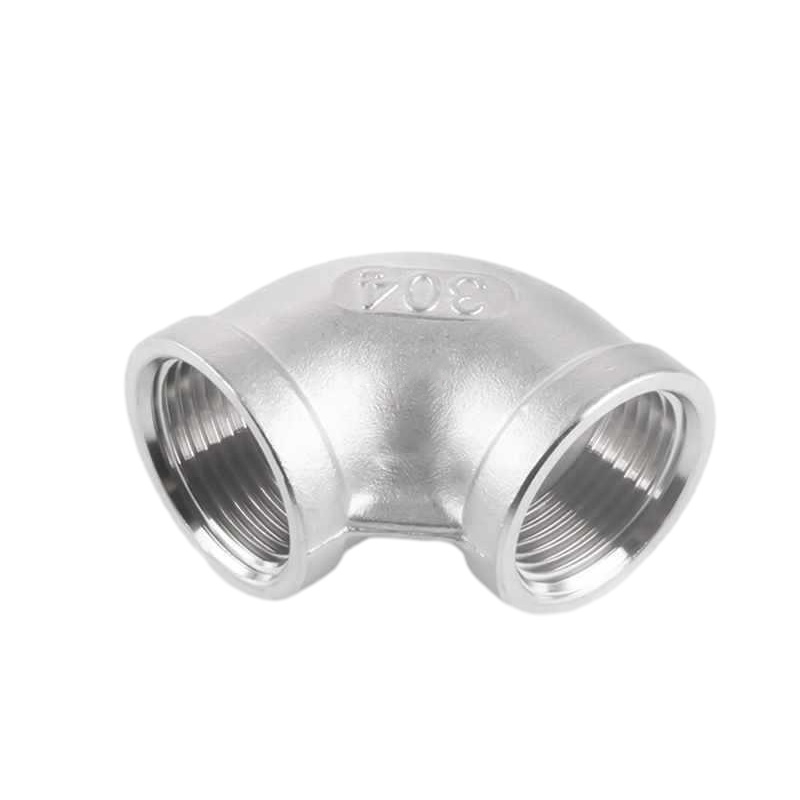

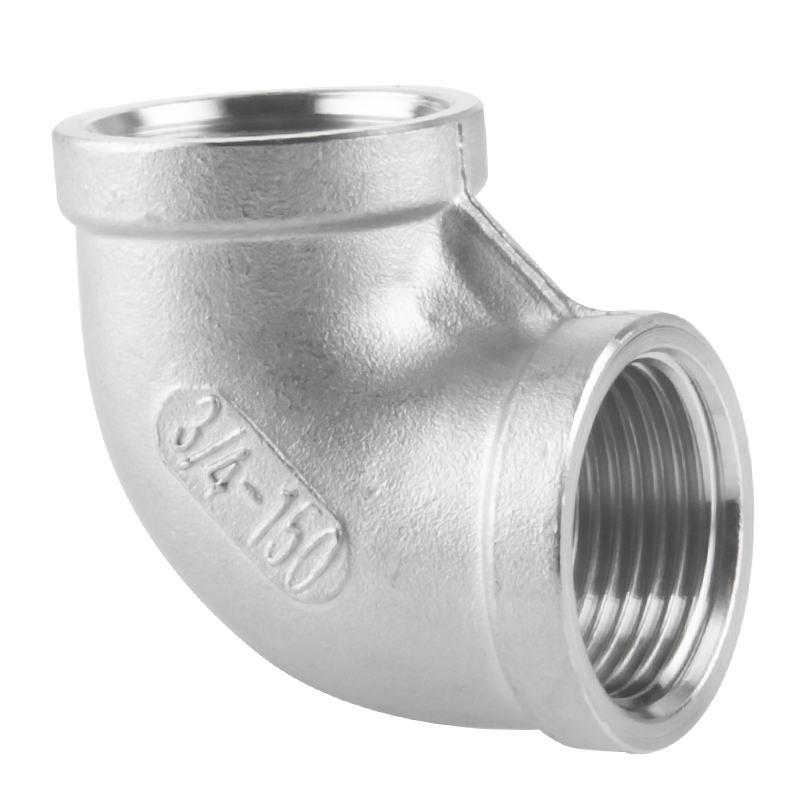

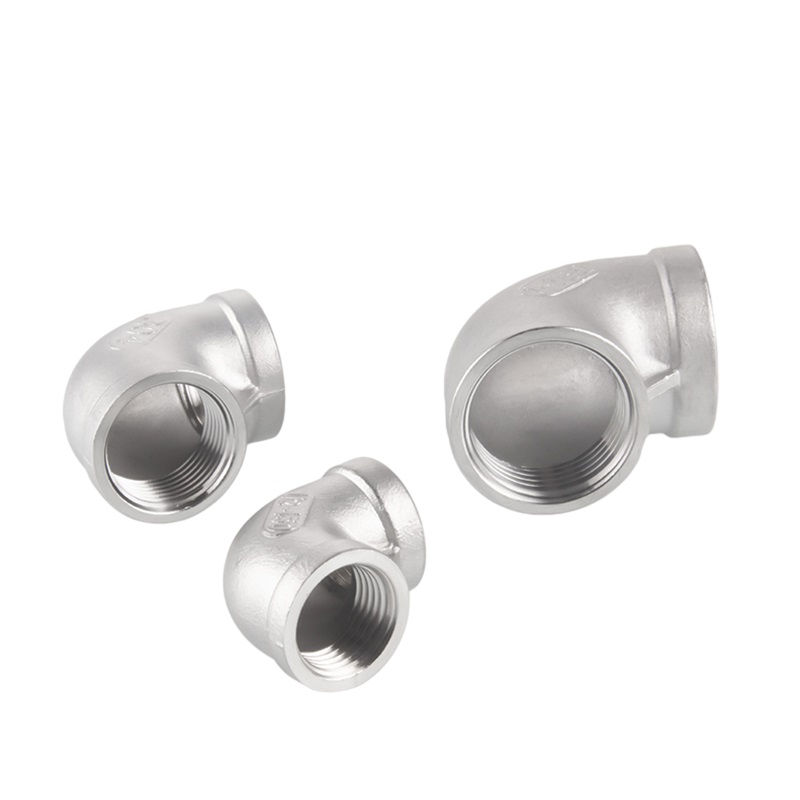

Female threaded Stainless steel 90°Elbow is used to change direction of the pipes by its female threads on two sides. It’s an important fitting in pipe system,it plays a role for bending the pipe direction. It adds pressure losses to the system due to friction, impact and re-acceleration. The connect of stainless steel 90° elbow is very simple, it doesn’t required for professional tools so that it is easy yo install and disassemble.

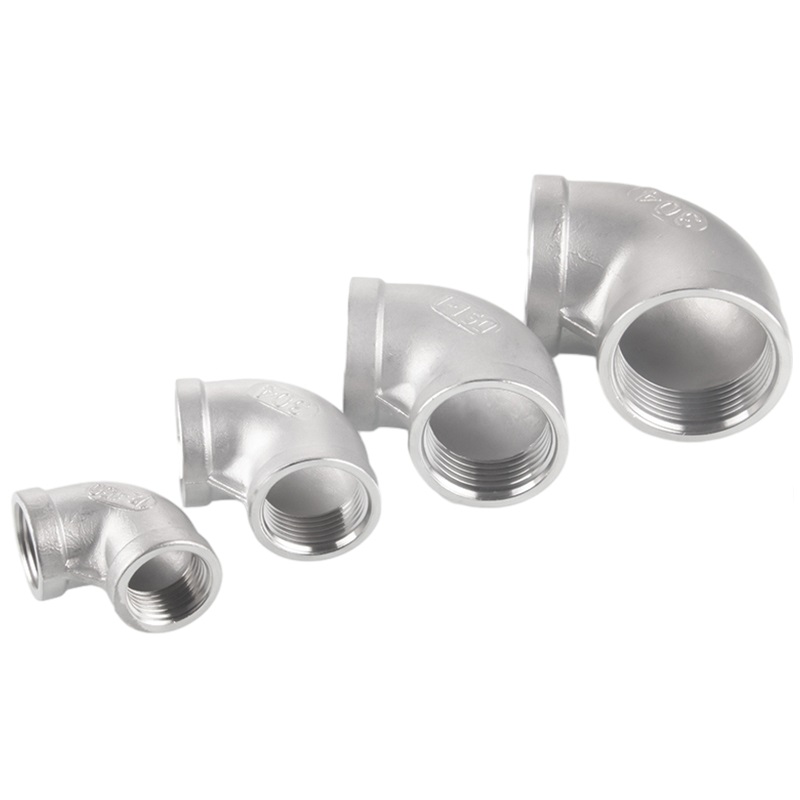

Usually, the 90°threaded elbow dimensions range between DN 6~ 100. These kinds o elbows are designed in pressure classes of 3000, 6000, and 9000 LBS. The surface of threaded can be epoxy coated, galvanized, polished, etc.

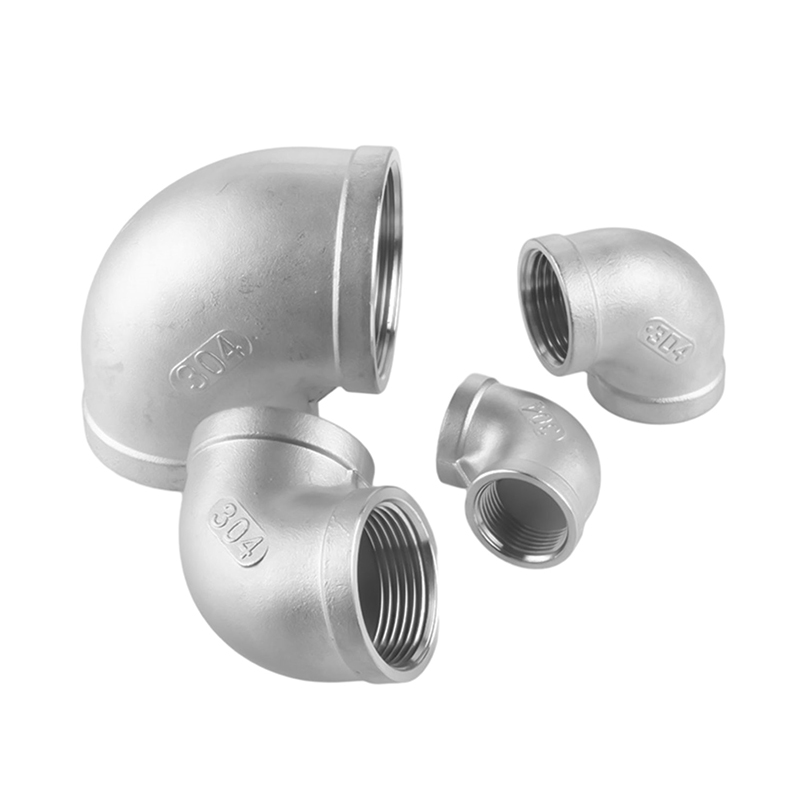

Stainless steel 304 is a trusted material that can withstand a variety of corrosive materials and chemicals, can be easily cleaned, and offers increased strength and durability. They are widely used as fluid pipe, boiler pipe, drill pipe, hydraulic pip and every kind of corrosive suitable for stainless steel.
Introduction
|
Item |
Stainless Steel Threaded 90°Elbows |
|
Standard |
ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313 |
|
Material Grades |
Grades 304 & 316 |
|
Surface |
Anti-Rust Oil, Hot Dipped Galvanized, Customized. |
|
Type |
Investment Casting |
|
size |
DN 6-100 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Packing: plywood case or fumigated wooden case or as per customers' requests. |
|
Application |
They are widely used as a fluid pipe, boiler pipe, drill pipe, hydraulic pip,e and every kind of corrosive suitable for stainless steel. |

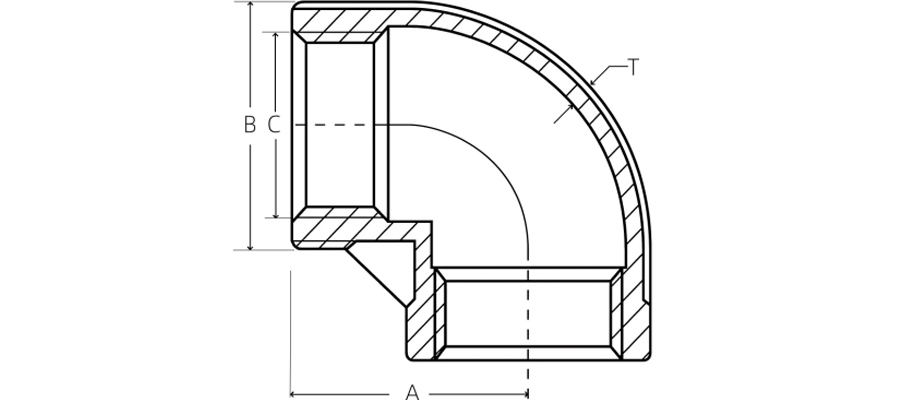

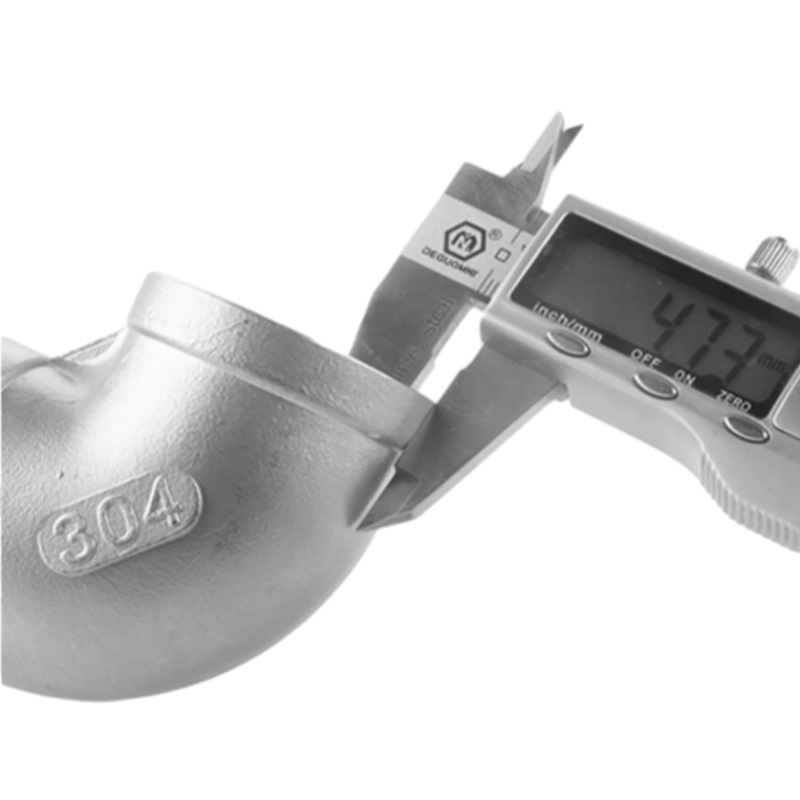

Unit: mm
|
DN |
NPS |
A |
B |
T |
C |
||||||
|
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
|||
|
6 |
1/8" |
21 |
21 |
25 |
22 |
22 |
25 |
3.18 |
3.18 |
6.35 |
Rp 1/8" |
|
8 |
1/4" |
21 |
25 |
28 |
22 |
25 |
33 |
3.18 |
3.30 |
6.60 |
Rp 1/4" |
|
10 |
3/8" |
25 |
28 |
33 |
25 |
33 |
38 |
3.18 |
3.51 |
6.98 |
Rp 3/8" |
|
15 |
1/2" |
28 |
33 |
38 |
33 |
38 |
46 |
3.18 |
4.09 |
8.15 |
Rp 1/2" |
|
20 |
3/4" |
33 |
38 |
44 |
38 |
46 |
56 |
3.18 |
4.32 |
8.53 |
Rp 3/4" |
|
25 |
1" |
38 |
44 |
51 |
46 |
56 |
62 |
3.68 |
4.98 |
9.93 |
Rp 1" |
|
32 |
1 1/4" |
44 |
51 |
60 |
56 |
62 |
75 |
3.89 |
5.28 |
10.59 |
Rp 1.25" |
|
40 |
1 1/2" |
51 |
60 |
64 |
62 |
75 |
84 |
4.01 |
5.56 |
11.07 |
Rp 1.5" |
|
50 |
2" |
60 |
64 |
83 |
75 |
84 |
102 |
4.27 |
7.14 |
12.09 |
Rp 2" |
|
65 |
2 1/2" |
76 |
83 |
95 |
92 |
102 |
121 |
5.61 |
7.65 |
15.29 |
Rp 2.5" |
|
80 |
3" |
86 |
95 |
106 |
109 |
121 |
146 |
5.99 |
8.84 |
16.64 |
Rp 3" |
|
100 |
4" |
106 |
114 |
114 |
146 |
152 |
152 |
6.55 |
11.18 |
18.67 |
Rp 4" |
