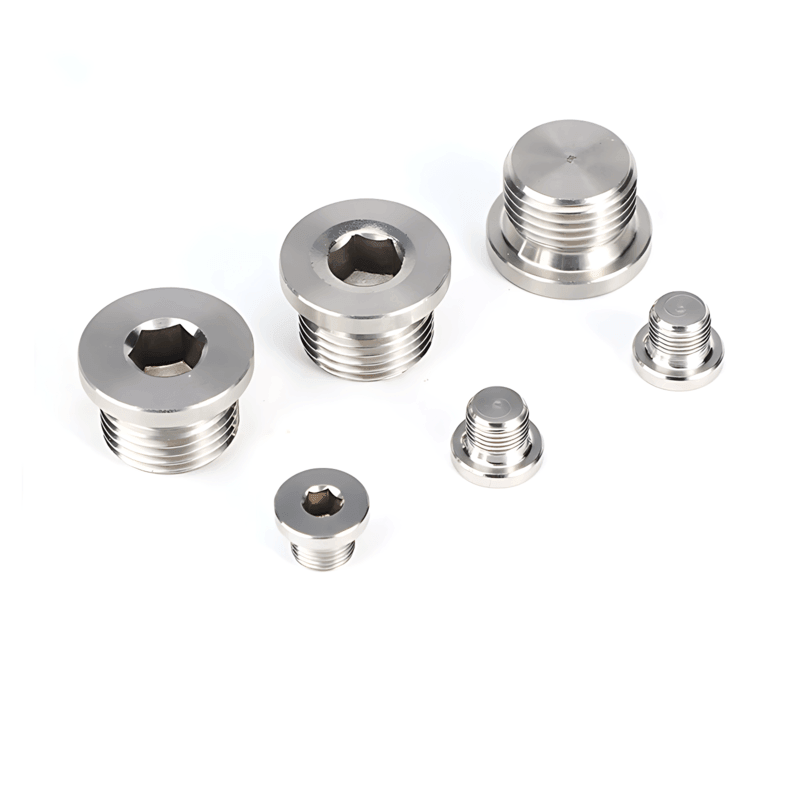

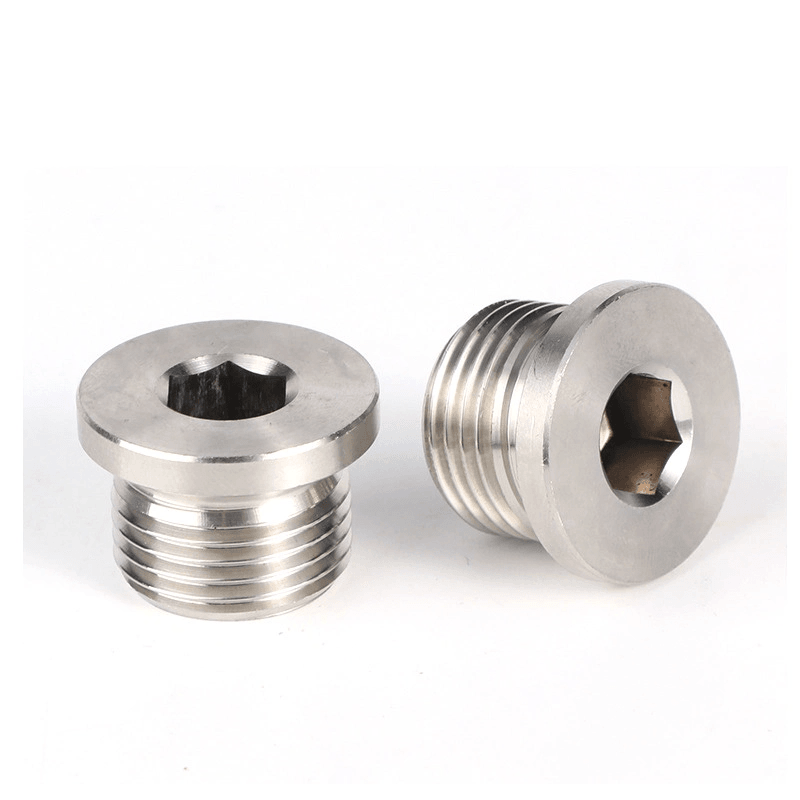

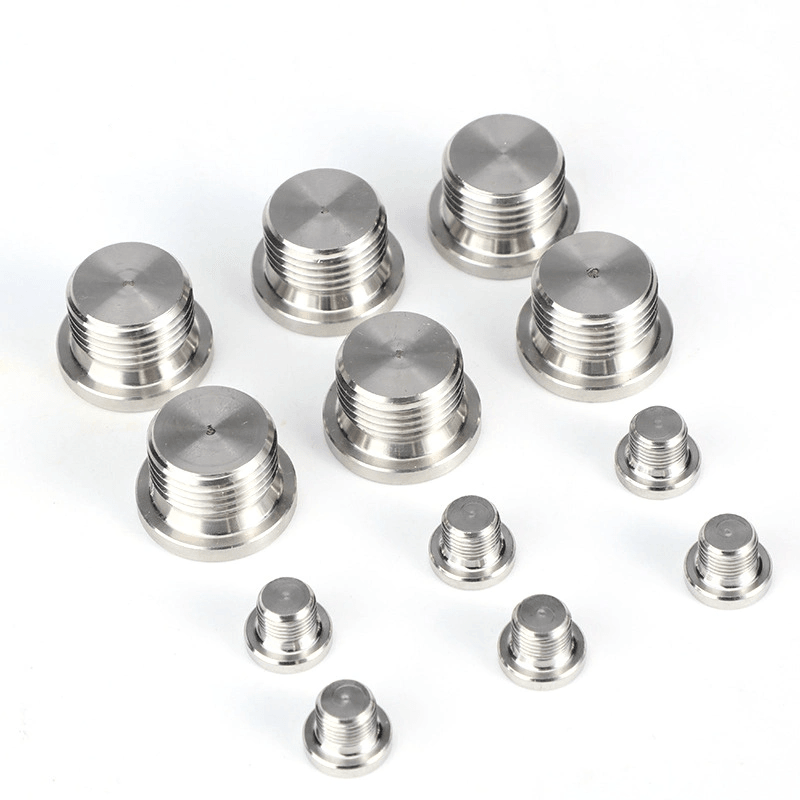

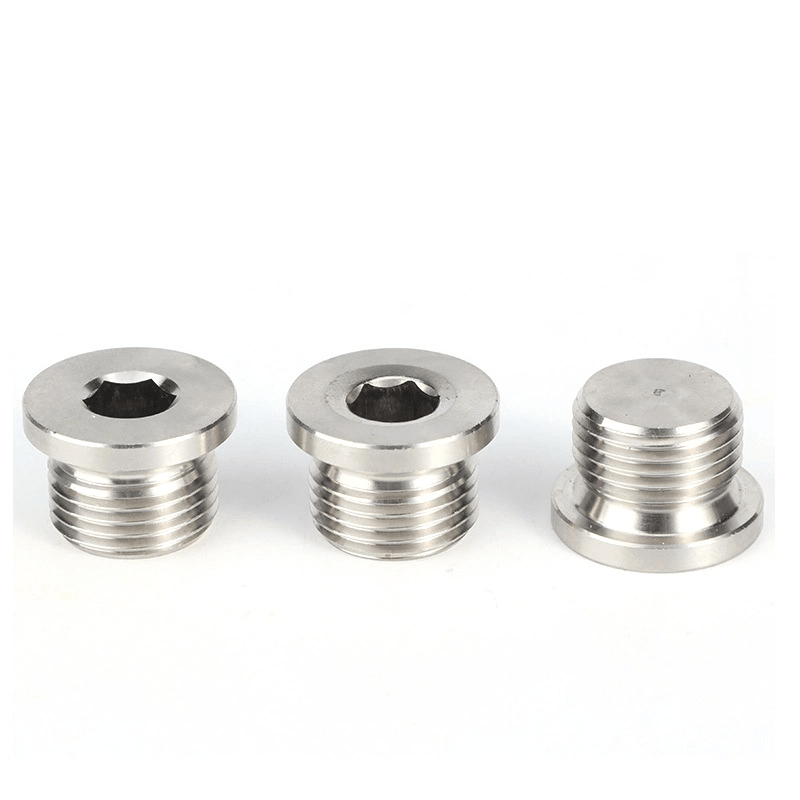

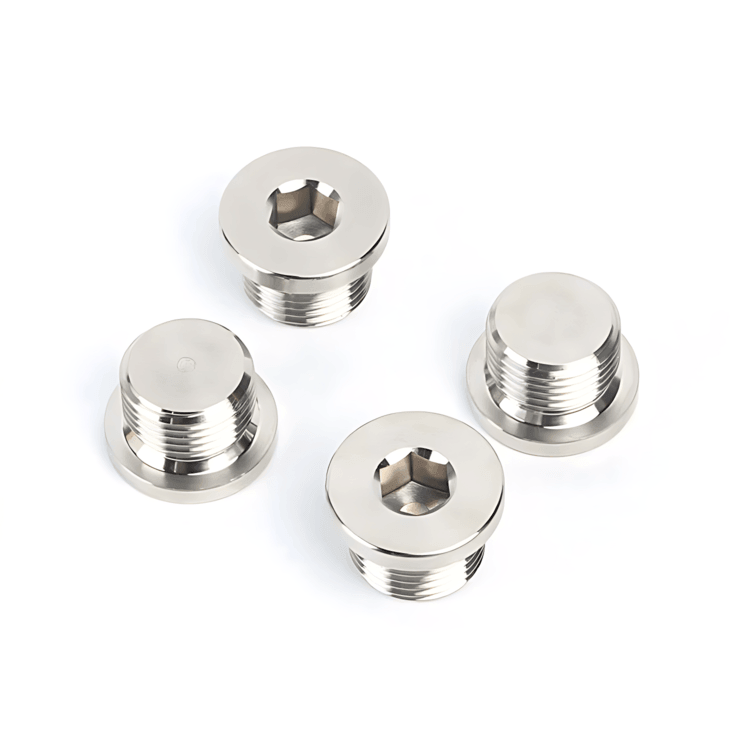

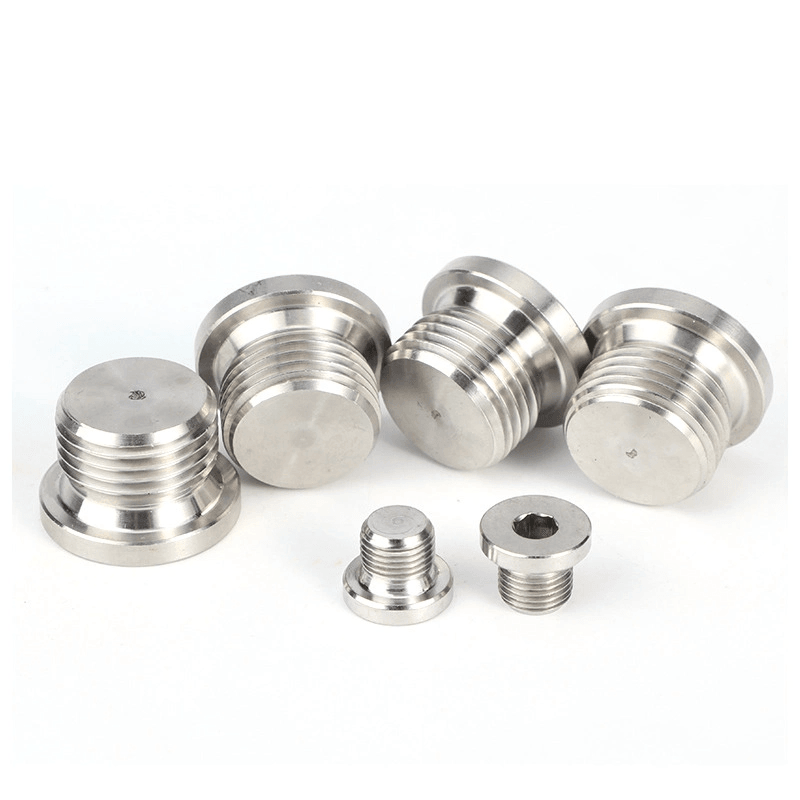

Threaded plugs are used to close boreholes with cylindrical internal thread. They are a type of pipe fittings used in the plumbing apparatus of both industrial and domestic water supply lines, machinery, and so on.
Features male National Pipe Taper (NPT) threads for closing the end of a female threaded pipe. Plugs are inserted into female pipes or fittings and connect with NPT threads, which create a tighter seal than straight threads. The tightness depends on the material, the pressure, the temperature as well as the material pairing.
The stainless steel threaded plugs are an easy and cost-effective way to plug your pipe. They are used for the ends of shafts, tubes, pipes, fittings, connectors, screws, bars, or other shapes.
These pipe plugs are often plated with chrome or nickel for a finish and better resistance to corrosion. They can resist corrosion caused by water, heat, saltwater, acids, minerals, peaty soils, etc.
These pipe plugs come in a piece body design and the easy-to-replace plug assembly makes these industrial pipe fittings very easy to maintain and clean.
Introduction
|
Standard |
ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API, etc |
|
Material |
Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/ 317L/ F321/ F310/ 347/ 904 |
|
Surface |
Shot-blasted, rust-proof black oil |
|
Type |
Casting |
|
size |
M8-56 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Polybag+Carton+Pallet |
|
Application |
Petroleum, chemical, power, gas, water, pipeline, heat exchanger, shipbuilding, construction, high&low pressure pipeline, etc |
|

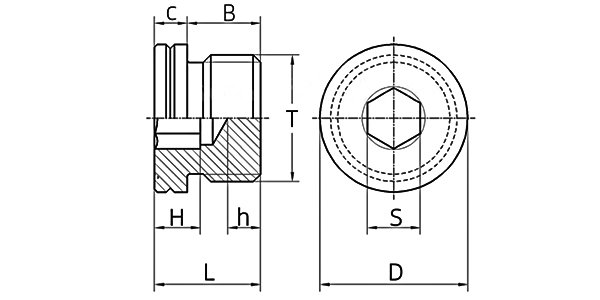

Thread Size |
Pitch |
D |
S |
C |
B |
L |
H |
|
M8 |
1 |
12 |
4 |
3 |
8 |
11 |
5 |
|
M10 |
1 |
14 |
5 |
3 |
8 |
11 |
5 |
|
M12 |
1.5 |
17 |
6 |
3 |
12 |
15 |
7 |
|
M14 |
1.5 |
19 |
6 |
3 |
12 |
15 |
7 |
|
M16 |
1.5 |
22 |
8 |
3 |
12 |
15 |
7.5 |
|
M18 |
1.5 |
24 |
8 |
4 |
12 |
16 |
7.5 |
|
M20 |
1.5 |
27 |
10 |
4 |
14 |
18 |
7.5 |
|
M22 |
1.5 |
27 |
10 |
4 |
14 |
18 |
7.5 |
|
M24 |
1.5 |
29 |
12 |
4 |
14 |
18 |
7.5 |
|
M26 |
1.5 |
31 |
12 |
4 |
16 |
20 |
9 |
|
M27 |
2 |
32 |
12 |
4 |
16 |
20 |
9 |
|
M30 |
1.5 |
36 |
17 |
4 |
16 |
20 |
9 |
|
M33 |
2 |
41 |
17 |
5 |
16 |
21 |
9 |
|
M36 |
1.5 |
42 |
19 |
5 |
16 |
21 |
10.5 |
|
M38 |
1.5 |
44 |
19 |
5 |
16 |
21 |
10.5 |
|
M42 |
1.5 |
50 |
22 |
5 |
16 |
21 |
10.5 |
|
M45 |
1.5 |
52 |
22 |
5 |
16 |
21 |
10.5 |
|
M48 |
1.5 |
55 |
24 |
5 |
16 |
21 |
10.5 |
|
M52 |
1.5 |
60 |
24 |
5 |
16 |
21 |
10.5 |
|
M56 |
2 |
64 |
32 |
5 |
20 |
25 |
14 |
|
M60 |
2 |
65 |
32 |
5 |
20 |
25 |
14 |
|
M64 |
2 |
72 |
32 |
5 |
20 |
25 |
14 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Resists Corrosion Stainless Steel Pipe Plugs Wth Male Npt Threads suppliers and OEM/ODM Resists Corrosion Stainless Steel Pipe Plugs Wth Male Npt Threads manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
