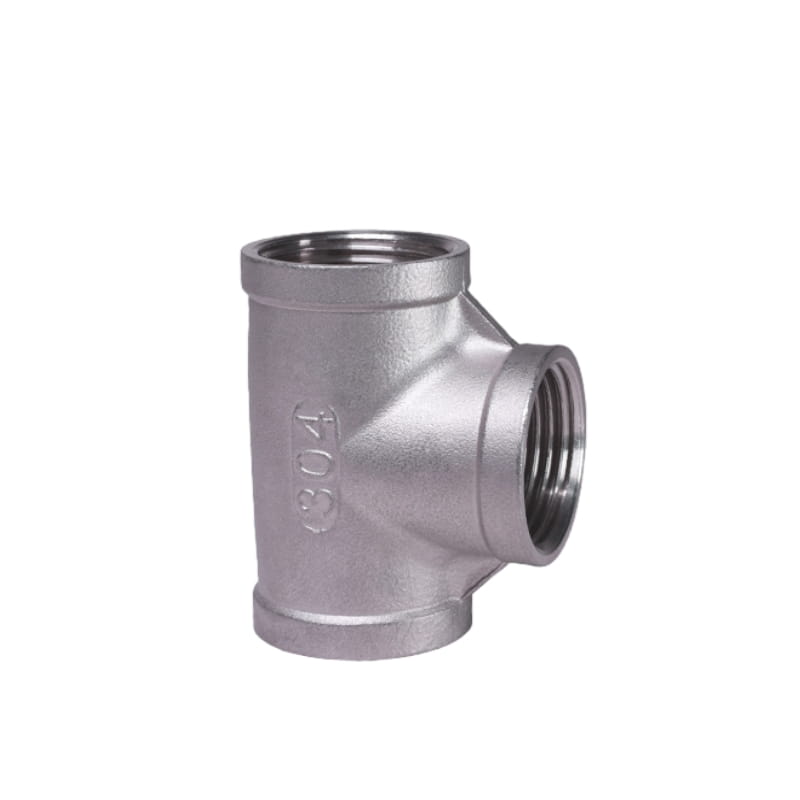

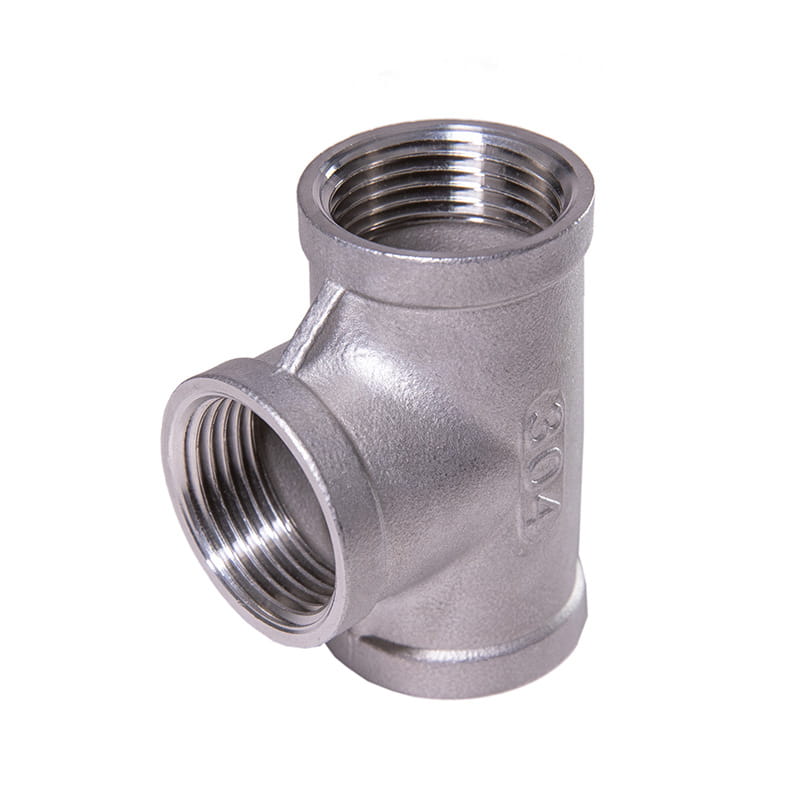

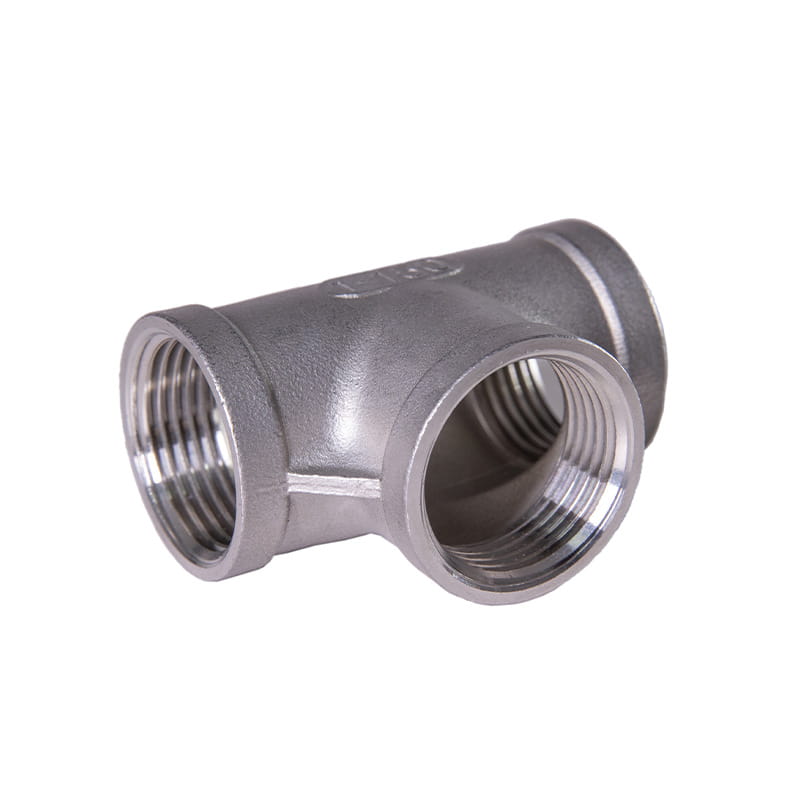

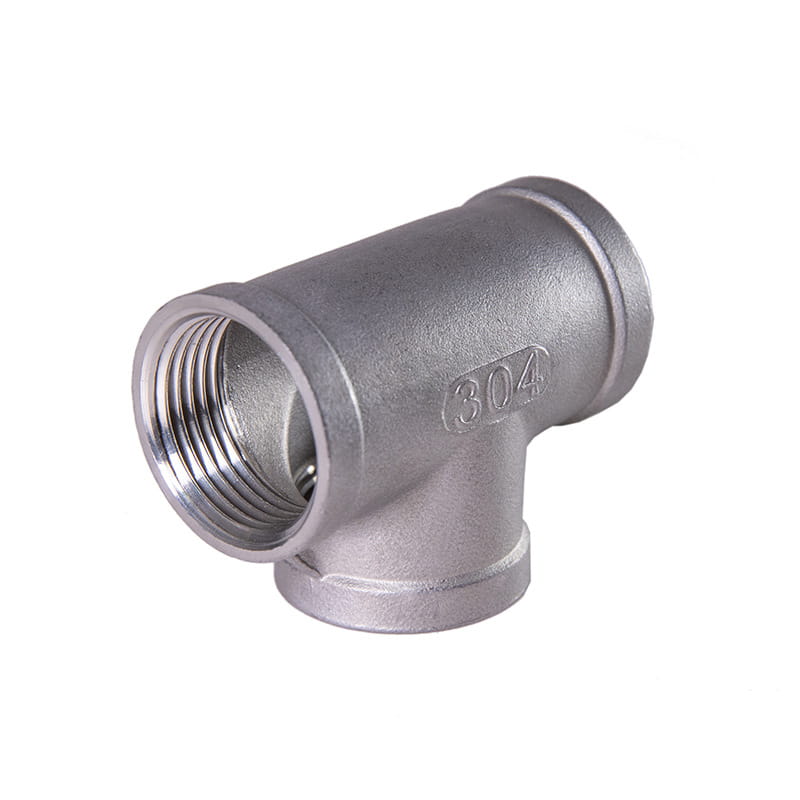

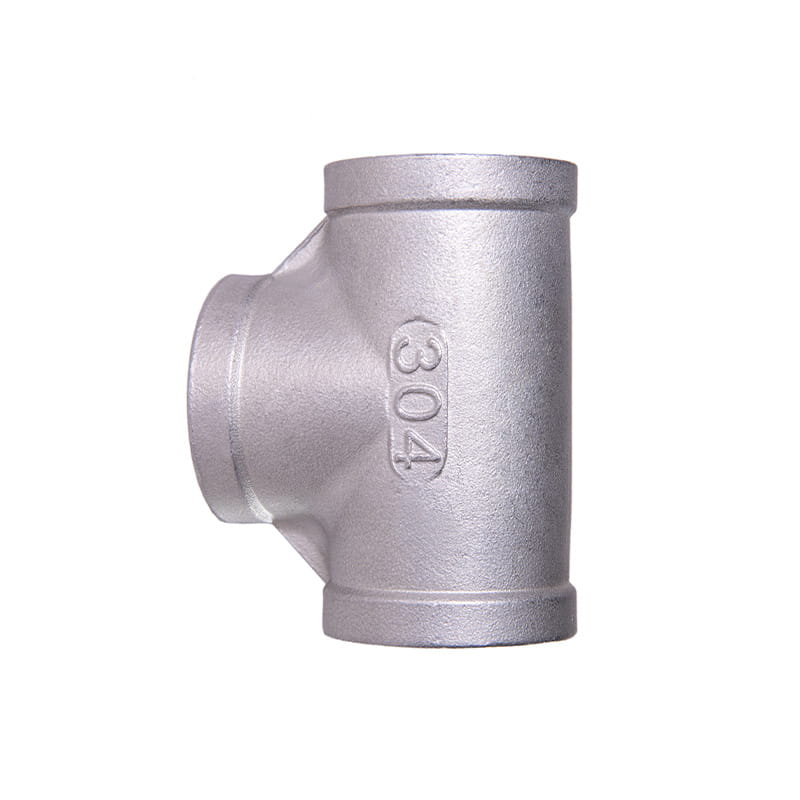

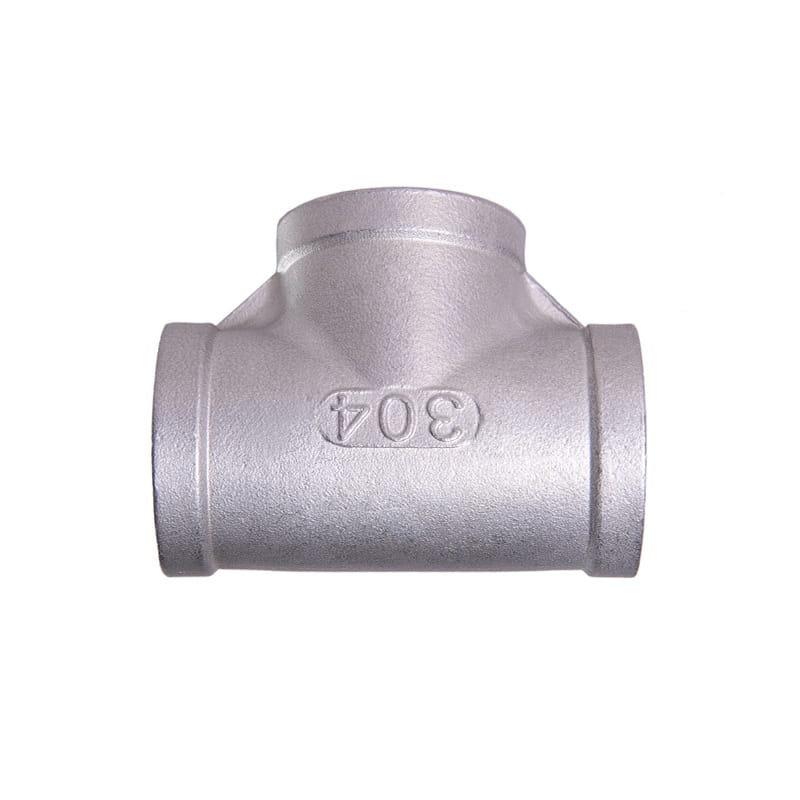

The pipe tees include socket weld tee and threaded tee, the threaded tee usually has female threads that are connected to male thread pipes. The threaded tee category is a vital collection of fittings designed to connect three pipes together. It contains 3 openings, 2 of which are on the same axis, and the third one is in 90 deg direction. A Pipe Tee Fitting is used to combine or separate the flow of fluid. It can split a single pipe into two, or to combine two pipes into one.
The cast pipe fitting tees with female NPT threads for connecting and branching three sections of male pipes or fittings. The NPT threads create tighter seals than straight threads. They have the advantages of simple installation, good looking, and leak proof.
The stainless threaded tees are used in commercial and industrial environments to transfer water, oil, gas, or air through a non-critical system. They are fast and economical components that are easily added to these systems. In addition, they require no welding so the system can be easily installed and modified.
Introduction
|
Standard |
GB/T-3287 ,BS En-10242, ASME B16.4, ASME B16.3 |
|
Material |
SS201, SS304/CF8, SS316/CF8M |
|
Surface |
Sandblasting, Sand rolling, Acid cleaning |
|
Type |
Casting |
|
size |
1/8"-4", As Customers' Requirement |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Each one is in a poly bag and a small box, then in an export wooden case |
|
Application |
Petroleum, chemical, power, gas, water, pipeline, heat exchanger, shipbuilding, construction, high&low pressure pipeline, etc |
|

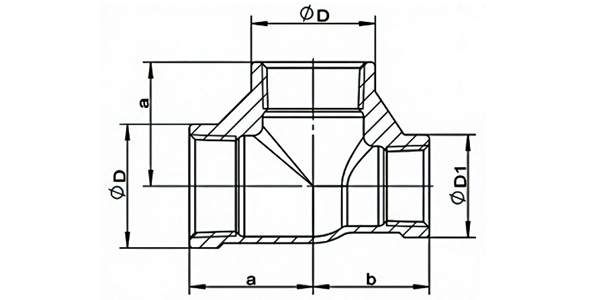

Size |
DN |
ØD |
ØD1 |
a |
b |
|
¾"×¾"×½" |
20×20×15 |
32.0 |
26.5 |
32.0 |
30.0 |
|
1"×1"×½" |
25×25×15 |
39.5 |
26.5 |
37.0 |
33.0 |
|
1"×1"×¾" |
25×25×20 |
39.5 |
32.0 |
37.0 |
35.00 |
BSPT
|
Thread Size(IN) |
DN |
External Thread (Actual measurement) |
Internal Thread (Actual measurement) |
|
1/8" |
6 |
9.7 |
8.7 |
|
1/4" |
8 |
13 |
11.5 |
|
3/8" |
10 |
16.6 |
15.3 |
|
1/2" |
15 |
21 |
18.5 |
|
3/4" |
20 |
26.6 |
24.3 |
|
1" |
25 |
33.1 |
30 |
|
1 1/4" |
32 |
42.1 |
38 |
|
1 1/2" |
40 |
47.5 |
45 |
|
2" |
50 |
59 |
56.3 |
|
2 1/2" |
65 |
74 |
72.2 |
|
3" |
80 |
86 |
84.7 |
|
4" |
100 |
112 |
110 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China No Need To Weld Cast Female SS Threads Tee Piping Fittings suppliers and OEM/ODM No Need To Weld Cast Female SS Threads Tee Piping Fittings manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
