Thin Wall Polished Bright Welded Stainless Steel Round Pipe For Gas

Gas is a kind of flammable and explosive gas, so the selection of pipeline material is very important in gas transportation. Common pipe materials are galvanized pipe, iron pipe, stainless steel pipe, and so on. Among the many pipeline materials, stainless steel pipe is widely used in gas transportation pipelines because of its good corrosion resistance, high-temperature resistance, tensile strength, and other characteristics.



Characteristics of stainless steel pipe



Stainless steel pipe because of its special properties of steel, with high strength, high corrosion resistance, magnetic, high-temperature resistance, beautiful appearance, and other characteristics. In gas transportation, stainless steel pipe can not only effectively prevent the corrosion reaction of the material inside the pipeline, but also avoid the rust of the pipeline. At the same time, stainless steel pipe has a high tightness and can avoid the danger of gas leakage.



Applicable scope of stainless steel pipe for gas



Stainless steel pipe for gas is suitable for gas transmission systems in the construction engineering field. Because of its good corrosion resistance, it can effectively prevent the corrosion of the pipeline by sulfide and other corrosive substances contained in the gas, and prolong the service life of the pipeline. At the same time, stainless steel pipe has good sealing performance, can effectively prevent gas leakage, and improves the safety of the gas transmission system.



Safety of stainless steel pipe for gas



The use of stainless steel pipe as the pipeline material of the gas transmission system has high safety. First of all, stainless steel pipes have good corrosion resistance, which can resist the erosion of corrosive substances in gas and avoid the risk of pipeline damage and leakage. Secondly, stainless steel pipe has good compressive strength, which can withstand the pressure change in the process of gas transportation and reduce the possibility of pipeline rupture.



In addition, stainless steel pipes have good high-temperature resistance. In the gas delivery system, the gas temperature may be high, and the ordinary steel pipe may deform or crack due to the high temperature, while the stainless steel pipe can withstand the work under the high-temperature environment stably.



Applicable to the field of construction engineering



Stainless steel steel pipe for gas is widely used in various gas transmission systems in the field of construction engineering. For example, urban natural gas transmission systems, industrial plant gas supply systems, residential community gas supply systems, etc. In these application scenarios, pipe materials are required to have good corrosion resistance, high-temperature stability, and safety properties, and stainless steel pipes just meet these requirements.

Introduction

Item Stainless steel pipe for gas
Standard
AISI, ASTM, DIN, JIS, GB, ASME, En, GOST
Material 304 304/304L 304h 30432(Super 304h)321 321H 316 31
Surface Annealed Picklig Bright Annealed Electropolishing
Welding ERW, Hfw
Type  Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished
Application  Construction, Industry, decoration and foodstuff etc.
Size Length  4000mm,5800mm,6000mm,12000mm,or as required.
Outer diameter OD: 6mm~2500mm WT: 1mm~150mm
Delivery time Within 5-30 days after receiving the prepaid
Package Plastic Bag/Woven Packing or Per Requirements

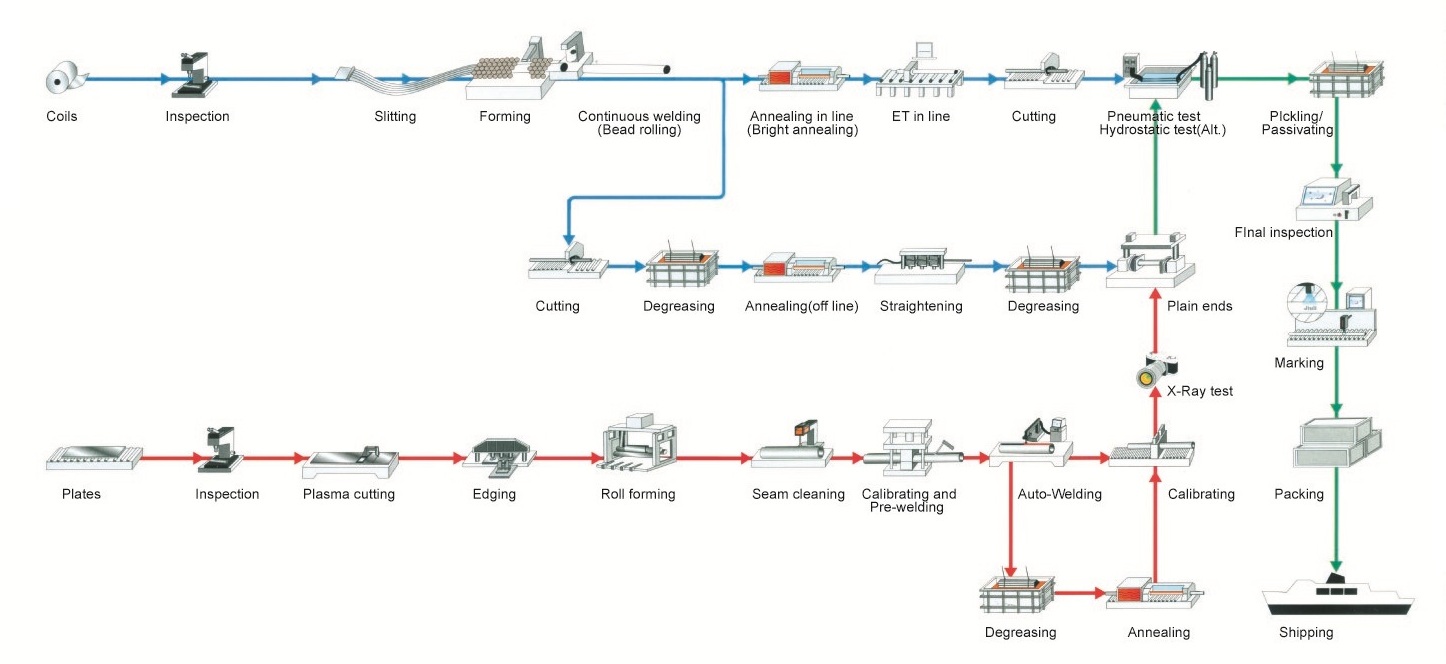

Production process

ASTM A249(dimension tolerance table)

Outside Diameter Thickness Length
<25.4mm ±0.10mm ±10% OD<50.8mm+3.0mm-0.mm
≥25.4~38.1mm ±0.15mm
≥38.1~50.8mm ±0.20mm
≥50.8~63.5mm ±0.25mm
≥63.5~76.2mm ±0.30mm OD<50.8mm+5.0mm-0.mm
≥76.2~101.6mm ±0.38mm
≥101.6~190.5mm +0.38mm   -0.64mm
≥190.5~228.6mm +0.38mm   -1.14mm
