Application Of 316 Stainless Steel Tubing For Industrial Fluid Transportation

Application Of 316 Stainless Steel Tubing For Industrial Fluid Transportation

Improve the efficiency of fluid delivery

In the industrial field, stainless steel feed pipes play an important role in improving fluid transfer efficiency and meeting the strict requirements for pipe performance in the industrial field. The following is the main role of stainless steel water supply pipes in the industrial field:

1. Corrosion resistance: in industrial production, the fluid may contain corrosive substances, such as acid, alkali, salt solution, etc. Stainless steel feed pipe has corrosion resistance, which can resist the erosion of these corrosive substances and maintain the integrity and stability of the pipe.

2. High-pressure transportation: in the industrial field, high-pressure fluid is sometimes needed to be transported. Stainless steel water supply pipe has pressure resistance and can withstand large water pressure to ensure stable transportation of fluid.

3. High-temperature resistance: some industrial production processes require high-temperature fluid transportation, stainless steel water supply pipe can maintain good strength and stability in a high-temperature environment, and will not deform or rupture.

4. Low friction resistance: the surface of the stainless steel water supply pipe is smooth, and the friction resistance is small, which can reduce the resistance loss of fluid in the pipe and improve the efficiency of fluid transportation.

5. Keep the fluid pure: the inner surface of the stainless steel water supply pipe is smooth, not easy to produce scale and pollution, can keep the fluid pure and clean, avoid the impact on the production process.

6. Wear resistance: in some industrial production, the fluid may carry particles or abrasive substances, The stainless steel water supply pipe has good wear resistance, and can reduce the wear and aging of the pipeline.

7. Customization performance: The requirements for pipelines in the industrial field are complex and diverse. Stainless steel water supply pipes can be customized according to specific needs to meet the fluid transportation requirements of different industrial production scenarios.

In general, the role of stainless steel water supply pipes in the industrial field is to improve the efficiency of fluid transfer and meet the high standard requirements of industrial pipe performance. Its corrosion resistance, pressure resistance, high-temperature resistance, low friction resistance, and other characteristics make it a reliable and efficient fluid transfer solution in industrial production processes. Therefore, in many industrial applications, stainless steel water supply pipe is widely used and plays an important role in improving industrial production efficiency and ensuring production safety.

PREV：No previous article
NEXT：High Corrosion Resistance Stainless Steel Pipe For Industrial Fluid Delivery

Introduction

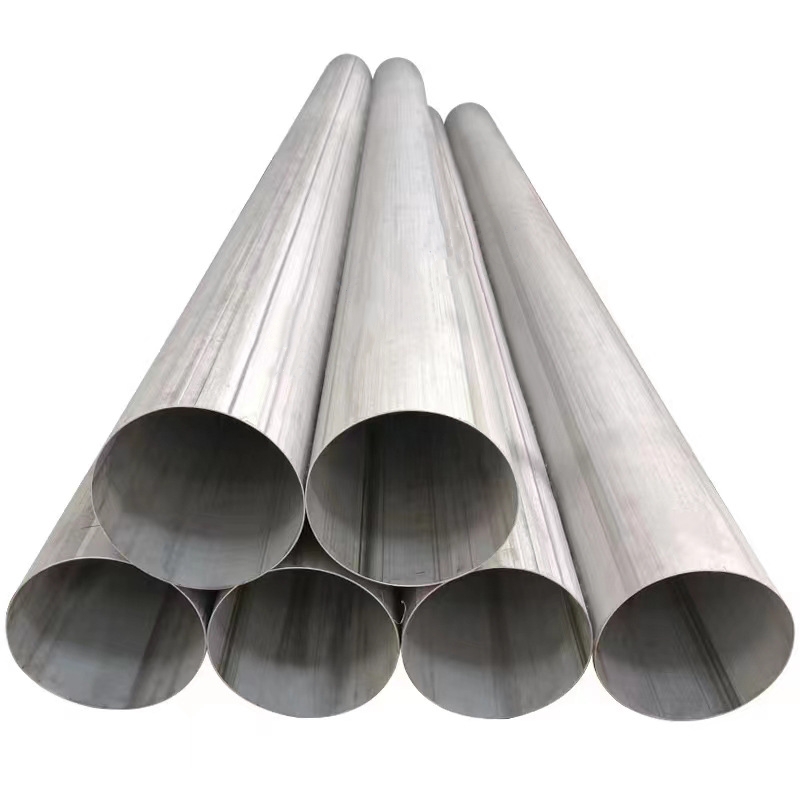

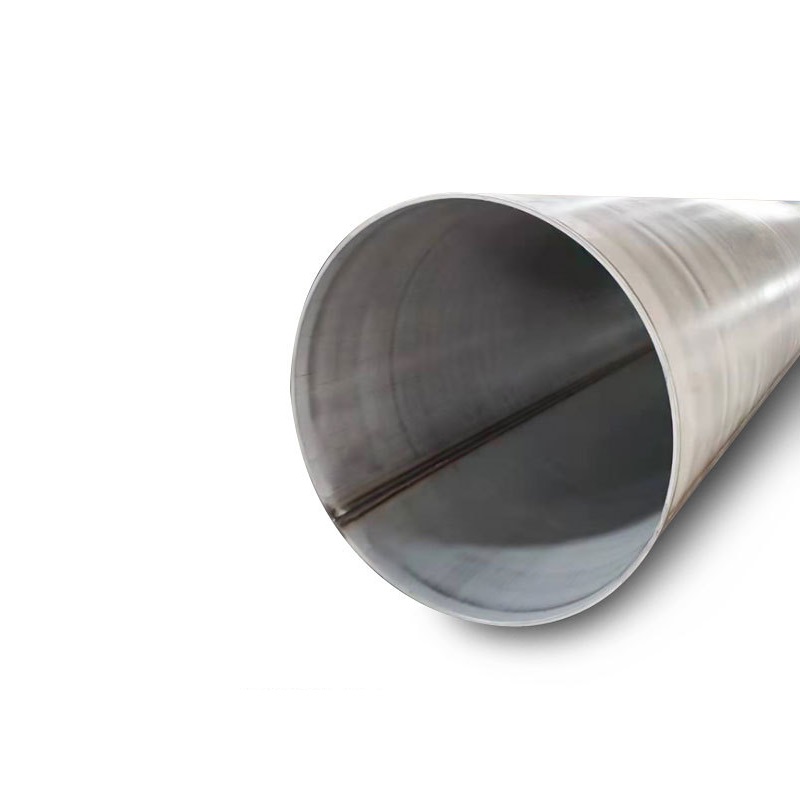

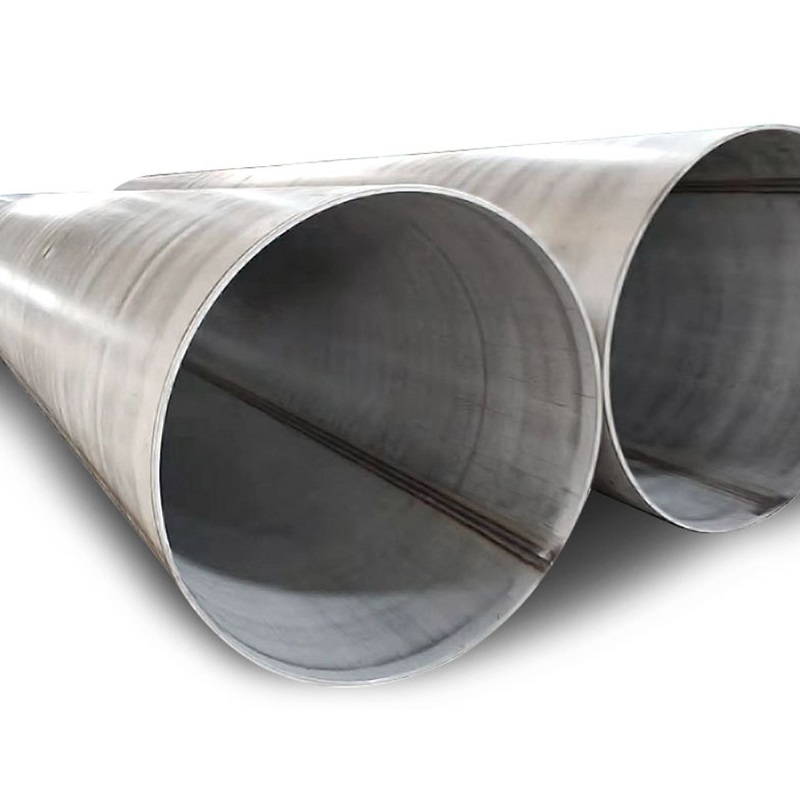

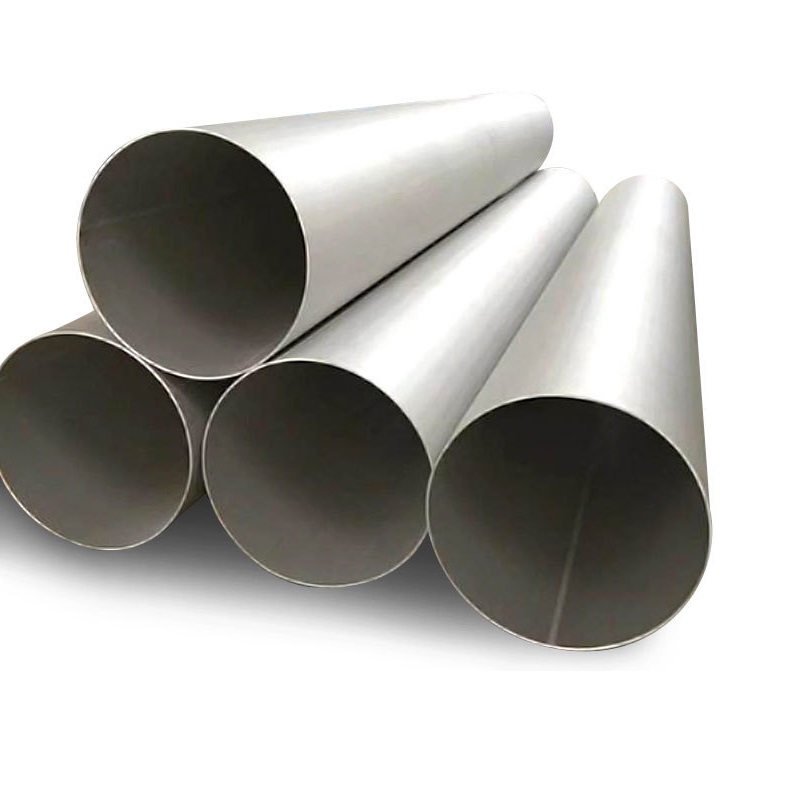

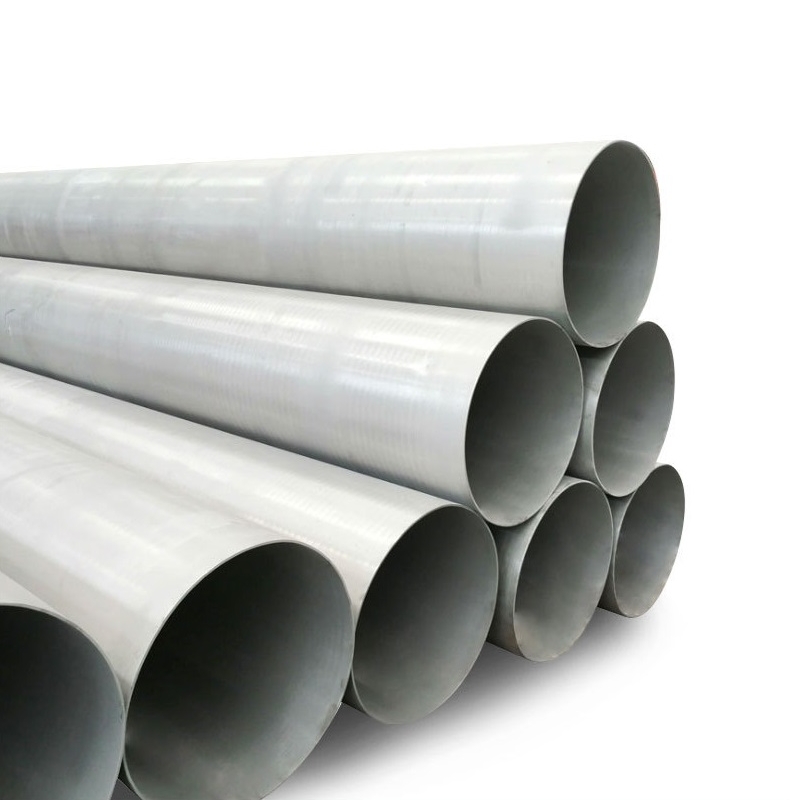

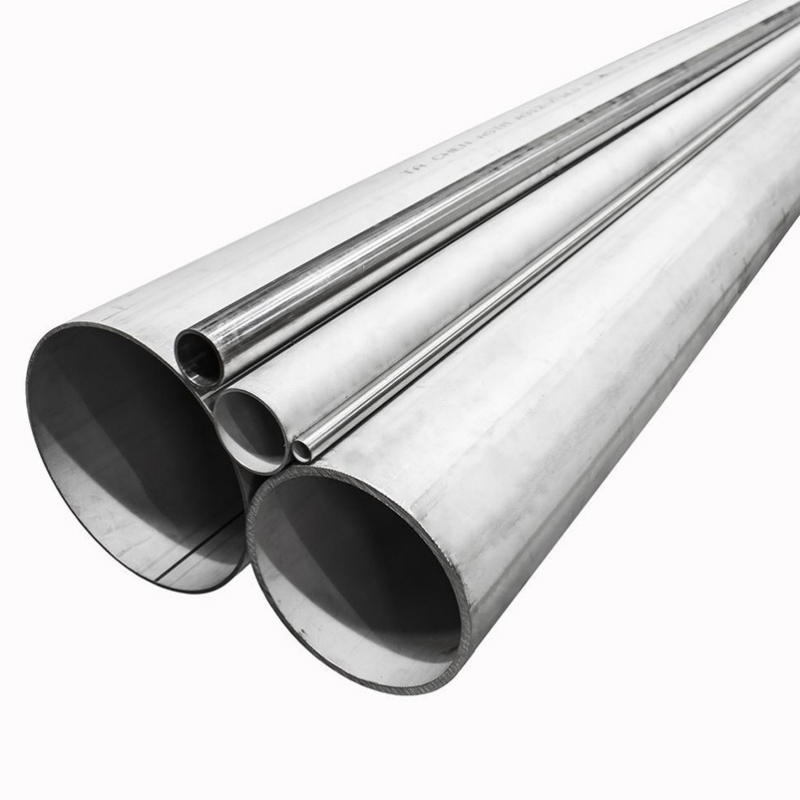

Item	Stainless steel pipes for industrial fluid transportation
Standard	GB/T, ANSI, ASTM, ASME, DIN, EN10216, JISG, etc
Material	200 Series: 201,202 300 Series: 301,304,304L,304H,316,316L,316Ti,317L,321,309s,310s 400 Series: 403,405,409L,410,416,420,431, 434 Duplex Steel: 904L,2205,2507,2101,2520,2304
Surface	Bare Pipe, Annealed , Pickled, Grey white (polished) and Marking
Shape	Round or Customized
End Processing	Plain Ends, Bevel Ends with Plastic Caps
Test	Squash Test; Extended Test; Water Pressure Test; Crystal Rot Test; Heat Treatment; NDT
Size	Length	6m-18.3m or According to Customer′s Request
	Outer diameter	OD: 33.4mm~609.6mm, WT: 0.8mm~20mm
Delivery time	Within 5-30 days after receiving the prepaid
Package	Packed in Bundle, Wooden Box,Customer′s Requirement

Production process

Chemical components & mechanical properties

Standard	Grade	Chemical Components (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM SA179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM SA192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.9	0.03	0.03	≥331	≥207
	B	0.28	-	1.2	0.03	0.03	≥414	≥241
	X42	0.28	-	1.3	0.03	0.03	≥414	≥290
	X46	0.28	-	1.4	0.03	0.03	≥434	≥317
	X52	0.28	-	1.4	0.03	0.03	≥455	≥359
	X56	0.28	-	1.4	0.03	0.03	≥490	≥386
	X60	0.28	-	1.4	0.03	0.03	≥517	≥448
	X65	0.28	-	1.4	0.03	0.03	≥531	≥448
	X70	0.28	-	1.4	0.03	0.03	≥565	≥483
API 5L PSL2	B	0.24	-	1.2	0.025	0.015	≥414	≥241
	X42	0.24	-	1.3	0.025	0.015	≥414	≥290
	X46	0.24	-	1.4	0.025	0.015	≥434	≥317
	X52	0.24	-	1.4	0.025	0.015	≥455	≥359
	X56	0.24	-	1.4	0.025	0.015	≥490	≥386
	X60	0.24	-	1.4	0.025	0.015	≥517	≥414
	X65	0.24	-	1.4	0.025	0.015	≥531	≥448
	X70	0.24	-	1.4	0.025	0.015	≥565	≥483
	X80	0.24	-	1.4	0.025	0.015	≥621	≥552
