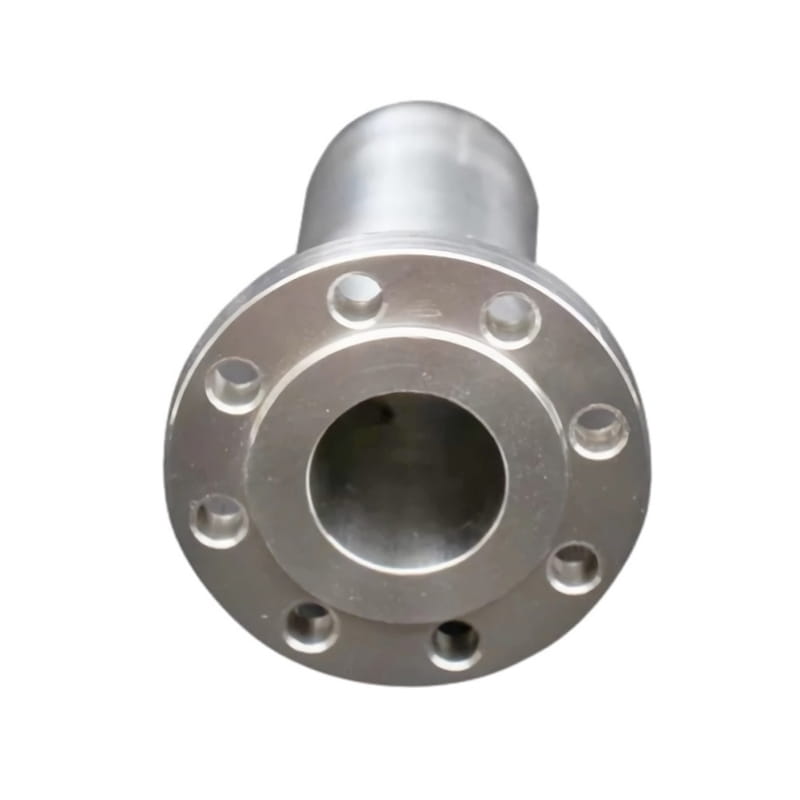

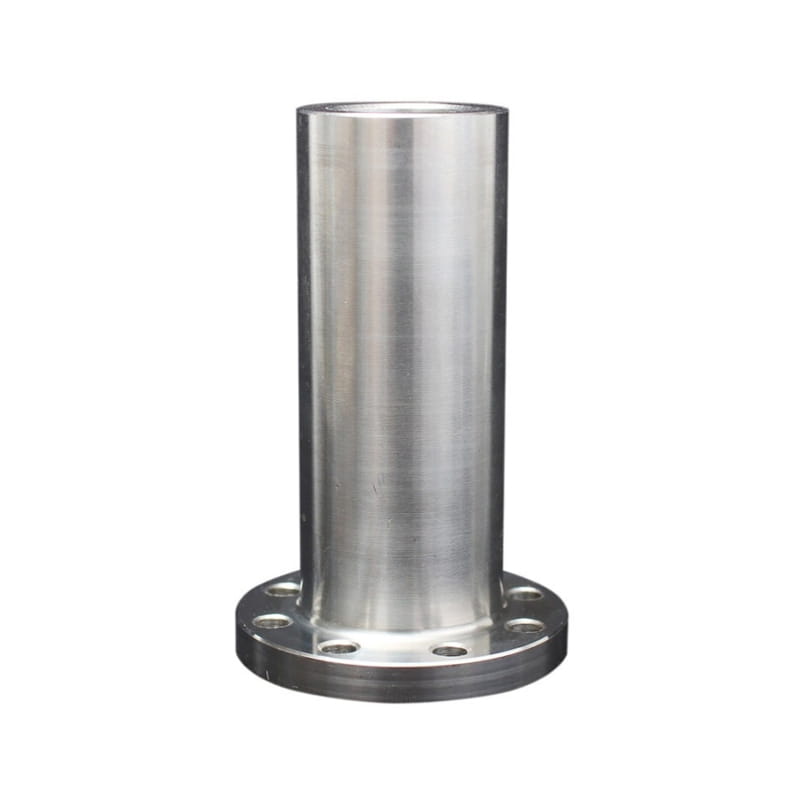

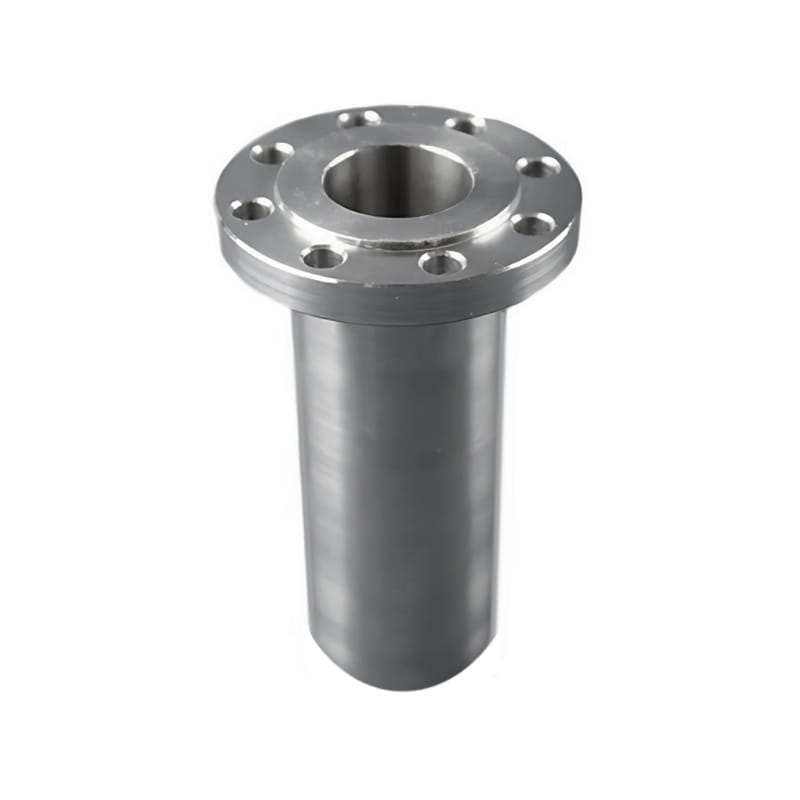

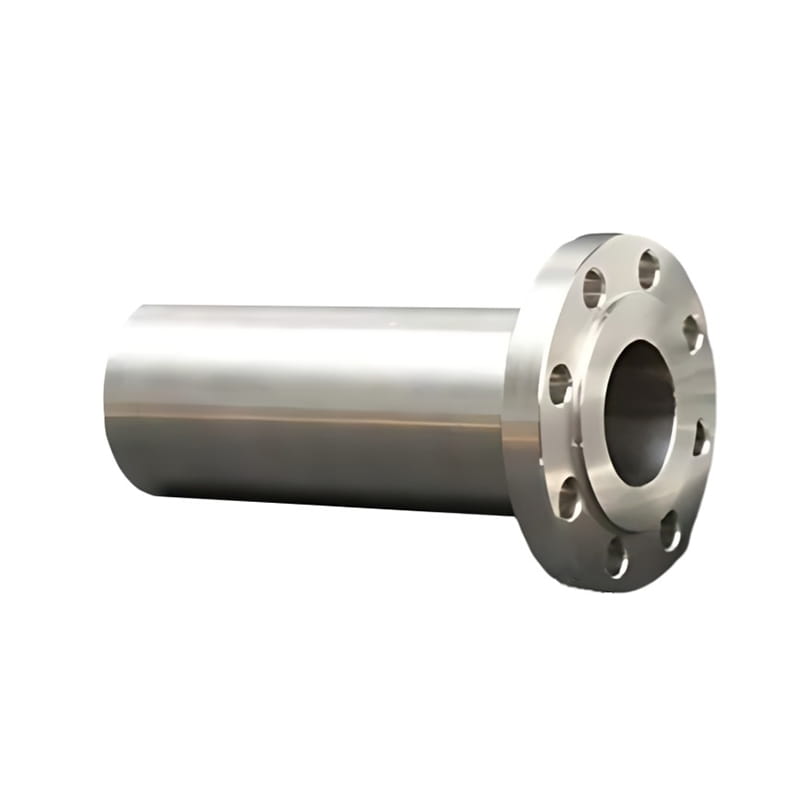

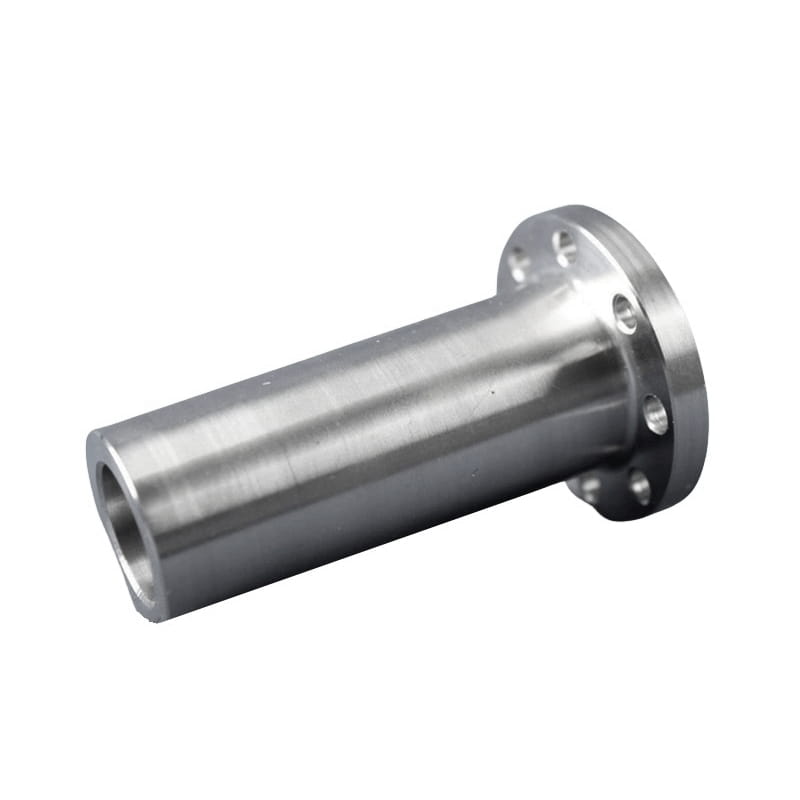

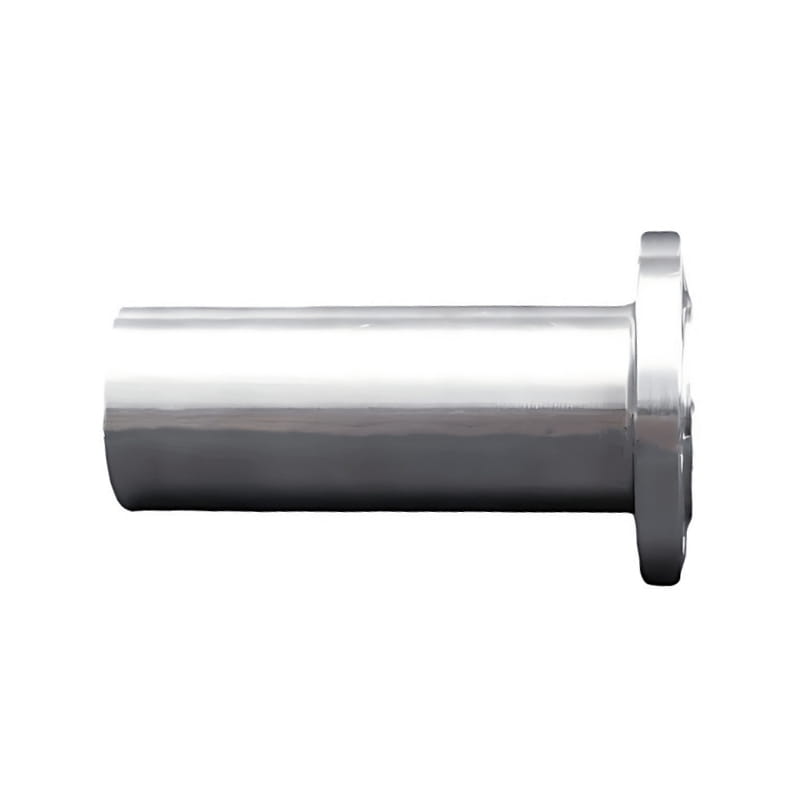

Long weld neck flange is a specialized component in piping systems, distinguished by its extended neck or hub. Welded neck flanges have a long tapered hub that reduces its size from the pipe to the fitting. This design minimizes stress concentration, making it ideal for high-pressure and high-temperature applications. The extended neck reinforces the flange, promoting even stress distribution and reducing fatigue risk. Additionally, piping systems are safer when reinforced with long weld neck flanges. This kind of flange helps to balance pressure and temperature changes in the liquid that is flowing in the pipeline.
Long weld neck flanges are favored in critical industrial settings due to their enhanced structural integrity. Notably, the extended neck facilitates easy welding and inspection processes. Ample space for welding ensures a secure connection, while the extended length simplifies inspections by providing better visibility and access.
Long weld neck flanges are prevalent in petrochemical, oil and gas, and power generation industries, contributing to robust and reliable piping systems. Their design ensures durability and safety, making them a preferred choice for applications where performance is paramount.
Introduction
|
Standard |
ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820, etc. |
|
Material |
Stainless steel: A182 F304, A182F304L, A182 F316, A182 F316L, A182F321, A182 317H, A182316Ti, F53,F51 etc Carbon steel: A105, A350LF2 Alloy steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 etc |
|
Surface |
Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
|
Type |
Forging, CNC Machining |
|
size |
1/2"-24" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
|
Application |
Chemical, oil mills, petrochemical, mining, refineries, construction, fertilizers, shipbuilding, power plants, steel plants, nuclear power, offshore, oil & gas, defense, paper, breweries, railway, cement, and engineering, etc. |
|

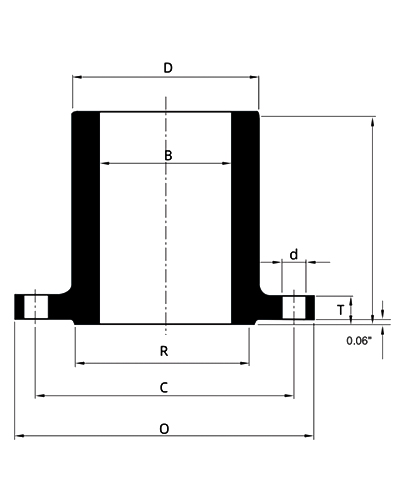

NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
3.50 |
0.44 |
1.25 |
4 |
0.62 |
2.38 |
1.38 |
9.00 |
1.36 |
|
¾ |
0.75 |
3.88 |
0.50 |
1.62 |
4 |
0.62 |
2.75 |
1.69 |
9.00 |
2.27 |
|
1 |
1.00 |
4.25 |
0.56 |
2.00 |
4 |
0.62 |
3.12 |
2.00 |
9.00 |
3.17 |
|
1 ¼ |
1.25 |
4.26 |
0.62 |
2.38 |
4 |
0.62 |
3.50 |
2.50 |
9.00 |
4.54 |
|
1 ½ |
1.50 |
5.00 |
0.69 |
2.62 |
4 |
0.62 |
3.88 |
2.88 |
9.00 |
5.44 |
|
2 |
2.00 |
6.00 |
0.75 |
3.25 |
4 |
0.75 |
4.75 |
3.63 |
9.00 |
6.81 |
|
2 ½ |
2.50 |
7.00 |
0.88 |
3.75 |
4 |
0.75 |
5.50 |
4.13 |
9.00 |
9.98 |
|
3 |
3.00 |
7.50 |
0.94 |
4.25 |
4 |
0.75 |
6.00 |
5.00 |
9.00 |
11.35 |
|
3 ½ |
3.50 |
8.50 |
0.94 |
4.88 |
8 |
0.75 |
7.00 |
5.50 |
9.00 |
14.52 |
|
4 |
4.00 |
9.00 |
0.94 |
5.50 |
8 |
0.75 |
7.50 |
6.19 |
12.00 |
21.33 |
|
5 |
5.00 |
10.00 |
0.94 |
6.50 |
8 |
0.88 |
8.50 |
7.31 |
12.00 |
25.87 |
|
6 |
6.00 |
11.00 |
1.00 |
7.75 |
8 |
0.88 |
9.50 |
8.50 |
12.00 |
34.05 |
|
8 |
8.00 |
13.50 |
1.12 |
9.75 |
8 |
0.88 |
11.75 |
1063 |
12.00 |
46.30 |
|
10 |
10.00 |
16.00 |
1.19 |
12.00 |
12 |
1.00 |
14.25 |
12.75 |
12.00 |
64.92 |
|
12 |
12.00 |
19.00 |
1.25 |
14.38 |
12 |
1.00 |
17.00 |
15.00 |
12.00 |
93.07 |
|
14 |
14.00 |
31.00 |
1.38 |
16.00 |
12 |
1.12 |
18.75 |
16.25 |
12.00 |
95.79 |
|
16 |
16.00 |
23.50 |
1.44 |
18.00 |
16 |
1.12 |
21.25 |
18.50 |
12.00 |
111.68 |
|
18 |
18.00 |
25.00 |
1.56 |
20.00 |
16 |
1.25 |
22.75 |
21.00 |
12.00 |
122.58 |
|
20 |
20.00 |
25.50 |
1.69 |
22.00 |
20 |
1.25 |
25.00 |
23.00 |
12.00 |
141.19 |
|
24 |
24.00 |
32.00 |
1.88 |
26.25 |
20 |
1.38 |
29.50 |
27.25 |
112.00 |
192.04 |
Class 300
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
3.75 |
0.56 |
1.50 |
4 |
0.62 |
26.2 |
1.38 |
9.00 |
2.27 |
|
¾ |
0.75 |
4.62 |
0.62 |
1.88 |
4 |
0.75 |
3.25 |
1.69 |
9.00 |
4.08 |
|
1 |
1.00 |
4.88 |
0.69 |
2.12 |
4 |
0.75 |
3.50 |
2.00 |
9.00 |
4.08 |
|
1 ¼ |
1.25 |
5.25 |
0.75 |
2.50 |
4 |
0.75 |
3.88 |
2.50 |
9.00 |
5.90 |
|
1 ½ |
1.50 |
6.12 |
0.81 |
2.75 |
4 |
0.88 |
4.50 |
2.88 |
9.00 |
6.81 |
|
2 |
2.00 |
6.50 |
0.88 |
3.31 |
8 |
0.75 |
5.00 |
3.63 |
9.00 |
9.08 |
|
2 ½ |
2.50 |
7.50 |
1.00 |
3.94 |
8 |
0.88 |
5.88 |
4.13 |
9.00 |
11.35 |
|
3 |
3.00 |
8.25 |
1.12 |
4.62 |
8 |
0.88 |
6.62 |
5.00 |
9.00 |
15.89 |
|
3 ½ |
3.50 |
9.00 |
1.19 |
5.25 |
8 |
0.88 |
7.25 |
5.50 |
9.00 |
19.06 |
|
4 |
4.00 |
10.00 |
1.25 |
5.75 |
8 |
0.88 |
7.88 |
6.19 |
12.00 |
28.14 |
|
5 |
5.00 |
11.00 |
1.38 |
7.00 |
8 |
0.88 |
9.25 |
7.31 |
12.00 |
38.14 |
|
6 |
6.00 |
12.50 |
1.44 |
8.12 |
12 |
0.88 |
10.62 |
8.50 |
12.00 |
47367 |
|
8 |
8.00 |
15.00 |
1.62 |
10.25 |
12 |
1.00 |
13.00 |
10.63 |
12.00 |
67.19 |
|
10 |
10.00 |
17.50 |
1.88 |
12.62 |
16 |
1.12 |
15.25 |
12.57 |
12.00 |
95.34 |
|
12 |
12.00 |
20.50 |
2.00 |
14.75 |
16 |
1.25 |
17.75 |
15.00 |
12.00 |
124.85 |
|
14 |
14.00 |
23.00 |
2.12 |
16.75 |
20 |
1.25 |
20.25 |
16.25 |
12.00 |
147.09 |
|
16 |
16.00 |
25.50 |
2.25 |
19.00 |
20 |
1.38 |
22.50 |
18.50 |
12.00 |
173.41 |
|
18 |
18.00 |
28.00 |
2.38 |
21.00 |
24 |
1.38 |
24.75 |
21.00 |
12.00 |
211.11 |
|
20 |
20.00 |
30.50 |
2.50 |
23.12 |
24 |
1.38 |
27.00 |
23.00 |
12.00 |
249.16 |
|
24 |
24.00 |
36.00 |
2.75 |
27.62 |
24 |
1.62 |
32.00 |
27.25 |
12.00 |
353.21 |
Class 400
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
3.75 |
0.56 |
1.50 |
4 |
0.62 |
26.20 |
1.38 |
9.00 |
2.27 |
|
¾ |
0.75 |
4.62 |
0.62 |
1.88 |
4 |
0.75 |
3.25 |
1.69 |
9.00 |
3.63 |
|
1 |
1.00 |
4.88 |
0.69 |
2.12 |
4 |
0.75 |
3.50 |
2.00 |
9.00 |
4.08 |
|
1 ¼ |
1.25 |
5.25 |
0.81 |
2.50 |
4 |
0.75 |
3.88 |
2.50 |
9.00 |
5.09 |
|
1 ½ |
1.50 |
6.12 |
0.88 |
2.75 |
4 |
0.88 |
4.50 |
2.88 |
9.00 |
7.266.50 |
|
2 |
2.00 |
6.50 |
1.00 |
3.31 |
8 |
0.75 |
5.00 |
3.63 |
9.00 |
9.08 |
|
2 ½ |
2.50 |
7.50 |
1.12 |
3.94 |
8 |
0.88 |
5.88 |
4.13 |
9.00 |
12.25 |
|
3 |
3.00 |
8.25 |
1.25 |
4.62 |
8 |
0.88 |
6.62 |
5.00 |
9.00 |
16.34 |
|
3 ½ |
3.50 |
9.00 |
1.38 |
5.25 |
8 |
1.00 |
7.25 |
5.50 |
9.00 |
20.04 |
|
4 |
4.00 |
10.00 |
1.38 |
5.75 |
8 |
1.00 |
7.88 |
6.19 |
12.00 |
29.51 |
|
5 |
5.00 |
11.00 |
1.50 |
7.00 |
8 |
1.00 |
9.25 |
7.31 |
12.00 |
39.95 |
|
6 |
6.00 |
12.50 |
1.62 |
8.12 |
12 |
1.00 |
10.62 |
8.50 |
12.00 |
49.94 |
|
8 |
8.00 |
15.00 |
1.88 |
10.25 |
12 |
1.12 |
13.00 |
10.63 |
12.00 |
69.91 |
|
10 |
10.00 |
17.50 |
2.12 |
12.62 |
16 |
1.25 |
15.25 |
12.75 |
12.00 |
98.97 |
|
12 |
12.00 |
20.50 |
2.25 |
14.75 |
16 |
1.38 |
17.75 |
15.00 |
12.00 |
129.39 |
|
14 |
14.00 |
23.00 |
2.38 |
16.75 |
20 |
1.38 |
20.25 |
16.25 |
12.00 |
152.54 |
|
16 |
16.00 |
25.50 |
2.50 |
19.00 |
20 |
1.50 |
22.50 |
18.50 |
12.00 |
189.77 |
|
18 |
18.00 |
28.00 |
2.62 |
21.00 |
24 |
1.50 |
24.75 |
21.00 |
12.00 |
218.82 |
|
20 |
20.00 |
30.50 |
2.75 |
23.12 |
24 |
1.62 |
27.00 |
23.00 |
12.00 |
257.87 |
|
24 |
24.00 |
36.00 |
3.0 |
27.62 |
24 |
1.88 |
32.00 |
27.25 |
12.00 |
365.01 |
Class 600
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
3.75 |
0.56 |
1.50 |
4 |
0.62 |
2.62 |
1.38 |
9.00 |
2.27 |
|
¾ |
0.75 |
4.62 |
0.62 |
1.88 |
4 |
0.75 |
3.25 |
1.69 |
9.00 |
3.63 |
|
1 |
1.00 |
4.88 |
0.69 |
2.12 |
4 |
0.75 |
3.50 |
2.00 |
9.00 |
4.08 |
|
1 ¼ |
1.25 |
5.25 |
0.81 |
2.50 |
4 |
0.75 |
3.88 |
2.50 |
9.00 |
5.09 |
|
1 ½ |
1.50 |
6.12 |
0.88 |
2.75 |
4 |
0.88 |
4.50 |
2.88 |
9.00 |
7.26 |
|
2 |
2.00 |
6.50 |
1.00 |
3.31 |
8 |
0.75 |
5.00 |
3.63 |
9.00 |
9.08 |
|
2 ½ |
2.50 |
7.50 |
1.12 |
3.94 |
8 |
0.88 |
5.88 |
4.13 |
9.00 |
12.25 |
|
3 |
3.00 |
8.25 |
1.25 |
4.62 |
8 |
0.88 |
6.62 |
5.00 |
9.00 |
16.34 |
|
4 |
4.00 |
10.75 |
1.50 |
6.00 |
8 |
1.00 |
8.50 |
6.19 |
12.00 |
34.95 |
|
5 |
5.00 |
13.00 |
1.75 |
7.50 |
8 |
1.12 |
10.50 |
7.31 |
12.00 |
55.84 |
|
6 |
6.00 |
14.00 |
1.88 |
8.75 |
12 |
0.88 |
11.50 |
9.50 |
12.00 |
69.08 |
|
8 |
8.00 |
16.50 |
2.19 |
10.75 |
12 |
1.25 |
13.75 |
10.63 |
12.00 |
93.97 |
|
10 |
10.00 |
20.00 |
2.50 |
13.50 |
16 |
1.38 |
17.00 |
12.75 |
12.00 |
147.09 |
|
12 |
12.00 |
22.00 |
2.62 |
15.75 |
20 |
1.38 |
19.25 |
15.00 |
12.00 |
178.42 |
|
14 |
14.00 |
23.75 |
2.75 |
17.00 |
20 |
1.50 |
20.75 |
16.25 |
16.00 |
213.83 |
|
16 |
16.00 |
27.00 |
3.00 |
19.50 |
20 |
1.62 |
23.75 |
18.50 |
16.00 |
289.65 |
|
18 |
18.00 |
29.25 |
3.25 |
21.50 |
20 |
1.75 |
25.75 |
21.00 |
16.00 |
331.42 |
|
20 |
20.00 |
32.00 |
3.50 |
24.00 |
24 |
1.75 |
28.50 |
23.00 |
16.00 |
415.86 |
|
24 |
24.00 |
37.00 |
4.00 |
28.25 |
24 |
2.00 |
33.00 |
27.25 |
16.00 |
549.34 |
Class 900
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
4.75 |
0.88 |
1.56 |
4 |
0.88 |
3.25 |
1.38 |
9.00 |
3.63 |
|
¾ |
0.75 |
5.12 |
1.00 |
1.81 |
4 |
0.88 |
3.50 |
1.69 |
9.00 |
4.54 |
|
1 |
1.00 |
5.88 |
1.12 |
2.12 |
4 |
1.00 |
4.00 |
2.00 |
9.00 |
5.09 |
|
1 ¼ |
1.25 |
6.25 |
1.112 |
2.50 |
4 |
1.00 |
4.38 |
2.50 |
9.00 |
7.71 |
|
1 ½ |
1.50 |
7.00 |
1.25 |
2.75 |
4 |
1.12 |
4.88 |
2.88 |
9.00 |
9.53 |
|
2 |
2.00 |
8.50 |
1.50 |
4.12 |
8 |
1.00 |
6.50 |
3.63 |
9.00 |
19.06 |
|
2 ½ |
2.50 |
9.62 |
1.62 |
4.88 |
8 |
1.12 |
7.50 |
4.13 |
9.00 |
23.15 |
|
3 |
3.00 |
9.50 |
1.50 |
5.00 |
8 |
1.00 |
7.50 |
5.00 |
9.00 |
25.42 |
|
4 |
4.00 |
11.50 |
1.75 |
6.25 |
8 |
1.25 |
9.25 |
6.19 |
12.00 |
42.22 |
|
5 |
5.00 |
13.75 |
2.00 |
7.50 |
8 |
1.38 |
11.00 |
7.31 |
12.00 |
61.29 |
|
6 |
6.00 |
15.00 |
2.19 |
9.25 |
12 |
1.25 |
12.50 |
8.50 |
12.00 |
86.71 |
|
8 |
8.00 |
18.50 |
2.50 |
11.75 |
12 |
1.50 |
15.50 |
10.63 |
12.00 |
134.83 |
|
10 |
10.00 |
21.50 |
2.75 |
14.50 |
16 |
1.50 |
18.50 |
12.75 |
12.00 |
191.58 |
|
12 |
12.00 |
24.00 |
3.12 |
16.50 |
20 |
1.50 |
21.00 |
15.00 |
12.00 |
235.17 |
|
14 |
14.00 |
25.25 |
3.38 |
17.75 |
20 |
1.62 |
22.00 |
16.25 |
16.00 |
283.29 |
|
16 |
16.00 |
27.75 |
3.50 |
20.00 |
20 |
1.75 |
24.25 |
18.50 |
16.00 |
340.50 |
|
18 |
18.00 |
31.00 |
4.00 |
22.25 |
20 |
2.00 |
27.00 |
21.00 |
16.00 |
413.30 |
|
20 |
20.00 |
33.75 |
4.25 |
24.50 |
20 |
2.12 |
29.50 |
23.00 |
16.00 |
508.93 |
|
24 |
24.00 |
41.00 |
5.50 |
29.50 |
20 |
2.621 |
35.50 |
27.25 |
16.00 |
846.71 |
Class 1500
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
4.75 |
0.88 |
1.56 |
4 |
0.88 |
3.25 |
1.38 |
9.00 |
3.63 |
|
¾ |
0.75 |
5.12 |
1.00 |
1.81 |
4 |
0.88 |
3.50 |
1.69 |
9.00 |
4.54 |
|
1 |
1.00 |
5.88 |
1.12 |
2.12 |
4 |
1.00 |
4.00 |
2.00 |
9.00 |
5.09 |
|
1 ¼ |
1.25 |
6.25 |
1.12 |
2.50 |
4 |
1.00 |
4.38 |
2.50 |
9.00 |
7.71 |
|
1 ½ |
1.50 |
7.00 |
1.25 |
2.75 |
4 |
1.12 |
4.88 |
2.88 |
9.00 |
9.53 |
|
2 |
2.00 |
9.50 |
1.50 |
4.12 |
8 |
1.00 |
6.50 |
3.63 |
9.00 |
19.06 |
|
2 ½ |
2.50 |
9.62 |
1.62 |
4.88 |
8 |
1.12 |
7.50 |
4.13 |
9.00 |
25.42 |
|
3 |
3.00 |
10.50 |
1.88 |
5.25 |
8 |
1.25 |
8.00 |
5.00 |
9.00 |
30.41 |
|
4 |
4.00 |
12.25 |
2.12 |
6.38 |
8 |
1.38 |
9.50 |
6.19 |
12.00 |
49.94 |
|
5 |
5.00 |
14.75 |
2.88 |
7.75 |
8 |
1.62 |
11.50 |
7.31 |
12.00 |
82.17 |
|
6 |
6.00 |
15.50 |
3.25 |
9.00 |
12 |
1.50 |
12.50 |
8.50 |
12.00 |
97.61 |
|
8 |
8.00 |
19.00 |
3.62 |
11.50 |
12 |
1.75 |
15.50 |
10.63 |
12.00 |
152.99 |
|
10 |
10.00 |
23.00 |
4.25 |
14.50 |
12 |
2.00 |
19.00 |
12.75 |
12.00 |
247.88 |
|
12 |
12.00 |
26.50 |
4.88 |
17.75 |
16 |
2.12 |
22.50 |
15.00 |
12.00 |
429.48 |
|
14 |
14.00 |
29.50 |
5.25 |
19.50 |
16 |
2.38 |
25.00 |
16.25 |
16.00 |
506.66 |
|
16 |
16.00 |
32.50 |
5.75 |
21.75 |
16 |
2.62 |
27.75 |
18.50 |
16.00 |
622.43 |
|
18 |
18.00 |
36.00 |
6.38 |
23.50 |
16 |
2.88 |
30.50 |
21.00 |
16.00 |
759.99 |
|
20 |
20.00 |
38.75 |
7.00 |
25.25 |
16 |
3.12 |
32.75 |
23.00 |
16.00 |
882.12 |
|
24 |
24.00 |
46.00 |
8.00 |
30.00 |
16 |
3.62 |
39.00 |
27.25 |
16.00 |
1332.94 |
Class 2500
|
NPS |
Bore |
OD |
Thk |
OD |
No. OF Holes |
Hole Size |
Bolt Circle |
Raised Face Dia. |
LENGTH |
WEIGHT |
|
(in) |
B(in) |
O(in) |
T(in) |
D(in) |
(Holes) |
d(in) |
C(in) |
R(in) |
L(in) |
(KILO)- |
|
½ |
0.50 |
5.25 |
1.19 |
1.81 |
4 |
0.88 |
3.50 |
1.38 |
9.00 |
4.99 |
|
¾ |
0.75 |
5.50 |
1.25 |
2.06 |
4 |
0.88 |
3.75 |
1.69 |
9.00 |
5.90 |
|
1 |
1.00 |
6.25 |
1.38 |
2.25 |
4 |
1.00 |
4.25 |
2.00 |
9.00 |
8.17 |
|
1 ¼ |
1.25 |
7.25 |
1.50 |
2.88 |
4 |
1.12 |
5.12 |
2.50 |
9.00 |
12.25 |
|
1 ½ |
1.50 |
8.00 |
1.75 |
3.12 |
4 |
1.25 |
5.75 |
2.88 |
9.00 |
14.98 |
|
2 |
2.00 |
9.25 |
2.00 |
3.75 |
8 |
1.12 |
6.75 |
3.63 |
9.00 |
21.72 |
|
2 ½ |
2.50 |
10.50 |
2.25 |
4.50 |
8 |
1.25 |
7.75 |
4.13 |
9.00 |
29.96 |
|
3 |
3.00 |
12.00 |
2.62 |
5.25 |
8 |
1.38 |
9.00 |
5.00 |
9.00 |
44.03 |
|
4 |
4.00 |
14.00 |
3.00 |
6.50 |
8 |
1.62 |
10.75 |
6.19 |
12.00 |
72.18 |
|
5 |
5.00 |
16.50 |
3.62 |
8.00 |
8 |
1.88 |
12.75 |
7.31 |
12.00 |
112.59 |
|
6 |
6.00 |
19.00 |
4.25 |
9.25 |
8 |
2.12 |
14.50 |
8.50 |
12.00 |
162.53 |
|
8 |
8.00 |
21.75 |
5.00 |
12.00 |
12 |
2.12 |
17.25 |
10.63 |
16.00 |
267.40 |
|
10 |
10.00 |
26.50 |
6.50 |
14.75 |
12 |
2.62 |
21.25 |
12.75 |
16.00 |
452.63 |
|
12 |
12.00 |
30.00 |
7.25 |
17.38 |
12 |
2.88 |
24.38 |
15.00 |
16.00 |
618.80 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Reliable Stainless Steel Long Weld Neck Flange Piping System suppliers and OEM/ODM Reliable Stainless Steel Long Weld Neck Flange Piping System manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
Stainless steel precision tubes are widely recognized for their superior dimensional accuracy, mechanical properties, and corrosion resistance, making them essential in many industrial sectors such as...
View MoreWelding is an art as much as it is a science, especially when it comes to stainless steel tube joints. The integrity and performance of these joints are heavily influenced by the welding techniques em...
View MoreAmong the various materials available, stainless steel stands out due to its excellent mechanical properties and resistance to corrosion. But not all stainless steels are created equal, and selecting ...
View MoreWe'll never share your email address and you
can opt out at any time, we promise.
Specializing in the production of Stainless
Steel Pipe
NO.188 Binkang Road, Xixing Street, Binjiang District, Hangzhou City, Zhejiang Province, China
+86 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Hangzhou Branch Rights Reserved.
Custom Reliable Stainless Steel Long Weld Neck Flange Piping System Suppliers
English
русский
