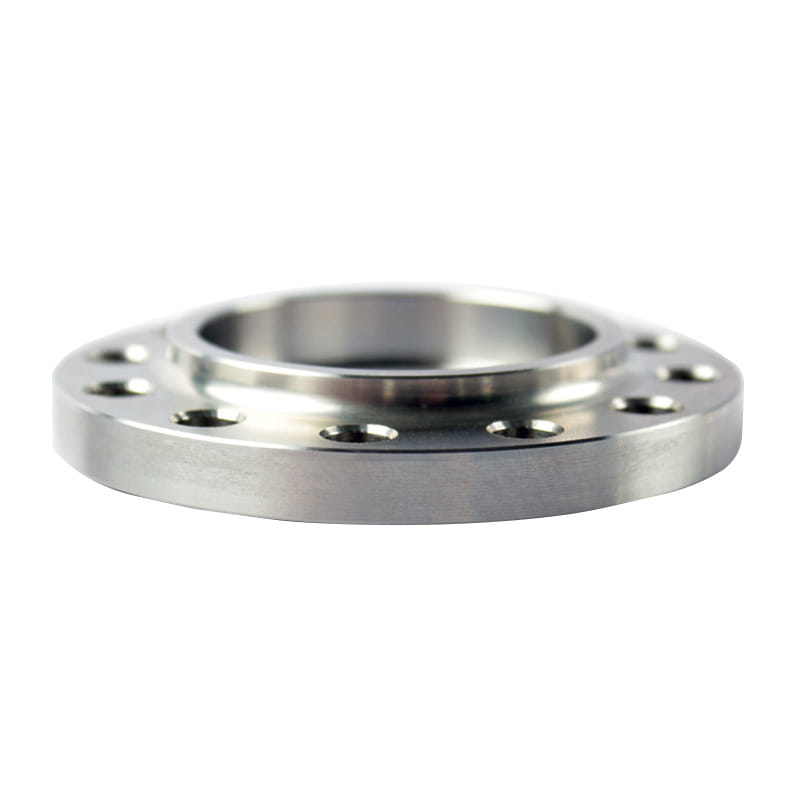

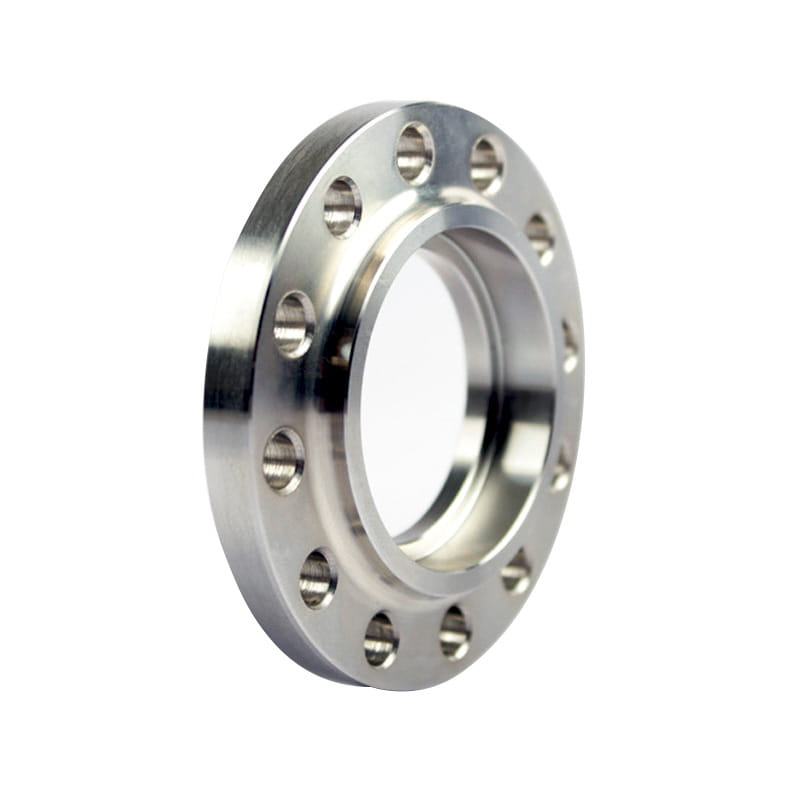

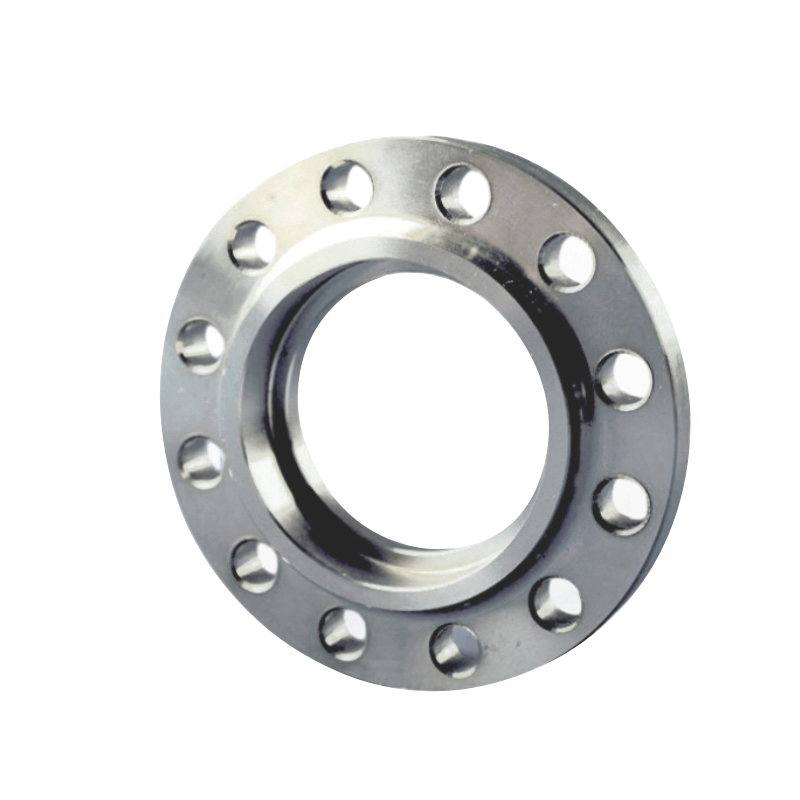

Socket Weld Flanges have a socket-like end, where the pipe is inserted and welded for a secure and durable joint.
These socket flanges’ connect to the end pipe with a fillet weld at the ID of the hub of the socket, as the pipe is designed to sit almost flush against the counterbore of the flange. The expansion gap between the end of the pipe and the counterbore leaves just enough space for the welder to adjust the pipe within the connection.
Socket Weld flanges widest range of application lies in pipes of small dimensions that conduct fluids at high pressures. The socket weld flange has a disadvantage in that the flange is susceptible to crevice corrosion. Corrosive solutions from the process fluid may accumulate in the gap and crevices formed between the outside surface of the pipe and the socket surface of the flange, which may cause crevice corrosion. Therefore, it is not recommended to use the socket welding flange in corrosive applications.
Introduction
|
Standard |
ANSI：ANSI B16.5、ANSI B16.47、MSS SP44、ANSI B16.36、ANSI B16.48 DIN：DIN2527、DIN2566、DIN2573、DIN2576、DIN2641、DIN2642、DIN2655、DIN2656、DIN2627、DIN2628、DIN2629、DIN 2631、DIN2632、DIN2633、DIN2634、DIN2635、DIN2636、 DIN2637、DIN2638、DIN2673 BS：BS4504、BS4504、BS1560、BS10 |
|
Material |
Stainless Steel, Duplex Steel, etc |
|
Surface |
Rust-Proof Oil, Hot Galvanizing |
|
Type |
CNC cutting |
|
size |
ASA, ASME, ANSI, BS, EN, DIN, PN, JIS |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plywood Case or Pallet |
|
Application |
Oil and Gas, Chemical Industry, Plumbing, Heating, Water Supply Systems, Power Plant, Paper & Pulp Industry, Food Processing Industry, Structural Pipe, Fabrication Industry and General Purpose Applications, etc. |
|

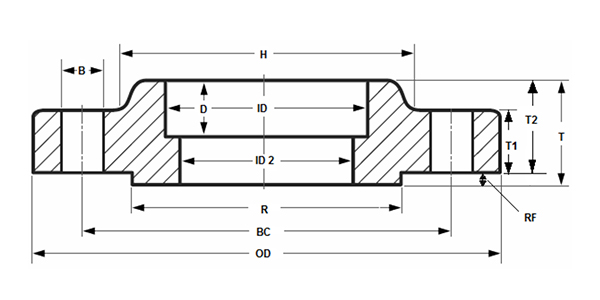

NPS |
ID |
OD |
Bolt Circle (BC) |
Raised Face (R) |
Raised Face (RF) |
H |
D |
ID 2 |
Raised Face Thickness (T) |
T1 |
Flat Face Thickness (T2) |
Bolt Hole (B) |
No. of Bolt Holes |
|
½ |
0.88 |
3.50 |
2.38 |
1.38 |
0.063 |
1.19 |
0.38 |
0.62 |
0.62 |
0.38 |
0.56 |
0.62 |
4 |
|
¾ |
1.09 |
3.88 |
2.75 |
1.69 |
0.063 |
1.50 |
0.44 |
0.82 |
0.62 |
0.44 |
0.56 |
0.62 |
4 |
|
1 |
1.36 |
4.25 |
3.12 |
2.00 |
0.063 |
1.94 |
0.50 |
1.05 |
0.69 |
0.50 |
0.63 |
0.62 |
4 |
|
1¼ |
1.70 |
4.62 |
3.50 |
2.50 |
0.063 |
2.31 |
0.56 |
1.38 |
0.81 |
0.56 |
0.75 |
0.62 |
4 |
|
1½ |
1.97 |
5.00 |
3.88 |
2.88 |
0.063 |
2.56 |
0.62 |
1.61 |
0.88 |
0.62 |
0.82 |
0.62 |
4 |
|
2 |
2.44 |
6.00 |
4.75 |
3.62 |
0.063 |
3.06 |
0.69 |
2.07 |
1.00 |
0.69 |
0.94 |
0.75 |
4 |
|
2½ |
2.94 |
7.00 |
5.50 |
4.12 |
0.063 |
3.56 |
0.75 |
2.47 |
1.12 |
0.82 |
1.06 |
0.75 |
4 |
|
3 |
3.57 |
7.50 |
6.00 |
5.00 |
0.063 |
4.25 |
0.81 |
3.07 |
1.19 |
0.88 |
1.13 |
0.75 |
4 |
|
3½ |
4.07 |
8.50 |
7.00 |
5.50 |
0.063 |
4.81 |
0.88 |
3.55 |
1.25 |
0.88 |
1.19 |
0.75 |
8 |
|
4 |
4.57 |
9.00 |
7.50 |
6.19 |
0.063 |
5.31 |
0.94 |
4.03 |
1.31 |
0.88 |
1.25 |
0.75 |
8 |
|
5 |
5.66 |
10.00 |
8.50 |
7.31 |
0.063 |
6.44 |
0.94 |
5.05 |
1.44 |
0.88 |
1.38 |
0.88 |
8 |
|
6 |
6.72 |
11.00 |
9.50 |
8.50 |
0.063 |
7.56 |
1.06 |
6.07 |
1.56 |
0.94 |
1.50 |
0.88 |
8 |
|
8 |
8.72 |
13.50 |
11.75 |
10.62 |
0.063 |
9.69 |
1.25 |
7.98 |
1.75 |
1.06 |
1.69 |
0.88 |
8 |
|
10 |
10.88 |
16.00 |
14.25 |
12.75 |
0.063 |
12.00 |
1.31 |
10.02 |
1.94 |
1.13 |
1.88 |
1.00 |
12 |
|
12 |
12.88 |
19.00 |
17.00 |
15.00 |
0.063 |
14.38 |
1.56 |
12.00 |
2.19 |
1.19 |
2.13 |
1.00 |
12 |
|
14 |
14.14 |
21.00 |
18.75 |
16.25 |
0.063 |
15.75 |
1.63 |
13.25 |
2.25 |
1.32 |
2.19 |
1.12 |
12 |
|
16 |
16.16 |
23.50 |
21.25 |
18.50 |
0.063 |
18.00 |
1.75 |
15.25 |
2.50 |
1.38 |
2.44 |
1.12 |
16 |
|
18 |
18.18 |
25.00 |
22.75 |
21.00 |
0.063 |
19.88 |
1.94 |
17.25 |
2.69 |
1.50 |
2.63 |
1.25 |
16 |
|
20 |
20.20 |
27.50 |
25.00 |
23.00 |
0.063 |
22.00 |
2.13 |
19.25 |
2.88 |
1.63 |
2.83 |
1.25 |
20 |
|
22 |
22.22 |
29.50 |
27.25 |
25.25 |
0.063 |
24.25 |
2.38 |
21.25 |
3.13 |
1.75 |
3.07 |
1.38 |
20 |
|
24 |
24.25 |
32.00 |
29.50 |
27.25 |
0.063 |
26.12 |
2.50 |
23.25 |
3.25 |
1.82 |
3.19 |
1.38 |
20 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China ASA Socket Flange（SW Flange) Prevent Penetration Of The Pipe Bore suppliers and OEM/ODM ASA Socket Flange（SW Flange) Prevent Penetration Of The Pipe Bore manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
