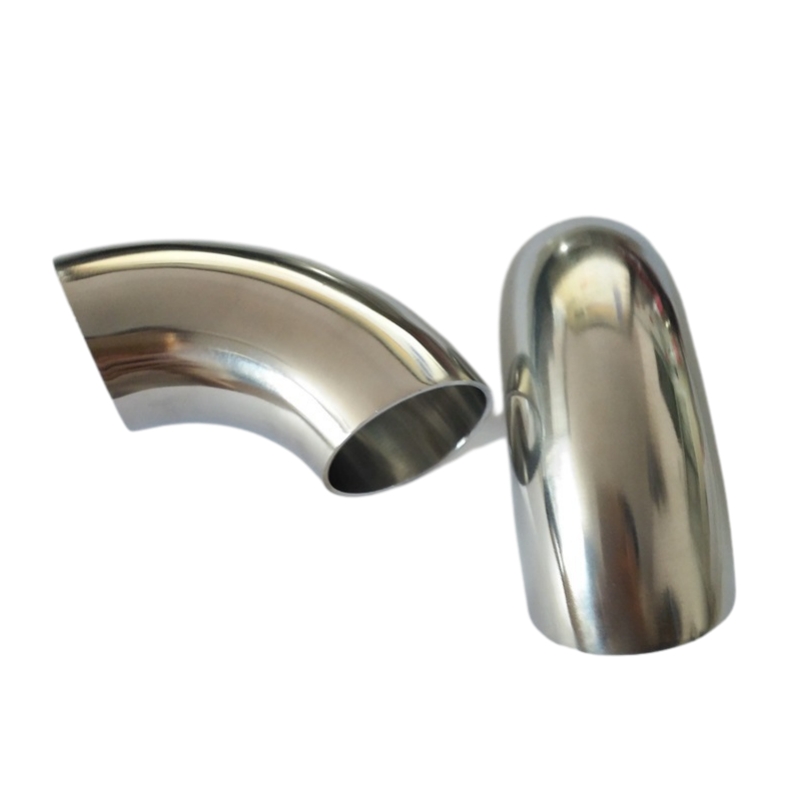

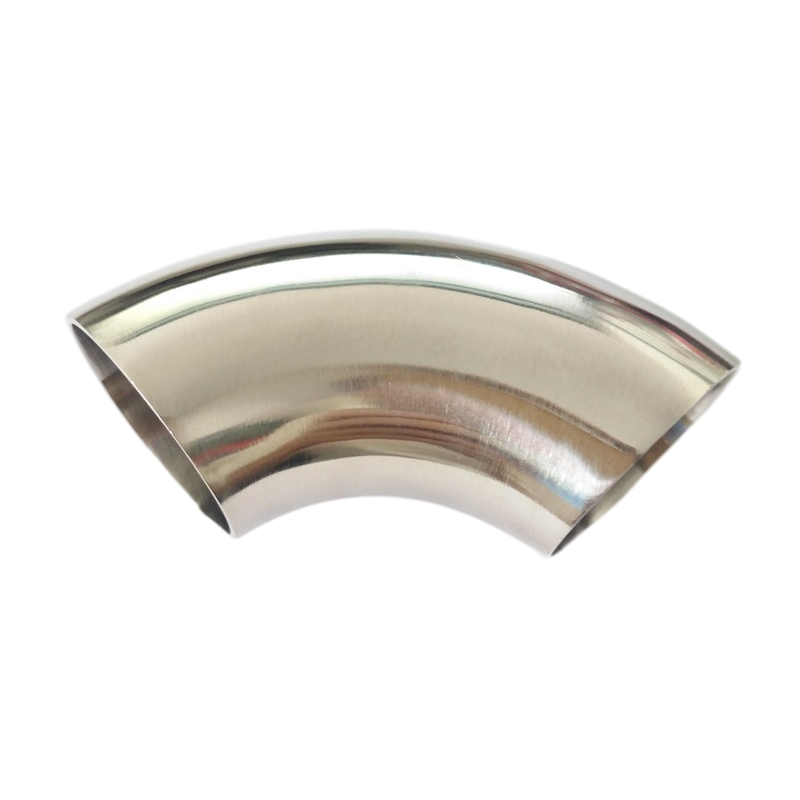

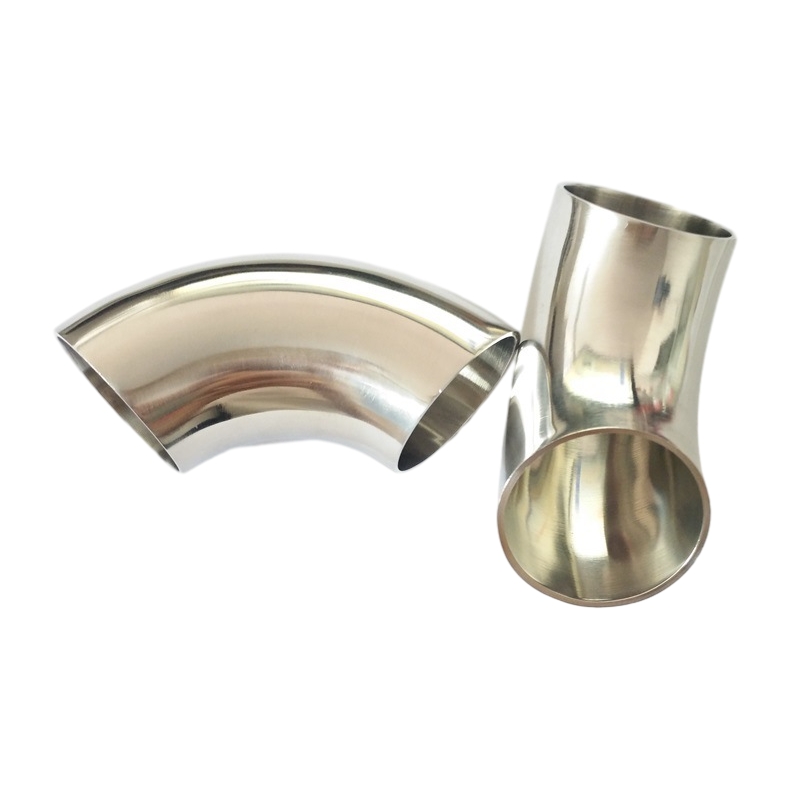

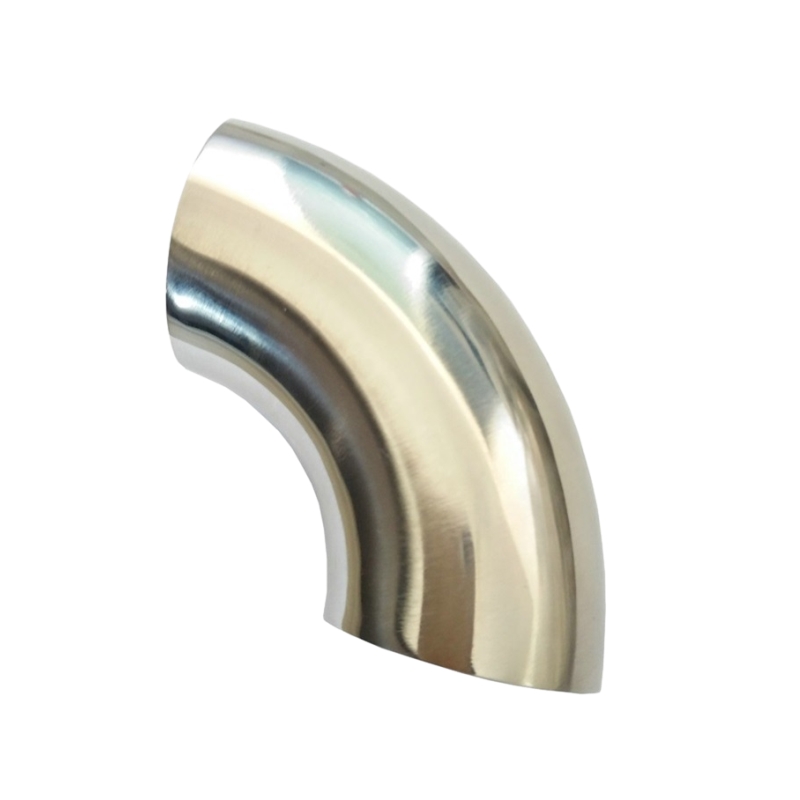

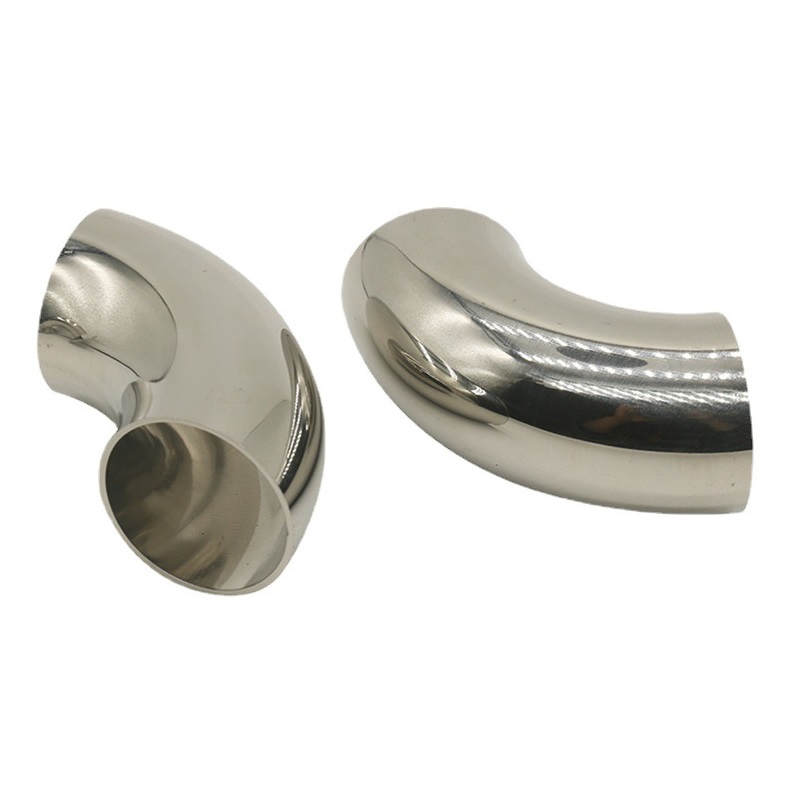

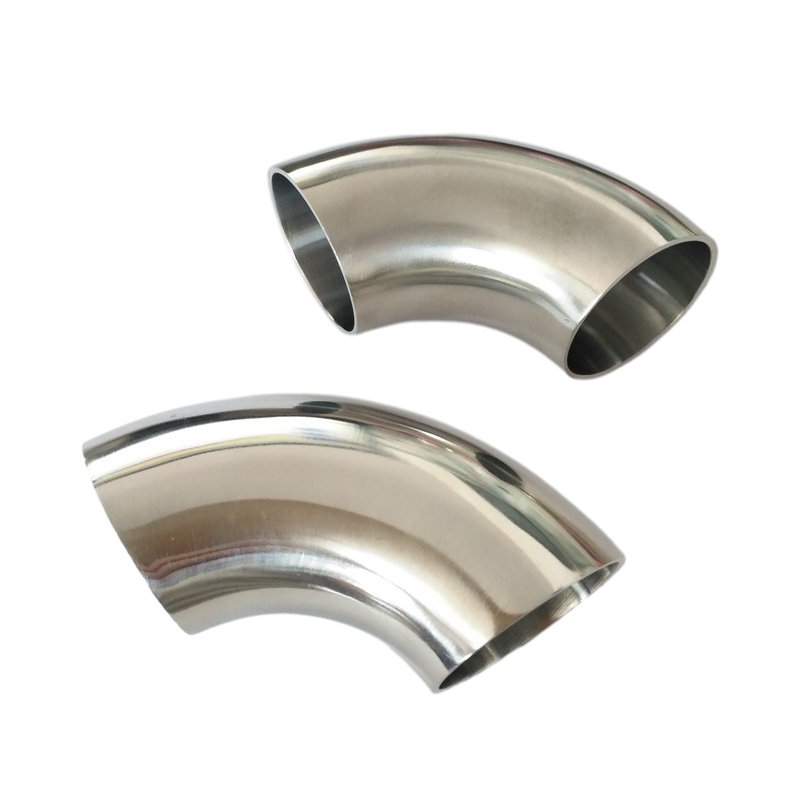

Stainless Steel 90-degree short radius bends help change the direction or flow in a piping system. Since most bends do not change the end of the pipe, the change of direction can often be easily accomplished in a piping system using welding processes, flanges, or other joining methods. The short radius bends are the best option when space is limited.
The short radius bend is the same as the pipeline diameter, and the smooth bore is consistent with the pressure rating. Can be cut to any angle between 22.5-90 degrees, and can also be easily welded.
The welded short radius bend pipe fittings are made of stainless steel and have good shock resistance, corrosion resistance, and acid resistance.
Scope of application: widely used in the chemical industry, construction, water supply and drainage, petroleum, light and heavy industry, refrigeration, plumbing, fire protection, electric power, aerospace, shipbuilding, and other basic projects.
Introduction
|
90°Short Radius Tube Bends |
|
|
Item |
Stainless Steel 90°Short Radius Tube Bends |
|
Standard |
ANSI, ISO, JIS, DIN, BS, GB, SH, HG, QOST, etc |
|
Material Grades |
SS304, SS304L, SS316, SS316L |
|
Surface |
Brushed |
|
Type |
Argon arc welding |
|
size |
DN16-900 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
seaworthy package |
|
Application |
Dairy, Food, Beverage, and Pharmaceutical - Tanks, Process Lines, Equipment, Filtration, Heat Exchangers, CIP Systems, Key Stations, Manifolds, Brine Lines, Chillers, Hoppers, Handrails, Balustrades, Electrical Conduits, Drain Pipes etc. |

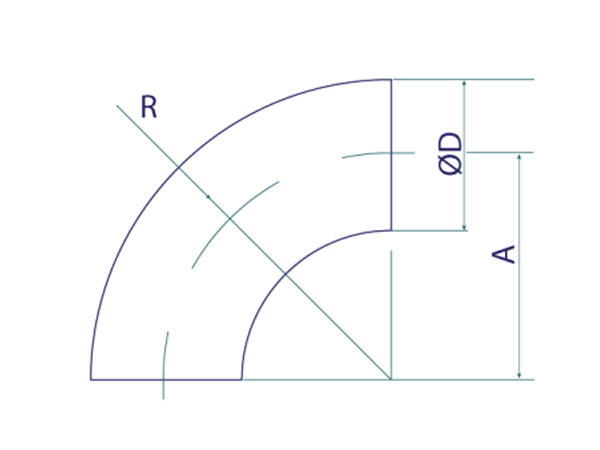

Long radius 1.5 D
Unit: mm
|
DN |
Ø D |
Wt.Ea |
A |
|
16 |
20 |
1 |
25 |
|
20 |
25 |
1.5 |
27.5 |
|
25 |
30 |
1.5 |
33.5 |
|
32 |
38 |
1.5 |
45 |
|
40 |
44.5 |
1.5 |
51 |
|
50 |
57 |
1.5 |
72 |
|
65 |
76 |
2 |
95 |
|
80 |
89 |
2 |
114.5 |
|
100 |
108 |
2.5 |
142.5 |
|
125 |
133 |
2.5 |
181 |
|
150 |
159 |
2.5 |
216 |
|
175 |
194 |
3 |
270 |
|
200 |
219 |
3 |
305 |
|
250 |
267 |
3 |
378 |
|
300 |
324 |
4 |
457 |
|
350 |
368 |
4 |
533.5 |
|
400 |
419 |
4 |
609.5 |
|
450 |
457 |
4.5 |
686 |
|
500 |
508 |
5 |
762 |
|
600 |
610 |
5 |
914 |
|
700 |
711 |
6 |
1067 |
|
800 |
813 |
6 |
1219 |
|
900 |
914 |
8 |
1372 |
Short radius 1.0 D
Unit: mm
|
DN |
Ø D |
Wt.Ea |
A |
|
25 |
30 |
1.5 |
30 |
|
32 |
38 |
1.5 |
32.5 |
|
40 |
44.5 |
1.5 |
40 |
|
50 |
57 |
1.5 |
52.5 |
|
65 |
76 |
2 |
70 |
|
80 |
89 |
2 |
82.5 |
|
100 |
108 |
2.5 |
100 |
|
125 |
133 |
2.5 |
125 |
|
150 |
159 |
2.5 |
150 |
|
175 |
194 |
3 |
180 |
|
200 |
219 |
3 |
203 |
|
250 |
267 |
3 |
255 |
|
300 |
324 |
4 |
305 |
|
350 |
368 |
4 |
352.5 |
|
400 |
419 |
4 |
400 |
|
450 |
457 |
4.5 |
457 |
|
500 |
508 |
5 |
508 |
|
600 |
610 |
5 |
610 |
|
700 |
711 |
6 |
711 |
|
800 |
813 |
6 |
813 |
|
900 |
914 |
8 |
914 |
