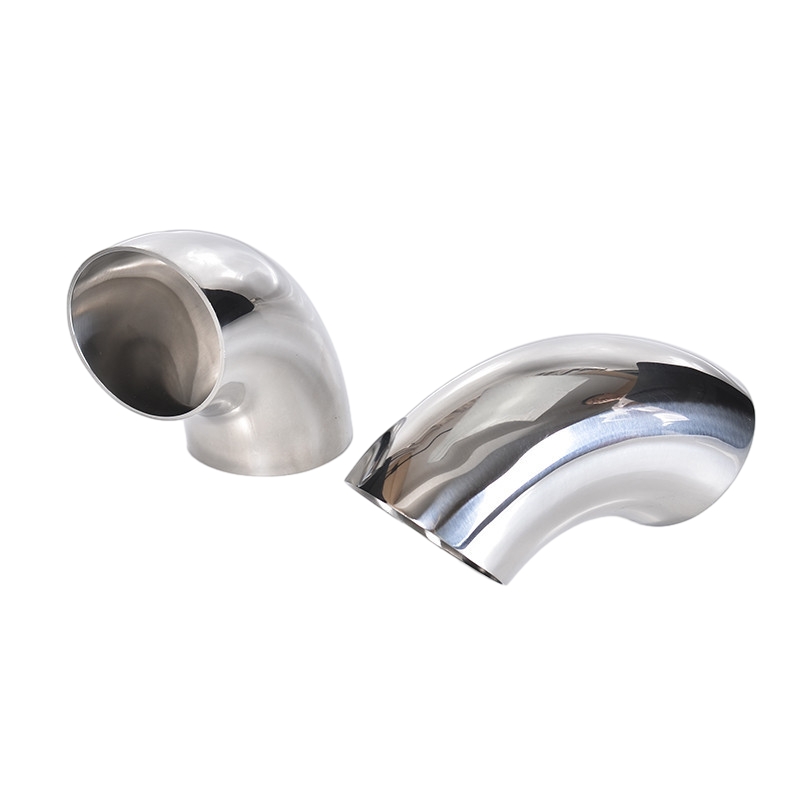

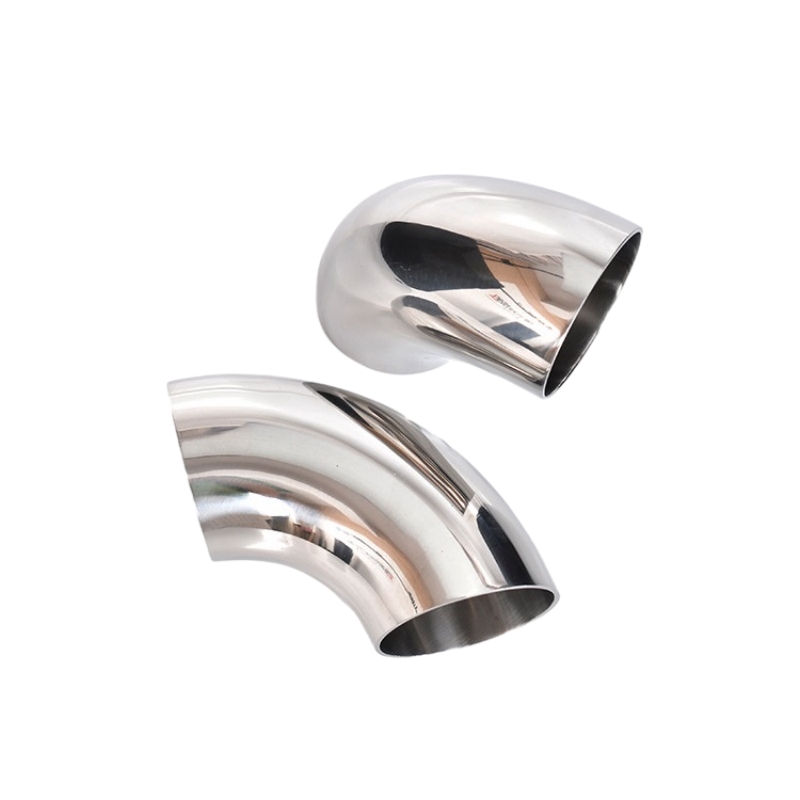

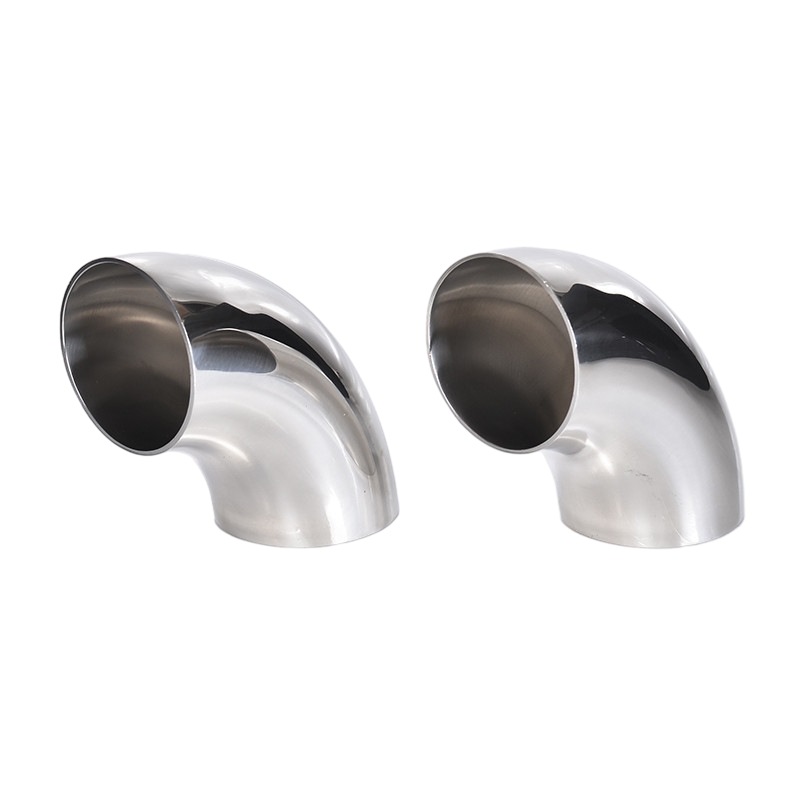

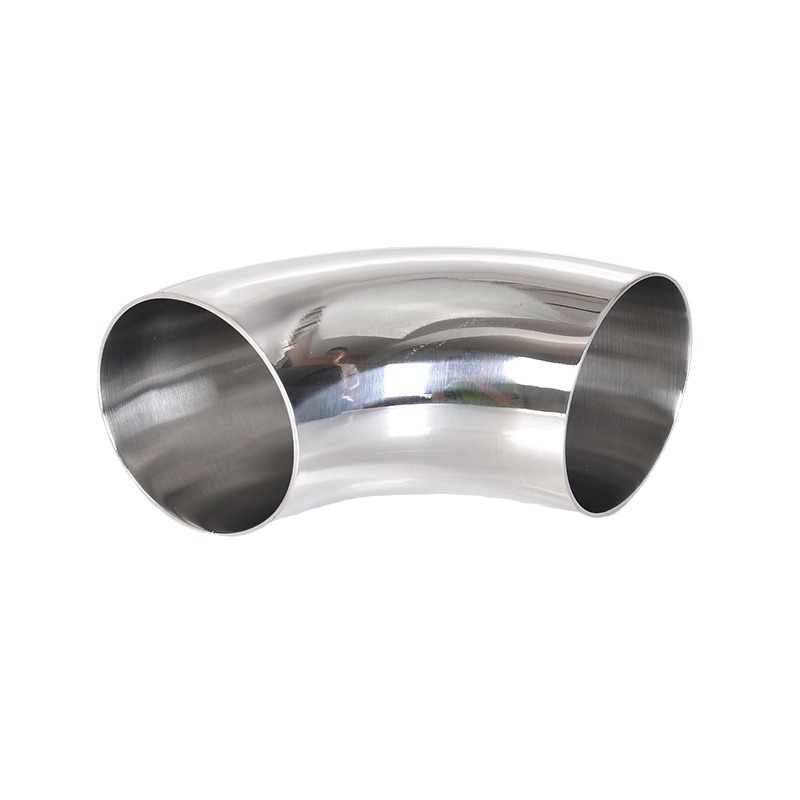

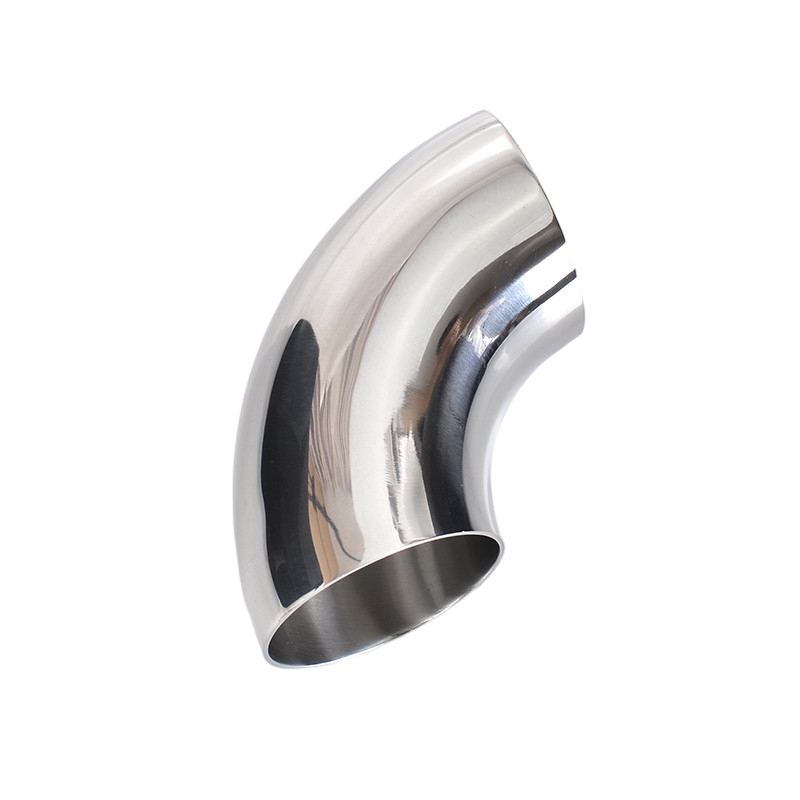

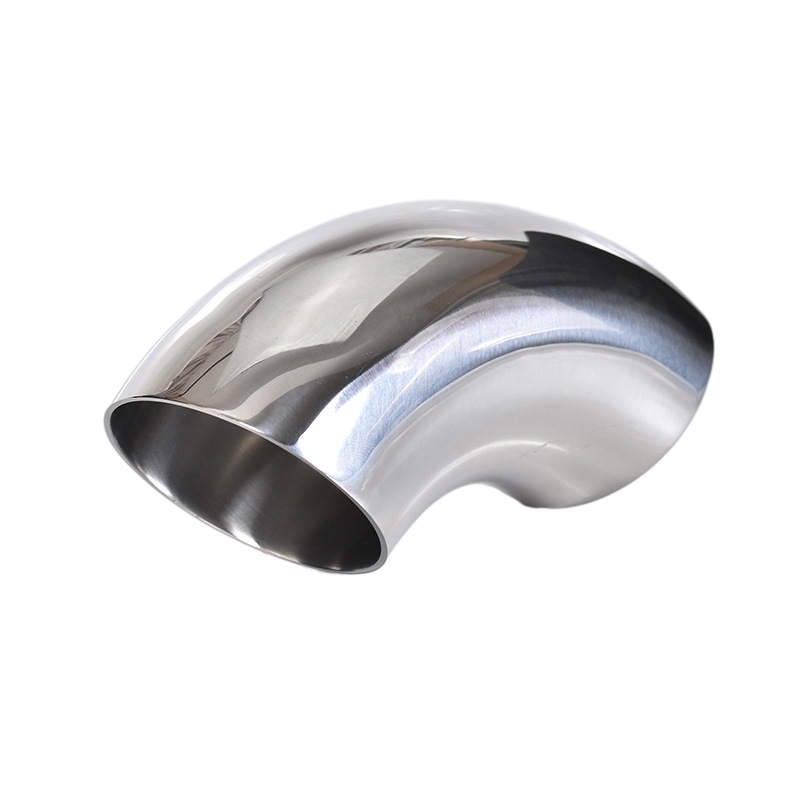

Stainless Steel 90°Short Radius Tube Bends is a pipe connector used to change the flow direction or angle of the pipe. Stainless steel 90° short radius bends present a compact curve shape with a curve angle of 90°. Compared with long-radius bent pipes, the bending radius is smaller, making the pipe bend more compact. The bend radius of this bend fitting is short, usually 1 times the diameter of the pipe. Compared with long-radius bends, short-radius bends have a more compact curvature and take up less space.
Stainless Steel 90°Short Radius Tube Bends are widely used in various pipeline systems, including the chemical industry, petroleum, food processing, pharmaceuticals, water treatment, and other fields. Enables piping to fit into compact layouts and installation requirements. Short-radius tube bends are suitable for pipe systems with narrow layouts. For better corrosion resistance, the bend fittings are also made of stainless steel.
Introduction
|
90°Short Radius Tube Bends |
|
|
Item |
Stainless Steel 90°Short Radius Tube Bends |
|
Standard |
ASME B16.9, ASME B16.11, ASME B16.5; |
|
Material Grades |
Stainless Steel 304 or 316L |
|
Surface |
Bright Polished |
|
Type |
Straight seam welding |
|
size |
Ø14.0-325mm |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Normal Export Packing |
|
Application |
Pipe Connection Petroleum Chemical Power Gas etc |

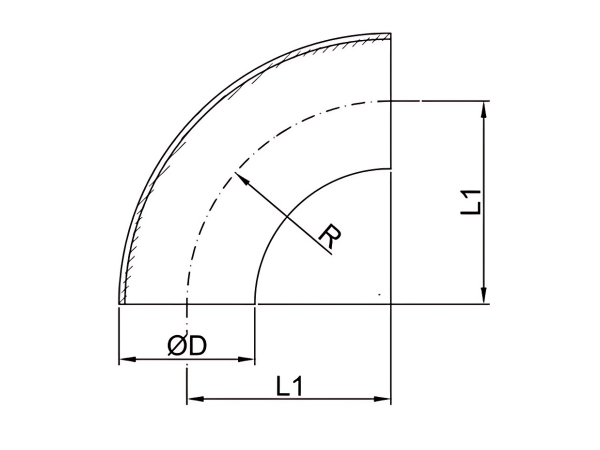

Unit:mm
|
Ø D |
Wt.Ea |
L1 |
|
14.0 |
1.5 |
- |
|
16.0 |
1.5 |
- |
|
19.05 |
1.5 |
28.5 |
|
19.05 |
2.0 |
28.5 |
|
20.0 |
1.5 |
- |
|
25.4 |
1.5 |
33.5 |
|
25.4 |
2.0 |
33.5 |
|
31.8 |
1.5 |
38.0 |
|
31.8 |
2.0 |
38.0 |
|
38.1 |
1.5 |
48.5 |
|
38.1 |
2.0 |
48.5 |
|
45.0 |
1.5 |
57.5 |
|
45.0 |
2.0 |
57.5 |
|
48.0 |
1.5 |
- |
|
48.0 |
2.0 |
- |
|
50.8 |
1.5 |
60.5 |
|
50.8 |
2.0 |
60.5 |
|
57.0 |
1.5 |
68.0 |
|
57.0 |
2.0 |
68.0 |
|
60.0 |
2.0 |
- |
|
63.5 |
2.0 |
83.5 |
|
76.2 |
2.0 |
88.5 |
|
88.9 |
2.0 |
103.5 |
|
101.6 |
2.0 |
127.5 |
|
108 |
2.0 |
132.0 |
|
108 |
3.0 |
132.0 |
|
114 |
2.0 |
- |
|
144 |
3.0 |
- |
|
133 |
2.0 |
182.0 |
|
133 |
3.0 |
182.0 |
|
140 |
2.0 |
- |
|
154 |
2.0 |
- |
|
154 |
3.0 |
- |
|
159 |
2.0 |
210 |
|
159 |
3.0 |
210 |
|
168 |
2.0 |
- |
|
219 |
3.0 |
- |
|
219 |
4.0 |
- |
|
273 |
3.0 |
- |
|
273 |
4.0 |
- |
|
325 |
3.0 |
- |
|
325 |
4.0 |
- |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Thin Wall Bright Polished Stainless Steel 90°Short Radius Tube Bends suppliers and OEM/ODM Thin Wall Bright Polished Stainless Steel 90°Short Radius Tube Bends manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
