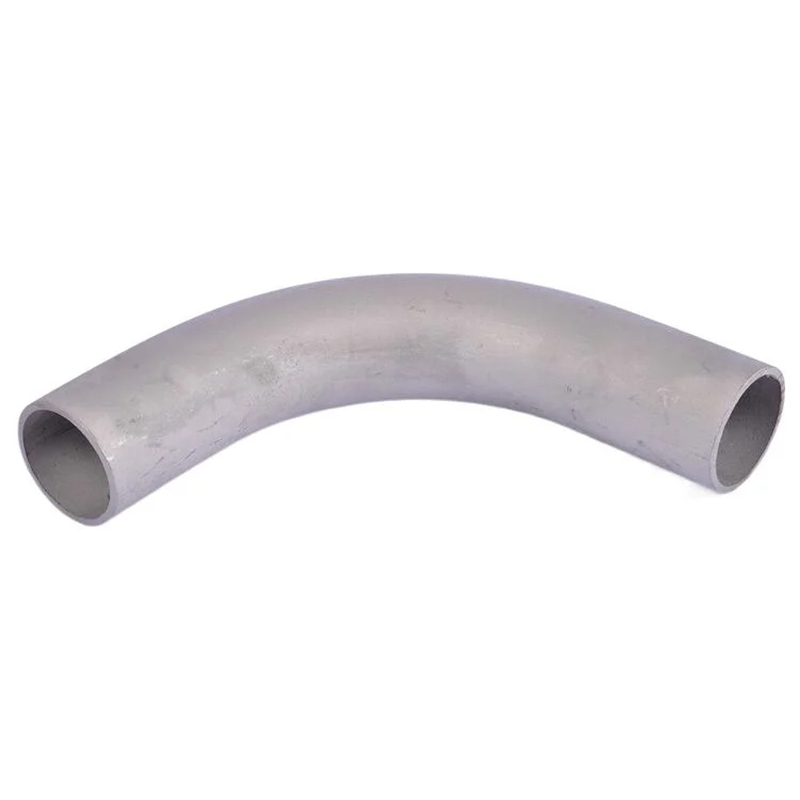

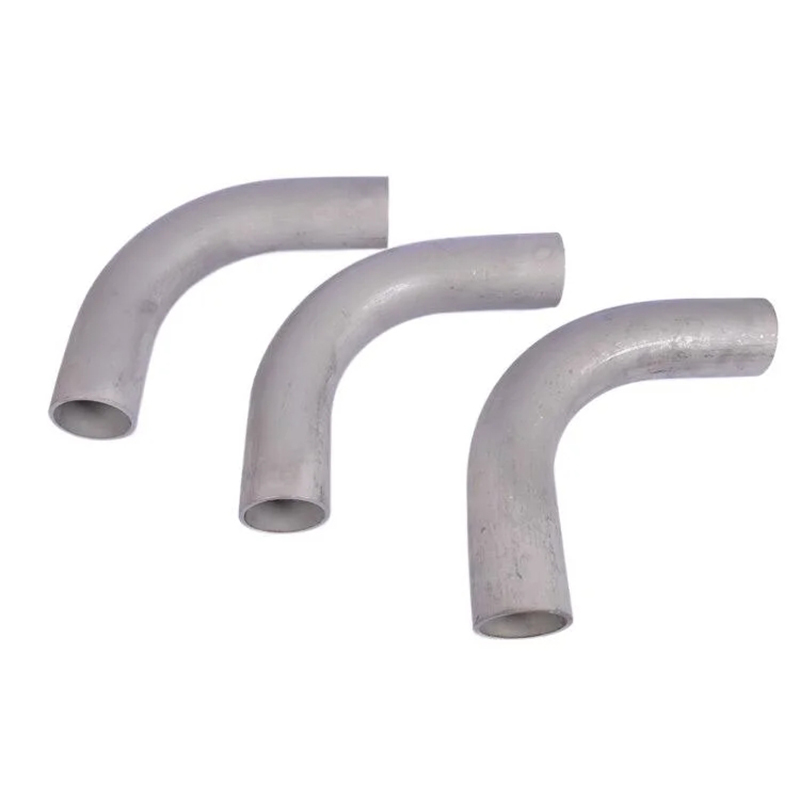

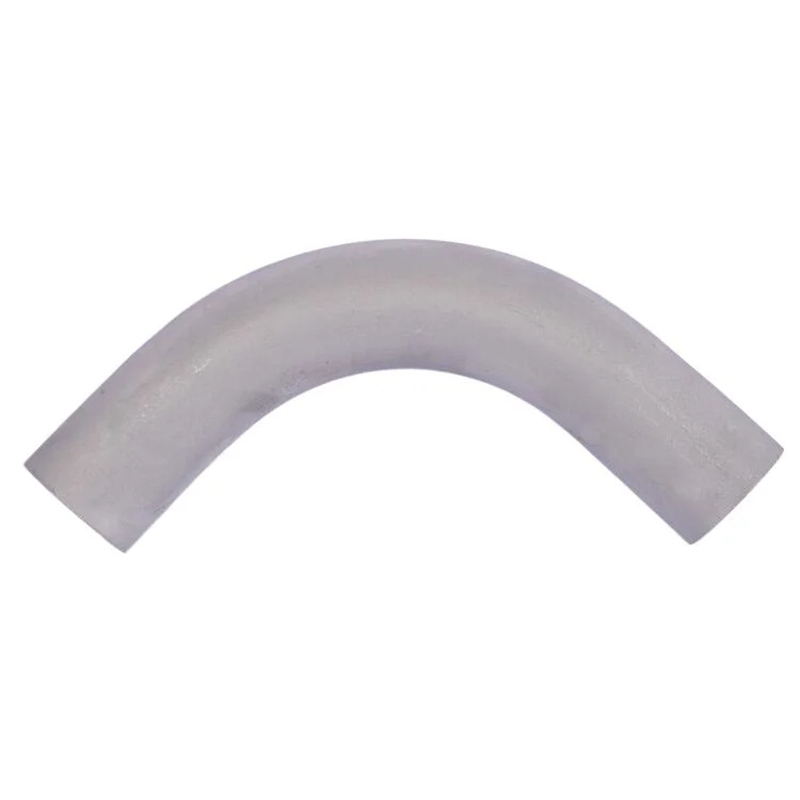

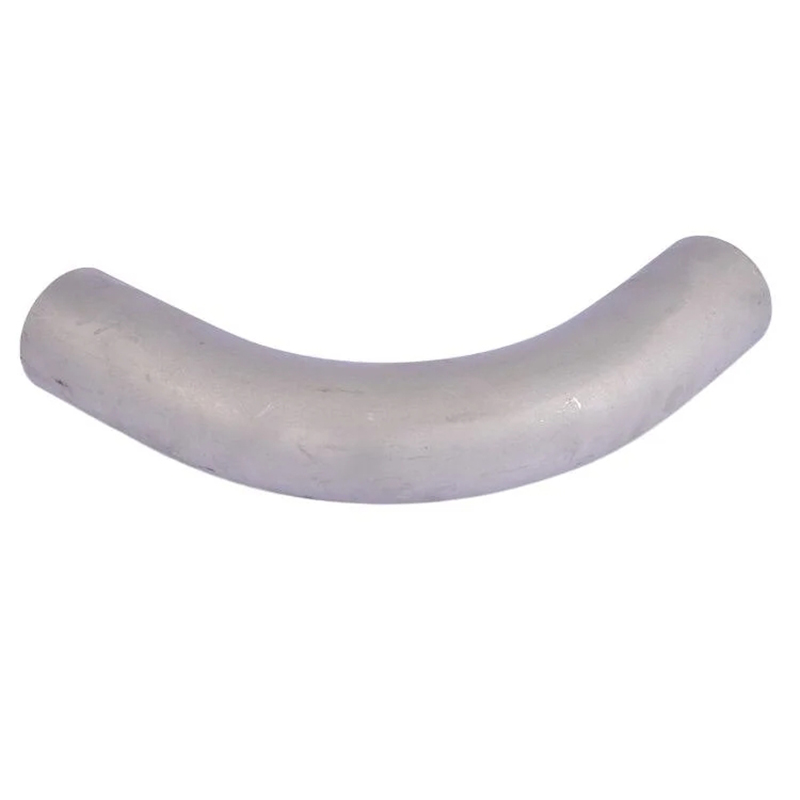

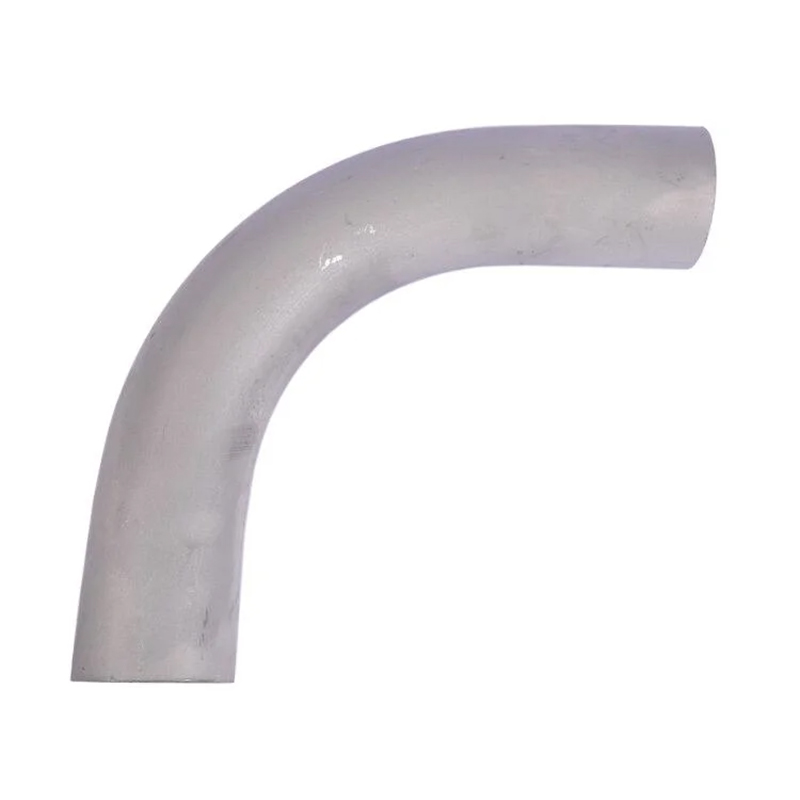

Stainless Steel 90° long radius tube Bends are made from stainless steel for corrosion resistance. They are custom-manufactured using a CNC mandrel bending process that allows for a smooth, unrestricted flow of fluid.
To maintain a certain level of quality and consistency, the stainless steel tubes are stretch-bent and have extended legs. This way of bending ensures that each end of the bend is rounded and accurate. The extended legs maintain the tube's original roundness and exact 45 or 90-degree radius.
Long radius tube bends can be MIG welded and then finely machined and polished by TIG for a seamless look and reduced friction against the fluid. When a pipe suddenly changes direction, it causes a loss of pressure within the pipe. A Stainless Steel 90° long radius tube bend is designed to minimize the pressure loss of friction fluid. There is enough space and volume to allow for wider turns and produce less pressure loss.
Stainless steel curved products are often used in dairy, food, pharmaceutical, biotechnology, and other industries and are also used in exhausts, drain pipes, condensers, heat exchangers, production lines, and product transportation.
Introduction
|
90°Long Radius Tube Bends |
|
|
Item |
Stainless Steel 90°Long Radius Tube Bends |
|
Standard |
ASTMA213,A312,ASTMA269,ASTMA778,ASTMA789,DIN17456,DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
|
Material Grades |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,316N,201,202 |
|
Surface |
CNC Mandrel bent tube with a polished finish inside and out |
|
Type |
Cold rolled |
|
size |
1/2-6” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wrapping thin film, packing them into the wooden cases or pallets. |
|
Application |
Used in dairy, food, pharmaceutical, biotechnology, and other industries and are also used in exhausts, drain pipes, condensers, heat exchangers, production lines product transportation, etc. |

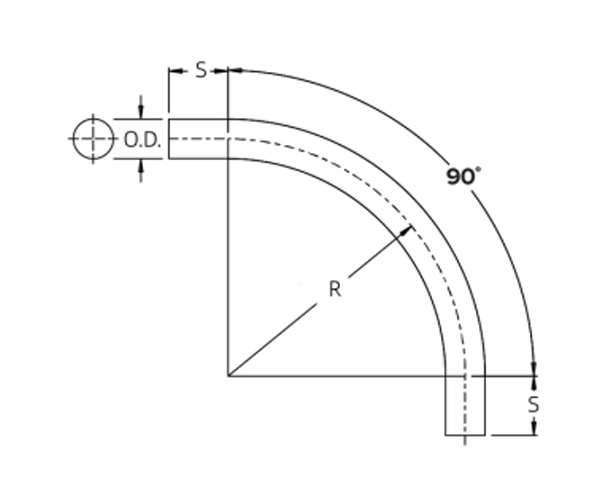

Unit:inch
|
Trade Size |
R |
S(min) |
|
1/2 |
4.000 |
1.500 |
|
3/4 |
4.500 |
1.500 |
|
1 |
5.750 |
1.875 |
|
1 1/4 |
7.250 |
2.000 |
|
1 1/2 |
8.250 |
2.000 |
|
2 |
9.500 |
2.000 |
|
2 1/2 |
10.500 |
3.000 |
|
3 |
13.000 |
3.125 |
|
3 1/2 |
15.000 |
3.250 |
|
4 |
16.000 |
3.375 |
|
5 |
24.000 |
3.625 |
|
6 |
30.000 |
3.750 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Thin Wall Pickling 304 Stainless Steel 90°Long Radius Tube Bends suppliers and OEM/ODM Thin Wall Pickling 304 Stainless Steel 90°Long Radius Tube Bends manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
