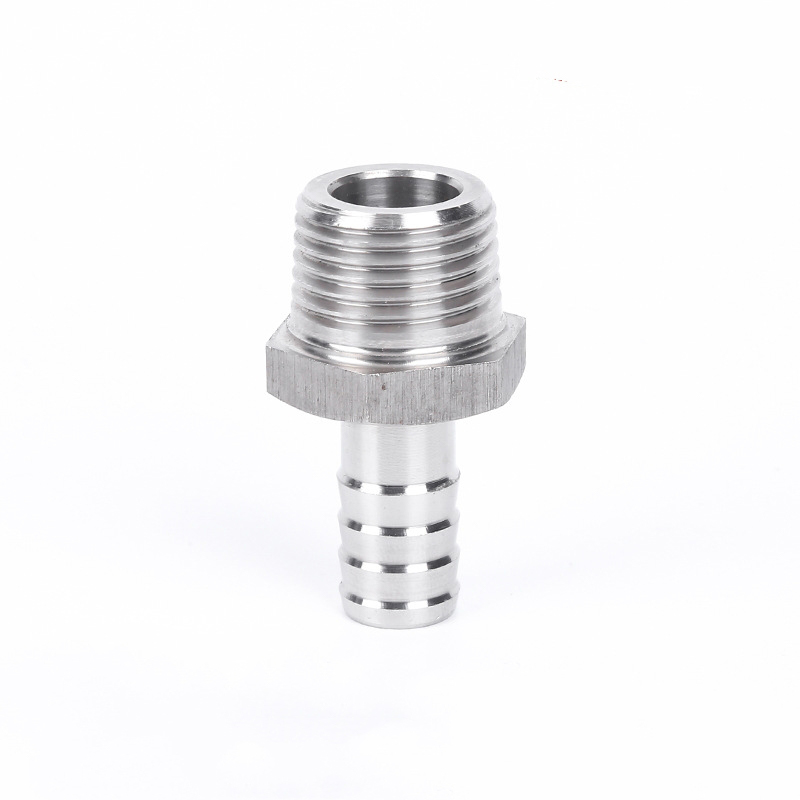

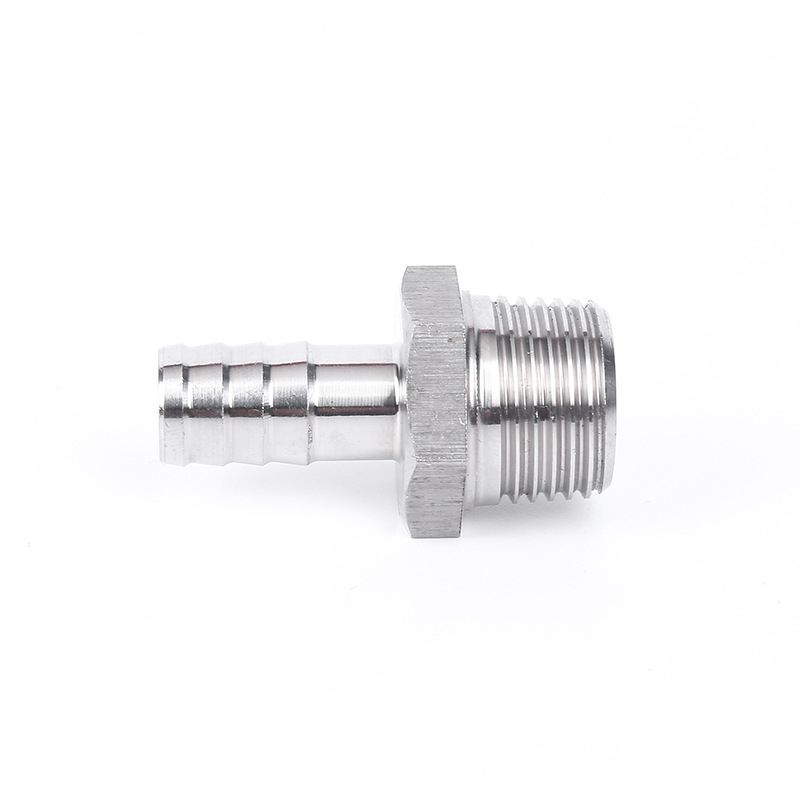

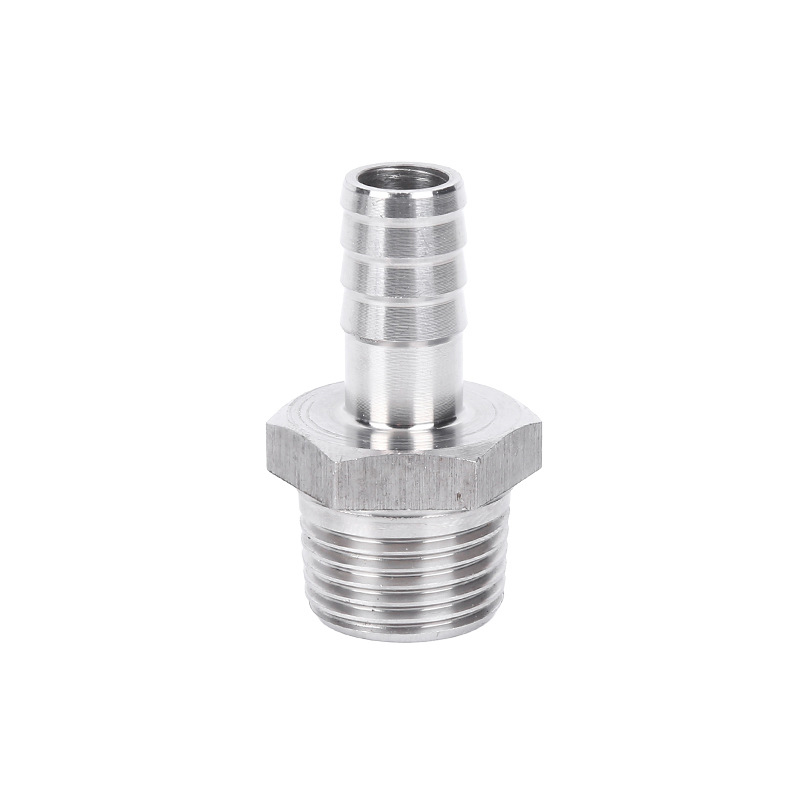

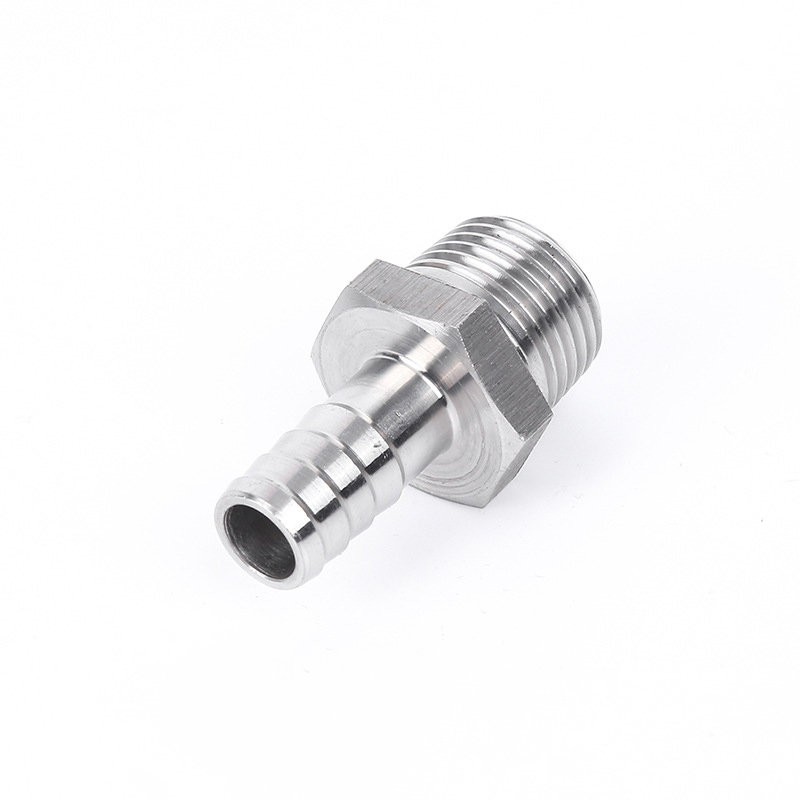

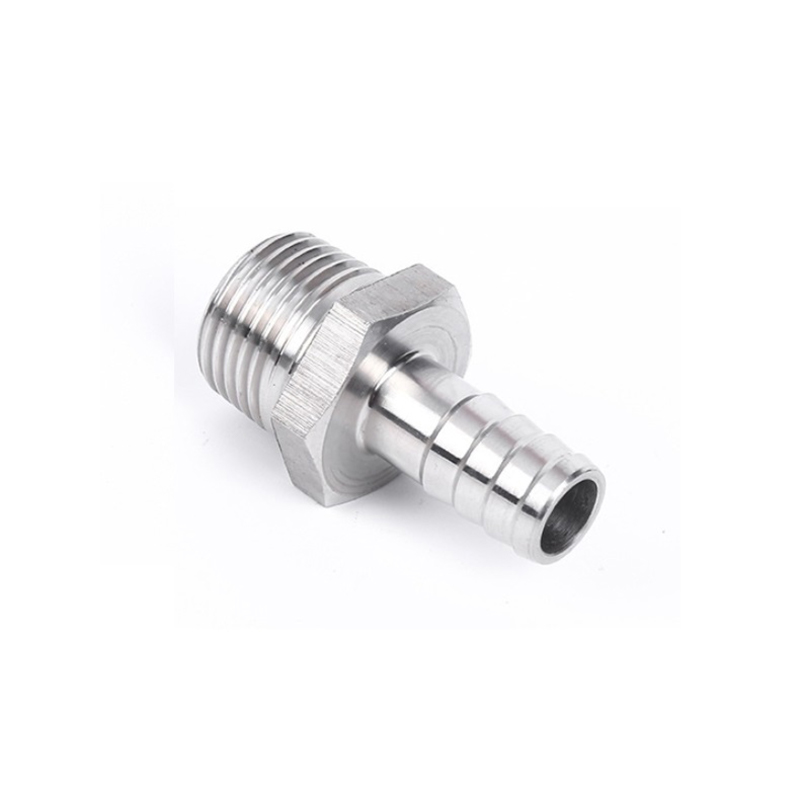

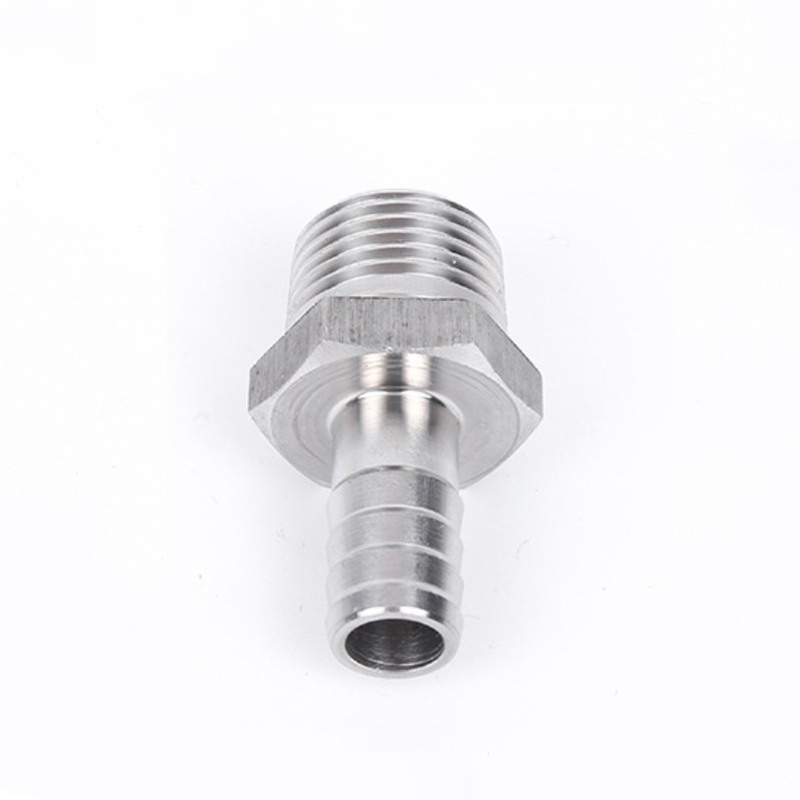

The stainless steel barbed nipple is a specially designed pipe connector with a barbed shape. Like other stainless steel pipe fittings, the stainless steel barb nipple is designed to connect two pipes.
Stainless steel barb nipple consist of a cylindrical body with a sting or raised surface on one end. Stingers are small raised flutes or raised ridges that provide a secure grip when inserted into flexible pipes or hoses. The other end is threaded to connect to other threaded accessories or components.
Stainless steel fitting barb nipples are usually connected by bolts and nuts, which can be quickly disassembled and installed for easy maintenance and replacement, and can provide good sealing performance when connecting pipes. The barb-shaped design makes the connection tighter, reducing the risk of leakage and ensuring the normal operation of the pipeline system.
Introduction
|
Item |
Stainless Steel Barbed Nipples |
|
Standard |
ASTM A733, BS En10241, DIN2982 |
|
Material |
Carbon steel: ASTM A106 |
|
Surface |
Natural |
|
Type |
Forged |
|
size |
1/8-1” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Carton, Pallet |
|
Application |
For Use With Air, Natural Gas, Oil, Steam, Water. |
|

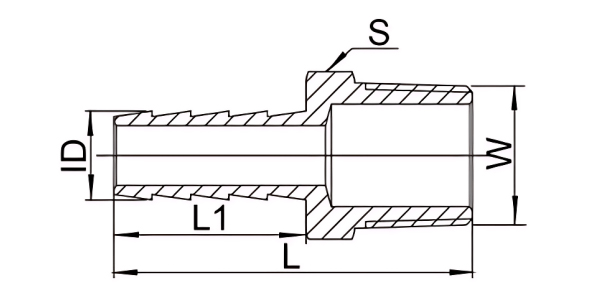

ID |
W |
S |
L |
L1 |
|
1/8" |
1/8"X27 |
7/16" |
1.06" |
0.46" |
|
|
1/4"X18 |
9/16" |
1.16" |
0.46" |
|
1/4" |
1/8"X27 |
7/16" |
1.57" |
0.97" |
|
|
1/4"X18 |
9/16" |
1.76" |
0.97" |
|
|
3/8"X18 |
11/16" |
1.76" |
0.97" |
|
3/8" |
1/8"X27 |
1/2" |
1.57" |
0.98" |
|
|
1/4"X18 |
9/16" |
1.76" |
0.98" |
|
|
3/8"X18 |
11/16" |
1.76" |
0.98" |
|
|
1/2"X14 |
1/2" |
1.97" |
0.98" |
|
|
3/4"X14 |
1 1/16" |
1.97" |
0.98" |
|
1/2" |
1/4"X18 |
5/8" |
1.76" |
0.98" |
|
|
3/8"X18 |
11/16" |
1.76" |
0.98" |
|
|
1/2"X14 |
7/8" |
1.97" |
0.98" |
|
|
3/4"X14 |
1 1/16" |
1.97" |
0.98" |
|
3/4" |
1/2"X14 |
7/8" |
2.19" |
1.19" |
|
|
3/4"X14 |
1 1/16" |
2.19" |
1.19" |
|
1" |
3/4"X14 |
1 1/16" |
2.19" |
1.19" |
|
|
1"X11.5 |
1 3/8" |
2.54" |
1.19" |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China 1-1/4" Hose Barbed Nipple Fittings Stainless Steel Schedule 40 NPT Thread suppliers and OEM/ODM 1-1/4" Hose Barbed Nipple Fittings Stainless Steel Schedule 40 NPT Thread manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
