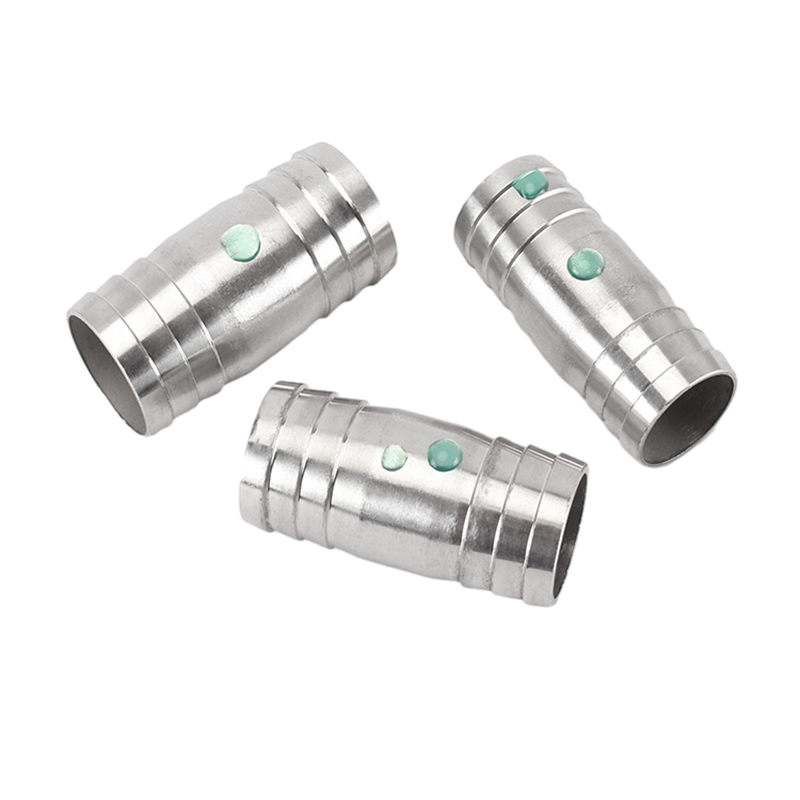

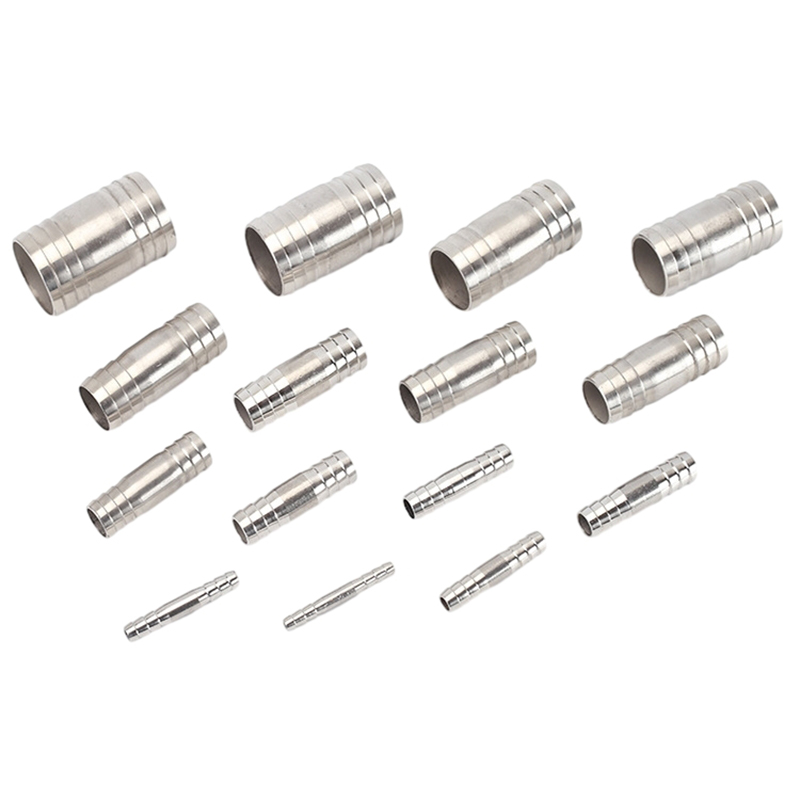

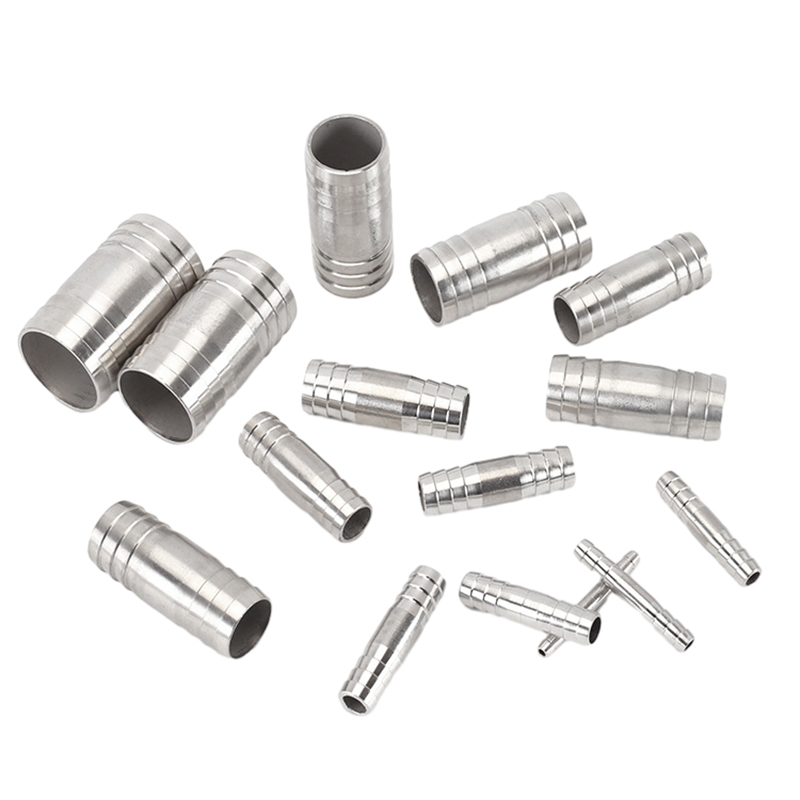

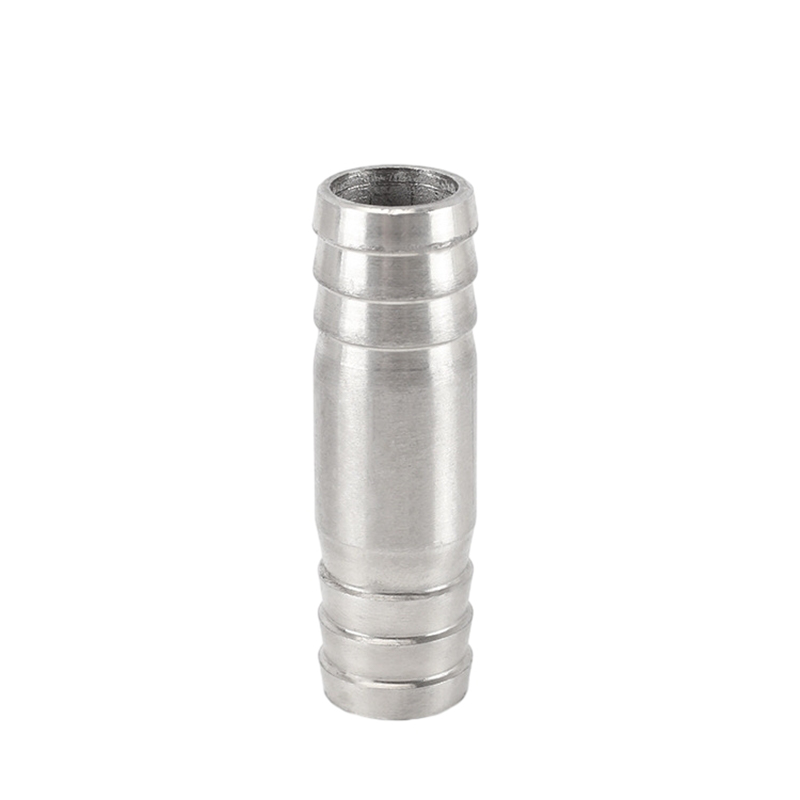

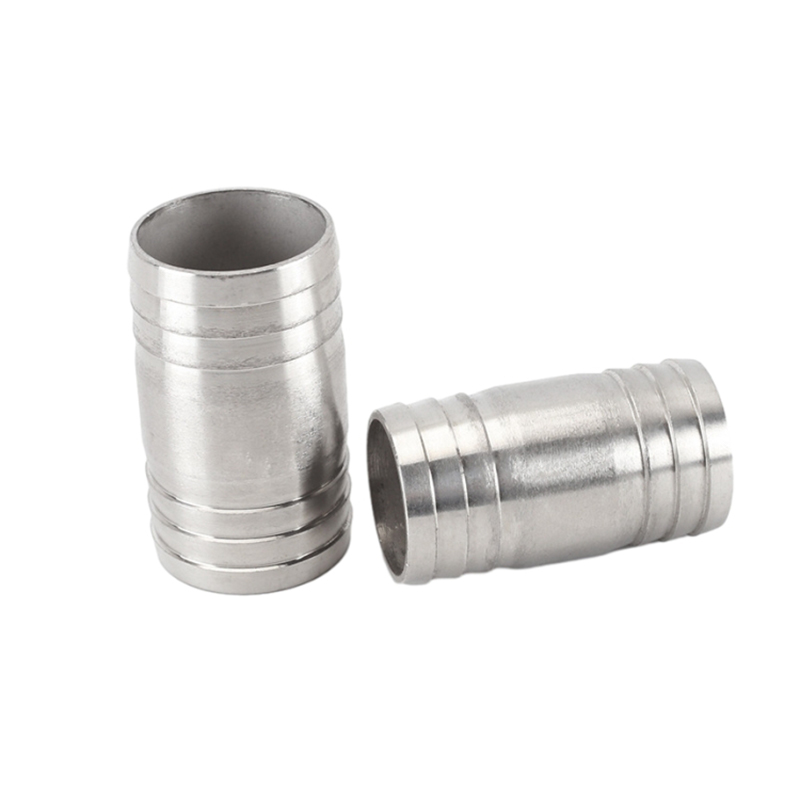

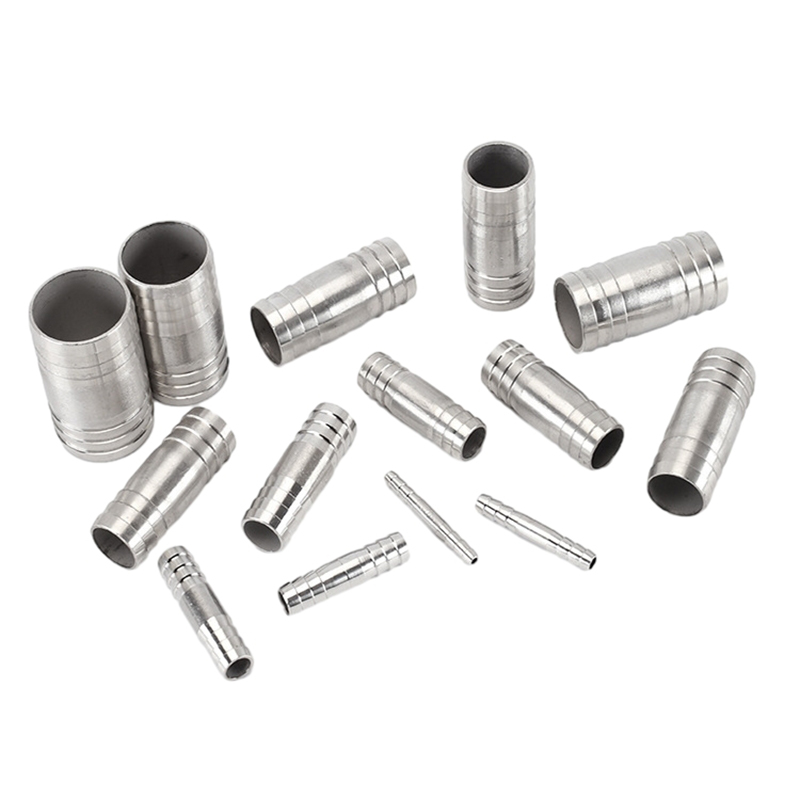

Stainless stainless steel hose barbed connector is designed with two hose pillars. These fittings have raised ridges that grip the insides of hoses to hold them in place and are secured with a clamp or crimped ferrule to form a tight seal.
Usually, barbed couplers are made of materials such as stainless steel, which has corrosion resistance, high strength, and high-temperature resistance.
Advantage:
1. Easy to install
2. Good sealing performance, can effectively prevent pipeline leakage
3. Has good corrosion resistance
Barbed hose coupler has a wide range of applications. Typically used in low-pressure applications in the food and beverage, marine and chemical processing industries to transport air, liquids chemicals, etc. through piping systems.
Introduction
Item |
Stainless Steel Barbed Connector |
Standard |
ASTM A733 |
Material |
Stainless Steel 201/304/316 |
Surface |
Galvanized |
Type |
casting |
size |
D6-41mm |
Delivery time |
Within 5-30 days after receiving the prepaid |
Packing |
Paper Box, Wooden Case |
Application |
Industrial Usage, Water Industrial Usage, |

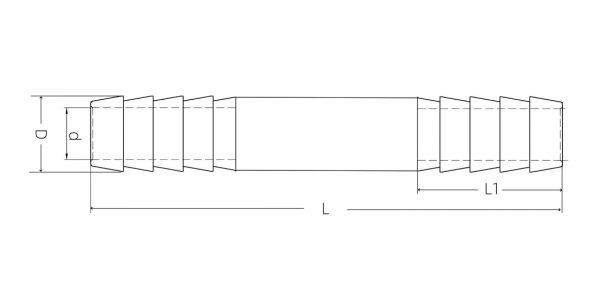

Unit:mm
L |
L1 |
D |
d |
50 |
19 |
6 |
3 |
50 |
19 |
8 |
4.8 |
50 |
19 |
10 |
6 |
50 |
20 |
12 |
9 |
55 |
20 |
14 |
9 |
55 |
20 |
16 |
11 |
55 |
20 |
18 |
13 |
60 |
21 |
20 |
16 |
60 |
22 |
22 |
18 |
65 |
24 |
24 |
19 |
65 |
24 |
26 |
22 |
65 |
25 |
28 |
25 |
65 |
25 |
30 |
24 |
65 |
26 |
32 |
27 |
65 |
24 |
34 |
28 |
65 |
25 |
38 |
33 |
65 |
25 |
41 |
36 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Low Pressure 316 Stainless Stainless Steel Hose Barbed Connector Fittings suppliers and OEM/ODM Low Pressure 316 Stainless Stainless Steel Hose Barbed Connector Fittings manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
