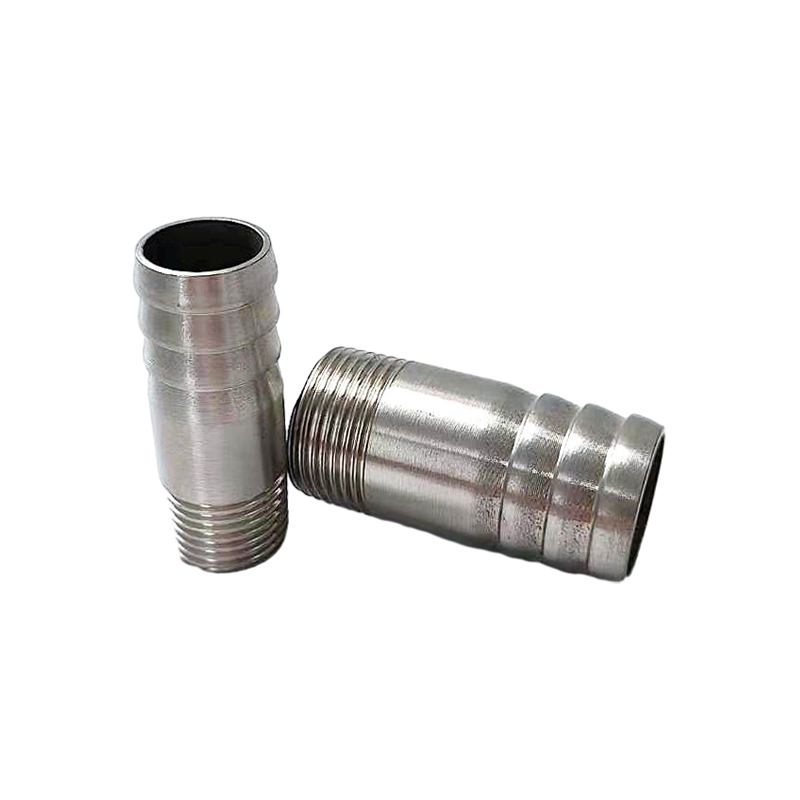

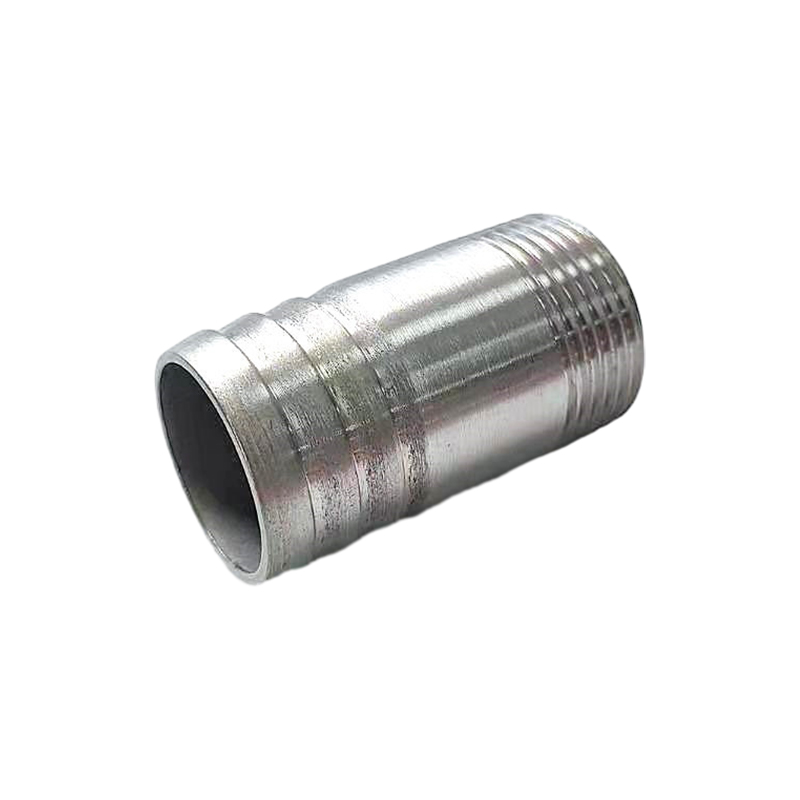

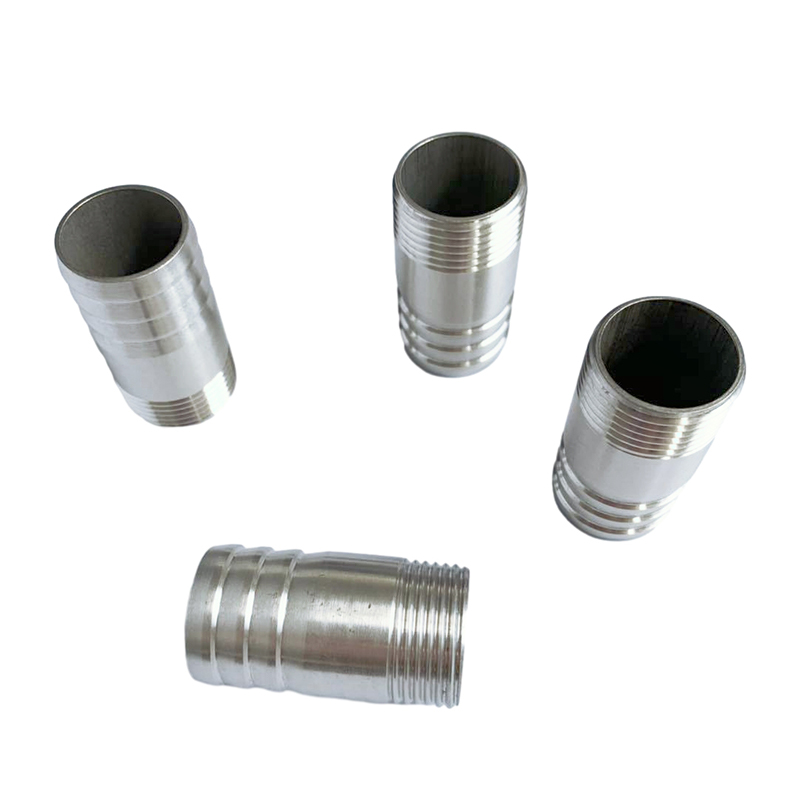

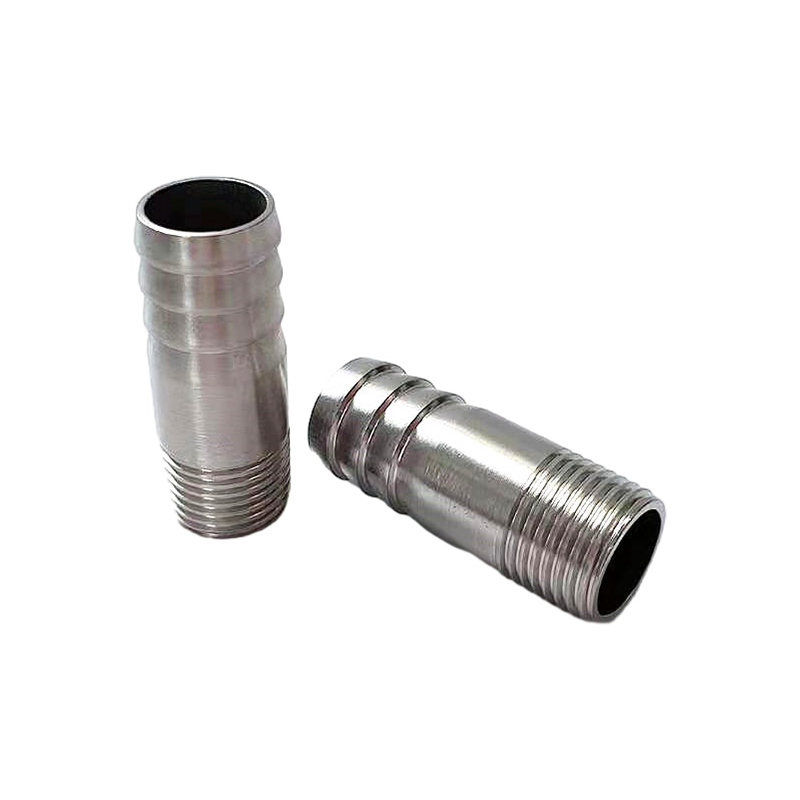

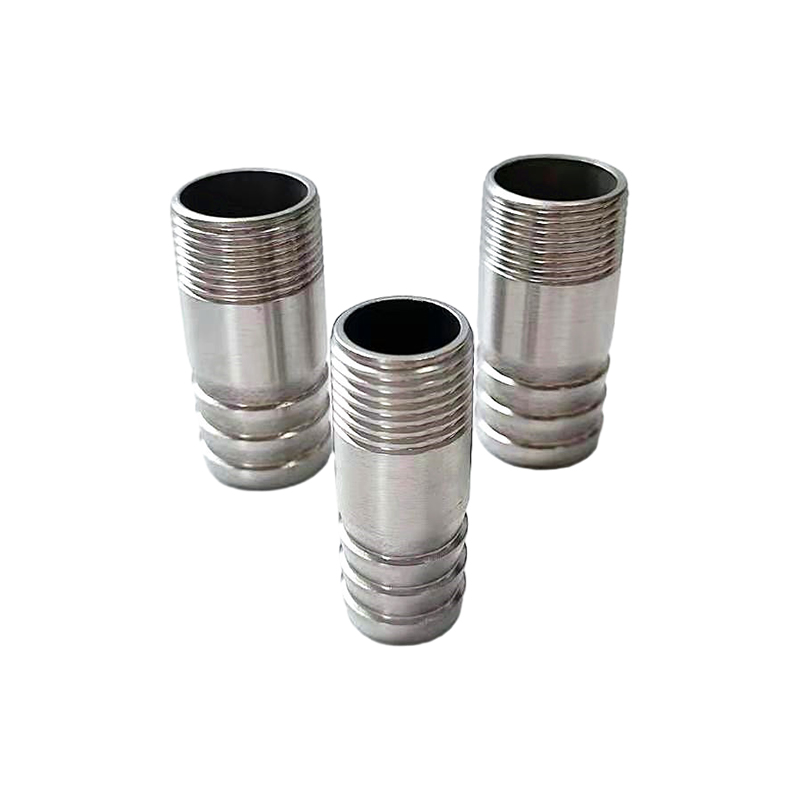

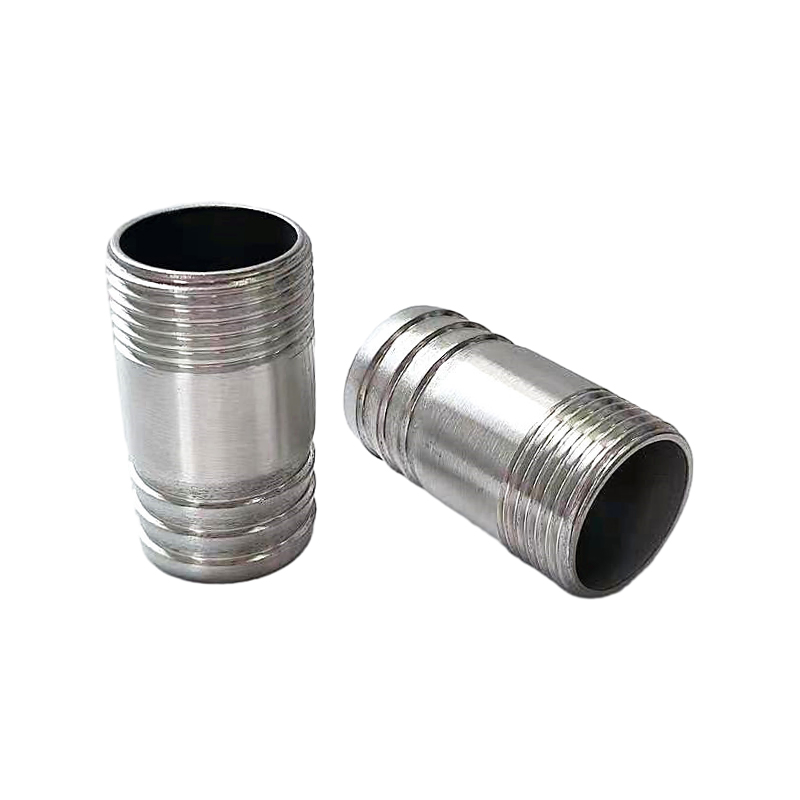

Stainless steel barbed connectors are usually made of stainless steel 304 or 316 and have a barb-shaped connection port. It is a commonly used mechanical connector, mainly used for connecting pipes, valves, and other equipment. The barb-shaped bayonet has the advantages of simple installation, reliable sealing, and long service life.
These barbed couplers have raised barbs on each end that grip the inside of the hose to hold it in place. Their special construction allows them to be secured with clamps or crimp ferrules to create a leak-proof seal.
Stainless steel barbed hose couplings offer corrosion resistance, making them a good choice for applications in saltwater and chlorine environments. They also protect fluids in piping systems from environmental contamination.
Stainless Steel Barbed connectors are suitable for high-pressure pipeline systems. They can withstand higher pressures and have better pipeline sealing functions. They are widely used in petroleum, chemical, metallurgy, and other industries. At the same time, there are also different types of barbed connector connection methods, such as steel barb clasp connection method, pipe barb connection, etc.
Introduction
|
Item |
Stainless Steel Barbed Connector |
|
Standard |
ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313 |
|
Material |
304/304L, 316/316L, etc |
|
Surface |
Hot DIP |
|
Type |
casting |
|
size |
1/8-4” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plastic Bags, Cartons and Pallet |
|
Application |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc. |
|

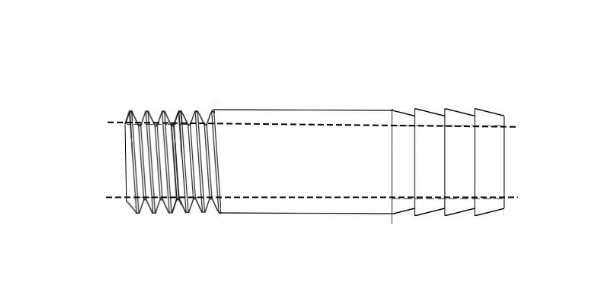

DN |
Size |
Thread Outer Diameter |
Length |
Wt.Ea |
|
6 |
1/8" |
9.5mm |
41mm |
2mm |
|
8 |
1/4" |
12.5mm |
39mm |
2mm |
|
10 |
3/8" |
16mm |
47.5mm |
2mm |
|
15 |
1/2" |
20mm |
48mm |
2mm |
|
20 |
3/4" |
25.5mm |
46.5mm |
2mm |
|
25 |
1/1" |
32mm |
49mm |
2mm |
|
32 |
1 1/4" |
40.5mm |
60mm |
2mm |
|
40 |
1 1/2" |
46mm |
56.5mm |
2mm |
|
50 |
2" |
58mm |
73mm |
2.5mm |
|
65 |
2 1/2" |
74mm |
68mm |
2.5mm |
|
80 |
3" |
86mm |
80mm |
3mm |
|
100 |
4" |
112mm |
80mm |
4mm |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Double Hose Barbed Connector Fitting 316 Stainless Steel Straight Fitting Style suppliers and OEM/ODM Double Hose Barbed Connector Fitting 316 Stainless Steel Straight Fitting Style manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
