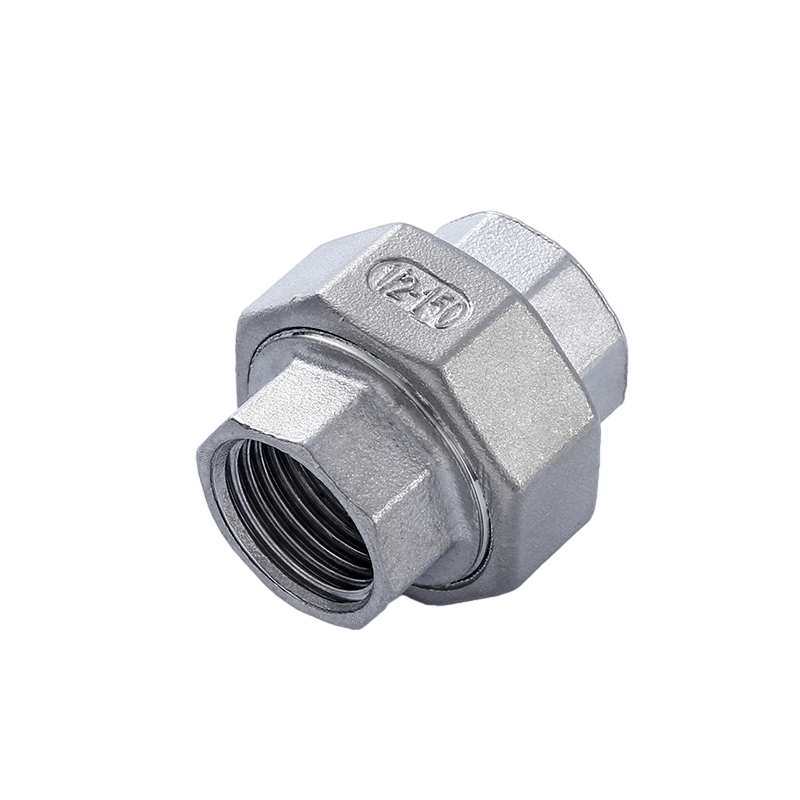

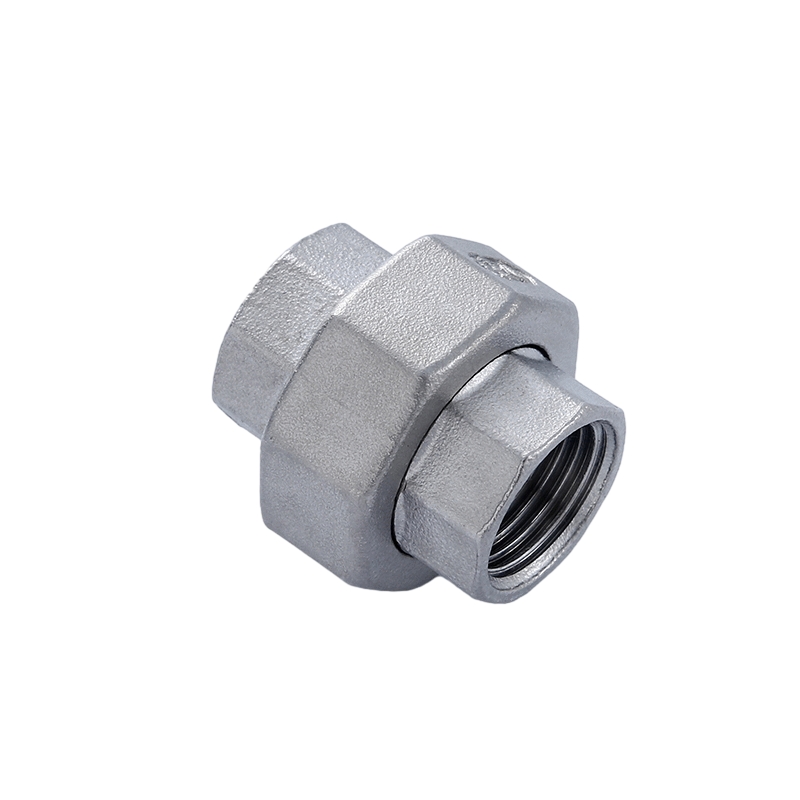

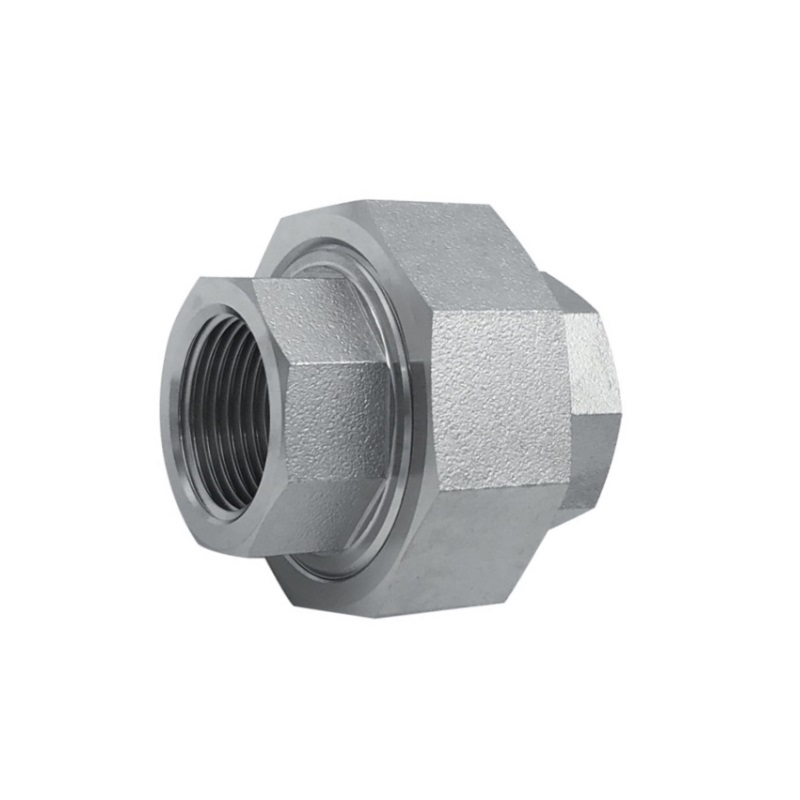

Stainless steel Unions, also known as a Union coupling or Threaded pipe union. Union male-female in Stainless Steel with female threaded connections on one side and male on the other end with tightening Nut in the middle. It provides an easy way to connect two pipes without having to turn the pipes. These types of unions are used to secure a semi-permanent connection between two pipes.

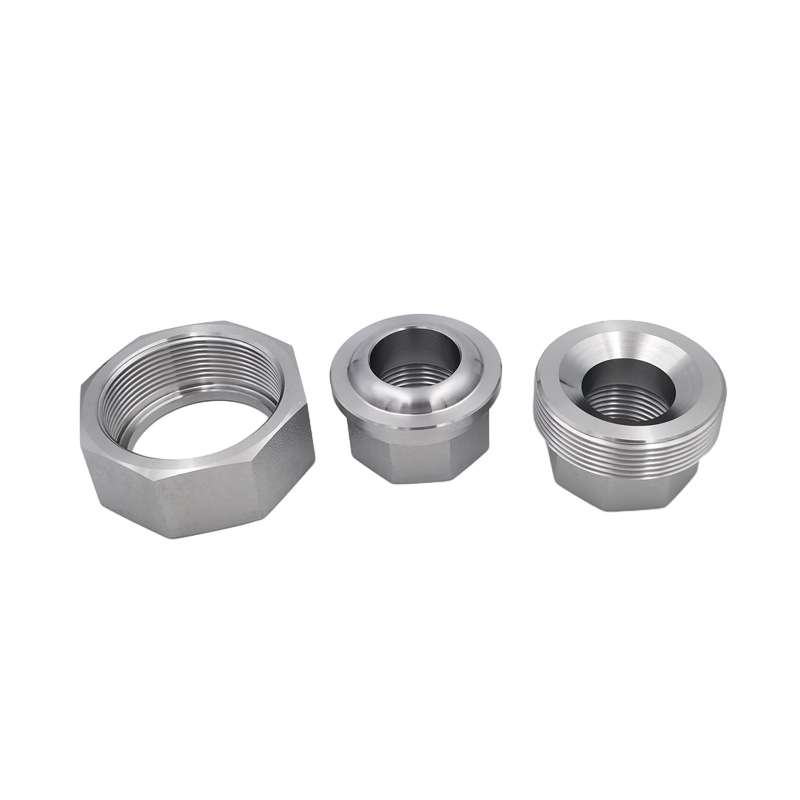

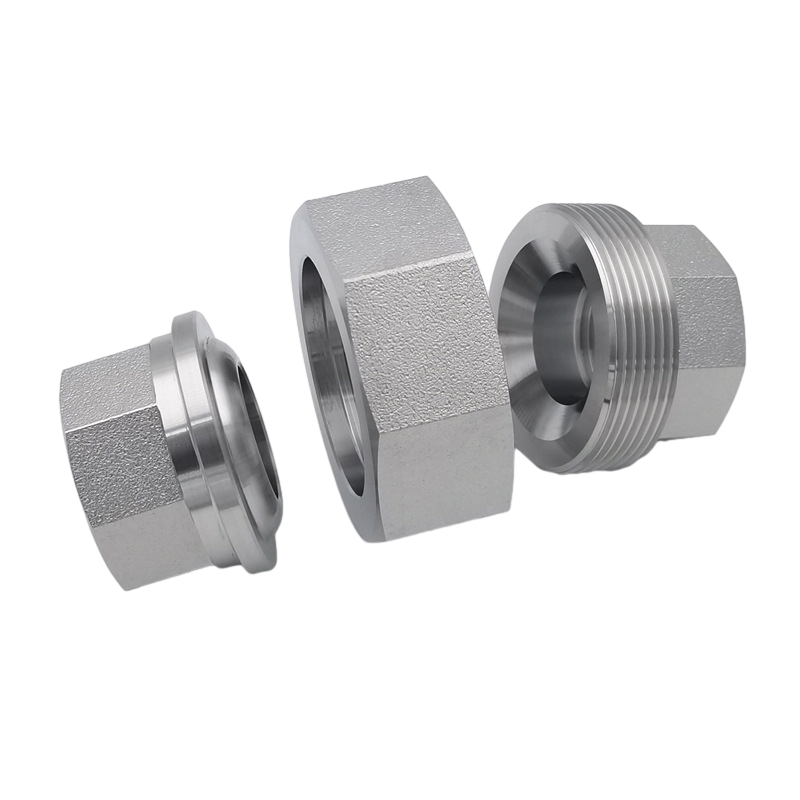

The stainless steel union is made from three parts, It consists of two pipes connected together via a third piece. It has extra functionality compared to that of a regular couple. Very convenient to install, and disassemble, and with strong versatility, can access your line without unthreading pipe connections.
Made from corrosion-resistant stainless steel, this forged union ensures excellent structural integrity in high-pressure applications and provides reliability and durability. Its rugged construction and compliance with industry standards make it the first choice for applications requiring reliable performance under pressure.
Introduction
|
Item |
Stainless Steel Union |
|
Standard |
ASTM, DIN, JIS, ISO, GB standards |
|
Material |
Stainless steel 304/316L |
|
Surface |
Sand Blasting |
|
Type |
Cast |
|
size |
1/8"-3" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden Case |
|
Application |
water supply, petroleum, environmental protection, chemical industry, food, electricity, construction, sewage, |
|

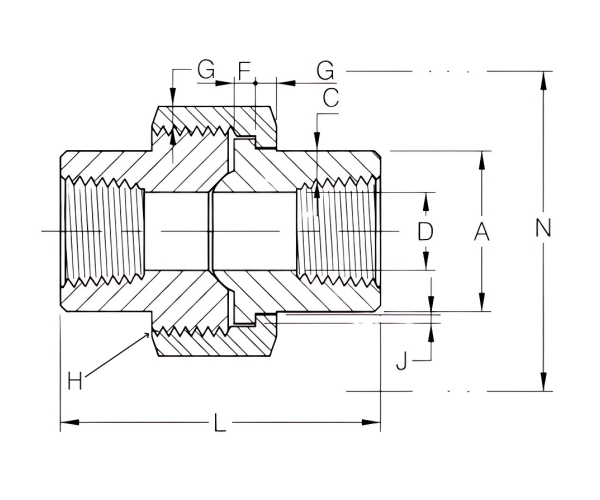

NPS |
A |
C |
D(max) |
D(min) |
F |
G |
H (Thrds/IN) |
J(min) |
L |
N |
|
1/8" |
14.7 |
2.41 |
8.43 |
6.34 |
3.18 |
3.18 |
16 |
1.24 |
41.4 |
50.8 |
|
1/4" |
19 |
3.02 |
11.13 |
9.45 |
3.18 |
3.18 |
16 |
1.24 |
41.4 |
50.8 |
|
3/8" |
22.9 |
3.2 |
14.27 |
13.51 |
3.43 |
3.43 |
14 |
1.37 |
46 |
55.9 |
|
1/2" |
27.7 |
3.73 |
17.86 |
17.07 |
3.68 |
3.68 |
14 |
1.5 |
49 |
58.4 |
|
3/4" |
33.5 |
3.91 |
23.01 |
21.39 |
4.06 |
4.06 |
11 |
1.68 |
56.9 |
66 |
|
1" |
41.4 |
4.55 |
28.98 |
27.74 |
4.57 |
4.45 |
11 |
1.85 |
62 |
78.7 |
|
1 1/4" |
50.5 |
4.85 |
37.69 |
35.36 |
5.33 |
5.21 |
10 |
2.13 |
71.1 |
94 |
|
1 1/2" |
57.2 |
5.08 |
43.54 |
41.2 |
5.84 |
5.59 |
10 |
2.31 |
76.5 |
111.8 |
|
2" |
70.1 |
5.54 |
55.58 |
52.12 |
6.60 |
6.35 |
10 |
2.69 |
86.1 |
132.1 |
|
2 1/2" |
85.3 |
7.01 |
66.27 |
64.31 |
7.49 |
7.11 |
8 |
3.07 |
102.4 |
149.9 |
|
3" |
102.4 |
7.62 |
88.25 |
77.27 |
8.26 |
8.00 |
8 |
3.53 |
109 |
175.3 |
