Stainless Steel Union is a type of transition joint commonly used in pipe conversion, used to connect and disconnect the pipe connections of two pipes or piping systems. Composed of two parts, this loop-type connection method can be quickly and easily disassembled, which is beneficial to pipeline maintenance, repair, and other operations.
Forged unions are constructed of stainless steel to ensure structural integrity in high-pressure applications and provide reliability and durability, it is suitable for various environments and working conditions and suitable for pipe connection needs.
Stainless steel unions are widely used in low-pressure pipeline systems. They are often used in pipeline systems in chemical, petroleum, food processing, pharmaceutical, and other industries. They are also used to connect pipelines, valves, equipment, or other accessories, suitable for high-temperature or special medium transmission.
Introduction
|
Item |
Stainless Steel Union |
|
Standard |
3A, DIN, SMS, IDF, BPE, BS, ISO |
|
Material |
Stainless Steel |
|
Surface |
CNC Machined |
|
Type |
Investment Casting Foundry- Wax Lost Technology |
|
size |
1/8"-3” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Shrink wrapper- carton-plywood case |
|
Application |
Food, beverage, chemical, pharmacy, biotechnology, cosmetic, and other industries in the field of stainless steel piping system |

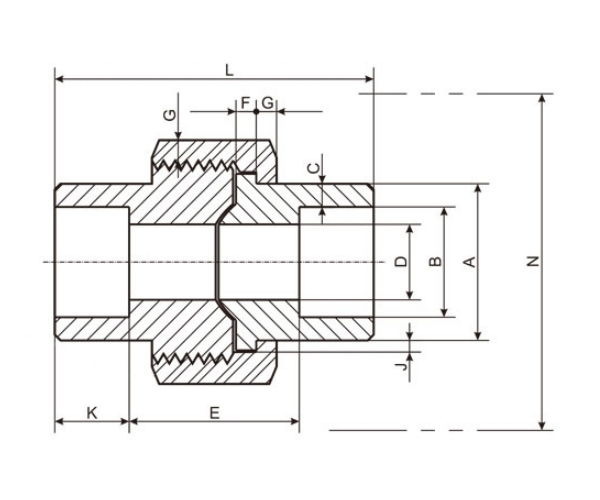

Dimensions in Millimeters
|
NPS |
Size |
A |
B |
C |
D(max) |
D(min) |
k |
E |
F |
G |
J(min) |
L |
N |
|
1/8" |
6 |
14.7 |
9.88 |
2.41 |
8.43 |
6.34 |
9.5 |
22.4 |
3.18 |
3.18 |
1.24 |
41.4 |
50.8 |
|
1/4" |
8 |
19 |
12.96 |
3.02 |
11.13 |
9.45 |
9.5 |
22.4 |
3.18 |
3.18 |
1.24 |
41.4 |
50.8 |
|
3/8" |
10 |
22.9 |
16.5 |
3.2 |
14.27 |
13.51 |
9.5 |
27 |
3.43 |
3.43 |
1.37 |
46 |
55.9 |
|
1/2" |
15 |
27.7 |
20.24 |
3.73 |
17.86 |
17.07 |
9.5 |
30 |
3.68 |
3.68 |
1.5 |
49 |
58.4 |
|
3/4" |
20 |
33.5 |
25.68 |
3.91 |
23.01 |
21.39 |
12.5 |
31.9 |
4.06 |
4.06 |
1.68 |
56.9 |
66 |
|
1" |
25 |
41.4 |
32.3 |
4.55 |
28.98 |
27.74 |
12.5 |
37 |
4.57 |
4.45 |
1.85 |
62 |
78.7 |
|
1 1/4" |
32 |
50.5 |
40.8 |
4.85 |
37.69 |
35.36 |
12.5 |
46.1 |
5.33 |
5.21 |
2.13 |
71.1 |
94 |
|
1 1/2" |
40 |
57.2 |
47.04 |
5.08 |
43.54 |
41.2 |
12.5 |
51.5 |
5.84 |
5.59 |
2.31 |
76.5 |
111.8 |
|
2" |
50 |
70.1 |
59.02 |
5.54 |
55.58 |
52.12 |
16 |
54.1 |
6.60 |
6.35 |
2.69 |
86.1 |
132.1 |
|
2 1/2" |
65 |
85.3 |
71.28 |
7.01 |
66.27 |
64.31 |
16 |
70.4 |
7.49 |
7.11 |
3.07 |
102.4 |
149.9 |
|
3" |
80 |
102.4 |
887.16 |
7.62 |
88.25 |
77.27 |
16 |
77 |
8.26 |
8.00 |
3.53 |
109 |
175.3 |
