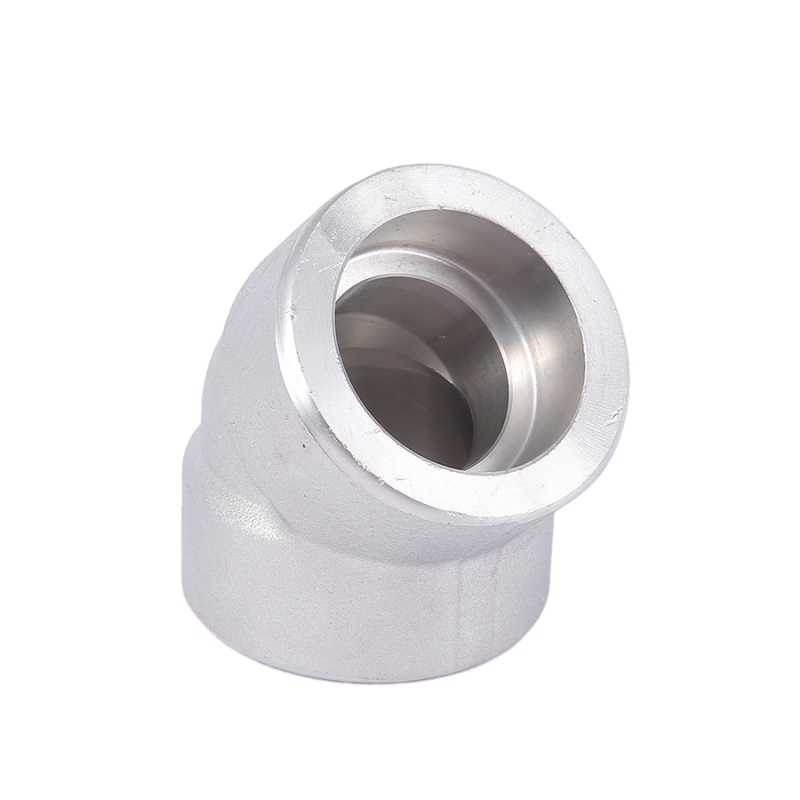

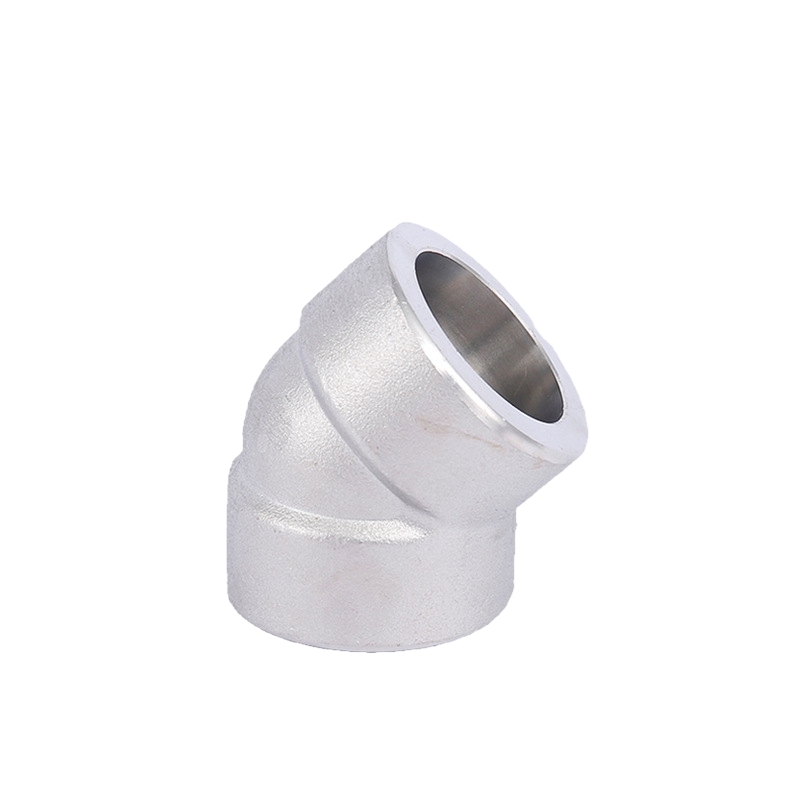

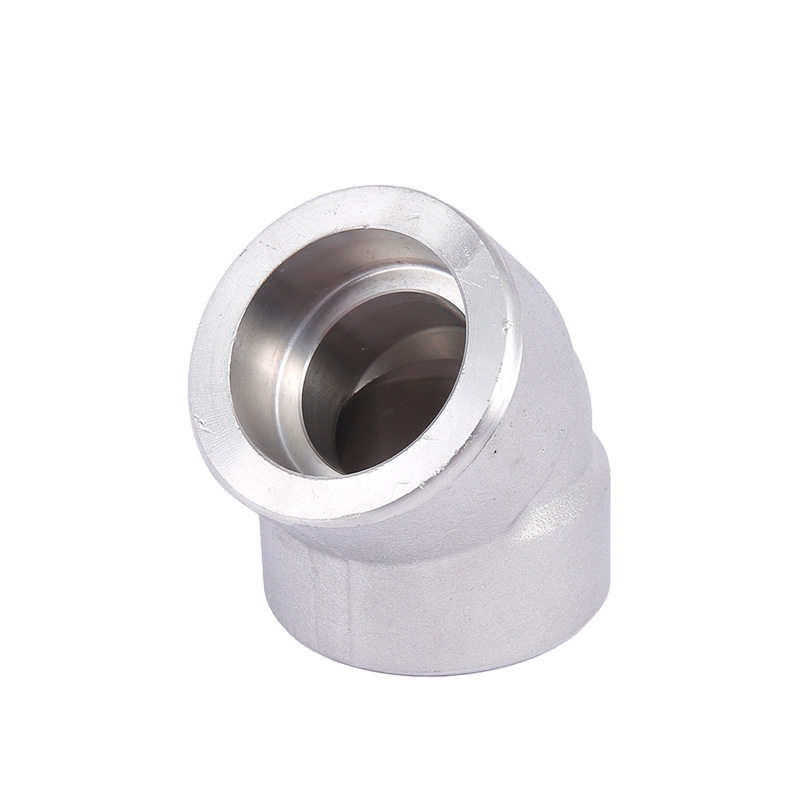

The 45°stainless steel socket weld elbow is a pipe connection accessory with an angle of 45°. The standard forged stainless steel piping components for ambient and high temperature/pressure systems. It is used to change the direction of the pipeline and has the functions of connection and sealing. It is made of stainless steel and has corrosion resistance and high-temperature resistance.

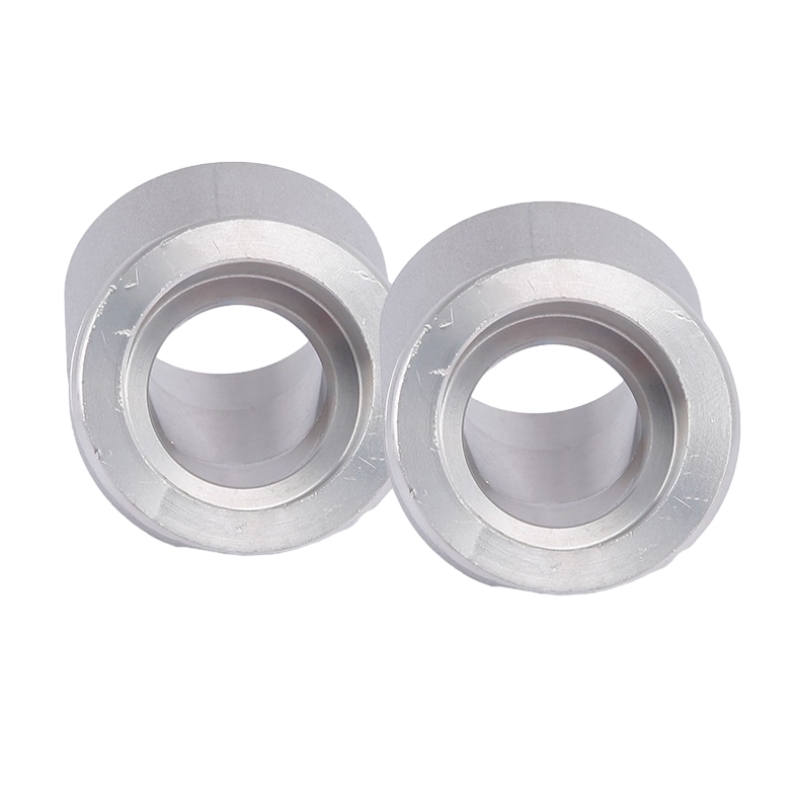

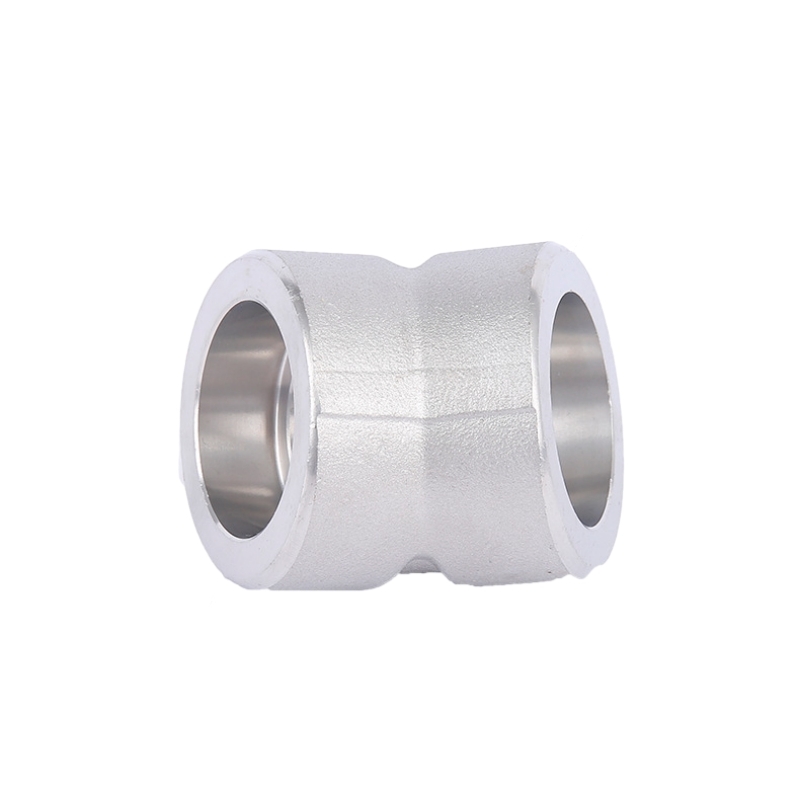

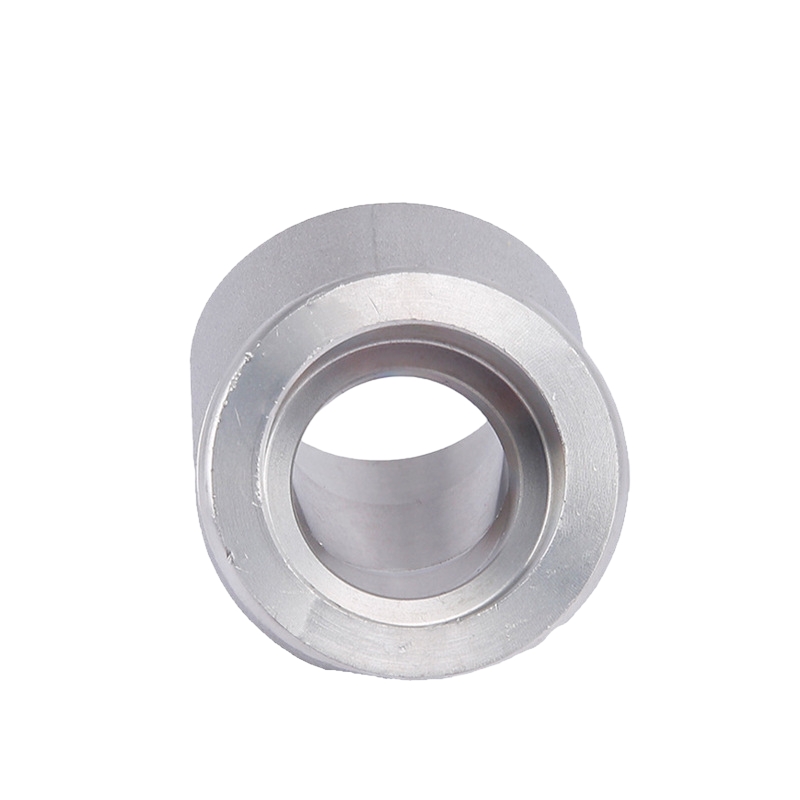

45°Elbows usually have two ports, each with a socket. This design allows the elbow to be welded with other pipes or fittings, allowing the pipe to be bent or turned at an angle of 45 degrees. This type of elbow can be used in piping systems for water, gas, oil, and other fluids.
Socket weld 45°elbows use Welded connections to facilitate installation and firm. When installing a 45°stainless steel elbow, you need to ensure the sealing and reliability of the connection. At the same time, follow correct installation procedures and standards to ensure the safe operation of your piping system.
Introduction
|
Item |
Stainless Steel 45°Elbows |
|
Standard |
ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, ASTM A733; BS3799; JIS B2316 |
|
Material Grades |
Stainless Steel: A234 WPB/WPC,A105,ST45,E24,16Mn,Q345,P245GH,P235GH,P265GH Duplex Stainless Steel: UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760,1.4462,1.4410,1.4501 Alloy Steel: ASTM A234 WP 1/5/9/11/12/91,A402 WPL 3-WPL 6,C22,Alloy20,A860 WPHY 42-46-52-60-65-70 |
|
Surface |
CNC machined, anti-rust oil, HDG(hot dip gal.) |
|
Type |
Forged |
|
size |
DN6-100 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Packed in Wooden Cases |
|
Application |
The petrochemical industry; aviation and aerospace industry; pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc. |
|

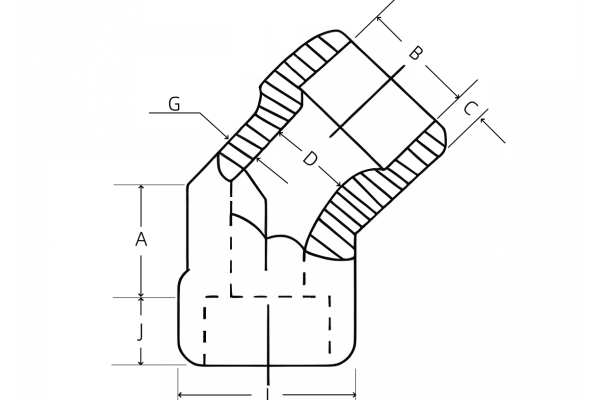

DN |
NPS |
Matching Pipe Diameter |
B |
L |
J |
C |
D |
G |
A(min) |
|
6 |
1/8" |
8 |
8.5 |
27.5 |
9.5 |
9.5 |
6.1 |
2.41 |
8.5 |
|
6 |
|
10 |
10.5 |
27.5 |
9.5 |
8.5 |
6.1 |
2.41 |
8.5 |
|
8 |
1/4" |
12 |
12.5 |
27.5 |
9.5 |
7.5 |
8.5 |
3.02 |
8.5 |
|
8 |
|
14 |
14.5 |
27.5 |
9.5 |
6.5 |
8.5 |
3.02 |
8.5 |
|
10 |
3/8" |
16 |
16.5 |
27.5 |
9.5 |
5.5 |
11.8 |
3.20 |
8.5 |
|
10 |
|
17 |
18.2 |
27.5 |
9.5 |
4.7 |
11.8 |
3.20 |
8.5 |
|
15 |
1/2" |
18 |
18.5 |
33.0 |
9.5 |
7.3 |
15.0 |
3.72 |
15.5 |
|
15 |
|
20 |
20.5 |
33.0 |
9.5 |
6.3 |
15.0 |
3.72 |
15.5 |
|
15 |
|
22 |
22.3 |
33.0 |
9.5 |
5.4 |
15.0 |
3.72 |
15.5 |
|
20 |
3/4" |
25 |
25.5 |
39.0 |
9.5 |
6.8 |
20.2 |
3.91 |
19.0 |
|
20 |
|
27 |
27.5 |
39.0 |
12.5 |
5.8 |
20.2 |
3.91 |
19.0 |
|
20 |
|
28 |
28.5 |
39.0 |
12.5 |
5.3 |
20.2 |
3.91 |
19.0 |
|
25 |
1" |
32 |
32.5 |
47.0 |
12.5 |
7.3 |
25.9 |
4.55 |
22.5 |
|
25 |
|
34 |
34.5 |
47.0 |
12.5 |
6.3 |
25.9 |
4.55 |
22.5 |
|
32 |
1 1/4" |
38 |
38.5 |
55.5 |
12.5 |
8.5 |
34.3 |
4.85 |
27.0 |
|
32 |
|
42 |
42.8 |
55.5 |
12.5 |
6.4 |
34.3 |
4.85 |
27.0 |
|
40 |
1 1/2" |
45 |
45.5 |
62.5 |
12.5 |
8.5 |
40.1 |
5.08 |
32.0 |
|
40 |
|
48 |
48.9 |
62.5 |
12.5 |
6.8 |
40.1 |
5.08 |
32.0 |
|
50 |
2" |
57 |
57.5 |
76.0 |
16.0 |
9.3 |
51.7 |
5.54 |
38.0 |
|
50 |
|
60 |
61.0 |
76.0 |
16.0 |
7.5 |
51.7 |
5.54 |
38.0 |
|
65 |
2 1/2" |
76 |
77.0 |
92.0 |
16.0 |
7.5 |
61.2 |
7.01 |
41 |
|
80 |
3" |
89 |
90.0 |
109.0 |
16.0 |
9.5 |
76.4 |
7.62 |
57.0 |
|
100 |
4" |
108 |
109.0 |
138.0 |
19.0 |
14.5 |
100.7 |
8.56 |
66.5 |
|
100 |
|
114 |
115.0 |
138.0 |
19.0 |
11.5 |
100.7 |
8.56 |
66.5 |
