Elbows are industrial fittings that change the direction of piping. Stainless steel threaded/screwed 45°elbows are defined as a part of the pipe fitting system. These threaded elbows make 45°changes of direction in the run of the pipe.

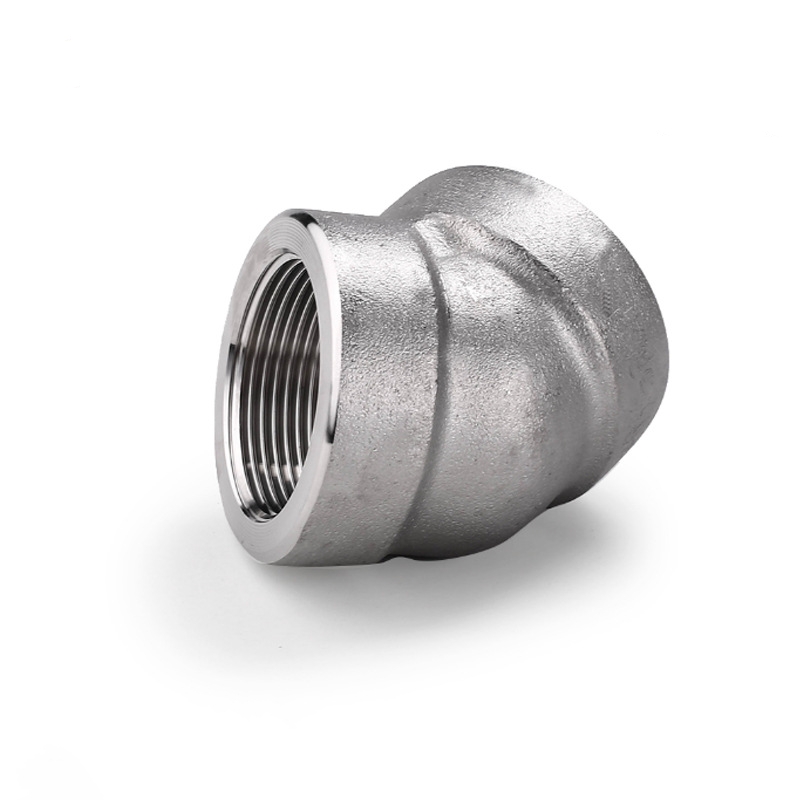

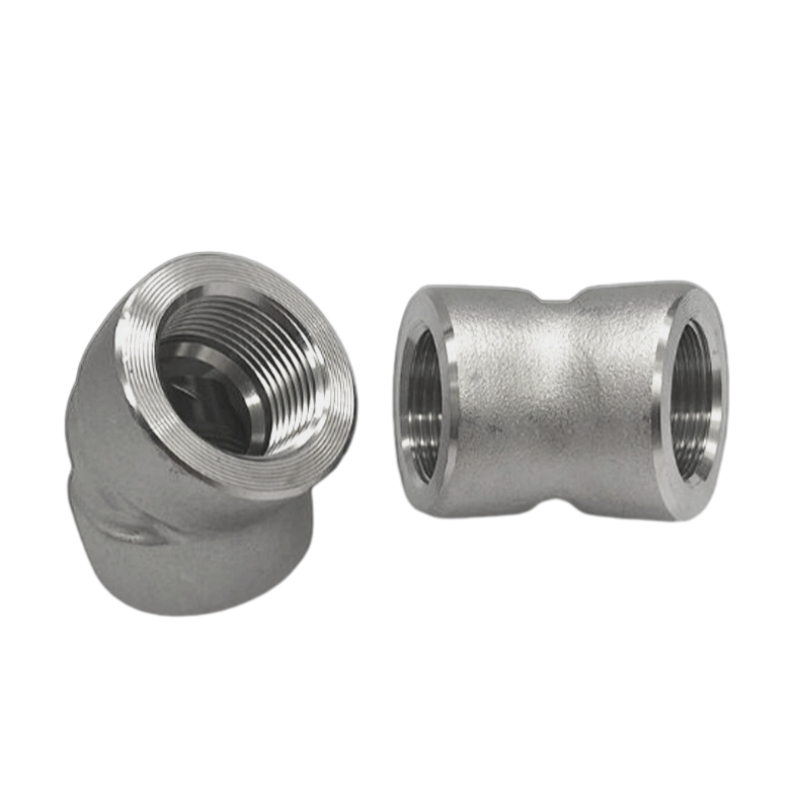

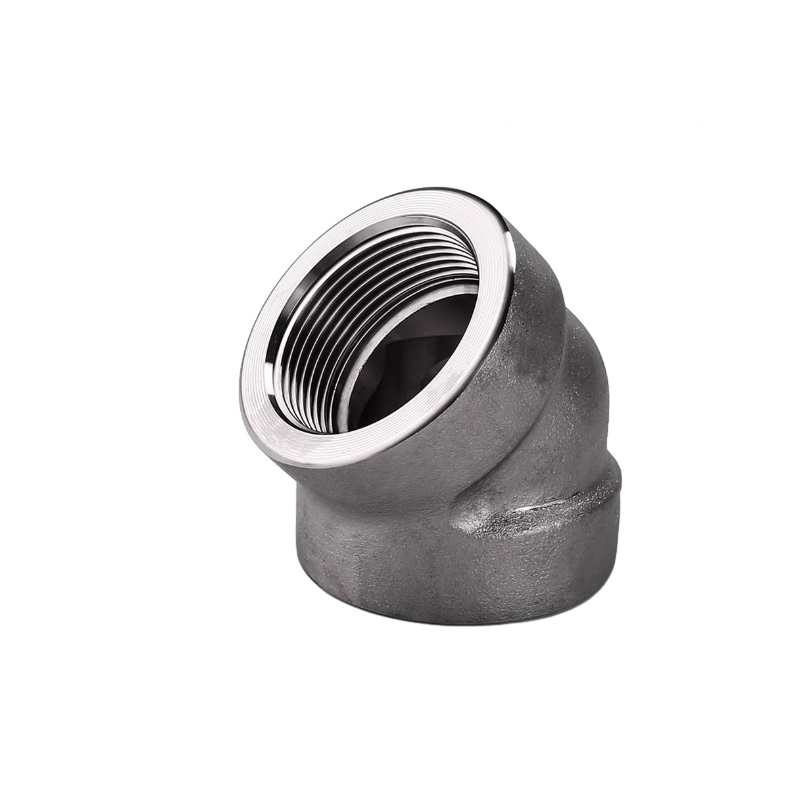

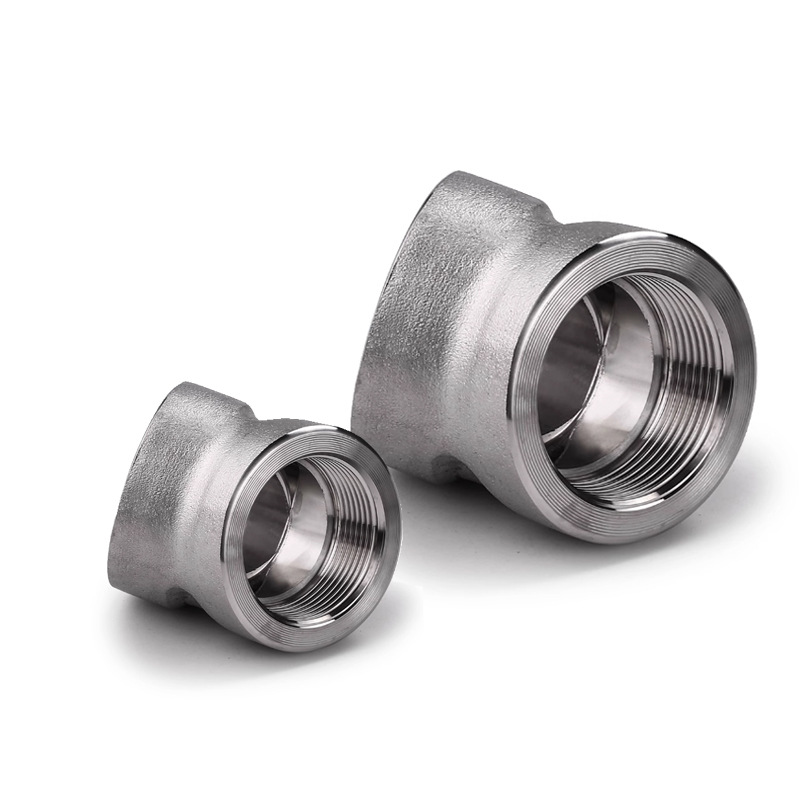

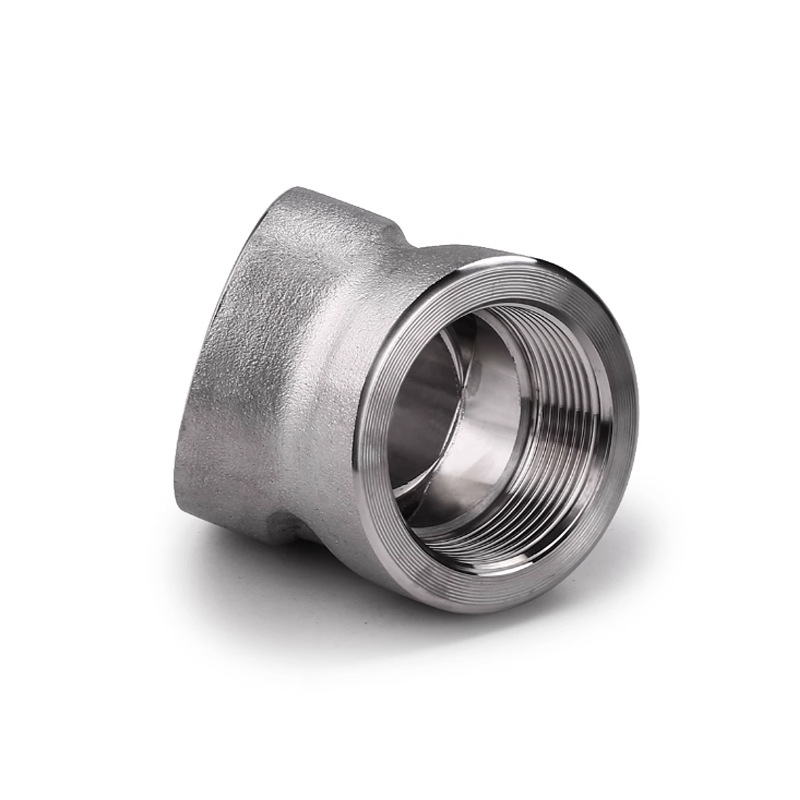

Threaded stainless steel 45-degree elbows, also known as 45°pipe elbow, 45°elbow fitting, and stainless steel 45°elbow. Pipe elbows which have female threads on either side of an elbow. So they can easily connected to differing pipes or fittings. It is used to make a 45-degree change of direction in the run of the pipe.
45°elbow comes in two types; short radius elbow and long radius elbow. It adds pressure losses to the system due to friction, impact, and re-acceleration.
The Stainless Steel Threaded 45°Elbow Fittings provide an almost eternal connection for essential applications such as water supply pipelines and other fluid transfer systems. Such as various application industries of which are air, water, oil, natural gas, and steam.
Introduction
|
Item |
Stainless Steel 45°Elbows |
|
Standard |
ASME B 16.11, MSS-SP-79\ 83\ 95\97 |
|
Material Grades |
Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 |
|
Surface |
CNC machined, anti-rust oil, HDG(hot dip gal.) |
|
Type |
Forged |
|
size |
DN6-100 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden cases or wooden pallets or as per customers' requirement |
|
Application |
Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc |
|

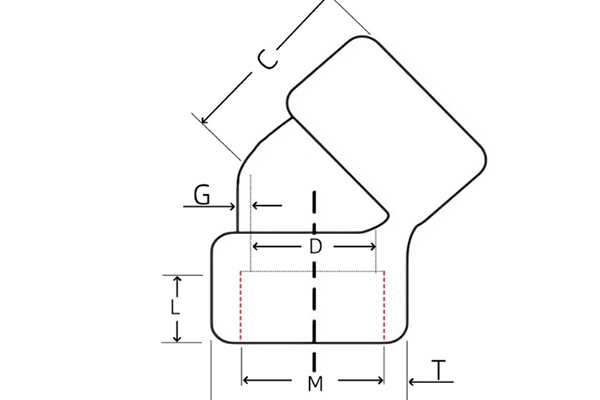

DN |
NPS |
H |
Thread inner Diameter M |
G |
D |
L |
C |
T |
|
6 |
1/8" |
25 |
8.5 |
3.18 |
8 |
6.7 |
17 |
8.5 |
|
8 |
1/4" |
25 |
11.5 |
3.18 |
11 |
10.2 |
17 |
6.5 |
|
10 |
3/8" |
25 |
15 |
3.18 |
14 |
10.4 |
19 |
4.7 |
|
15 |
1/2" |
33 |
19 |
3.18 |
17 |
13.6 |
22 |
5.4 |
|
20 |
3/4" |
39 |
24 |
3.18 |
19.5 |
13.9 |
25 |
5.8 |
|
25 |
1" |
47 |
30 |
3.68 |
26 |
17.3 |
28 |
6.3 |
|
32 |
1 1/4" |
55.5 |
39 |
3.89 |
34.5 |
18 |
33 |
6.4 |
|
40 |
1 1/2" |
62.5 |
44 |
4.01 |
39.5 |
18.4 |
35 |
6.8 |
|
50 |
2" |
76 |
56.5 |
4.27 |
50.5 |
19.2 |
43 |
7.5 |
|
65 |
2 1/2" |
92 |
72.5 |
5.61 |
61 |
28.9 |
52 |
7.5 |
|
80 |
3" |
109 |
84.5 |
5.99 |
76.6 |
30.5 |
64 |
9.5 |
|
100 |
4" |
138 |
110 |
6.55 |
100 |
33 |
79 |
11.5 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel 45 Degree Elbows Have Female Threads On Either Side suppliers and OEM/ODM Stainless Steel 45 Degree Elbows Have Female Threads On Either Side manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
