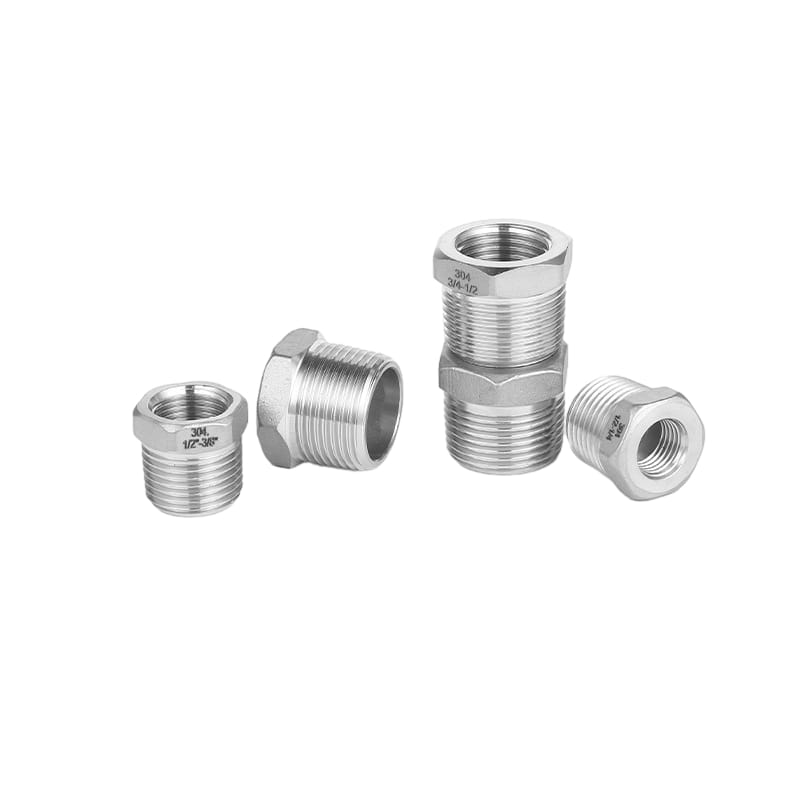

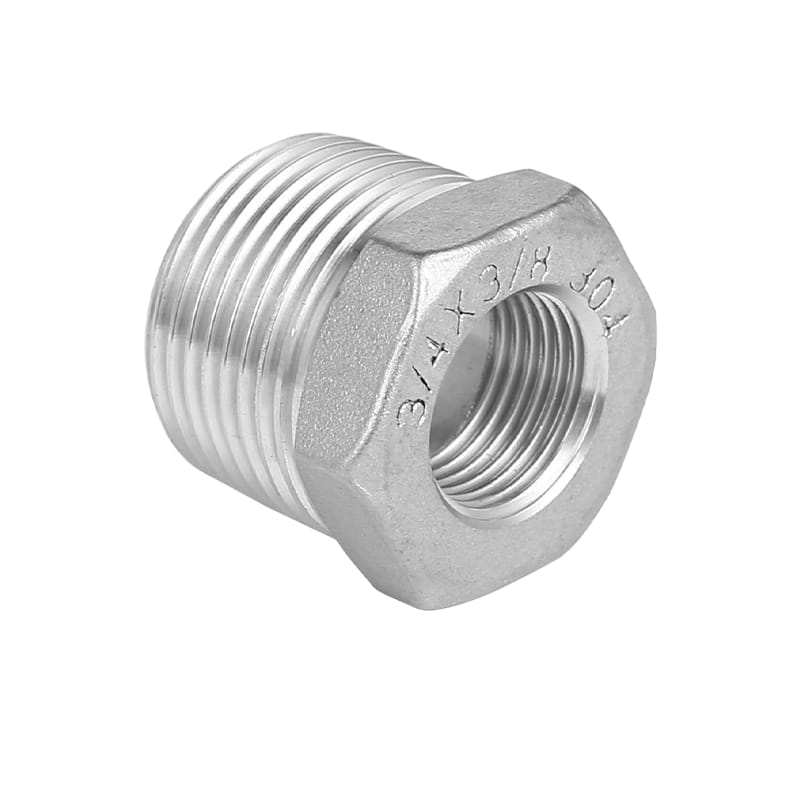

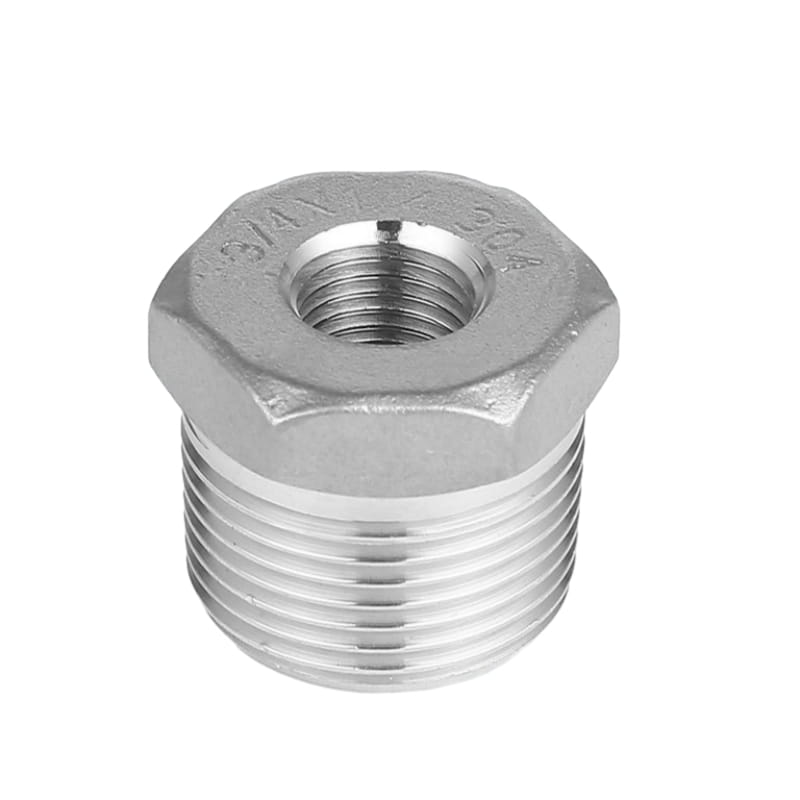

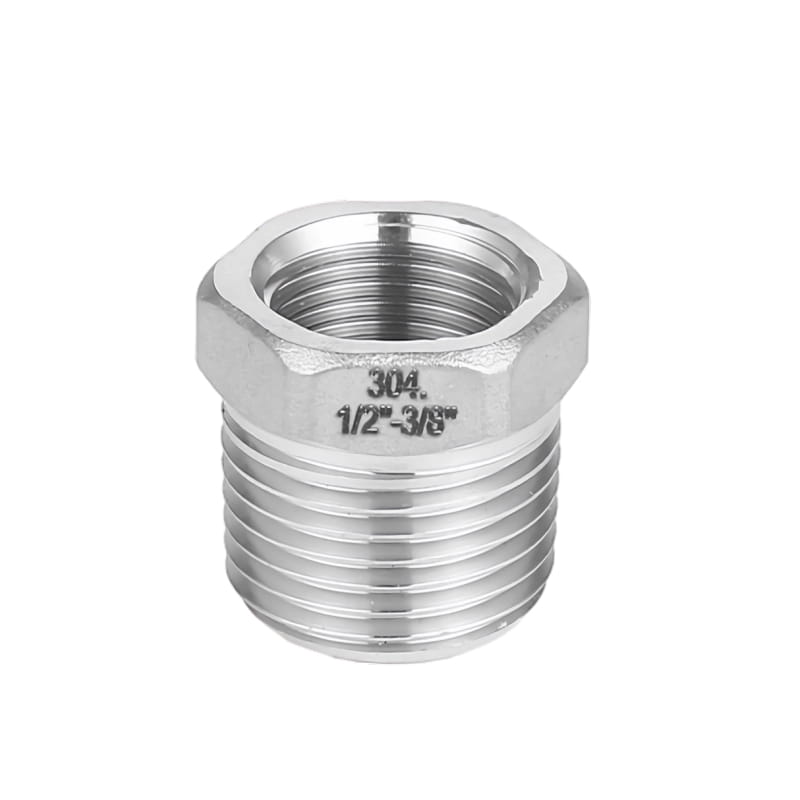

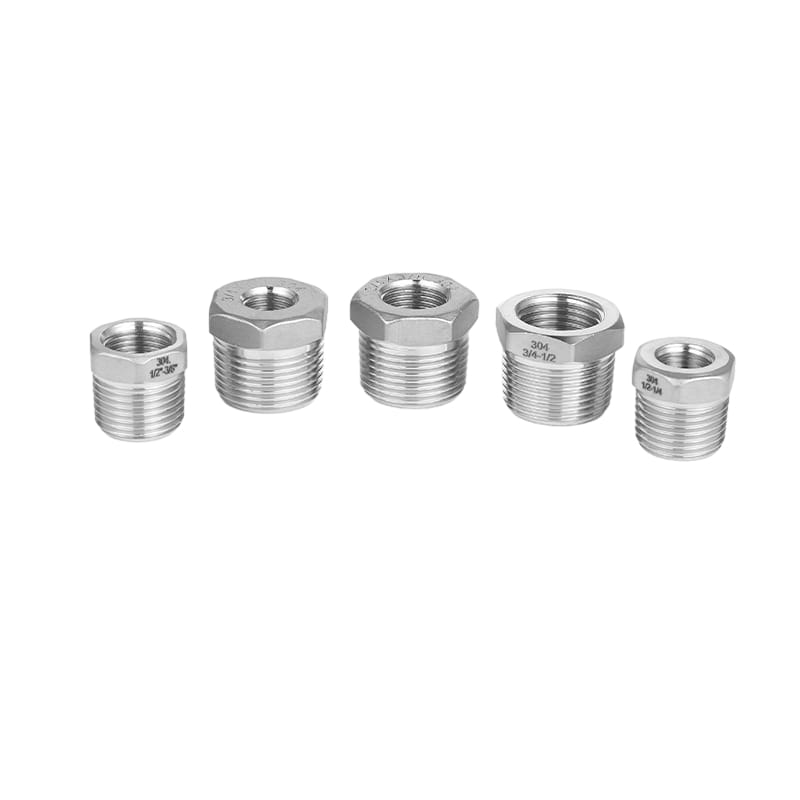

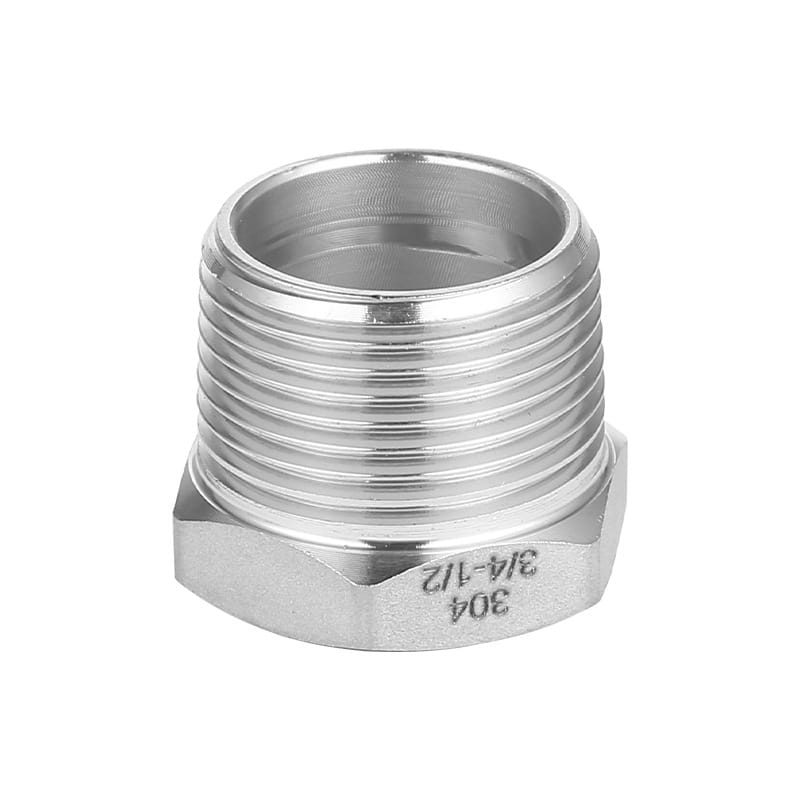

Stainless steel reducing bushings, also referred to as a reducer bushing are used to reduce or increase a pipe thread size or diameter. They threaded on both connection ends for leak-free connections between fittings, instrumentation, and pipe.
A pipe reducer bushing is a fitting with external male threads and smaller internal female threads. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Then use PTFE tape to secure the seal.
Key factors for reducing bushings are alignment, consistent centerlines, and strong threads. Since it is a solid structure, the weight and intensity of the accessories should also be considered (deformation under stress load, the softness of the thread), etc.
Stainless steel-reducing bushings can withstand harsh environmental challenges. Stainless steel can be used as a material to improve durability. At the same time, they are resistant to corrosion, which can prevent rust accumulation and make the product longer life.
Application: Ideal for a wide range of applications involving water, oil, natural gas, air, and steam.
Introduction
|
Standard |
International Standard |
|
Material |
Stainless steel 201, Stainless steel 304, Stainless steel 316, etc. |
|
Surface |
Natural surface, silvery finish. |
|
Type |
Forged/ Heat treated and machined |
|
size |
¼"-4" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Carton Box+Wooden Pallet |
|
Application |
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc. |
|

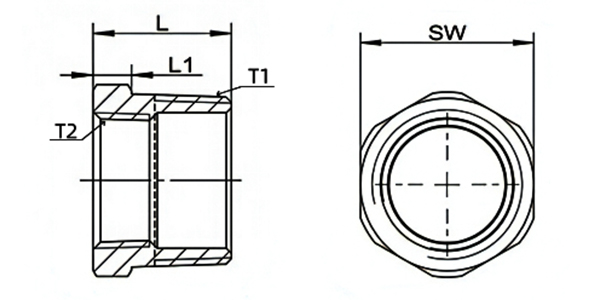

NPT |
DN |
L |
L1 |
SW |
|
|
T1 |
T2 |
|
|
|
|
|
1/4 |
1/8 |
8×6 |
19.5 |
6.0 |
15.0 |
|
3/8 |
1/8 |
10×6 |
21.0 |
6.5 |
18.0 |
|
3/8 |
1/4 |
10×8 |
21.0 |
6.5 |
18.0 |
|
1/2 |
1/8 |
15×6 |
23.0 |
6.5 |
22.0 |
|
1/2 |
1/4 |
15×8 |
23.0 |
6.5 |
22.0 |
|
1/2 |
3/8 |
15×10 |
23.0 |
6.5 |
22.0 |
|
3/4 |
1/8 |
20×6 |
24.5 |
7.0 |
28.0 |
|
3/4 |
1/4 |
20×8 |
24.5 |
7.0 |
28.0 |
|
3/4 |
3/8 |
20×10 |
24.5 |
7.0 |
28.0 |
|
3/4 |
1/2 |
20×15 |
24.5 |
7.0 |
28.0 |
|
1 |
1/8 |
25×6 |
27.0 |
7.5 |
35.0 |
|
1 |
1/4 |
25×8 |
27.0 |
7.5 |
35.0 |
|
1 |
3/8 |
25×10 |
27.0 |
7.5 |
35.0 |
|
1 |
1/2 |
25×15 |
27.0 |
7.5 |
35.0 |
|
1 |
3/4 |
25×20 |
27.0 |
7.5 |
35.0 |
|
1 1/4 |
1/4 |
32×8 |
29.0 |
8.0 |
44.0 |
|
1 1/4 |
3/8 |
32×10 |
29.0 |
8.0 |
44.0 |
|
1 1/4 |
1/2 |
32×15 |
29.0 |
8.0 |
44.0 |
|
1 1/4 |
3/4 |
32×20 |
29.0 |
8.0 |
44.0 |
|
1 1/4 |
1 |
32×25 |
29.0 |
8.0 |
44.0 |
|
1 1/2 |
1/4 |
40×8 |
30.0 |
8.5 |
50.0 |
|
1 1/2 |
3/8 |
40×10 |
30.0 |
8.5 |
50.0 |
|
1 1/2 |
1/2 |
40×15 |
30.0 |
8.5 |
50.0 |
|
1 1/2 |
3/4 |
40×20 |
30.0 |
8.5 |
50.0 |
|
1 1/2 |
1 |
40×25 |
30.0 |
8.5 |
50.0 |
|
1 1/2 |
1 1/4 |
40×32 |
30.0 |
8.5 |
50.0 |
|
2 |
1/4 |
50×8 |
34.0 |
9.0 |
62.0 |
|
2 |
3/8 |
50×10 |
34.0 |
9.0 |
62.0 |
|
2 |
1/2 |
50×15 |
34.0 |
9.0 |
62.0 |
|
2 |
3/4 |
50×20 |
34.0 |
9.0 |
62.0 |
|
2 |
1 |
50×25 |
34.0 |
9.0 |
62.0 |
|
2 |
1 1/4 |
50×32 |
34.0 |
9.0 |
62.0 |
|
2 |
1 1/2 |
50×40 |
34.0 |
9.0 |
62.0 |
|
2 1/2 |
1/2 |
65×15 |
38.5 |
10.5 |
78.0 |
|
2 1/2 |
3/4 |
65×20 |
38.5 |
10.5 |
78.0 |
|
2 1/2 |
1 |
65×25 |
38.5 |
10.5 |
78.0 |
|
2 1/2 |
1 1/4 |
65×32 |
38.5 |
10.5 |
78.0 |
|
2 1/2 |
1 1/2 |
65×40 |
38.5 |
10.5 |
78.0 |
|
2 1/2 |
2 |
65×50 |
38.5 |
10.5 |
78.0 |
|
3 |
1 |
80×25 |
42.5 |
11.5 |
91.0 |
|
3 |
1 1/4 |
80×32 |
42.5 |
11.5 |
91.0 |
|
3 |
1 1/2 |
80×40 |
42.5 |
11.5 |
91.0 |
|
3 |
2 |
80×50 |
42.5 |
11.5 |
91.0 |
|
3 |
2 1/2 |
80×65 |
42.5 |
11.5 |
91.0 |
|
4 |
1 |
100×25 |
49.5 |
12.5 |
117.0 |
|
4 |
1 1/4 |
100×32 |
49.5 |
12.5 |
117.0 |
|
4 |
1 1/2 |
100×40 |
49.5 |
12.5 |
117.0 |
|
4 |
2 |
100×50 |
49.5 |
12.5 |
117.0 |
|
4 |
2 1/2 |
100×65 |
49.5 |
12.5 |
117.0 |
|
4 |
3 |
100×80 |
49.5 |
12.5 |
117.0 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China SS Reducing Bushings Provide A Leak-Free Connection Between Fittings And Pipes suppliers and OEM/ODM SS Reducing Bushings Provide A Leak-Free Connection Between Fittings And Pipes manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
