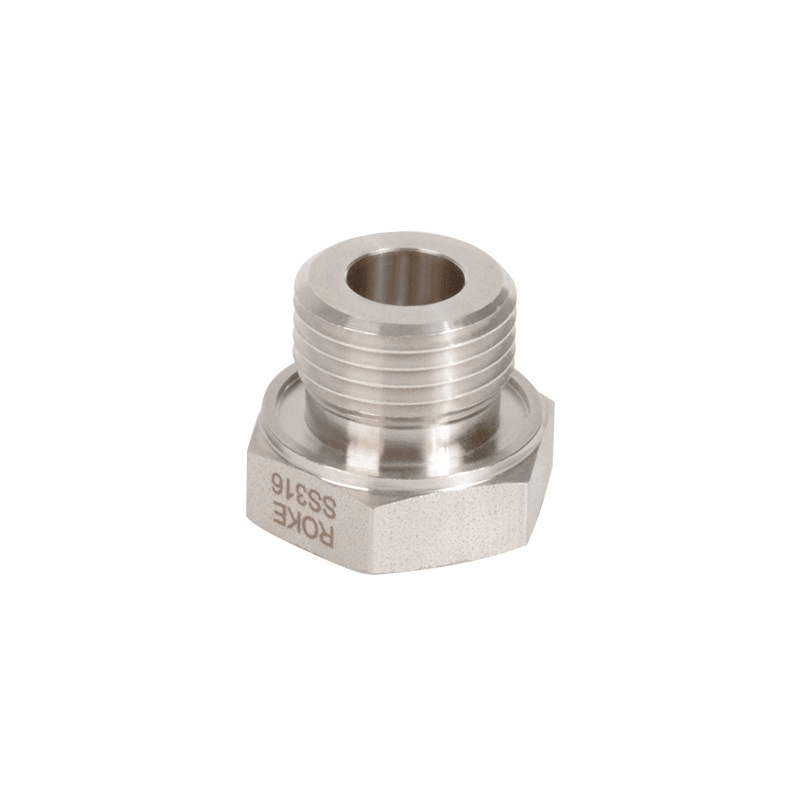

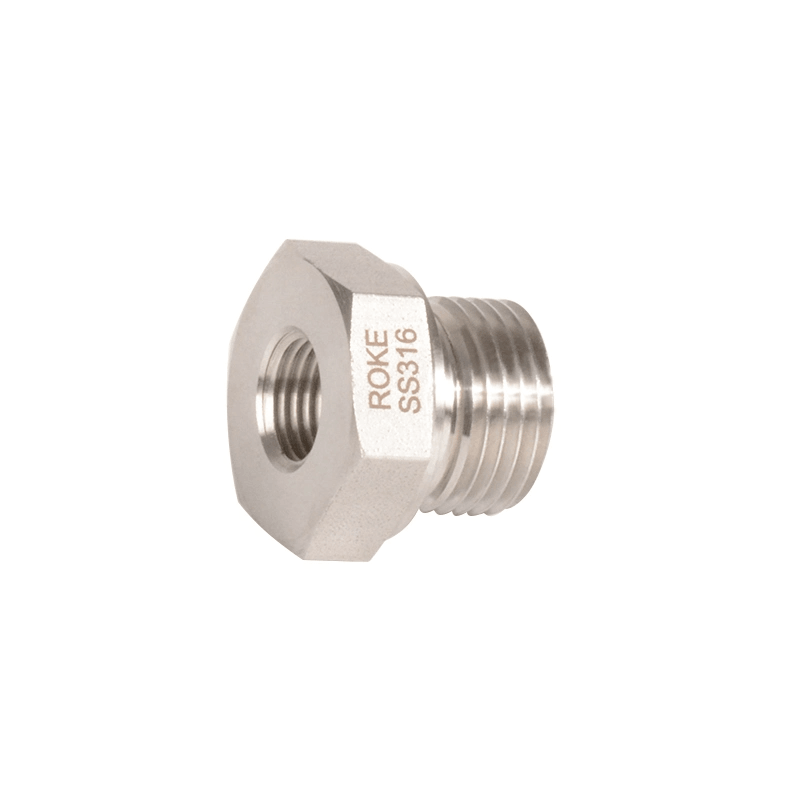

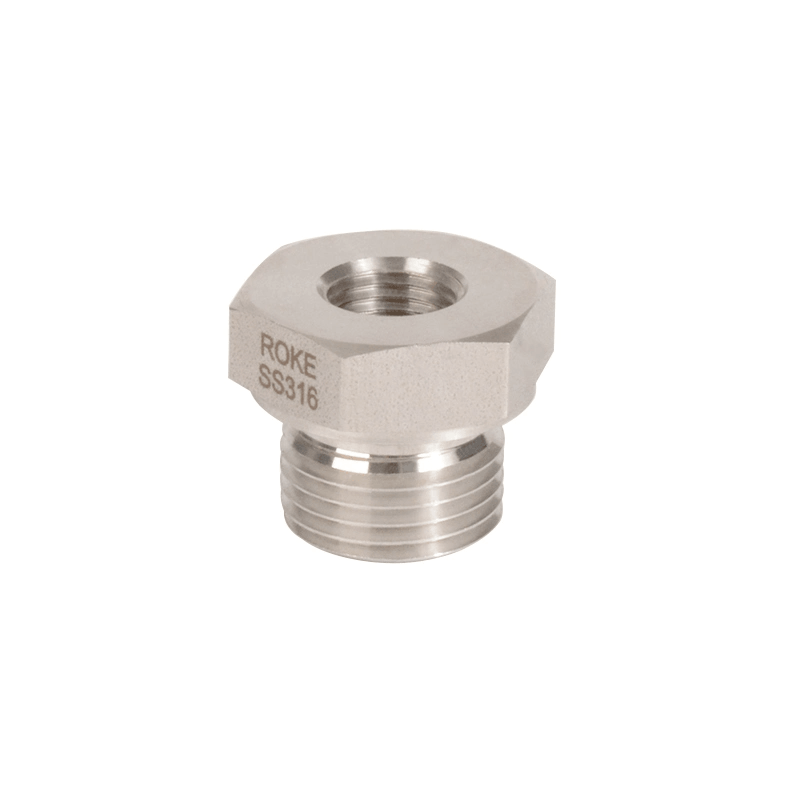

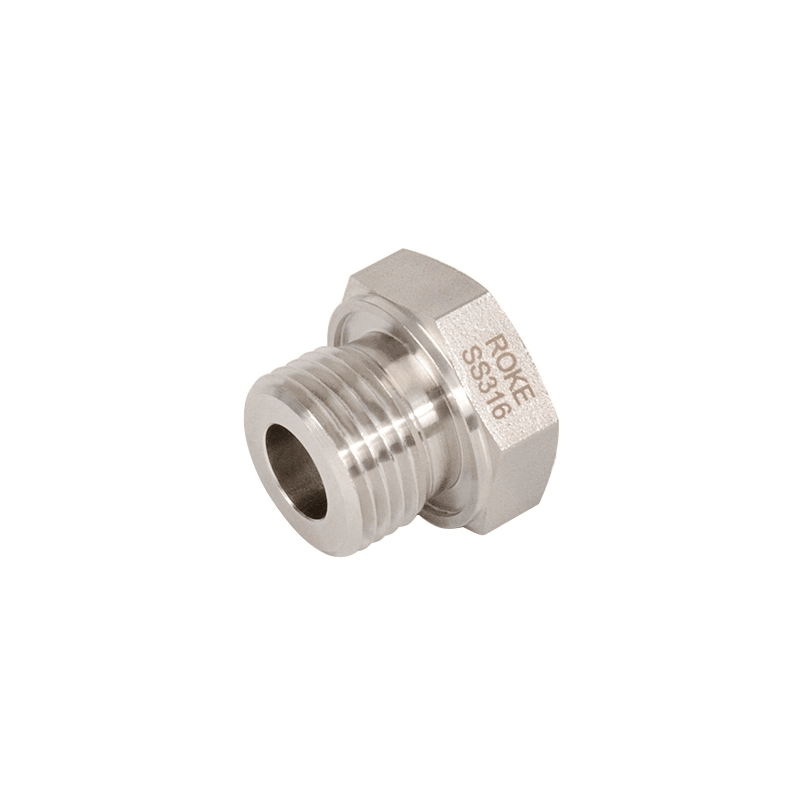

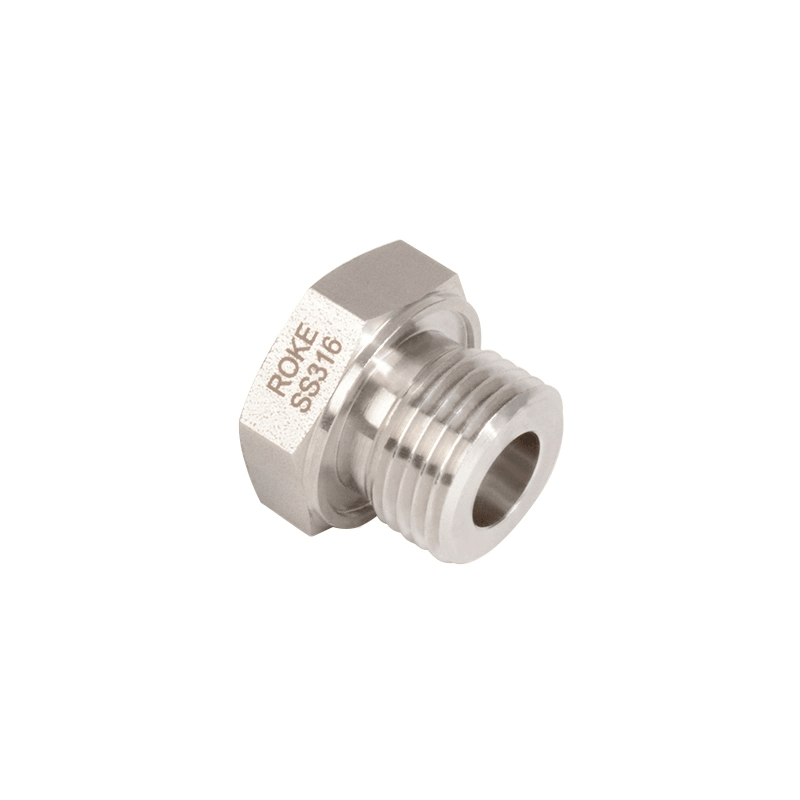

Stainless steel-reducing bushings provide a means of connecting a smaller size of conduit to a larger conduit fitting port. This makes the connection of pipes or hoses suitable for applications.
They have male threads on the outside and female threads on the inside. Stainless steel-reducing bushings are of high quality and corrosion-resistant for any harsh environment application. The bright polishing effect not only increases corrosion resistance and increases the aesthetic appearance. And the hexagonal head for increased leverage and use with a wrench. Can be installed using ordinary hand tools and requires little maintenance or repair.
In the pipe connection, reducing bushing is an irreplaceable role. They have features of good appearance, and easy installation, durable and affordable. And widely used in water, oil, gas, chemical industry, papermaking, medicine, and other industries.
Introduction
|
Standard |
ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313 |
|
Material |
Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/ 317L/ F321/ F310/ 347/ 904 Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 |
|
Surface |
Zinc electroplate |
|
Type |
cold upsetting blank, CNC Finishing Process |
|
size |
1/8"-1½" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Polybag+Carton+Pallet |
|
Application |
Power Station, Gas, Sewage Treatment, Public Works, Chemical, Papermaking, Pharmaceutical, etc. |
|

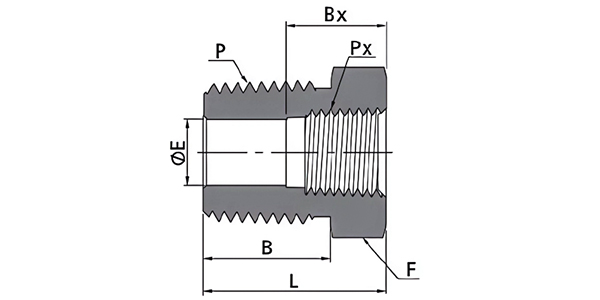

Male NPT to Female NPT Threads |
||||||
|
P - NPT Size |
Px - NPT Size |
Dimension,in(mm) |
||||
|
|
|
L |
F(Hex) |
B |
Bx |
E |
|
1/8 |
1/16 |
1.03(26.2) |
0.44(11.1) |
0.38(9.7) |
0.39(9.9) |
0.19(4.8) |
|
1/4 |
1/16 |
0.86(21.8) |
0.56(14.3) |
0.56(14.2) |
0.39(9.9) |
0.19(4.8) |
|
1/4 |
1/8 |
1.06(26.9) |
0.56(14.3) |
0.56(14.2) |
0.41(10.4) |
0.28(7.1) |
|
3/8 |
1/16 |
0.86(21.8) |
0.69(17.5) |
0.56(14.2) |
0.39(9.9) |
0.19(4.8) |
|
3/8 |
1/8 |
0.86(21.8) |
0.69(17.5) |
0.56(14.2) |
0.41(10.4) |
0.34(8.6) |
|
3/8 |
1/4 |
1.19(30.2) |
0.75(19.1) |
0.56(14.2) |
0.59(15.0) |
0.38(9.6) |
|
1/2 |
1/8 |
1.08(27.4) |
0.87(22.2) |
0.75(19.1) |
0.41(10.4) |
0.34(8.6) |
|
1/2 |
1/4 |
1.08(27.4) |
0.87(22.2) |
0.75(19.1) |
0.59(15.0) |
0.45(11.4) |
|
1/2 |
3/8 |
1.41(35.8) |
0.87(22.2) |
0.75(19.1) |
0.59(15.0) |
0.47(11.9) |
|
3/4 |
1/8 |
1.08(27.4) |
1.06(27.0) |
0.75(19.1) |
0.41(10.4) |
0.28(7.1) |
|
3/4 |
1/4 |
1.08(27.4) |
1.06(27.0) |
0.75(19.1) |
0.59(15.0) |
0.45(11.4) |
|
3/4 |
3/8 |
1.08(27.4) |
1.06(27.0) |
0.75(19.1) |
0.59(15.0) |
0.59(15.0) |
|
3/4 |
1/2 |
1.63(41.4) |
1.06(27.0) |
0.75(19.1) |
0.78(19.8) |
0.62(15.7) |
|
1 |
1/8 |
1.36(34.5) |
1.37(34.9) |
0.94(23.9) |
0.41(10.4) |
0.28(7.1) |
|
1 |
1/4 |
1.37(34.9) |
1.37(34.9) |
0.94(23.9) |
0.59(15.0) |
0.45(11.4) |
|
1 |
3/8 |
1.37(34.9) |
1.37(34.9) |
0.94(23.9) |
0.59(15.0) |
0.59(15.0) |
|
1 |
1/2 |
1.37(34.9) |
1.37(34.9) |
0.94(23.9) |
0.78(19.8) |
0.73(18.5) |
|
1 |
3/4 |
1.85(47.0) |
1.37(34.9) |
0.94(23.9) |
0.81(20.6) |
0.88(22.4) |
|
1 1/4 |
3/4 |
1.47(37.3) |
1.75(44.5) |
0.94(23.9) |
0.81(20.6) |
0.88(22.4) |
|
1 1/4 |
1 |
1.47(37.3) |
1.75(44.5) |
0.94(23.9) |
1.00(25.4) |
0.88(22.4) |
|
1 1/2 |
1 |
1.58(40.1) |
2.00(50.8) |
1.03(26.2) |
1.00(25.4) |
0.88(22.4) |
|
1 1/2 |
1 1/4 |
2.20(56.0) |
2.13(54.0) |
1.03(26.2) |
1.00(25.4) |
1.34(34.0) |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Hexagonal Head Cnc Finishing Process Stainless Steel Reducing Bushings suppliers and OEM/ODM Hexagonal Head Cnc Finishing Process Stainless Steel Reducing Bushings manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
