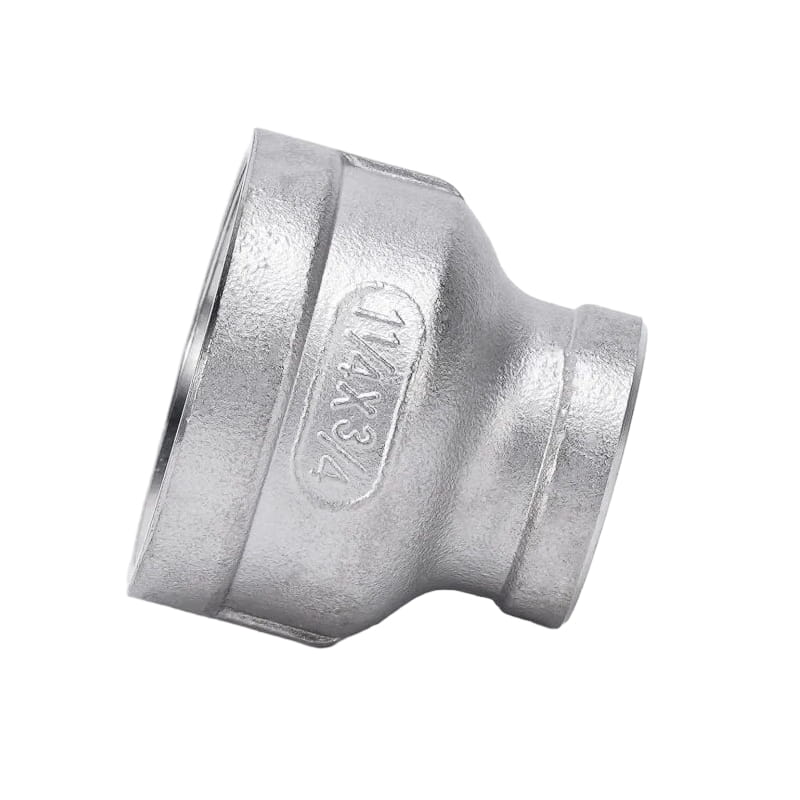

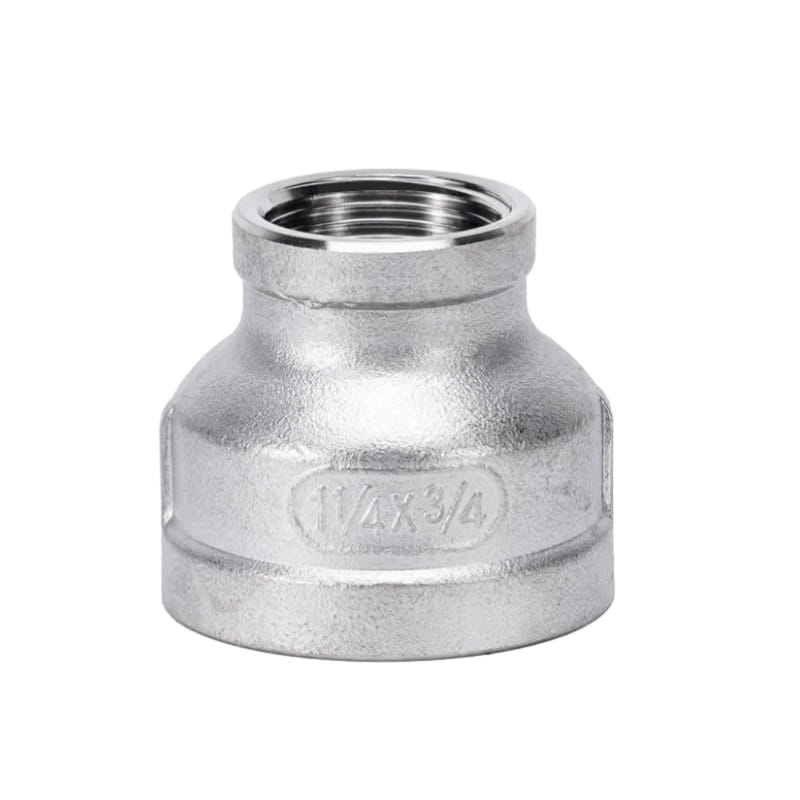

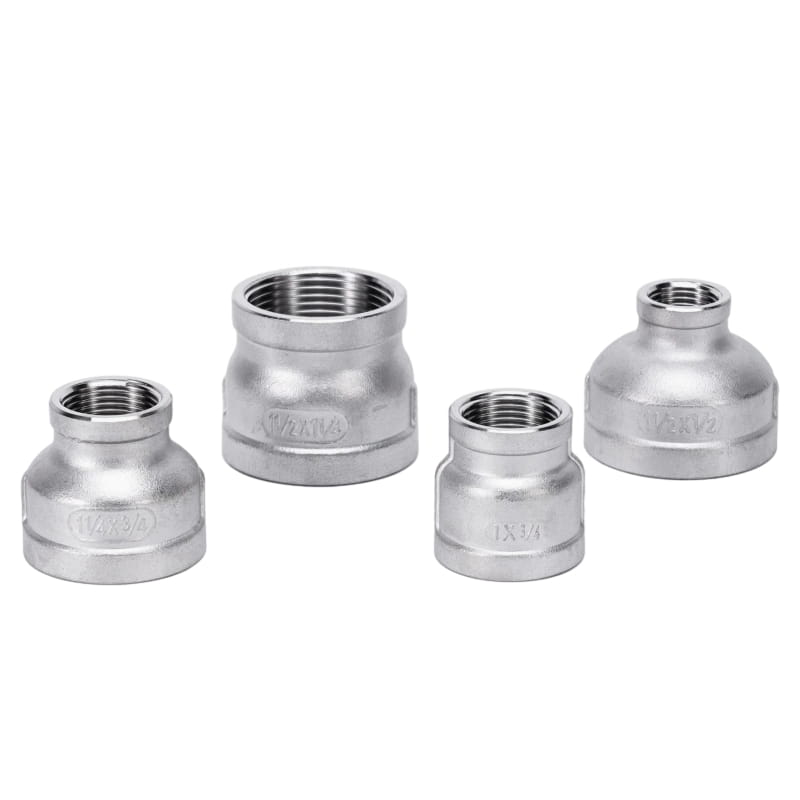

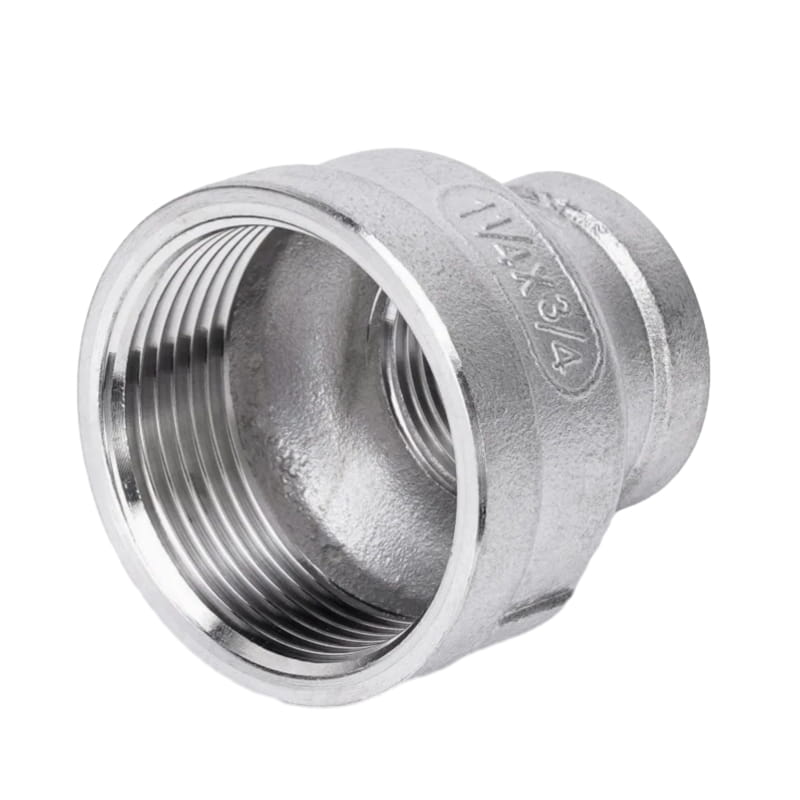

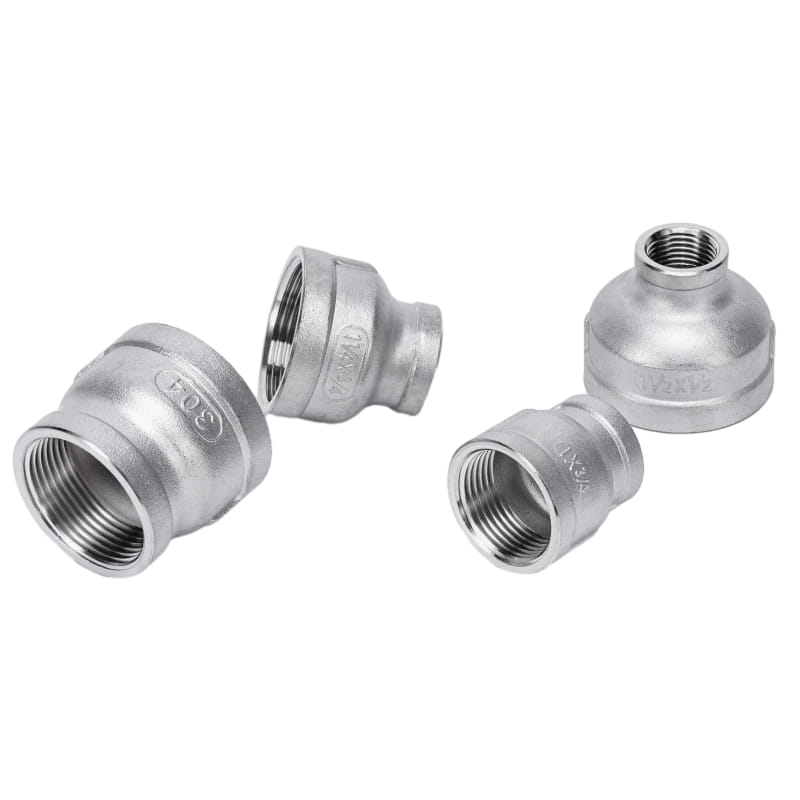

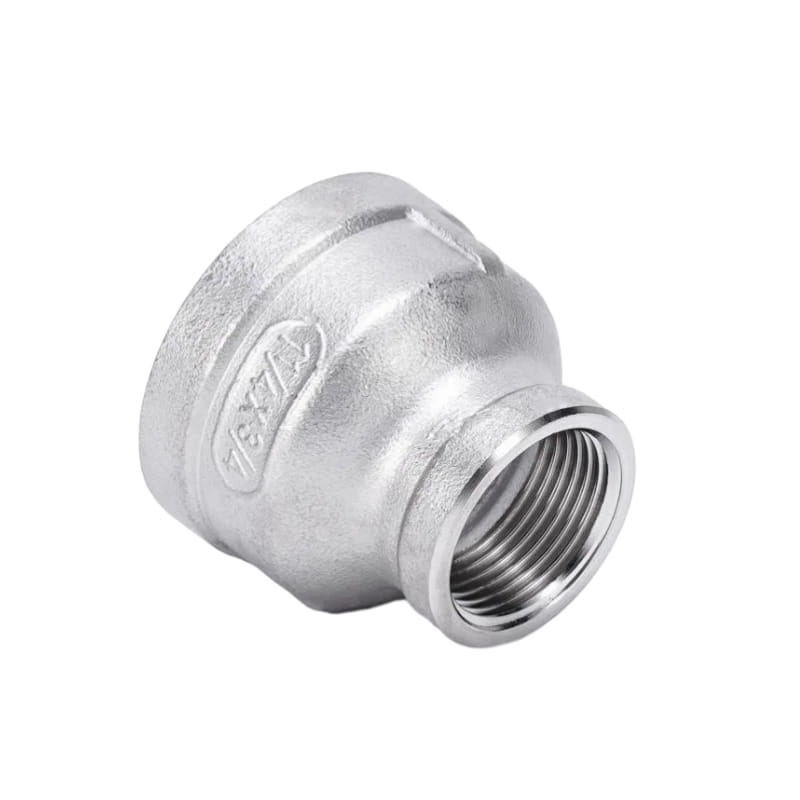

A Bell Reducer Coupler also referred to as a Threaded Reducing Coupler, is a special coupling that features female NPT threads of different sizes on either end. They are used to extend a run of pipe by joining two sections with different diameters.
There are many types of threaded fittings connecting, like NPT, NPS, BSPF, ACME, etc.
NPT: American National Standard Taper Pipe Thread;
NPS: American National Standard Straight Pipe Thread;
BSPF: British Standard Pipe Fitting;
ACME: Acme thread has a flat apex and valley, and a wider tooth shape than an NPT thread.
NPT is areliable choice. The surface of the thread is cone-shaped, and the diameter of the top of the thread is smaller than the diameter of the bottom. This design makes the thread connection with good sealing performance, suitable for high-pressure and high-temperature environments.
With the NPT thread, it provides a secure and leak-free connection for the piping system. Ideal for use in various applications, including industrial, commercial, and residential settings. In both commercial and industrial settings, the Stainless Steel Threaded Reducer stands out for robust performance, enhancing the efficiency and longevity of piping systems.
Introduction
|
Standard |
ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313 |
|
Material |
SS304, SS316 (CF8, CF8M), WCB, etc. |
|
Surface |
Antirust oil, Primary Color |
|
Type |
CNC or Lathe Machine |
|
size |
¼"-4" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plywood Pallet/Case |
|
Petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, high&low pressure pipeline, etc. |

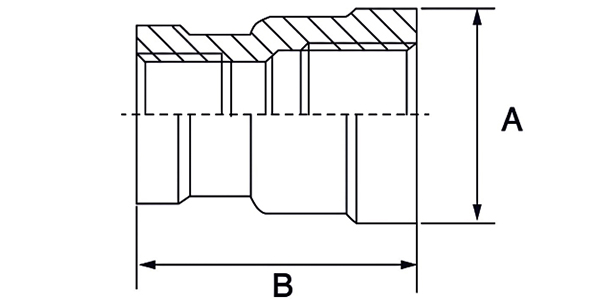

CLASS 150
|
SIZES |
A |
B |
SIZES |
A |
B |
SIZES |
A |
B |
|
1/4× 1/8 |
18 |
22.8 |
1 1/4×3/8 |
48 |
29.5 |
2×1 1/4 |
66 |
40 |
|
3/8×1/8 |
22 |
24.3 |
1 1/4×1/2 |
48 |
32 |
2×1 1/2 |
66 |
47.8 |
|
3/8×1/4 |
22 |
27.5 |
1 1/4×3/4 |
48 |
33 |
2 1/2×1 |
80.2 |
42 |
|
1/2×1/8 |
26 |
21 |
1 1/4 ×1 |
48 |
42 |
2 1/2×1 1/4 |
81.2 |
44 |
|
1/2×1/4 |
26 |
25 |
1 1/2×1/8 |
54 |
26.5 |
2 1/2×1 1/2 |
81.2 |
45 |
|
1/2×3/8 |
26 |
28 |
1 1/2×1/4 |
54 |
29 |
2 1/2×2 |
81.2 |
47 |
|
3/4×1/8 |
32 |
22 |
1 1/2×3/8 |
54 |
30 |
3×1 1/4 |
98 |
47 |
|
3/4×1/4 |
32 |
24 |
1 1/2×1/2 |
54 |
32 |
3×1 1/2 |
98 |
48 |
|
3/4×3/8 |
32 |
24.5 |
1 1/2×3/4 |
54 |
33 |
3×2 |
98 |
50 |
|
3/4×1/2 |
32 |
32.5 |
1 1/2×1 |
54 |
34.5 |
3×2 1/2 |
98 |
51 |
|
1×1/4 |
39 |
26.5 |
1 1/2×1 1/4 |
54 |
44.3 |
4×1 1/2 |
124 |
54 |
|
1×3/8 |
39 |
27 |
2×1/4 |
66 |
32.5 |
4×2 |
124 |
56 |
|
1×1/2 |
39 |
29.5 |
2×3/8 |
66 |
33 |
4×2 1/2 |
124 |
57 |
|
1×3/4 |
39 |
36.4 |
2×1/2 |
66 |
35.5 |
4×3 |
124 |
60 |
|
1 1/4×1/8 |
48 |
26.5 |
2×3/4 |
66 |
36.5 |
|
|
|
|
1 1/4×1/4 |
48 |
29 |
2×1 |
66 |
38 |
|
|
|
British Standard Pipe Thread(BSPT)
|
Thread Size(IN) |
DN |
External Thread |
Internal Thread |
|
1/8 |
6 |
9.8±0.2 |
8.8±0.2 |
|
1/4 |
8 |
12.5±0.3 |
11.5±0.3 |
|
3/8 |
10 |
16.2±0.3 |
15.3±0.3 |
|
1/2 |
15 |
20.3±0.3 |
19.3±0.3 |
|
3/4 |
20 |
25.7±0.5 |
24±0.5 |
|
1 |
25 |
32.5±0.5 |
30.5±0.5 |
|
1 1/4 |
32 |
41.5±0.5 |
39.5±0.5 |
|
1 1/2 |
40 |
47.8±0.5 |
46.3±0.5 |
|
2 |
50 |
59.6±0.5 |
56.6±0.5 |
|
2 1/2 |
65 |
74.5±0.5 |
72.5±0.5 |
|
3 |
80 |
87.5±0.5 |
84.5±0.5 |
|
4 |
100 |
112.5±0.5 |
110.5±0.5 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel Bell Reducing Couplings Connecting Two Sections Of Different Diameters suppliers and OEM/ODM Stainless Steel Bell Reducing Couplings Connecting Two Sections Of Different Diameters manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
