Cross pipe is a pipe fitting used at the intersection of four pipes. It can have one inlet and three outlets, or it can have an inlet and one outlet. The outlet and inlet diameters can be the same or different.
When the branch pipe size is smaller than the main pipe size, we usually call it a reducing cross. This achieves the required flow and pressure through the piping system. These Reducing Cross Pipe Fitting often tend to have solvent-welded sockets or female-threaded ends.
Stainless steel-reducing crosses are widely used in plumbing systems. They are the fittings that connect various pipes together and allow to transformation of the path. These reducing crosses help liquids move in a safe manner.
Reducing cross-fittings is less common in general industrial applications. There are only a few situations where reducing cross fittings are used, such as fire sprinklers on emergency systems or gardening, domestic applications, etc.
Introduction
|
Reducing Cross |
|
|
Item |

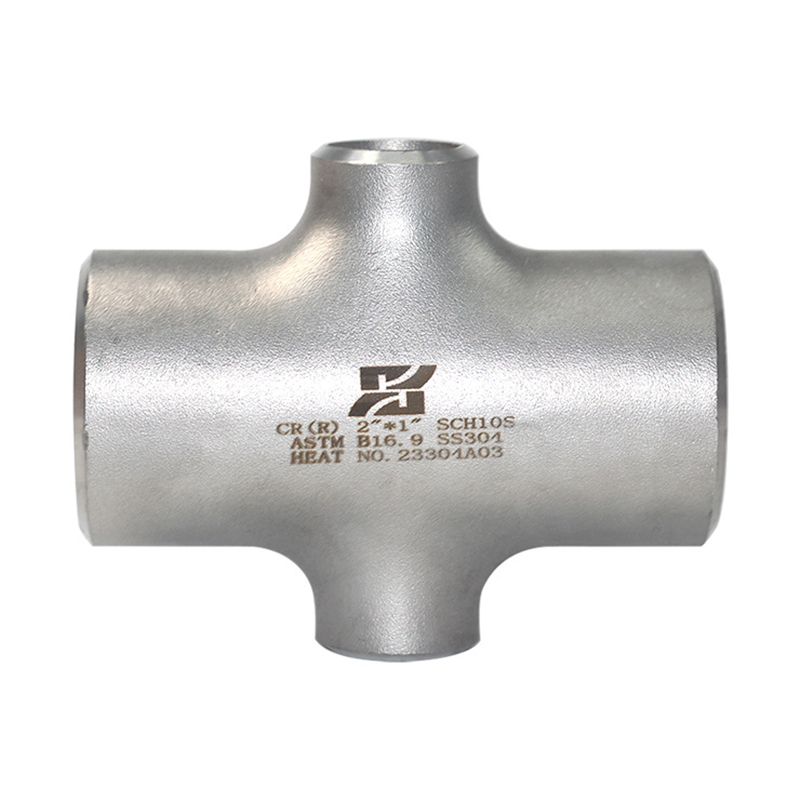

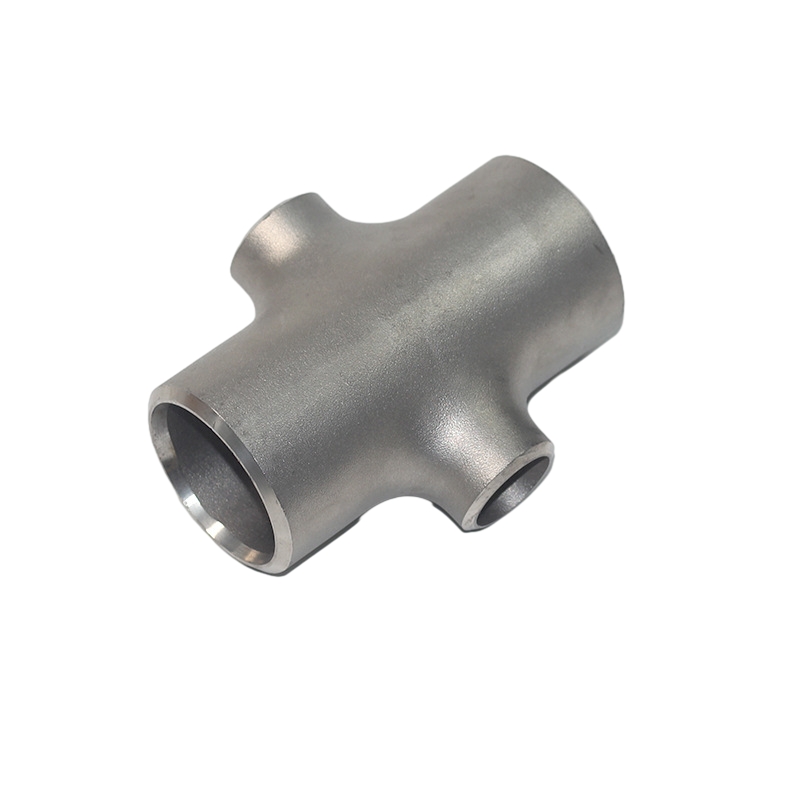

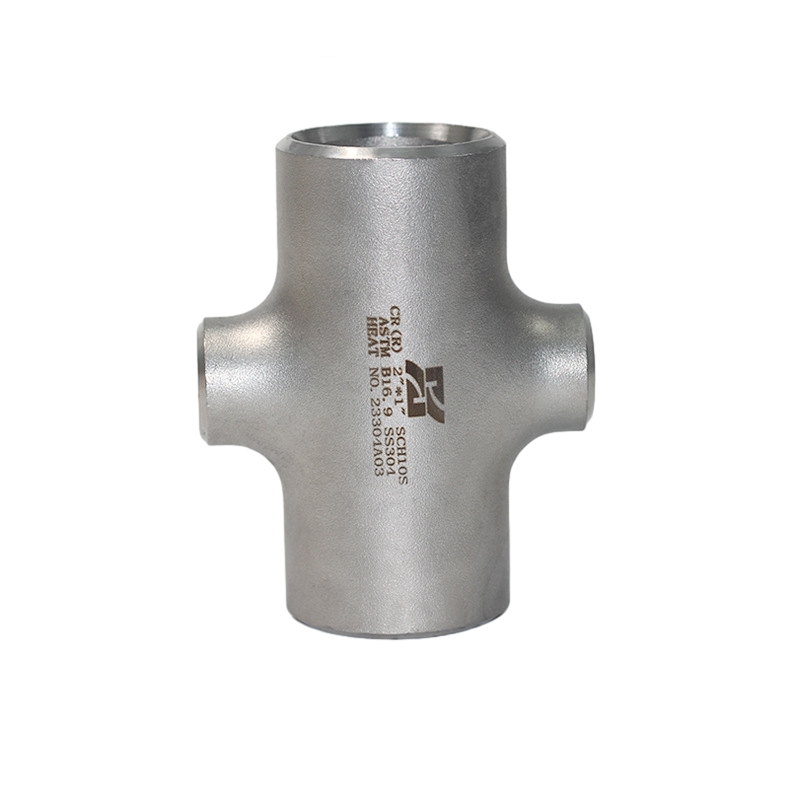

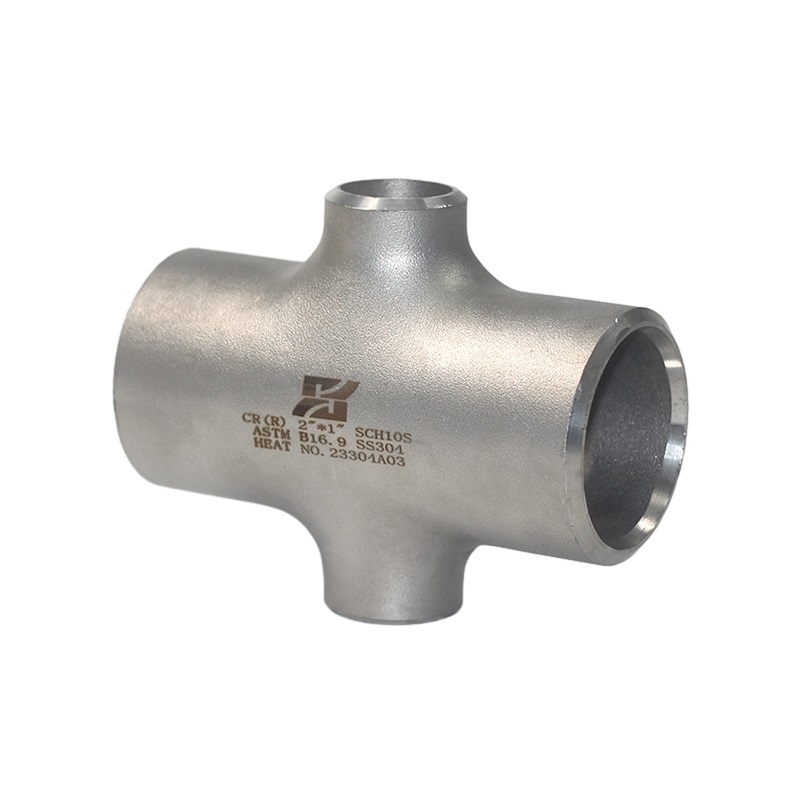

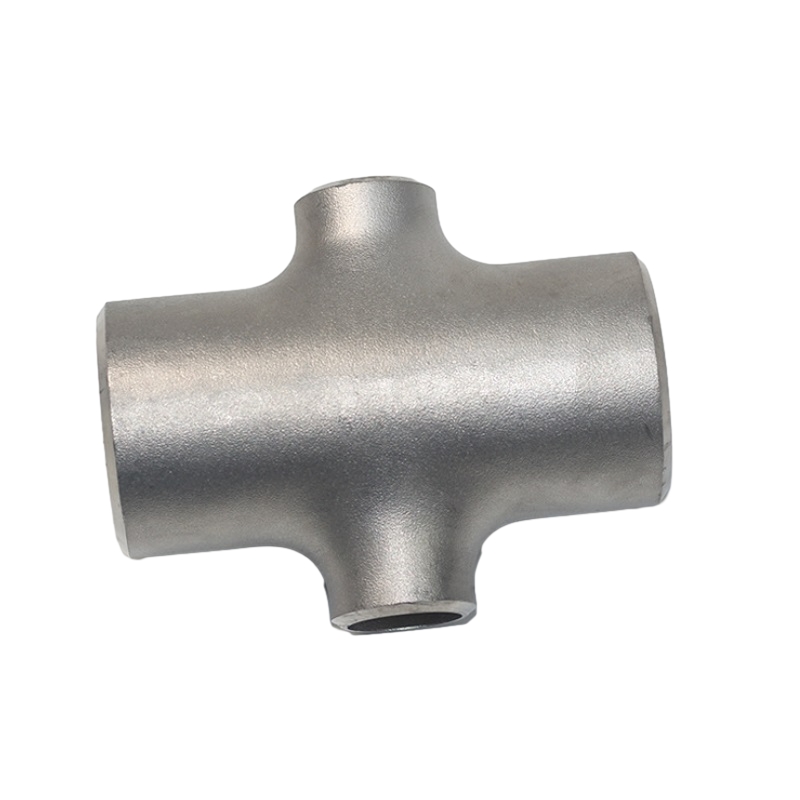

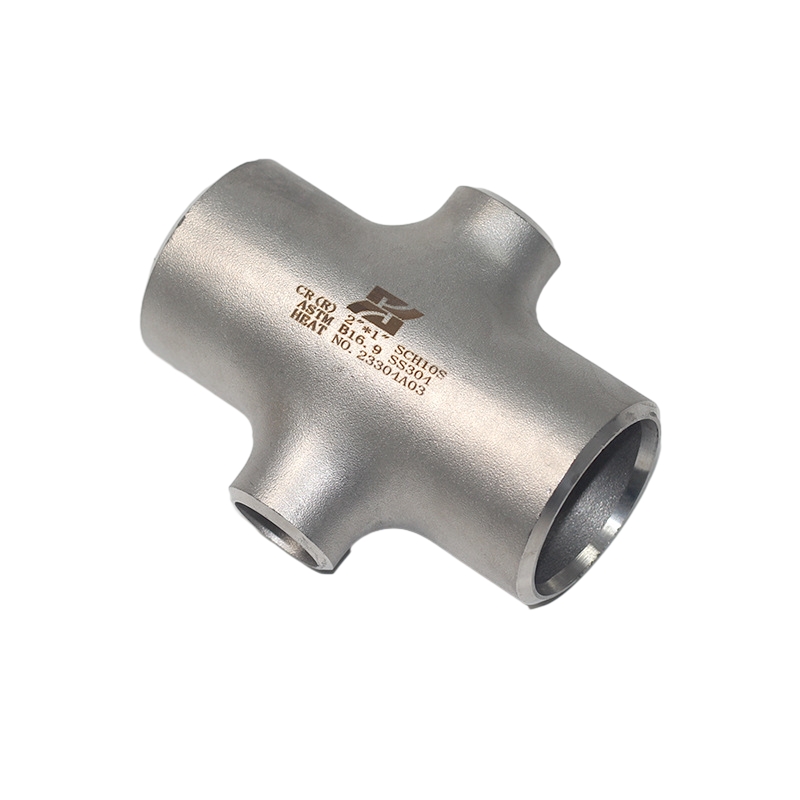

Stainless Steel Reducing Cross |
|
Standard |
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43 GB: GB/T12459, GB/T13401, HG/T21635, HG/T21631 |
|
Material |
Stainless steel OCr18Ni9 grade, 0Cr18Ni9Ti, 1Cr18Ni9Ti; 304, 304L, 316, 316L, 317, 317L, 321, 321H Dual-phase stainless steel ASTM A815-S31803、S32750、S32760 Super steel ASTM 904L、B366-N08904、A403-WP317、317L |
|
Surface |
Hot Galvanized |
|
Type |
Bulge Forming |
|
size |
½"-48" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Packing usually with plywood cases with each product well packed with films. |
|
Application |
Power Generation, Petrochemical, Shipbuilding, Paper Manufacturing, Chemical, Pharmaceutical, And Fabrication. |
|

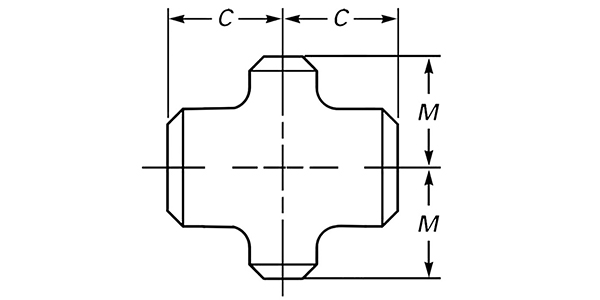

Nominal Pipe Size |
O.D. at Bevel |
Centre-to-End |
|||
|
NPS |
Run |
Outlet |
Run C |
Outlet M |
|
|
½ |
¼ |
0.84 |
0.54 |
1.00 |
1.00 |
|
½ |
3/8 |
0.84 |
0.68 |
1.00 |
1.00 |
|
¾ |
3/8 |
1.05 |
0.68 |
1.12 |
1.12 |
|
¾ |
½ |
1.05 |
0.84 |
1.12 |
1.12 |
|
1 |
½ |
1.32 |
0.84 |
1.50 |
1.50 |
|
1 |
¾ |
1.32 |
1.05 |
1.50 |
1.50 |
|
1¼ |
½ |
1.66 |
0.84 |
1.88 |
1.88 |
|
1¼ |
¾ |
1.66 |
1.05 |
1.88 |
1.88 |
|
1¼ |
1 |
1.66 |
1.32 |
1.88 |
1.88 |
|
1½ |
½ |
1.90 |
0.84 |
2.25 |
2.25 |
|
1½ |
¾ |
1.90 |
1.05 |
2.25 |
2.25 |
|
1½ |
1 |
1.90 |
1.66 |
2.25 |
2.25 |
|
1½ |
1¼ |
1.90 |
1.66 |
2.25 |
2.25 |
|
2 |
¾ |
2.38 |
1.05 |
2.50 |
1.75 |
|
2 |
1 |
2.38 |
1.32 |
2.50 |
2.00 |
|
2 |
1¼ |
2.38 |
1.66 |
2.50 |
2.25 |
|
2 |
1½ |
2.38 |
1.90 |
2.50 |
2.38 |
|
2½ |
1 |
2.88 |
1.32 |
3.00 |
2.25 |
|
2½ |
1¼ |
2.88 |
1.66 |
3.00 |
2.50 |
|
2½ |
1½ |
2.88 |
1.90 |
3.00 |
2.62 |
|
2½ |
2 |
2.88 |
2.38 |
3.00 |
2.75 |
|
3 |
1¼ |
3.50 |
1.66 |
3.38 |
2.75 |
|
3 |
1½ |
3.50 |
1.90 |
3.38 |
2.88 |
|
3 |
2 |
3.50 |
2.38 |
3.38 |
3.00 |
|
3 |
2½ |
3.50 |
2.88 |
3.38 |
3.25 |
|
3½ |
1½ |
4.00 |
1.90 |
3.75 |
3.12 |
|
3½ |
2 |
4.00 |
2.38 |
3.75 |
3.25 |
|
3½ |
2½ |
4.00 |
2.88 |
3.75 |
3.50 |
|
3½ |
3 |
4.00 |
3.50 |
3.75 |
3.62 |
|
4 |
1½ |
4.50 |
1.90 |
4.12 |
3.38 |
|
4 |
2 |
4.50 |
2.38 |
4.12 |
3.50 |
|
4 |
2½ |
4.50 |
2.88 |
4.12 |
3.75 |
|
4 |
3 |
4.50 |
3.50 |
4.12 |
3.88 |
|
4 |
3½ |
4.50 |
4.00 |
4.12 |
4.00 |
|
5 |
2 |
5.56 |
2.38 |
4.88 |
4.12 |
|
5 |
2½ |
5.56 |
2.88 |
4.88 |
4.25 |
|
5 |
3 |
5.56 |
3.50 |
4.88 |
4.38 |
|
5 |
3½ |
5.56 |
4.00 |
4.88 |
4.50 |
|
5 |
4 |
5.56 |
4.50 |
4.88 |
4.62 |
|
6 |
2½ |
6.62 |
2.88 |
5.62 |
4.75 |
|
6 |
3 |
6.62 |
3.50 |
5.62 |
4.88 |
|
6 |
3½ |
6.62 |
4.00 |
5.62 |
5.00 |
|
6 |
4 |
6.62 |
4.50 |
5.62 |
5.12 |
|
6 |
5 |
6.62 |
5.56 |
5.62 |
5.38 |
|
8 |
3½ |
8.62 |
4.00 |
7.00 |
6.00 |
|
8 |
4 |
8.62 |
4.50 |
7.00 |
6.12 |
|
8 |
5 |
8.62 |
5.56 |
7.00 |
6.38 |
|
8 |
6 |
8.62 |
6.62 |
7.00 |
6.62 |
|
10 |
4 |
10.75 |
4.50 |
8.50 |
7.25 |
|
10 |
5 |
10.75 |
5.56 |
8.50 |
7.50 |
|
10 |
6 |
10.75 |
6.62 |
8.50 |
7.62 |
|
10 |
8 |
10.75 |
8.62 |
8.50 |
8.00 |
|
12 |
5 |
12.75 |
5.56 |
10.00 |
8.50 |
|
12 |
6 |
12.75 |
6.62 |
10.00 |
8.62 |
|
12 |
8 |
12.75 |
8.62 |
10.00 |
9.00 |
|
12 |
10 |
12.75 |
10.75 |
10.00 |
9.50 |
|
14 |
6 |
14.00 |
6.62 |
11.00 |
9.38 |
|
14 |
8 |
14.00 |
8.62 |
11.00 |
9.75 |
|
14 |
10 |
14.00 |
10.75 |
11.00 |
10.12 |
|
14 |
12 |
14.00 |
12.75 |
11.00 |
10.62 |
|
16 |
6 |
16.00 |
6.62 |
12.00 |
10.38 |
|
16 |
8 |
16.00 |
8.62 |
12.00 |
10.75 |
|
16 |
10 |
16.00 |
10.75 |
12.00 |
11.12 |
|
16 |
12 |
16.00 |
12.75 |
12.00 |
11.62 |
|
16 |
14 |
16.00 |
14.00 |
12.00 |
12.00 |
|
18 |
8 |
18.00 |
8.62 |
13.50 |
11.75 |
|
18 |
10 |
18.00 |
10.75 |
13.50 |
12.12 |
|
18 |
12 |
18.00 |
12.75 |
13.50 |
12.62 |
|
18 |
14 |
18.00 |
14.00 |
13.50 |
13.00 |
|
18 |
16 |
18.00 |
16.00 |
13.50 |
13.00 |
|
20 |
8 |
20.00 |
8.62 |
15.00 |
12.75 |
|
20 |
10 |
20.00 |
10.75 |
15.00 |
13.12 |
|
20 |
12 |
20.00 |
12.75 |
15.00 |
13.62 |
|
20 |
14 |
20.00 |
14.00 |
15.00 |
14.00 |
|
20 |
16 |
20.00 |
16.00 |
15.00 |
14.00 |
|
20 |
18 |
20.00 |
18.00 |
15.00 |
14.50 |
|
22 |
10 |
22.00 |
10.75 |
16.50 |
14.12 |
|
22 |
12 |
22.00 |
12.75 |
16.50 |
14.62 |
|
22 |
14 |
22.00 |
14.00 |
16.50 |
15.00 |
|
22 |
16 |
22.00 |
16.00 |
16.50 |
15.00 |
|
22 |
18 |
22.00 |
18.00 |
16.50 |
15.50 |
|
22 |
20 |
22.00 |
20.00 |
16.50 |
16.00 |
|
24 |
10 |
24.00 |
10.75 |
17.00 |
15.12 |
|
24 |
12 |
24.00 |
12.75 |
17.00 |
15.62 |
|
24 |
14 |
24.00 |
14.00 |
17.00 |
16.00 |
|
24 |
16 |
24.00 |
16.00 |
17.00 |
16.00 |
|
24 |
18 |
24.00 |
18.00 |
17.00 |
16.50 |
|
24 |
20 |
24.00 |
20.00 |
17.00 |
17.00 |
|
24 |
22 |
24.00 |
22.00 |
17.00 |
17.00 |
|
26 |
12 |
26.00 |
12.75 |
19.50 |
16.62 |
|
26 |
14 |
26.00 |
14.00 |
19.50 |
17.00 |
|
26 |
16 |
26.00 |
16.00 |
19.50 |
17.00 |
|
26 |
18 |
26.00 |
18.00 |
19.50 |
17.50 |
|
26 |
20 |
26.00 |
20.00 |
19.50 |
18.00 |
|
26 |
22 |
26.00 |
22.00 |
19.50 |
18.50 |
|
26 |
24 |
26.00 |
24.00 |
19.50 |
19.00 |
|
28 |
12 |
28.00 |
12.75 |
20.50 |
17.62 |
|
28 |
14 |
28.00 |
14.00 |
20.50 |
18.00 |
|
28 |
16 |
28.00 |
16.00 |
20.50 |
18.00 |
|
28 |
18 |
28.00 |
18.00 |
20.50 |
18.50 |
|
28 |
20 |
28.00 |
20.00 |
20.50 |
19.00 |
|
28 |
22 |
28.00 |
22.00 |
20.50 |
19.50 |
|
28 |
24 |
28.00 |
24.00 |
20.50 |
20.00 |
|
28 |
26 |
28.00 |
26.00 |
20.50 |
20.50 |
|
30 |
10 |
30.00 |
10.75 |
22.00 |
18.12 |
|
30 |
12 |
30.00 |
12.75 |
22.00 |
18.62 |
|
30 |
14 |
30.00 |
14.00 |
22.00 |
19.00 |
|
30 |
16 |
30.00 |
16.00 |
22.00 |
19.00 |
|
30 |
18 |
30.00 |
18.00 |
22.00 |
19.50 |
|
30 |
20 |
30.00 |
20.00 |
22.00 |
20.00 |
|
30 |
22 |
30.00 |
22.00 |
22.00 |
20.50 |
|
30 |
24 |
30.00 |
24.00 |
22.00 |
21.00 |
|
30 |
26 |
30.00 |
26.00 |
22.00 |
21.50 |
|
30 |
28 |
30.00 |
28.00 |
22.00 |
21.50 |
|
32 |
14 |
32.00 |
14.00 |
23.50 |
20.00 |
|
32 |
16 |
32.00 |
16.00 |
23.50 |
20.00 |
|
32 |
18 |
32.00 |
18.00 |
23.50 |
20.50 |
|
32 |
20 |
32.00 |
20.00 |
23.50 |
21.00 |
|
32 |
22 |
32.00 |
22.00 |
23.50 |
21.50 |
|
32 |
24 |
32.00 |
24.00 |
23.50 |
22.00 |
|
32 |
26 |
32.00 |
26.00 |
23.50 |
22.50 |
|
32 |
28 |
32.00 |
28.00 |
23.50 |
22.50 |
|
32 |
30 |
32.00 |
30.00 |
23.50 |
23.00 |
|
34 |
16 |
34.00 |
16.00 |
25.00 |
21.00 |
|
34 |
18 |
34.00 |
18.00 |
25.00 |
21.50 |
|
34 |
20 |
34.00 |
20.00 |
25.00 |
22.00 |
|
34 |
22 |
34.00 |
22.00 |
25.00 |
22.50 |
|
34 |
24 |
34.00 |
24.00 |
25.00 |
23.00 |
|
34 |
26 |
34.00 |
26.00 |
25.00 |
23.50 |
|
34 |
28 |
34.00 |
28.00 |
25.00 |
23.50 |
|
34 |
30 |
34.00 |
30.00 |
25.00 |
24.00 |
|
34 |
32 |
34.00 |
32.00 |
25.00 |
24.50 |
|
36 |
16 |
36.00 |
16.00 |
26.50 |
22.00 |
|
36 |
18 |
36.00 |
18.00 |
26.50 |
22.50 |
|
36 |
20 |
36.00 |
20.00 |
26.50 |
23.00 |
|
36 |
22 |
36.00 |
22.00 |
26.50 |
23.50 |
|
36 |
24 |
36.00 |
24.00 |
26.50 |
24.00 |
|
36 |
26 |
36.00 |
26.00 |
26.50 |
24.50 |
|
36 |
28 |
36.00 |
28.00 |
26.50 |
24.50 |
|
36 |
30 |
36.00 |
30.00 |
26.50 |
25.00 |
|
36 |
32 |
36.00 |
32.00 |
26.50 |
25.50 |
|
36 |
34 |
36.00 |
34.00 |
26.50 |
26.00 |
|
38 |
18 |
38.00 |
18.00 |
28.00 |
23.50 |
|
38 |
20 |
38.00 |
20.00 |
28.00 |
24.00 |
|
38 |
22 |
38.00 |
22.00 |
28.00 |
24.50 |
|
38 |
24 |
38.00 |
24.00 |
28.00 |
25.00 |
|
38 |
26 |
38.00 |
26.00 |
28.00 |
25.50 |
|
38 |
28 |
38.00 |
28.00 |
28.00 |
25.50 |
|
38 |
30 |
38.00 |
30.00 |
28.00 |
26.50 |
|
38 |
32 |
38.00 |
32.00 |
28.00 |
27.00 |
|
38 |
34 |
38.00 |
34.00 |
28.00 |
27.50 |
|
38 |
36 |
38.00 |
36.00 |
28.00 |
28.00 |
|
40 |
18 |
40.00 |
18.00 |
29.50 |
24.50 |
|
40 |
20 |
40.00 |
20.00 |
29.50 |
25.00 |
|
40 |
22 |
40.00 |
22.00 |
29.50 |
25.50 |
|
40 |
24 |
40.00 |
24.00 |
29.50 |
26.00 |
|
40 |
26 |
40.00 |
26.00 |
29.50 |
26.50 |
|
40 |
28 |
40.00 |
28.00 |
29.50 |
26.50 |
|
40 |
30 |
40.00 |
30.00 |
29.50 |
27.50 |
|
40 |
32 |
40.00 |
32.00 |
29.50 |
28.00 |
|
40 |
34 |
40.00 |
34.00 |
29.50 |
28.50 |
|
40 |
36 |
40.00 |
36.00 |
29.50 |
29.00 |
|
40 |
38 |
40.00 |
38.00 |
29.50 |
29.50 |
|
42 |
16 |
42.00 |
16.00 |
30.00 |
25.00 |
|
42 |
18 |
42.00 |
18.00 |
30.00 |
25.50 |
|
42 |
20 |
42.00 |
20.00 |
30.00 |
26.00 |
|
42 |
22 |
42.00 |
22.00 |
30.00 |
26.00 |
|
42 |
24 |
42.00 |
24.00 |
30.00 |
26.00 |
|
42 |
26 |
42.00 |
26.00 |
30.00 |
27.50 |
|
42 |
28 |
42.00 |
28.00 |
30.00 |
27.50 |
|
42 |
30 |
42.00 |
30.00 |
30.00 |
28.00 |
|
42 |
32 |
42.00 |
32.00 |
30.00 |
28.00 |
|
42 |
34 |
42.00 |
34.00 |
30.00 |
28.00 |
|
42 |
36 |
42.00 |
36.00 |
30.00 |
28.00 |
|
42 |
38 |
42.00 |
38.00 |
30.00 |
28.00 |
|
42 |
40 |
42.00 |
40.00 |
30.00 |
28.00 |
|
44 |
20 |
44.00 |
20.00 |
32.00 |
27.00 |
|
44 |
22 |
44.00 |
22.00 |
32.00 |
27.00 |
|
44 |
24 |
44.00 |
24.00 |
32.00 |
27.50 |
|
44 |
26 |
44.00 |
26.00 |
32.00 |
27.50 |
|
44 |
28 |
44.00 |
28.00 |
32.00 |
27.50 |
|
44 |
30 |
44.00 |
30.00 |
32.00 |
28.00 |
|
44 |
32 |
44.00 |
32.00 |
32.00 |
28.00 |
|
44 |
34 |
44.00 |
34.00 |
32.00 |
28.50 |
|
44 |
36 |
44.00 |
36.00 |
32.00 |
28.50 |
|
44 |
38 |
44.00 |
38.00 |
32.00 |
29.00 |
|
44 |
40 |
44.00 |
40.00 |
32.00 |
29.50 |
|
44 |
42 |
44.00 |
42.00 |
32.00 |
30.00 |
|
46 |
22 |
46.00 |
22.00 |
33.50 |
28.50 |
|
46 |
24 |
46.00 |
24.00 |
33.50 |
28.50 |
|
46 |
26 |
46.00 |
26.00 |
33.50 |
29.00 |
|
46 |
28 |
46.00 |
28.00 |
33.50 |
29.00 |
|
46 |
30 |
46.00 |
30.00 |
33.50 |
29.00 |
|
46 |
32 |
46.00 |
32.00 |
33.50 |
29.50 |
|
46 |
34 |
46.00 |
34.00 |
33.50 |
29.50 |
|
46 |
36 |
46.00 |
36.00 |
33.50 |
30.00 |
|
46 |
38 |
46.00 |
38.00 |
33.50 |
30.00 |
|
46 |
40 |
46.00 |
40.00 |
33.50 |
30.50 |
|
46 |
42 |
46.00 |
42.00 |
33.50 |
31.00 |
|
46 |
44 |
46.00 |
44.00 |
33.50 |
31.50 |
|
48 |
22 |
48.00 |
22.00 |
35.00 |
29.00 |
|
48 |
24 |
48.00 |
24.00 |
35.00 |
29.00 |
|
48 |
26 |
48.00 |
26.00 |
35.00 |
30.00 |
|
48 |
28 |
48.00 |
28.00 |
35.00 |
30.00 |
|
48 |
30 |
48.00 |
30.00 |
35.00 |
30.00 |
|
48 |
32 |
48.00 |
32.00 |
35.00 |
31.00 |
|
48 |
34 |
48.00 |
34.00 |
35.00 |
31.00 |
|
48 |
36 |
48.00 |
36.00 |
35.00 |
31.00 |
|
48 |
38 |
48.00 |
38.00 |
35.00 |
32.00 |
|
48 |
40 |
48.00 |
40.00 |
35.00 |
32.00 |
|
48 |
42 |
48.00 |
42.00 |
35.00 |
32.00 |
|
48 |
44 |
48.00 |
44.00 |
35.00 |
33.00 |
|
48 |
46 |
48.00 |
46.00 |
35.00 |
33.00 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Metal Reducing Crosses Tube Joints Made Of Galvanized Stainless Steel suppliers and OEM/ODM Metal Reducing Crosses Tube Joints Made Of Galvanized Stainless Steel manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
Stainless steel precision tubes are widely recognized for their superior dimensional accuracy, mechanical properties, and corrosion resistance, making them essential in many industrial sectors such as...
View MoreWelding is an art as much as it is a science, especially when it comes to stainless steel tube joints. The integrity and performance of these joints are heavily influenced by the welding techniques em...
View MoreAmong the various materials available, stainless steel stands out due to its excellent mechanical properties and resistance to corrosion. But not all stainless steels are created equal, and selecting ...
View MoreWe'll never share your email address and you
can opt out at any time, we promise.
Specializing in the production of Stainless
Steel Pipe
NO.188 Binkang Road, Xixing Street, Binjiang District, Hangzhou City, Zhejiang Province, China
+86 18969027607
sales@xhxmat.com
Copyright © Xinhang Special Material Co., Ltd. Hangzhou Branch Rights Reserved.
Custom Metal Reducing Crosses Tube Joints Made Of Galvanized Stainless Steel Suppliers
English
русский
