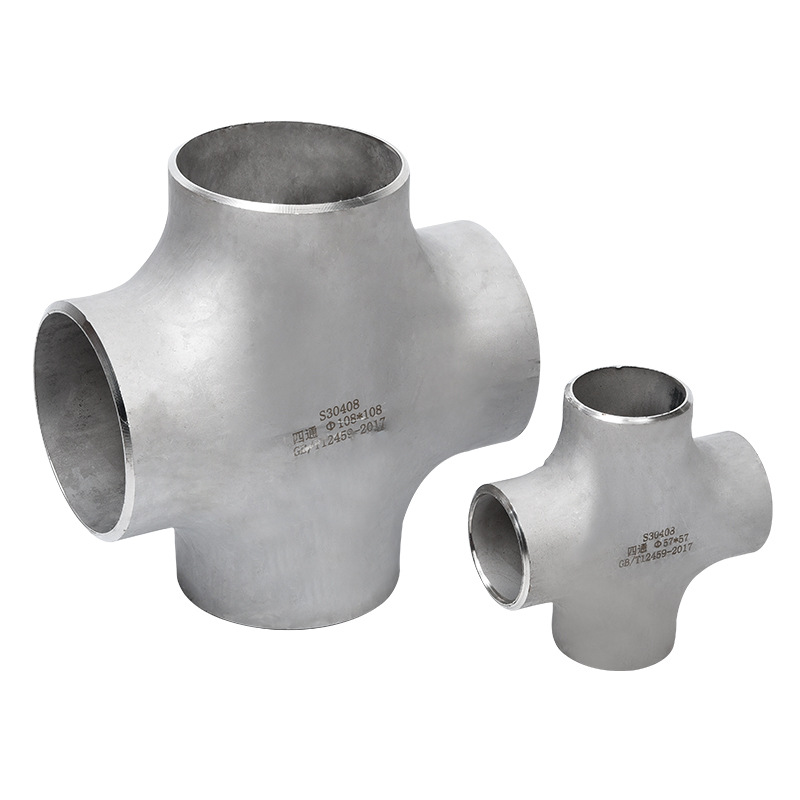

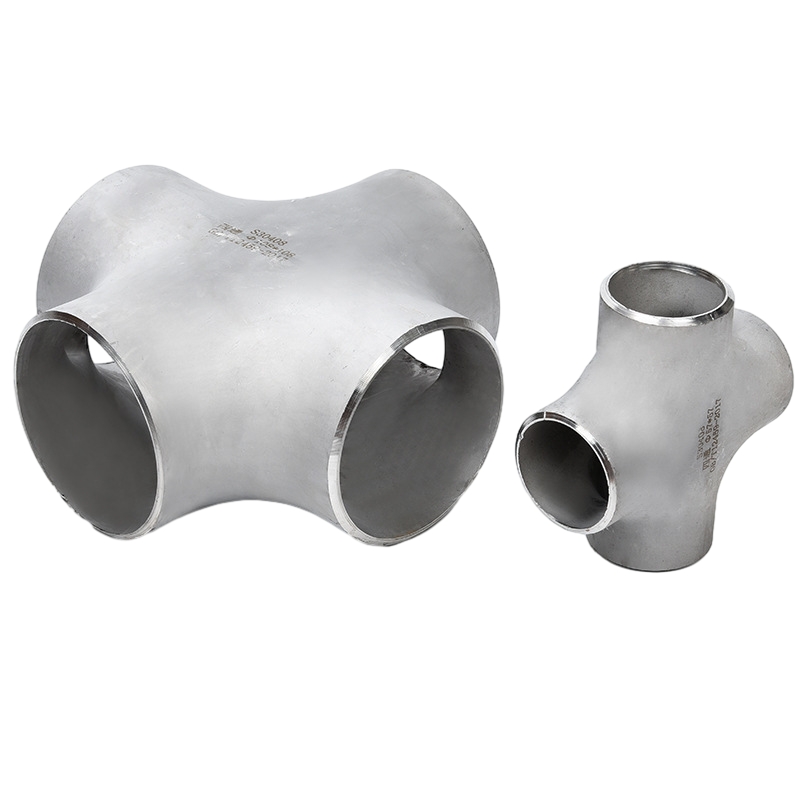

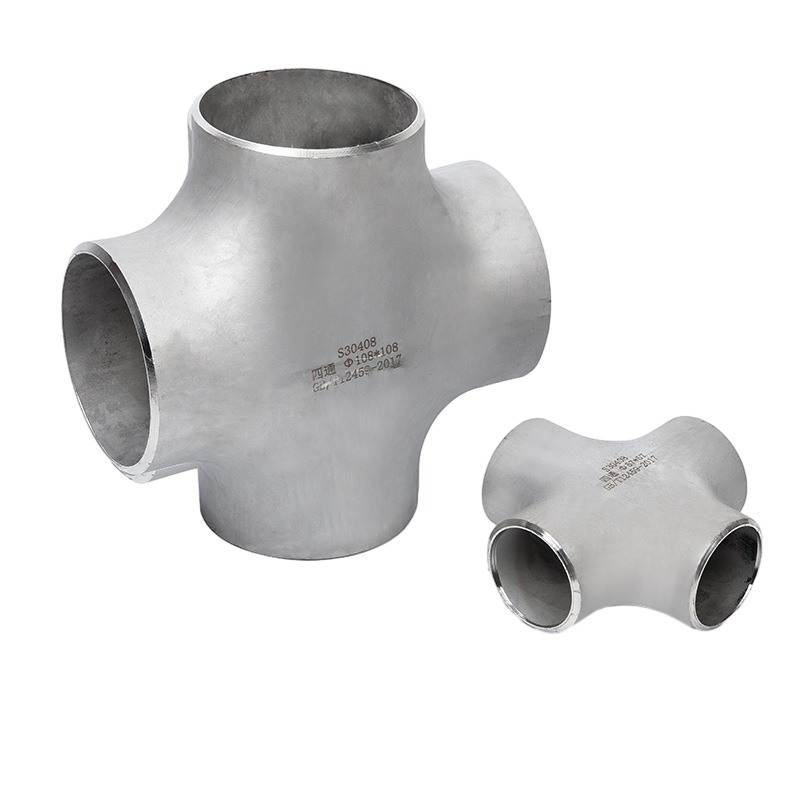

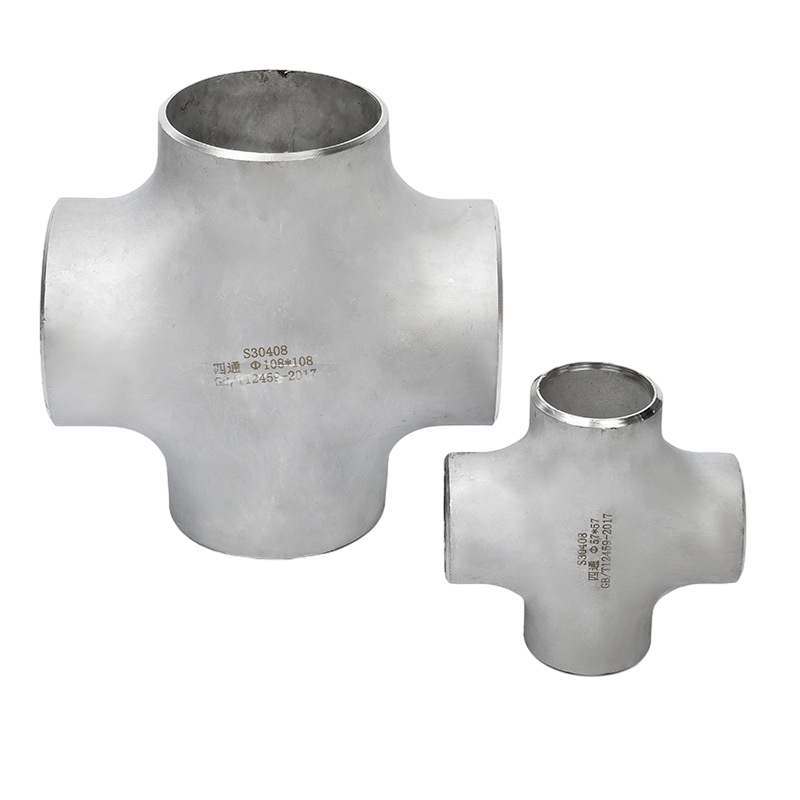

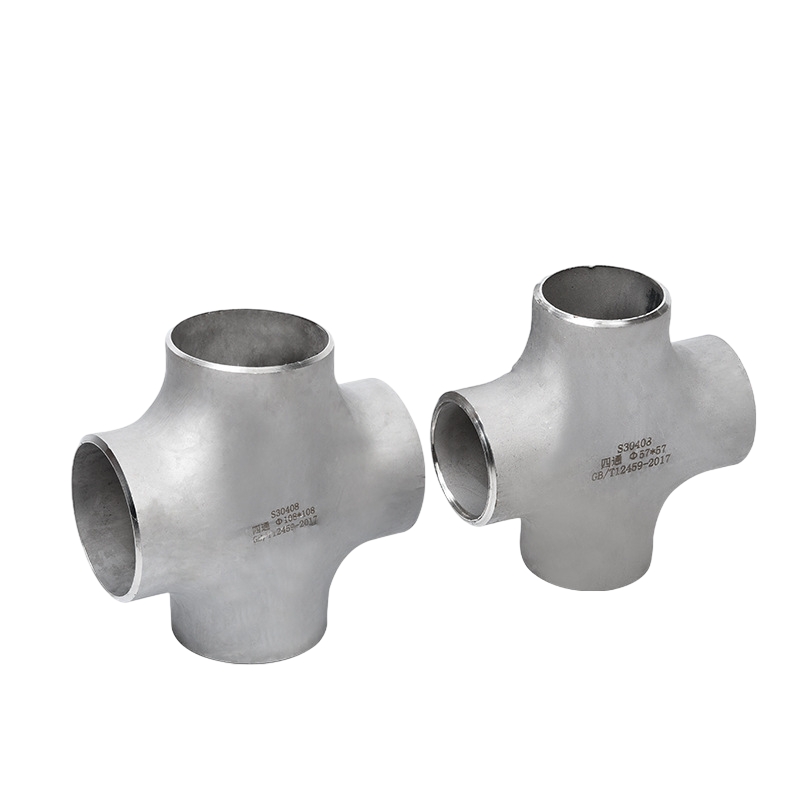

A cross is a type of pipe fitting that has four openings on one connection. The fitting looks like a cross and connects four different pipes into one point. It usually has solvent-welded sockets or female-threaded ends.
Equal cross fitting is a cross with all four openings of having the same diameter and connecting to four pipes of the same diameter as well.
Crosses pipe fittings are used to connect pipes and change or control flow through a piping system. Its dimensions play an important role in deciding the strength and stability. When the same size pipes are connected and fluids flow from one direction, it will be divided into three directions. Cross-pipe fitting will be subject to great pressure problems when fluid flows in three directions and is expected to move out in one direction.
Cross pipe fittings may stress pipes as temperatures change due to their four-way nature. Therefore, cross pipes are generally not used as pipeline hydraulic components. Conversely, where thermal expansion is not an issue, cross-fittings are more advantageous.
Introduction
|
Equal Cross |
|
|
Item |
Stainless Steel Equal Cross |
|
Standard |
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43 EN: EN10253-1, EN10253-2 DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 ASME B16.25- Butt weld Ends ASME B16.28- Wrought Steel Short Radius Elbows and Butt welding Returns MSS SP-43-Fabricated & Wrought Butt-Welding Fittings for Corrosion Resistant, Low-Pressure Applications ASTM A403-ASME SA403-Specification for Wrought Austenitic Stainless Steel Piping Fittings ASME B16.9-Wrought Fittings Butt welding |
|
Material |
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low-temperature Steel, Carbon Steel, etc. |
|
Surface |
Annealed & Pickled, Hot Dip Galvanizing, Electro Polish, Transparent Oil, Zinc Plates, Black Paint, Varnish |
|
Type |
Push, Press, Forge, Cast, etc. |
|
size |
½"-48" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Shrink wrapped carton pallet or in seaworthy wooden cased |
|
Application |
Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc. |
|

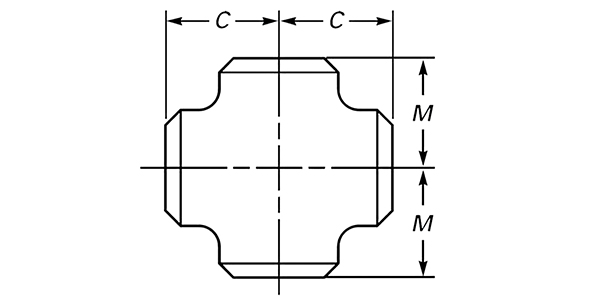

Nominal Pipe Size |
Nominal Pipe Size |
Center to End (in.) |
|
|
NPS |
(in.) |
Run, C |
Outlet, M |
|
½ |
0.84 |
1.00 |
1.00 |
|
¾ |
1.05 |
1.12 |
1.12 |
|
1 |
1.32 |
1.50 |
1.50 |
|
1¼ |
1.66 |
1.88 |
1.88 |
|
1½ |
1.90 |
2.25 |
2.25 |
|
2 |
2.38 |
2.50 |
2.50 |
|
2½ |
2.88 |
3.00 |
3.00 |
|
3 |
3.50 |
3.38 |
3.38 |
|
3½ |
4.00 |
3.75 |
3.75 |
|
4 |
4.50 |
4.12 |
4.12 |
|
5 |
5.56 |
4.88 |
4.88 |
|
6 |
6.62 |
5.62 |
5.62 |
|
8 |
8.62 |
7.00 |
7.00 |
|
10 |
10.75 |
8.50 |
8.50 |
|
12 |
12.75 |
10.00 |
10.00 |
|
14 |
14.00 |
11.00 |
11.00 |
|
16 |
16.00 |
12.00 |
12.00 |
|
18 |
18.00 |
13.50 |
13.50 |
|
20 |
20.00 |
15.00 |
15.00 |
|
22 |
22.00 |
16.50 |
16.50 |
|
24 |
24.00 |
17.00 |
17.00 |
|
26 |
26.00 |
19.50 |
19.50 |
|
28 |
28.00 |
20.50 |
20.50 |
|
30 |
30.00 |
22.00 |
22.00 |
|
32 |
32.00 |
23.50 |
23.50 |
|
34 |
34.00 |
25.00 |
25.00 |
|
36 |
36.00 |
26.50 |
26.50 |
|
38 |
38.00 |
28.00 |
28.00 |
|
40 |
40.00 |
29.50 |
29.50 |
|
42 |
42.00 |
30.00 |
28.00 |
|
44 |
44.00 |
32.00 |
30.00 |
|
46 |
46.00 |
33.50 |
31.50 |
|
48 |
48.00 |
35.00 |
33.00 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel Equal Tube Cross With Solvent-Welded Sockets suppliers and OEM/ODM Stainless Steel Equal Tube Cross With Solvent-Welded Sockets manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
