A pipe tee is used to combine or divide fluid flow. It can connect pipes of different diameters change the direction of a pipe run, or be used to transport two-fluid mixtures.
There are many kinds of pipe tee according to different ways
Material: Stainless steel pipe tee, carbon steel pipe tees, cast iron pipe tees, nickel pipe tees, etc.
Finishes: Galvanized pipe tees, nickel-plated pipe tees, black pipe tees, white pipe tees, etc.
Connection Method: Socket welded tees, threaded tees, butt welding tees, flanged tees.

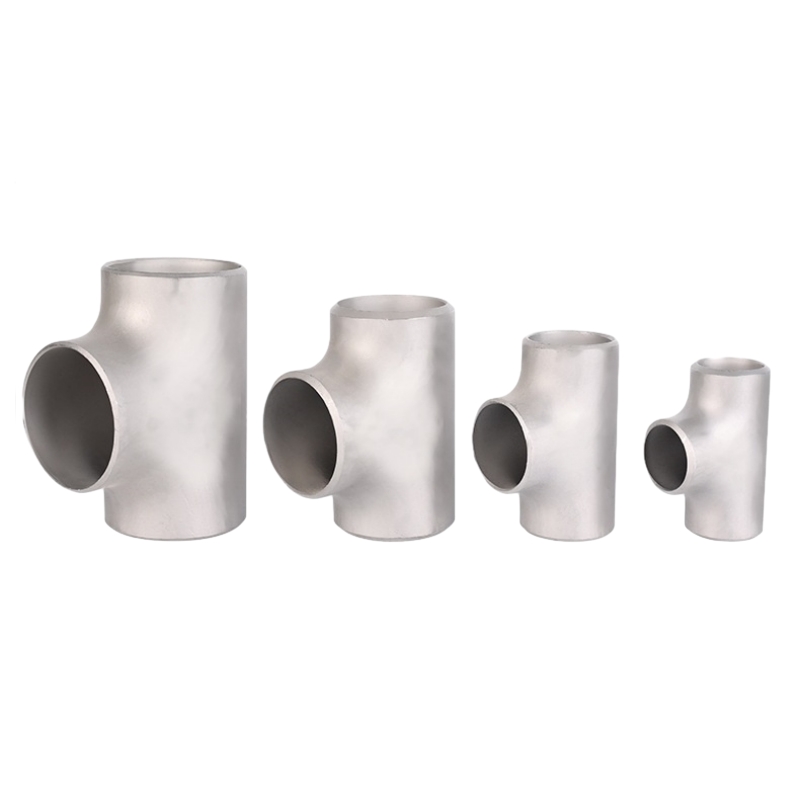

Pipe tees may be equal or unequal in size to their three connections, with equal tees being the most common. Equal pipe tee means the branch diameter of this tee is the same as the main pipe diameter of this tee.
The equal tees have a strong opening. They have beveled ends that, when flush the pipe, create a trough for a strong weld that permits maximum flow.

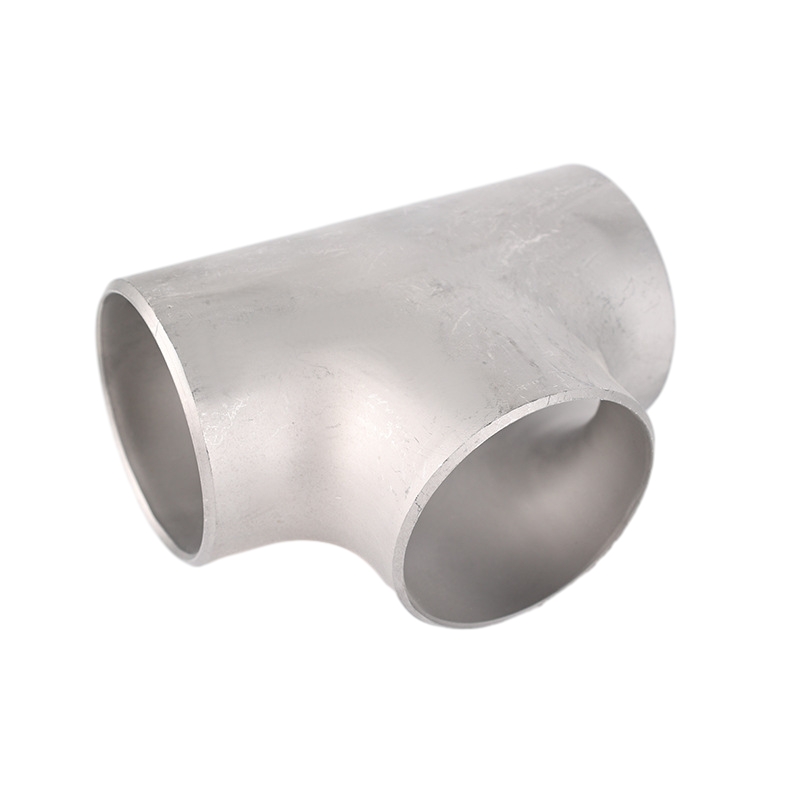

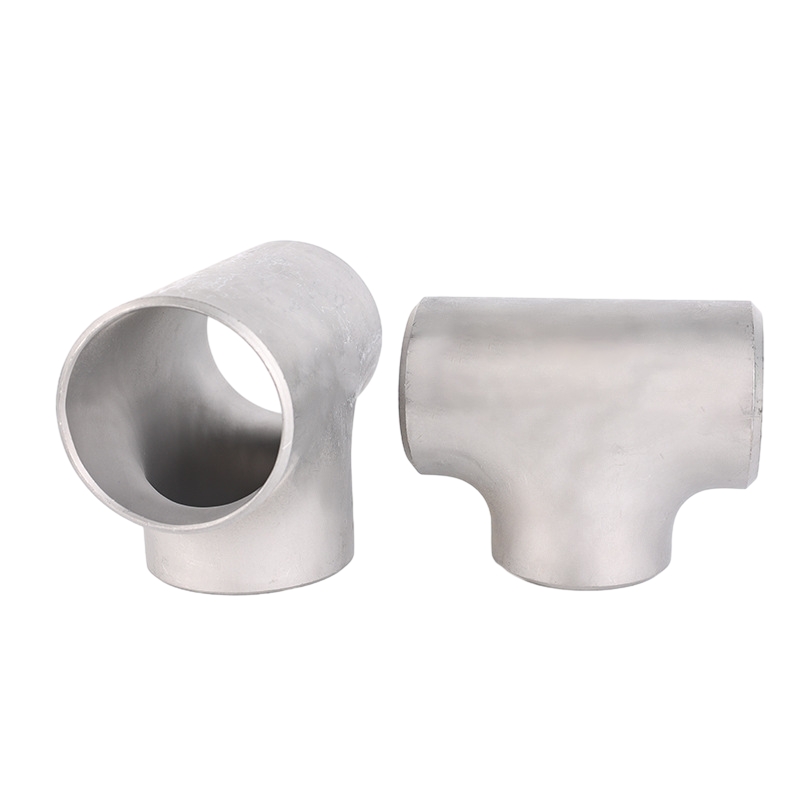

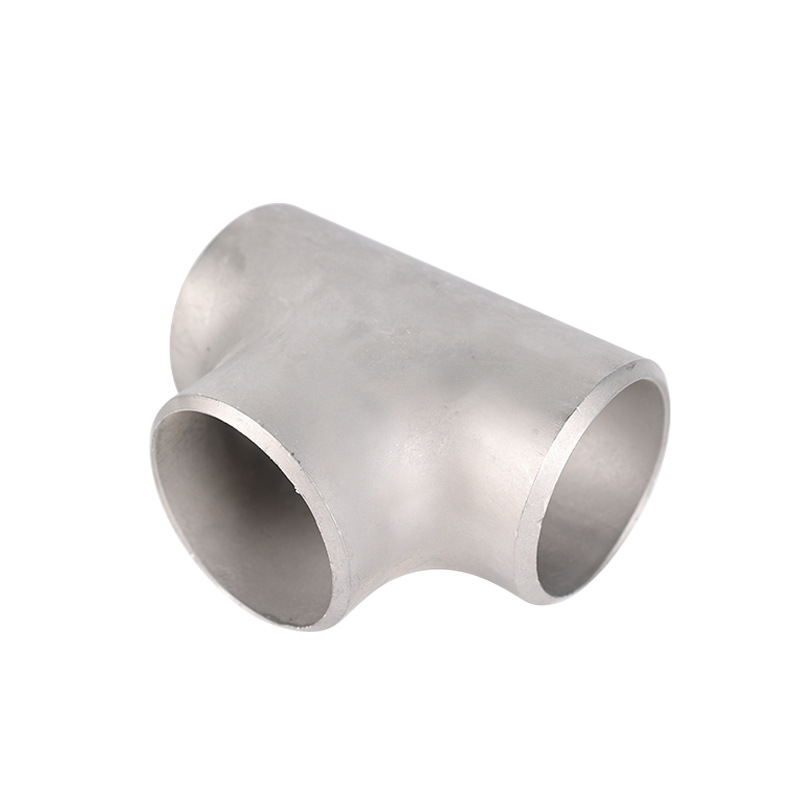

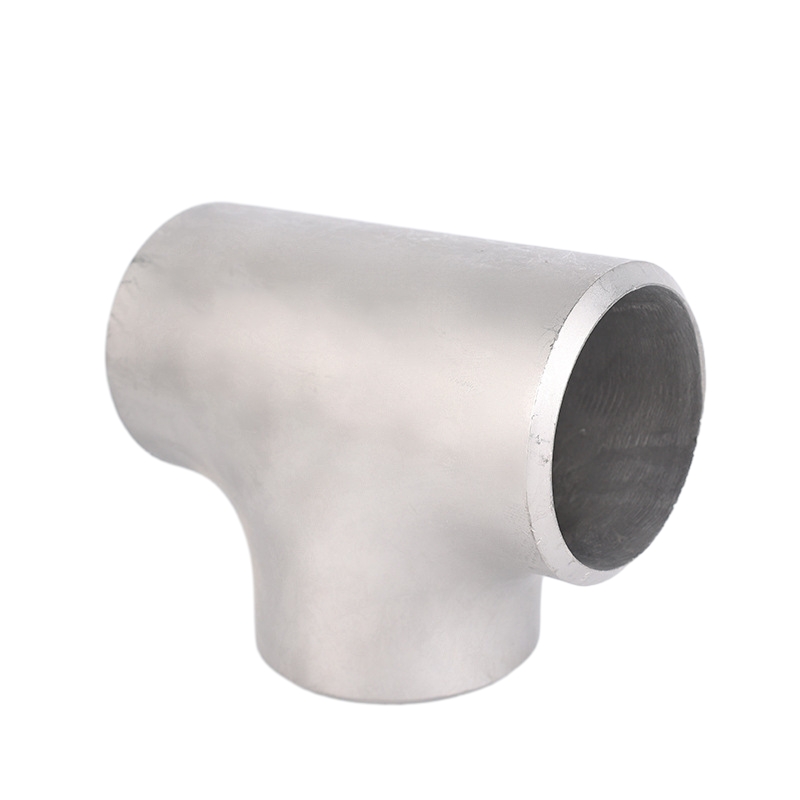

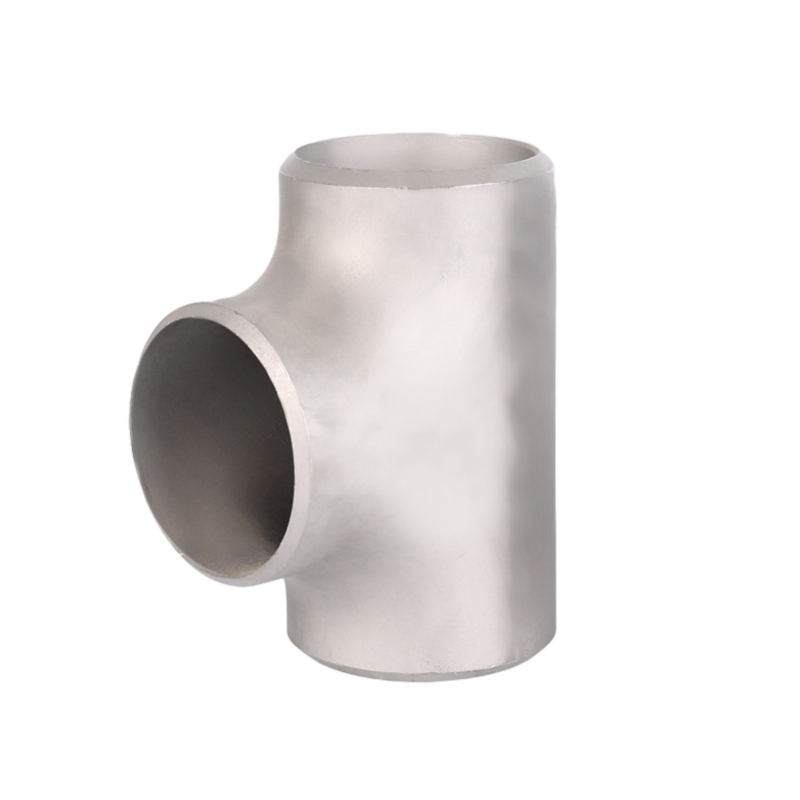

Connected by the butt welding process. It can withstand higher pressure than other types. Butt weld equal tee is widely used in petroleum, aerospace pharmacy, chemical industry, metallurgy, electric power, military industry, engineering support and other industrial pipelines, etc.
Introduction
|
Equal Pipe Tees |
|
|
Item |
Stainless Steel Equal Pipe Tees |
|
Standard |
ASME B16.9, ASME A403, GB12459-2005, DIN, GOST, JIS B2313 |
|
Material |
Stainless steel: ASTM A403-WP304, WP304L, WP304/304L, WP304H, WP316, WP316L, WP316/316L, WP321, WP321H, WP347, WP347H |
|
Surface |
Pickled, sandblasting, rolling blast, brighten, polished, mirror polished, vanished, shinning |
|
Type |
Forging |
|
size |
NPS½"-48" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plastic film wooden cases + wooden pallet |
|
Application |
Chemical industry, oil, petroleum industry, construction industry, metallurgy, pharmaceutical, power industry, gas industry, domestic installation, etc. |
|

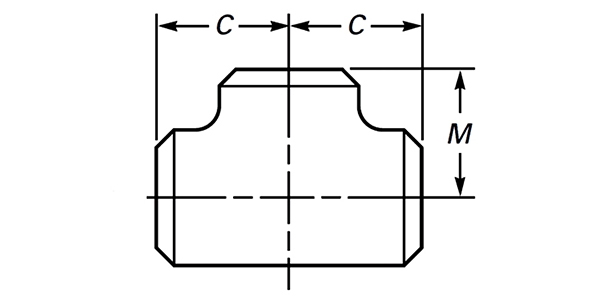

NPS |
Outside Diameter at Bevel |
Center-to-End |
|
|
|
|
Run, |
Outlet, |
|
|
|
C |
M |
|
½ |
0.84 |
1.00 |
1.00 |
|
¾ |
1.05 |
1.12 |
1.12 |
|
1 |
1.32 |
1.50 |
1.50 |
|
1 ¼ |
1.66 |
1.88 |
1.88 |
|
1 ½ |
1.90 |
2.25 |
2.25 |
|
2 |
2.38 |
2.50 |
2.50 |
|
2 ½ |
2.88 |
3.00 |
3.00 |
|
3 |
3.50 |
3.38 |
3.38 |
|
3 ½ |
4.00 |
3.75 |
3.75 |
|
4 |
4.50 |
4.12 |
4.12 |
|
5 |
5.56 |
4.88 |
4.88 |
|
6 |
6.62 |
5.62 |
5.62 |
|
8 |
8.62 |
7.00 |
7.00 |
|
10 |
10.75 |
8.50 |
8.50 |
|
12 |
12.75 |
10.00 |
10.00 |
|
14 |
14.00 |
11.00 |
11.00 |
|
16 |
16.00 |
12.00 |
12.00 |
|
18 |
18.00 |
13.50 |
13.50 |
|
20 |
20.00 |
15.00 |
15.00 |
|
22 |
22.00 |
16.50 |
16.50 |
|
24 |
24.00 |
17.00 |
17.00 |
|
26 |
26.00 |
19.50 |
19.50 |
|
28 |
28.00 |
20.50 |
20.50 |
|
30 |
30.00 |
22.00 |
22.00 |
|
32 |
32.00 |
23.50 |
23.50 |
|
34 |
34.00 |
25.00 |
25.00 |
|
36 |
36.00 |
26.50 |
26.50 |
|
38 |
38.00 |
28.00 |
28.00 |
|
40 |
40.00 |
29.50 |
29.50 |
|
42 |
42.00 |
30.00 |
30.00 |
|
44 |
44.00 |
32.00 |
32.00 |
|
46 |
46.00 |
33.50 |
33.50 |
|
48 |
48.00 |
35.50 |
35.50 |
|

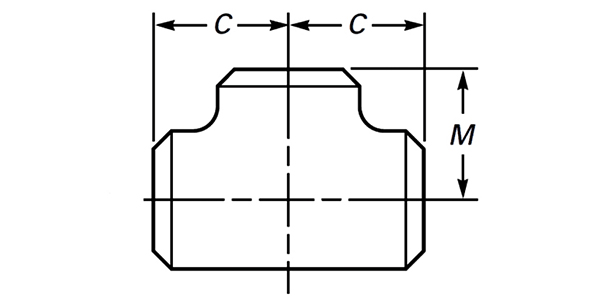

Nominal Pipe Size (in) |
Outside Diameter at Bevel(in) |
Center-to-End |
|
|
|
|
Run, |
Outlet, |
|
|
|
C(in) |
M(in) |
|
½ |
0.84 |
1.00 |
1.00 |
|
¾ |
1.05 |
1.12 |
1.12 |
|
1 |
1.32 |
1.50 |
1.50 |
|
1 ¼ |
1.66 |
1.88 |
1.88 |
|
1 ½ |
1.90 |
2.25 |
2.25 |
|
2 |
2.38 |
2.50 |
2.50 |
|
2 ½ |
2.88 |
3.00 |
3.00 |
|
3 |
3.50 |
3.38 |
3.38 |
|
3 ½ |
4.00 |
3.75 |
3.75 |
|
4 |
4.50 |
4.12 |
4.12 |
|
5 |
5.56 |
4.88 |
4.88 |
|
6 |
6.62 |
5.62 |
5.62 |
|
8 |
8.62 |
7.00 |
7.00 |
|
10 |
10.75 |
8.50 |
8.50 |
|
12 |
12.75 |
10.00 |
10.0014 |
|
14 |
14.00 |
11.00 |
11.00 |
|
16 |
16.00 |
12.00 |
12.00 |
|
18 |
18.00 |
13.50 |
13.50 |
|
20 |
20.00 |
15.00 |
15.00 |
|
22 |
22.00 |
16.50 |
16.50 |
|
24 |
24.00 |
17.00 |
17.00 |
|
26 |
26.00 |
19.50 |
19.50 |
|
28 |
28.00 |
20.50 |
20.50 |
|
30 |
30.00 |
22.00 |
22.00 |
|
32 |
32.00 |
23.50 |
23.50 |
|
34 |
34.00 |
25.00 |
25.00 |
|
36 |
36.00 |
26.50 |
26.50 |
|
38 |
38.00 |
28.00 |
28.00 |
|
40 |
40.00 |
29.50 |
29.50 |
|
42 |
42.00 |
30.00 |
30.00 |
|
44 |
44.00 |
32.00 |
32.00 |
|
46 |
46.00 |
33.50 |
33.50 |
|
48 |
48.00 |
35.50 |
35.50 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Butt Welding Stainless Steel Equal Pipe Tees Round Tube Connector suppliers and OEM/ODM Butt Welding Stainless Steel Equal Pipe Tees Round Tube Connector manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
