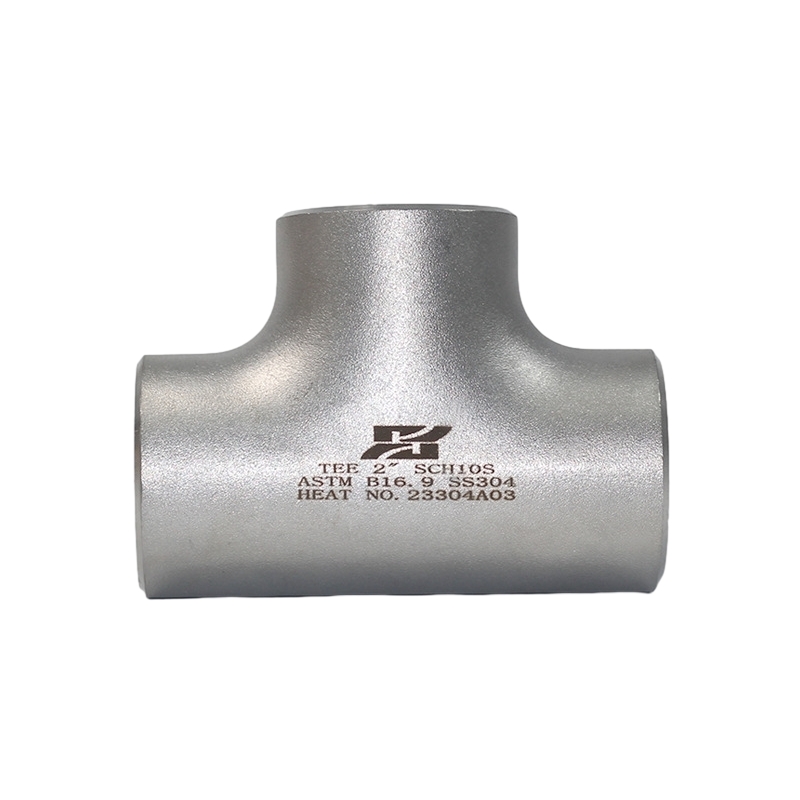

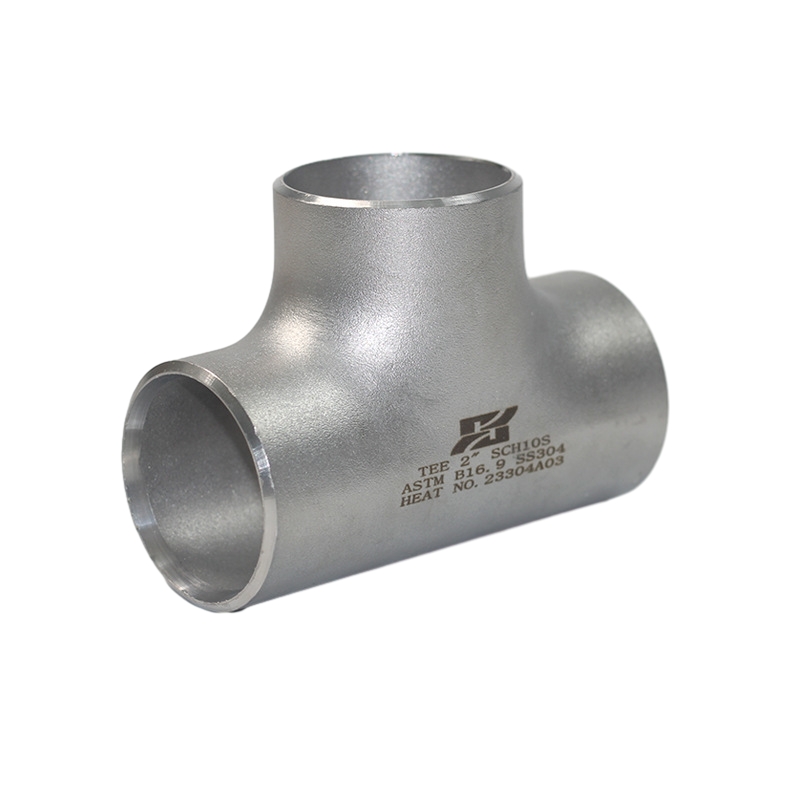

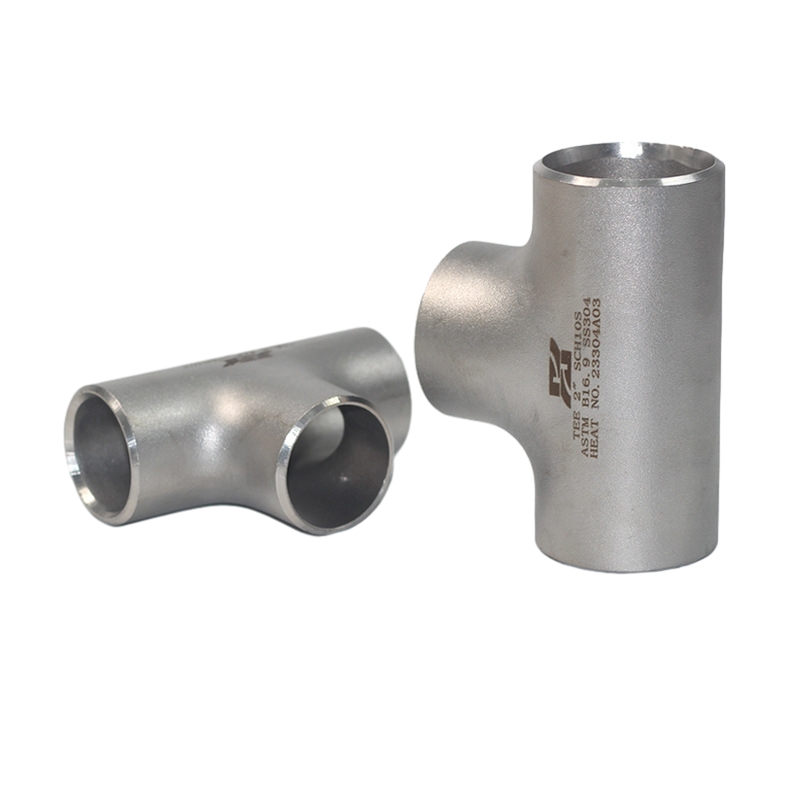

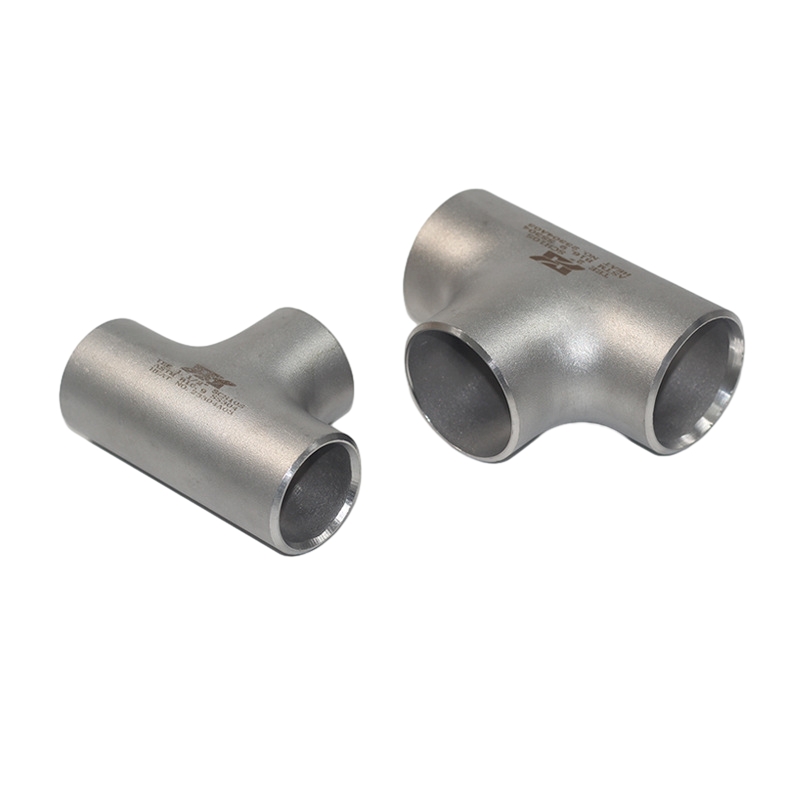

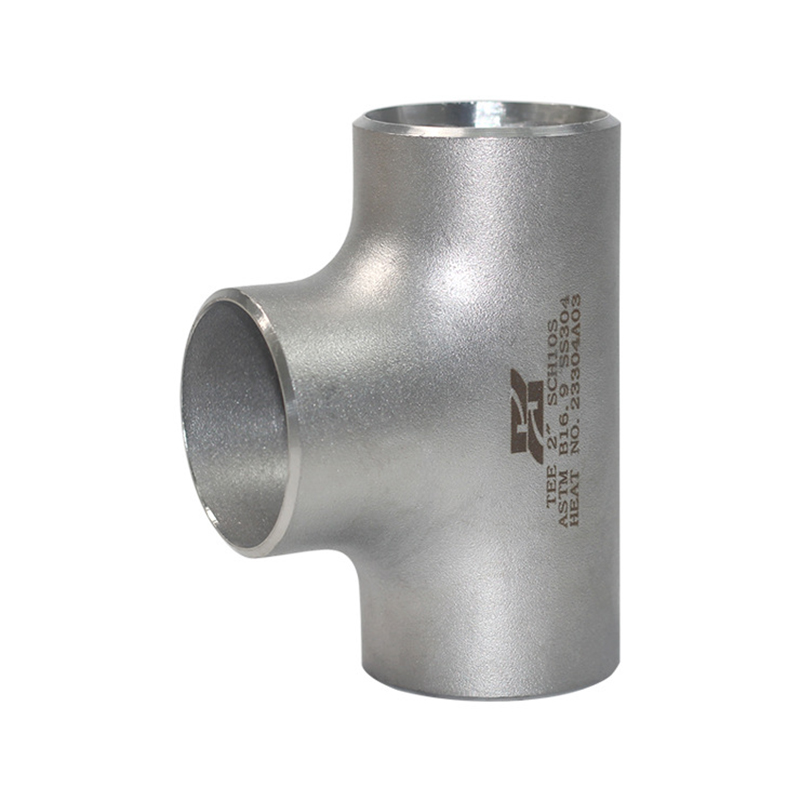

Pipe tees are extensively used in pipeline networks. They have two outlets at 90 degrees from the main flow and are used to combine or split fluid or gas flow.
The equal tee is manufactured with all three outlets being the same size. The fittings like the alphabet "T", can connect two horizontal and one vertical pipe.
The common manufacturing processes to make tees are cold extrusion and hot pushing. Cold extrusion is normally for smaller thicknesses tee, whereas hot pushing is for large thicknesses.
The stainless steel equal tee's ends in plain or beveled, connected by butt welding process. It could bear higher pressure than the other connection types.
The equal pipe tees are precision machined to provide high quality and fail-safe leakproof reliability. They are widely used in diverse piping systems across industries. They are widely used in
oil, gas, nuclear, petrol-chemical and process industries, etc.
Introduction
|
Equal Pipe Tees |
|
|
Item |
Stainless Steel Equal Pipe Tees |
|
Standard |
ASME B16.9, GOST 17375-2001, DIN2605 and JIS B2311, EN10253-1 etc. |
|
Material |
ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254;ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6, WPHY-42; WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70; ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91; ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
|
Surface |
Hot Galvanized, Transparent Oil, Anti-Rust Oil |
|
Type |
Forging |
|
size |
DN15-1150 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden cases, wooden pallets, Carton boxes, Nylon bag+ wooden cases |
|
Application |
Petroleum, chemical, power, gas, metallurgy, shipbuilding. construction, water, and nuclear power, etc. |
|

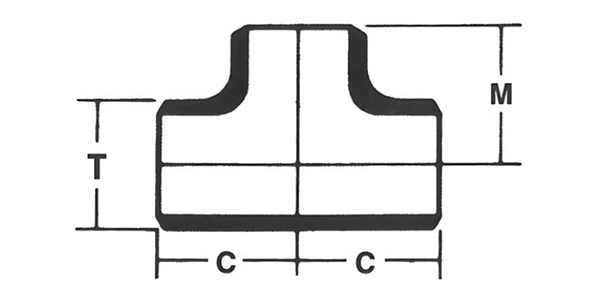

Nominal Pipe Size DN |
Outside Diameter at Bevel T(mm) |
Center-to-End |
|
|
|
|
Run, |
Outlet, |
|
|
|
C(mm) |
M(mm) |
|
15 |
21.3 |
25.4 |
25.4 |
|
20 |
26.7 |
28.4 |
28.4 |
|
25 |
33.4 |
38.1 |
38.1 |
|
32 |
42.2 |
47.8 |
47.8 |
|
40 |
48.3 |
57.2 |
57.2 |
|
50 |
60.3 |
63.5 |
63.5 |
|
65 |
73.0 |
76.2 |
76.2 |
|
80 |
88.9 |
85.9 |
85.9 |
|
90 |
101.6 |
95.3 |
95.3 |
|
100 |
114.3 |
104.6 |
104.6 |
|
125 |
141.3 |
124.0 |
124.0 |
|
150 |
168.3 |
142.7 |
142.7 |
|
200 |
219.1 |
177.8 |
177.8 |
|
250 |
273.1 |
215.9 |
215.9 |
|
300 |
323.9 |
254.0 |
254.0 |
|
350 |
355.6 |
279.4 |
279.4 |
|
400 |
406.4 |
305 |
305 |
|
450 |
457 |
343 |
343 |
|
500 |
508 |
381 |
381 |
|
550 |
559 |
419 |
419 |
|
600 |
610 |
432 |
432 |
|
650 |
660 |
495 |
495 |
|
700 |
711 |
521 |
521 |
|
750 |
762 |
559 |
559 |
|
800 |
813 |
597 |
597 |
|
850 |
864 |
635 |
635 |
|
900 |
914 |
673 |
673 |
|
950 |
965 |
711 |
711 |
|
1000 |
1016 |
749 |
749 |
|
1050 |
1067 |
762 |
711 |
|
1100 |
1118 |
813 |
762 |
|
1150 |
1168 |
851 |
800 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Cold Extrusion Stainless Steel Tube Equal Pipe Tees Fitting suppliers and OEM/ODM Cold Extrusion Stainless Steel Tube Equal Pipe Tees Fitting manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
