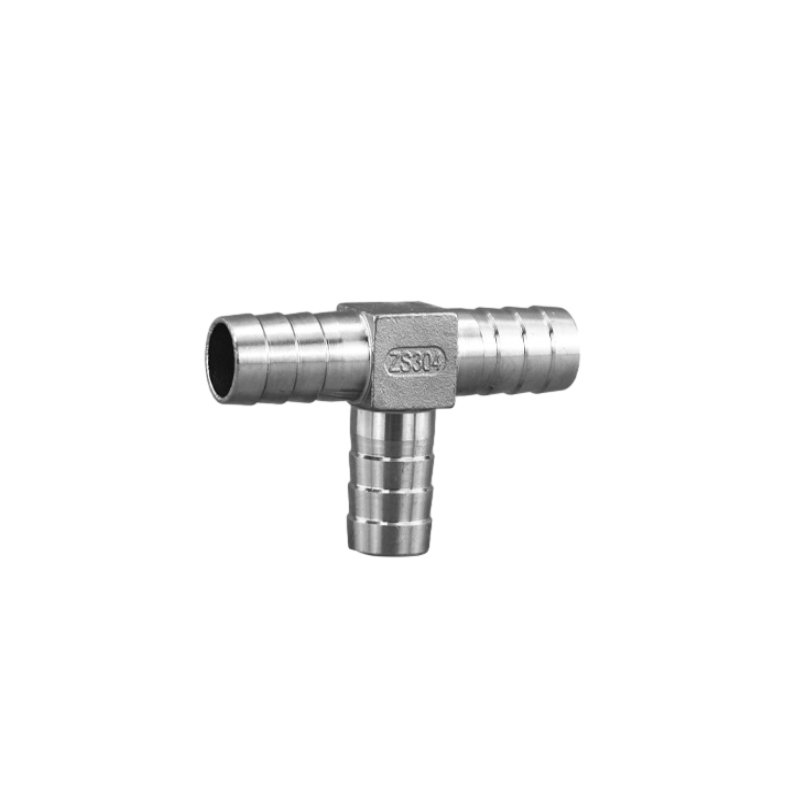

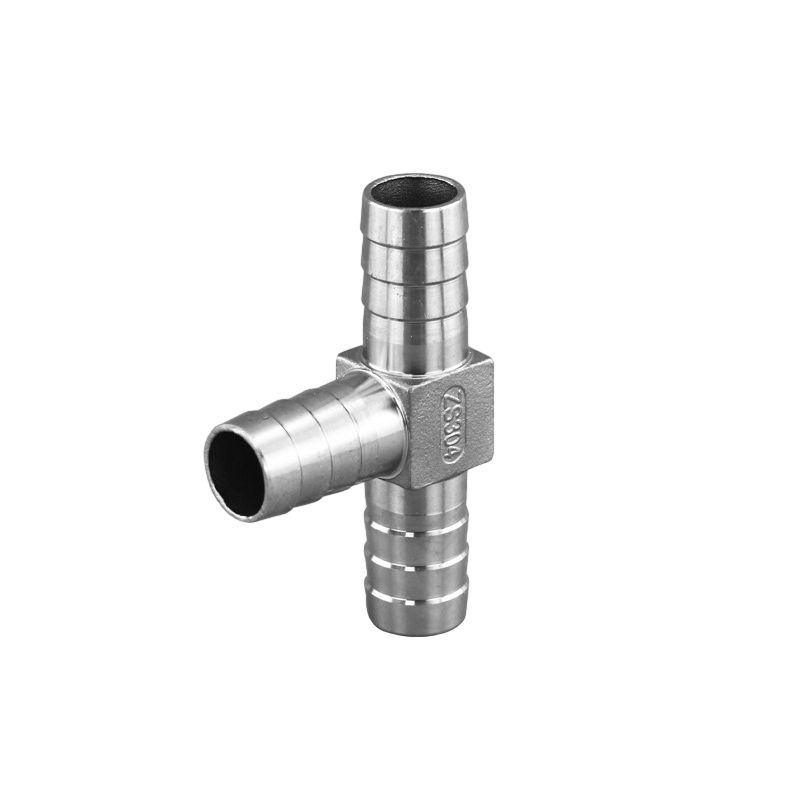

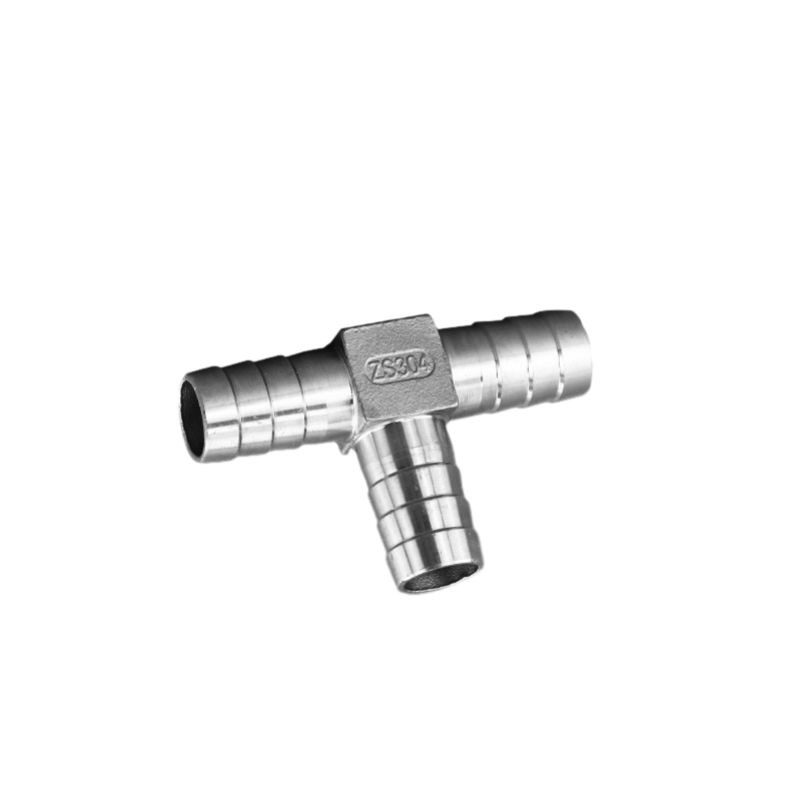

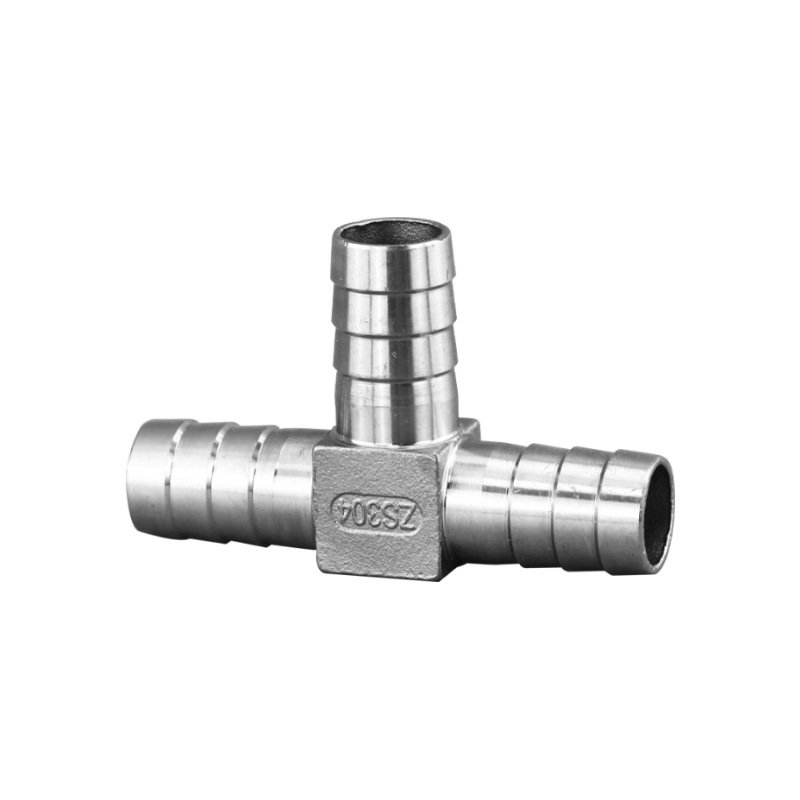

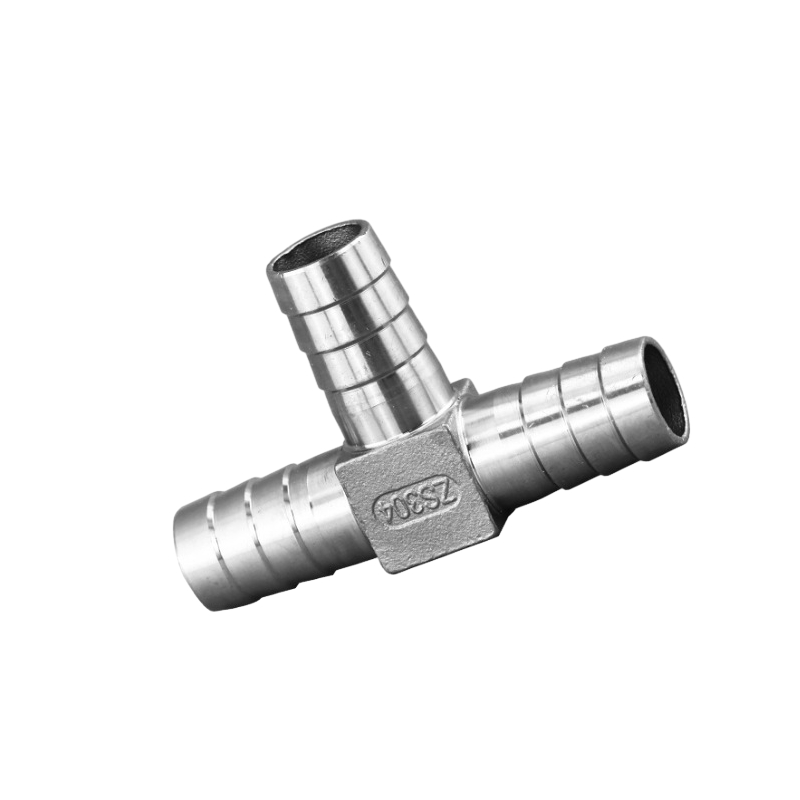

Barbed tee fitting is designed for low-pressure applications where a three-way hose connection is needed. It offers a corrosion-resistant and dependable solution for multi-hose systems.

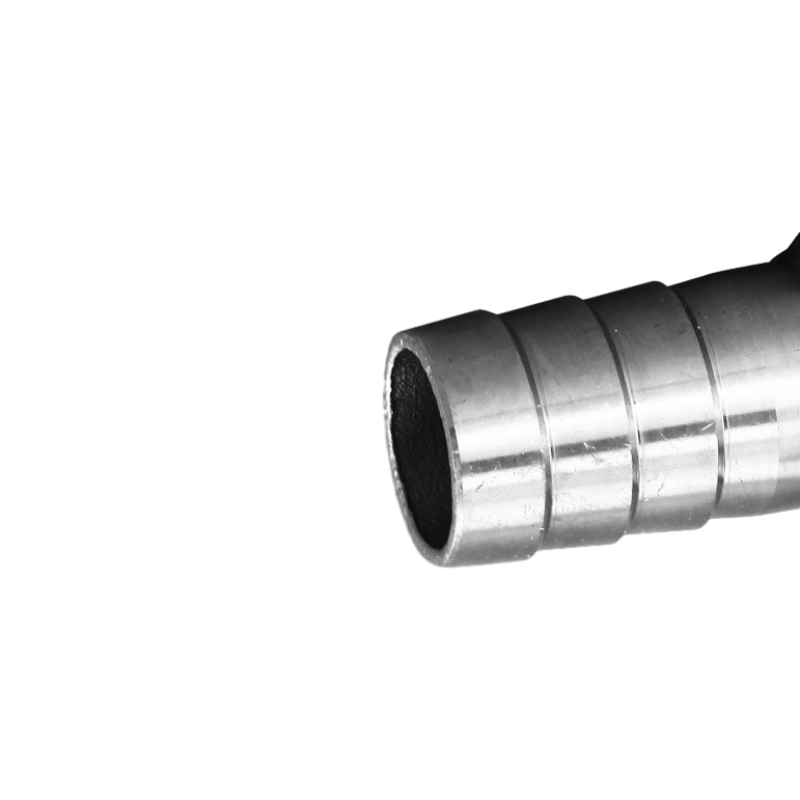

There are many barbs on the surface of the barbed tee fitting. When they are connected to the hose at all ends, the barbed fitting creates a tight seal on the flexible or semi-rigid hose. The purpose of this design is to let the hose bite into the mainline to prevent slipping.
When the Barbed tee fittings are used with the hose clip, the inverted hook will form a safer and leak-proof connection. Cleaning welds and sharp inverted hooks are the main guarantees that will not leak under pressure
Barbed tee fittings are an integral part of today’s fitting and coupling solutions, providing a low-cost and effective means for connecting many different types of tubes and hoses. They are widely used in systems such as beer brewing, air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation, etc.
Introduction
|
Barbed Tee |
|
|
Item |
Stainless Steel Barbed Tee |
|
Standard |
BS21 (BSPT&BSPP)、ANSI/ASME B1.20.1 (NPT)、DIN2999(R/RP)、JIS B 0203/2(PT)、KS B0221/2(PT), etc. |
|
Material |
Stainless Steel 304/304L/SS316/SS316L etc. |
|
Surface |
Polishing, Deburring, Plating( Chroma Plating, Ni Plating, Zine Plating), etc |
|
Type |
Lost wax Investment casting |
|
size |
D4-32 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
plastic bag + white box + carton |
|
Application |
Widely used in low-pressure (125 psi or lower) fluid, gas, and airflow control applications. |
|

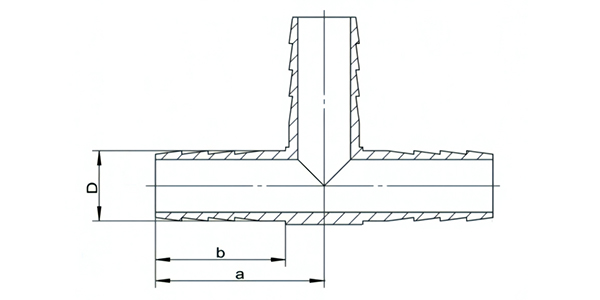

D |
a |
b |
|
4.0 |
18.0 |
14.0 |
|
6.0 |
18.0 |
14.0 |
|
8.0 |
23.0 |
18.5 |
|
10.0 |
32.0 |
26.5 |
|
12.0 |
33.0 |
26.5 |
|
13.0 |
37.0 |
29.5 |
|
15.0 |
39.0 |
31.5 |
|
16.0 |
40.5 |
31.5 |
|
19.0 |
47.5 |
37.0 |
|
20.0 |
48.0 |
37.0 |
|
25.0 |
54.5 |
41.0 |
|
32.0 |
66.0 |
48.5 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel Barbed Tee Tube Fittings Three-Way Hose Connection suppliers and OEM/ODM Stainless Steel Barbed Tee Tube Fittings Three-Way Hose Connection manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
