Lateral tee is used in changing the direction of fluid or gas fluids, which are passing through the pipe. It has the ability to reduce turbulence and friction, thereby increasing the flow of the fluid.
This type of tee is particularly useful in scenarios where the flow needs to be redirected at an angle while also transitioning to a smaller pipe size. It finds application in industries and systems where fluid or gas distribution requires changes in pipe diameter along with lateral branching. The lateral reducing tee facilitates a smooth transition between pipes of varying sizes while efficiently controlling the flow direction.

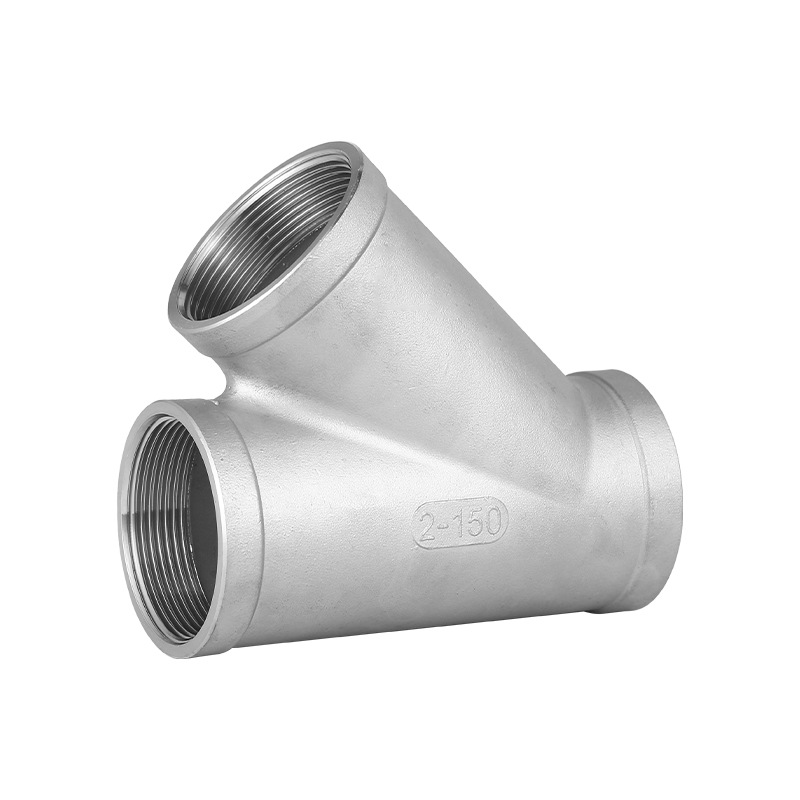

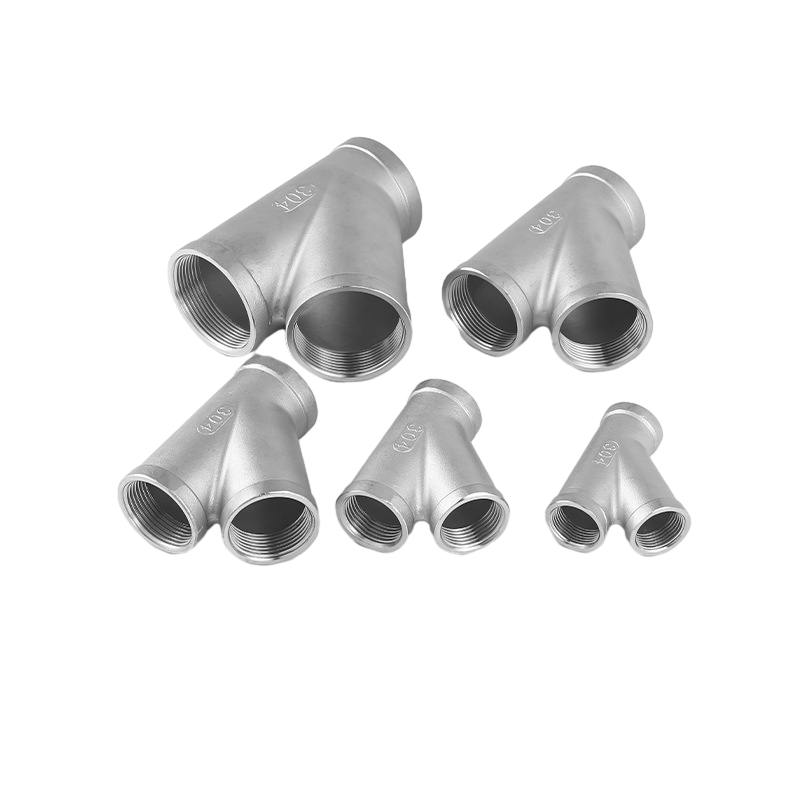

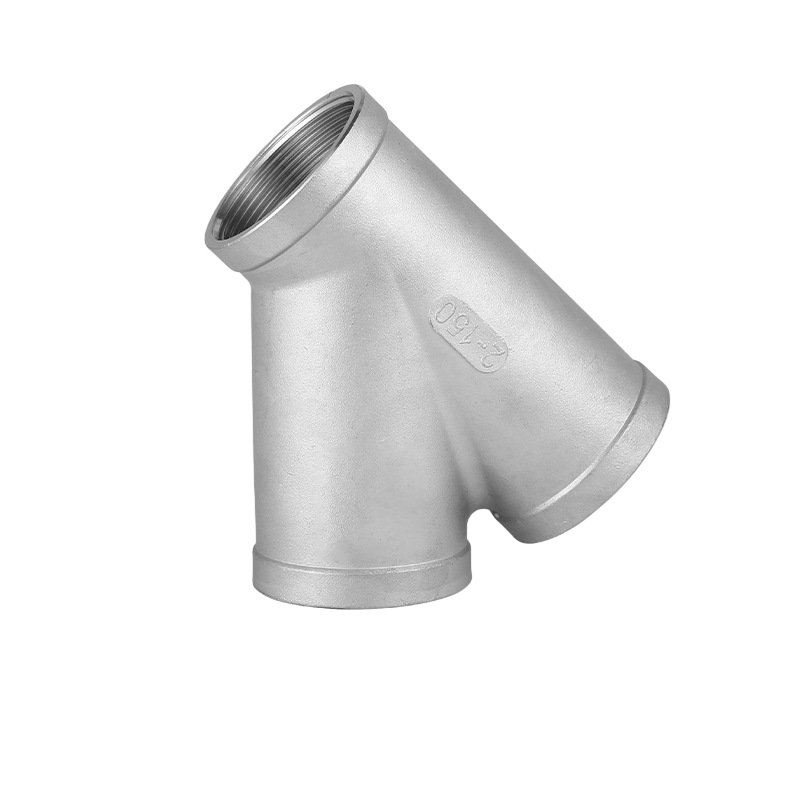

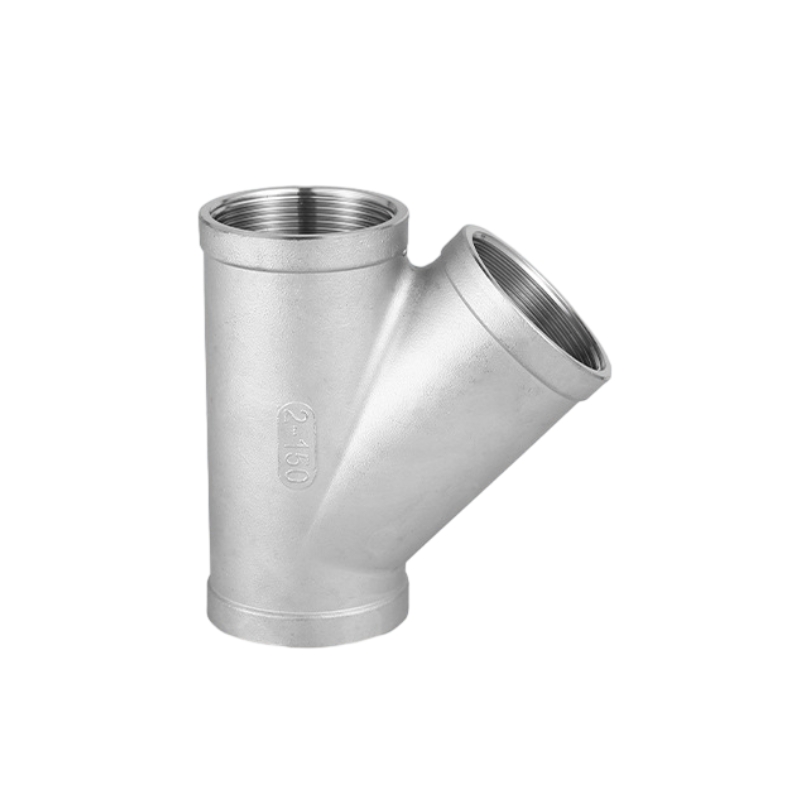

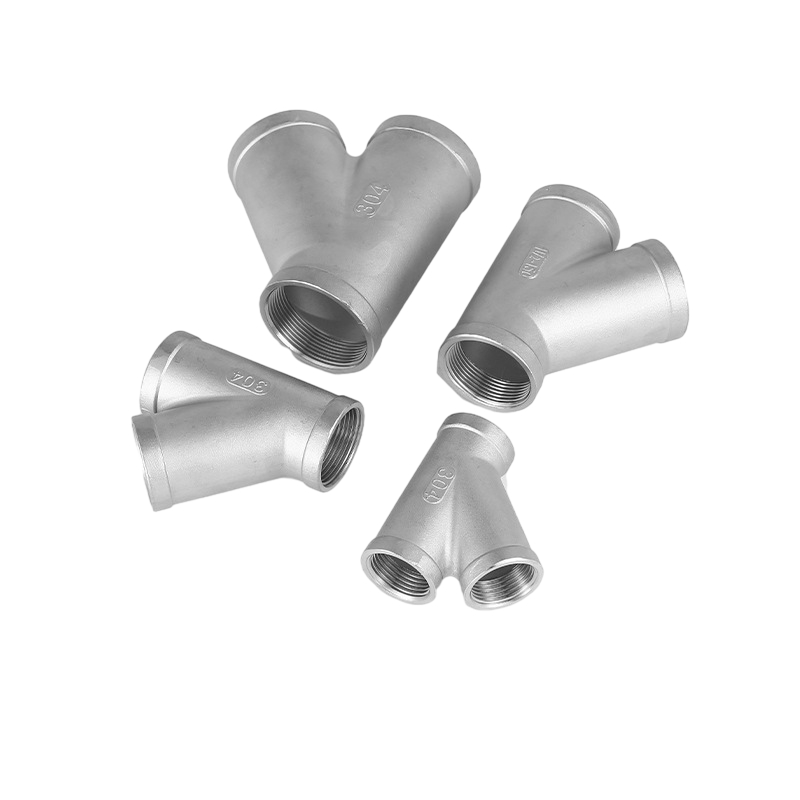

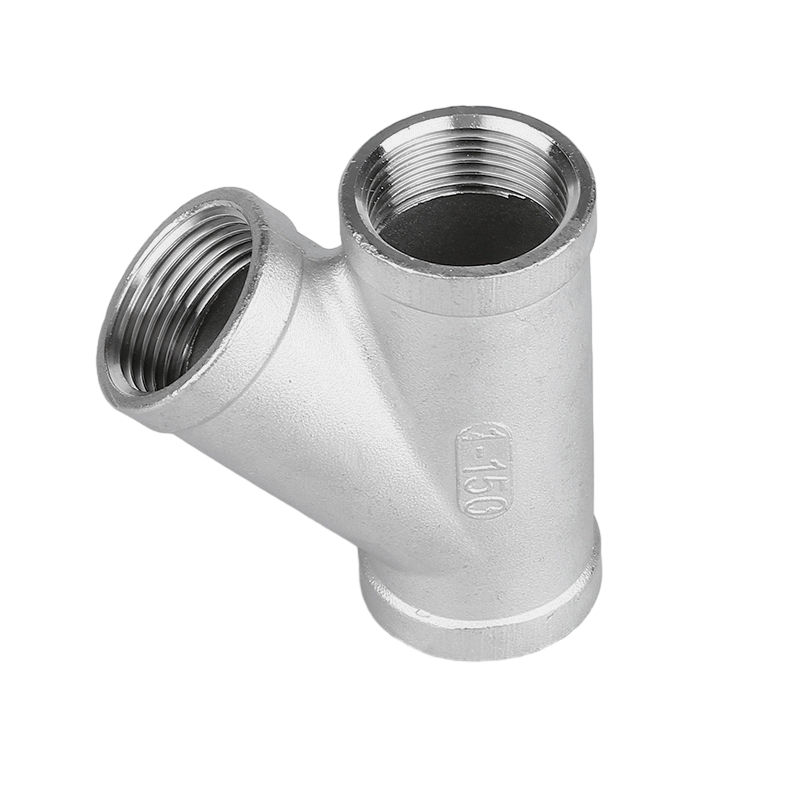

A Lateral tee is one kind of tee fitting, which has a 45-degree branch from the pipeline. When installing the lateral tee with the pipes, welders must note the flowing direction. Because to the main run pipe, the branch is 45 degrees and 135 degrees angle. Because of the special shape and direction of the branch, the lateral tee is made from two pieces of pipe and then connected together.
Lateral Tee Pipe Fittings have some features like: high resistance to water, durability, corrosion resistance, easy installation, etc. Under high temperature and pressure conditions, it can maintain accurate dimensions, anti-corrosion, etc.
Introduction
|
Lateral Tee |
|
|
Item |
Stainless Steel Threaded Lateral Tee |
|
Standard |
ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43 |
|
Material |
Stainless steel: 304, F304(S30408), F316(S31608), F321(S32168), 304L(S30403), F316L(S31603), 316L(high Mo), 00Cr17Ni14Mo2, F51(S22253), F60, F304H(S30409), F316H(S31609), F321H(S32169), F321H low S.P, M-400, F53, 316Ti, 317, 317L, 347, 347H(S34779), 310S, F304 low S.P, 304L low S.P, F316L low S.P, 347H low S.P, F5teel |
|
Surface |
CS-Galvanized Or Black Phosphating, Rust-Proof Oi, SS-Pickled & Annealed, Polished, Shot blasted |
|
Type |
Precision casting |
|
size |
1/4"-2", Accept customization |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
The surface of the product is wrapped with plastic film or bubble paper, and both ends are covered for protection. |
|
Application |
Petroleum, chemical, machinery, boiler, electric, shipbuilding,etc |
|

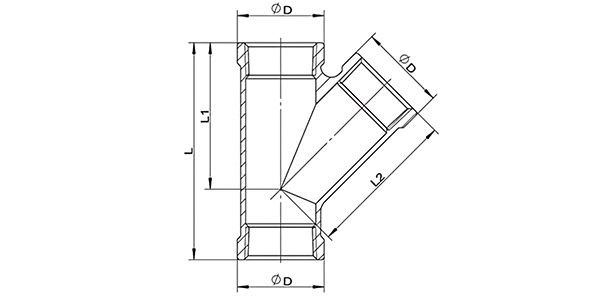

Size |
DN |
ΦD |
L |
L1 |
L2 |
|
1/4" |
8 |
18.0 |
55.0 |
32.5 |
33.0 |
|
3/8" |
10 |
21.5 |
60.0 |
38.0 |
38.5 |
|
1/2" |
15 |
26.5 |
65.0 |
45.5 |
46.5 |
|
3/4" |
20 |
32.0 |
80.0 |
54.0 |
55.5 |
|
1" |
25 |
39.5 |
90.0 |
65.0 |
66.0 |
|
1 1/4" |
32 |
48.5 |
104.0 |
75.0 |
76.0 |
|
1 1/2" |
40 |
55.0 |
120.0 |
88.0 |
88.0 |
|
2" |
50 |
67.0 |
138.0 |
105.0 |
107.0 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Precision Casting Stainless Steel Lateral Tee Anti-Corrosion Tube Fitting suppliers and OEM/ODM Precision Casting Stainless Steel Lateral Tee Anti-Corrosion Tube Fitting manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
