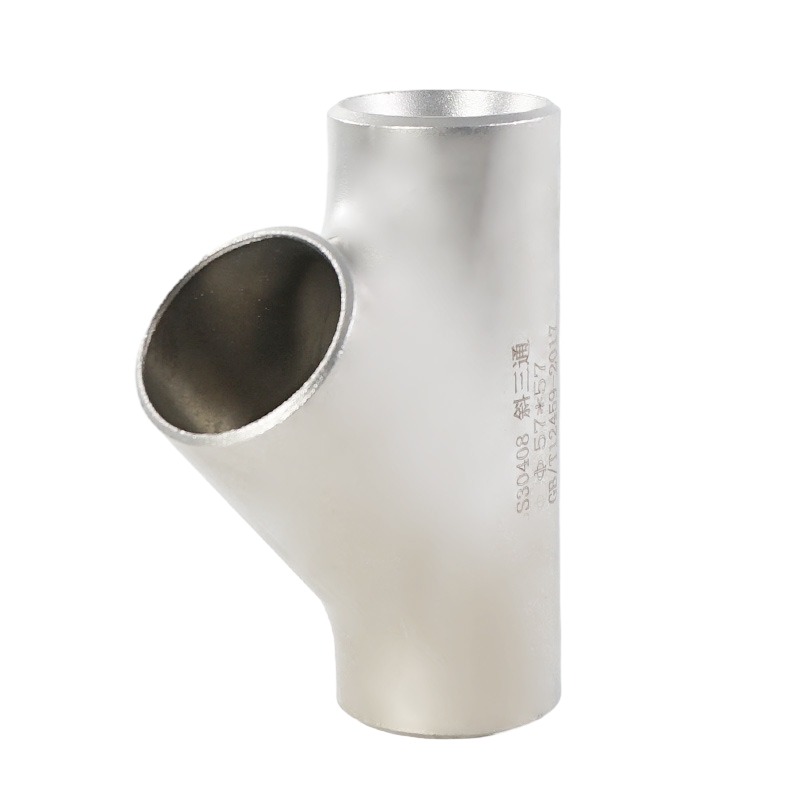

A Lateral pipe tee means a pipe fitting that is similar to a tee but has a side opening outlet branch at a 45-degree angle. This unique configuration allows for the diversion of fluid flow from the main line to the lateral line, enabling efficient distribution to various destinations.
The lateral can be equal or unequal in size compared to the main line. An equal lateral tee has branches of the same size, which means that the fluid flowing through the pipeline will be divided equally into the branch line. But, the reducing lateral tee has a smaller branch than the main pipeline. It is usually used when the flow rates in the branch line need to be reduced. The extra outlet provided by the lateral tee makes it easier to direct fluids to multiple places, improving distribution and allowing for controlled flow rates.
Lateral tees provide a reliable means for creating branch connections within pipelines without disrupting the main flow. They reduce pressure drops and frictional losses in the branch line, contributing to overall system efficiency.
The lateral tees are easy to install. They are used in all kinds of piping systems and applications. Like: petrochemical, Pharmaceutical, Food, Aerospace, Building decoration, Natural gas, Pulp/paper, Textile, Waste treatment, Marine, Utilities/power generation, Industrial equipment industry, etc.
Introduction
|
Lateral Tee |
|
|
Item |
Stainless Steel Lateral Tee |
|
Standard |
ASME/ANSI,MSS,DIN,JIS,GB/T |
|
Material |
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
|
Surface |
Sand Blasting |
|
Type |
Casting |
|
size |
1"-24" |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Packed in Wooden Cases |
|
Application |
Used in pulp and paper, water treatment, sewage treatment, chemical industry, biotechnology, pharmaceuticals, food, mining, construction, transportation, etc. |
|

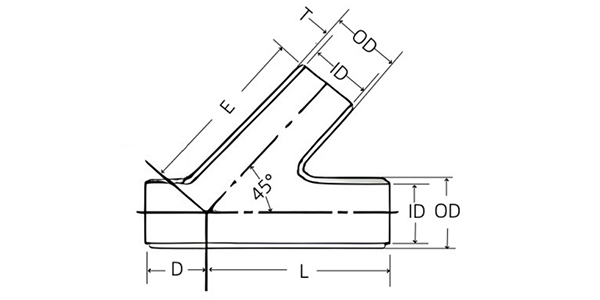

Nominal Pipe Size |
Outside Diameter |
Standard Weight |
Extra Strong |
||||||
|
|
OD |
E & L |
D |
T |
ID |
E & L |
D |
T |
ID |
|
1 |
1.315 |
5.75 |
1.75 |
0.133 |
1.049 |
6.50 |
2.00 |
0.179 |
0.957 |
|
1¼ |
1.660 |
6.25 |
1.75 |
0.140 |
1.380 |
7.25 |
2.25 |
0.191 |
1.278 |
|
1½ |
1.900 |
7.00 |
2.00 |
0.145 |
1.610 |
8.50 |
2.50 |
0.200 |
1.500 |
|
2 |
2.375 |
8.00 |
2.50 |
0.154 |
2.067 |
9.00 |
2.50 |
0.128 |
1.939 |
|
2½ |
2.875 |
9.50 |
2.50 |
0.203 |
2.469 |
10.50 |
2.50 |
0.276 |
2.323 |
|
3 |
3.500 |
10.00 |
3.00 |
0.216 |
3.068 |
11.00 |
3.00 |
0.300 |
2.900 |
|
3½ |
4.000 |
11.50 |
3.00 |
0.226 |
3.548 |
12.00 |
3.00 |
0.318 |
3.364 |
|
4 |
4.500 |
12.00 |
3.00 |
0.237 |
4.026 |
13.50 |
3.00 |
0.337 |
3.826 |
|
5 |
5.562 |
13.50 |
3.50 |
0.258 |
5.047 |
15.00 |
3.50 |
0.375 |
4.813 |
|
6 |
6.625 |
14.50 |
3.50 |
0.280 |
6.065 |
17.50 |
4.00 |
0.432 |
5.761 |
|
8 |
8.625 |
17.50 |
4.50 |
0.322 |
7.981 |
20.50 |
5.00 |
0.500 |
7.625 |
|
10 |
10.750 |
20.50 |
5.00 |
0.365 |
10.020 |
24.00 |
5.50 |
0.500 |
9.750 |
|
12 |
12.750 |
24.50 |
5.50 |
0.375 |
12.000 |
27.50 |
6.00 |
0.500 |
11.750 |
|
14 |
14.000 |
27.00 |
6.00 |
0.375 |
13.250 |
31.00 |
6.50 |
0.500 |
13.000 |
|
16 |
16.000 |
30.00 |
6.50 |
0.375 |
15.250 |
34.50 |
7.50 |
0.500 |
15.000 |
|
18 |
18.000 |
32.00 |
7.00 |
0.375 |
17.250 |
37.50 |
8.00 |
0.500 |
17.000 |
|
20 |
20.000 |
35.00 |
8.00 |
0.375 |
19.250 |
40.50 |
8.50 |
0.500 |
19.000 |
|
24 |
24.000 |
40.50 |
9.00 |
0.375 |
23.250 |
47.50 |
10.00 |
0.500 |
23.000 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel Lateral Tee Can Control Branches Flow Distribution In The Pipeline suppliers and OEM/ODM Stainless Steel Lateral Tee Can Control Branches Flow Distribution In The Pipeline manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
