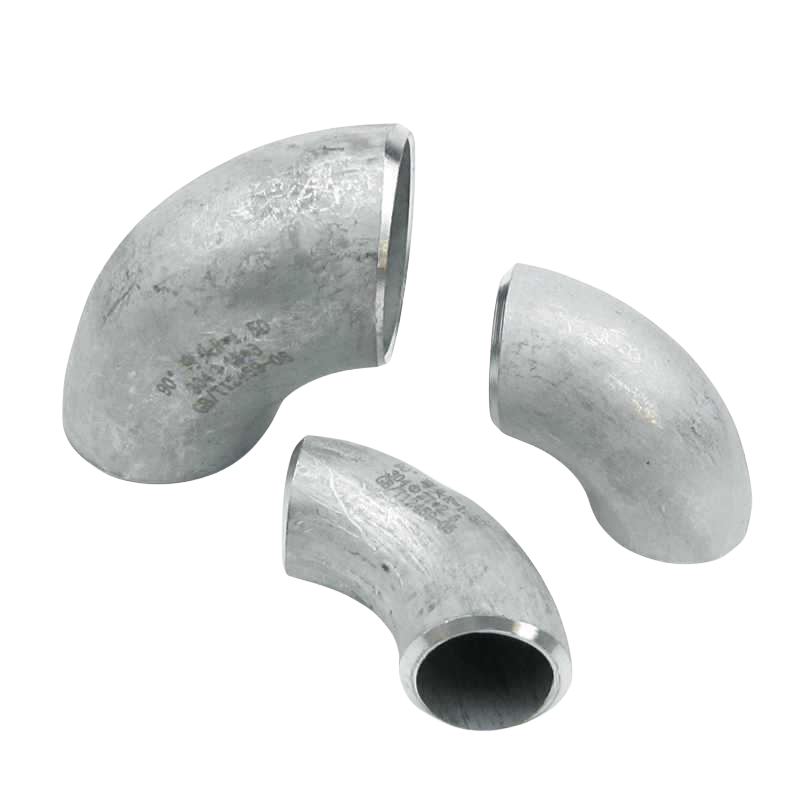

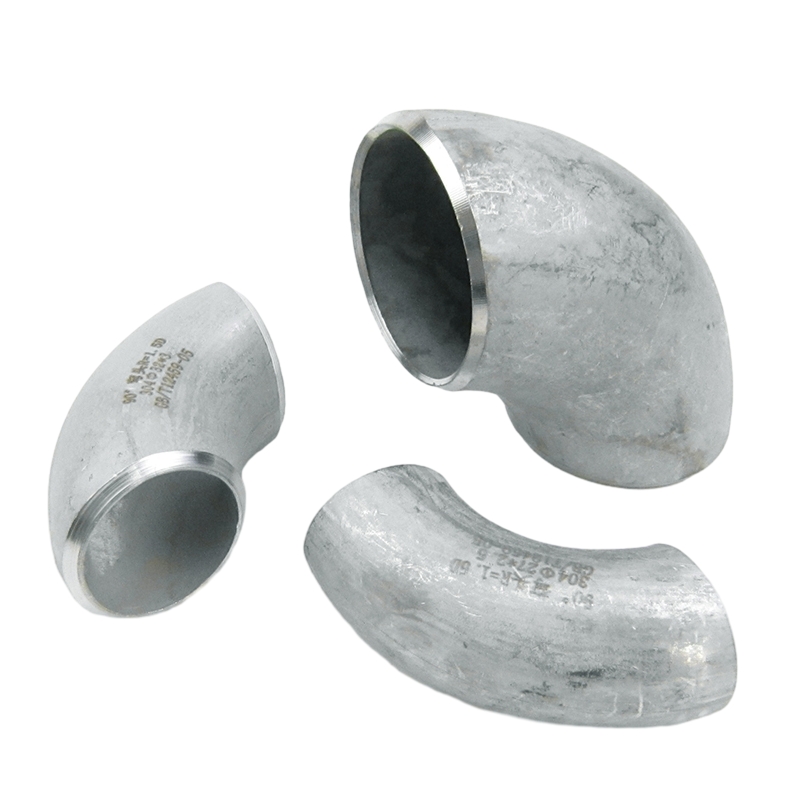

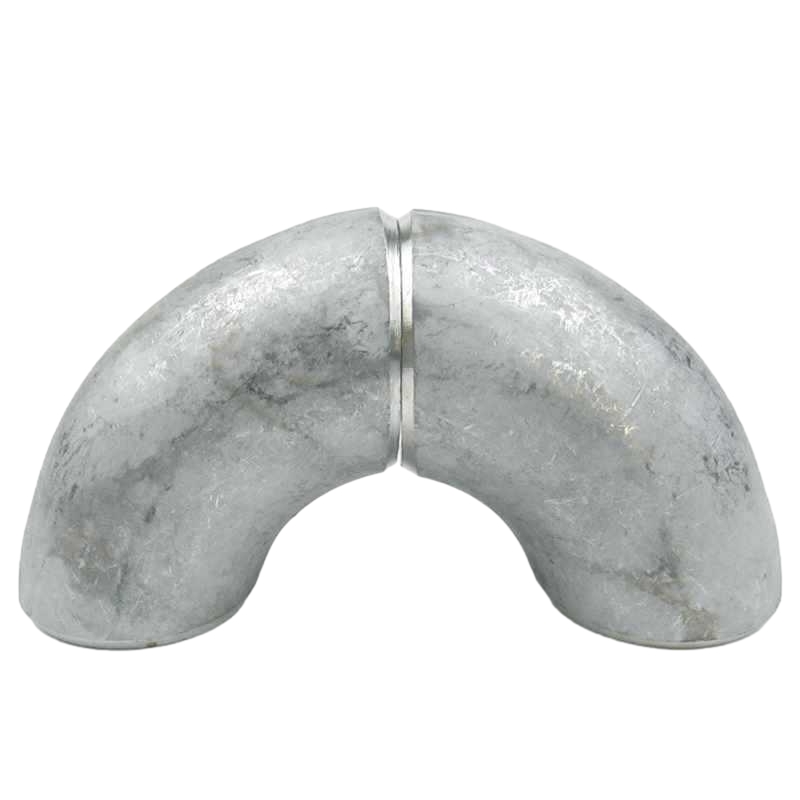

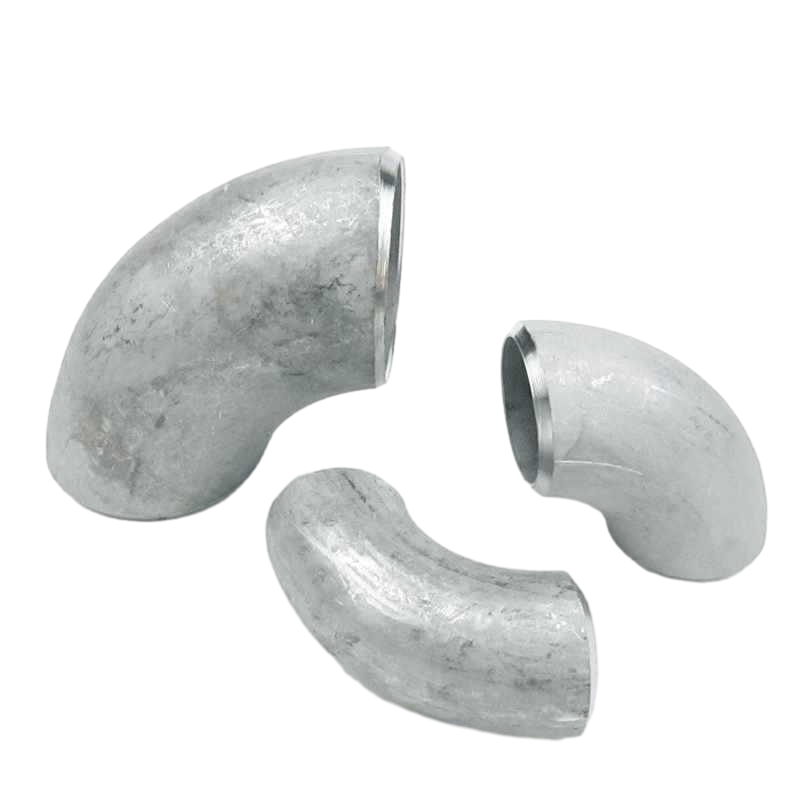

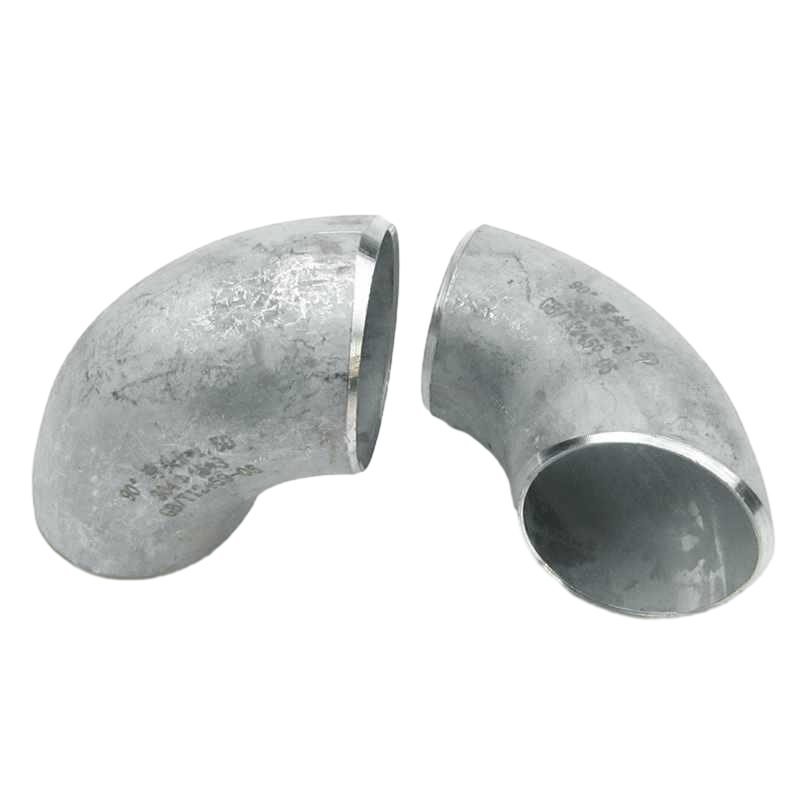

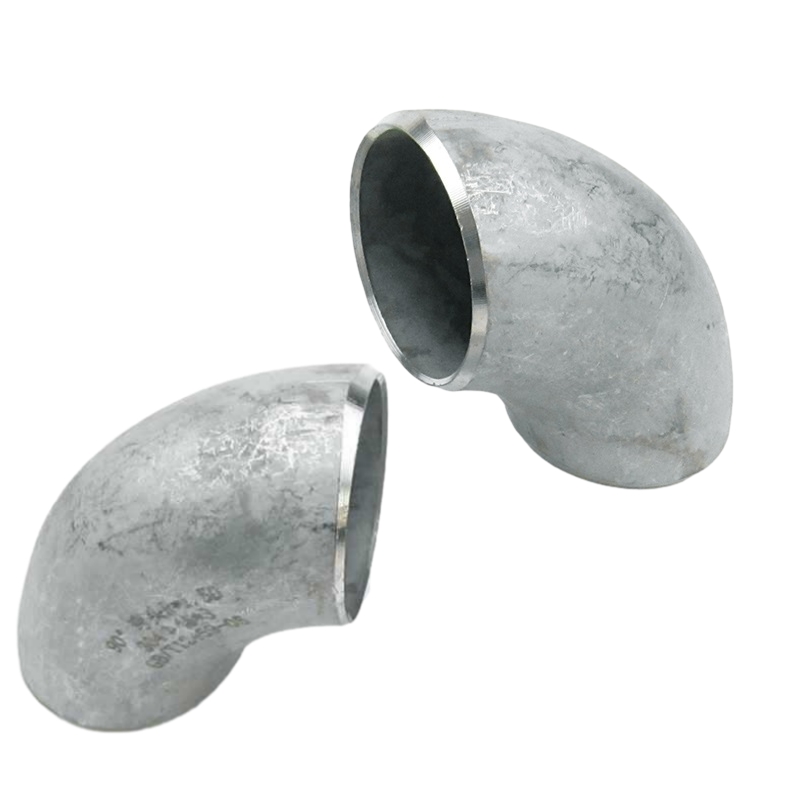

Our 90-degree elbow is available in both 304,316 and other double molybdenum stainless steel. The 90-degree stainless steel elbow is actually a type of stainless steel joint. It is a commonly used connecting pipe fitting in pipeline installation. It is used to connect pipe corners and change the direction of the pipe. After being welded on both ends with the pipes, it can change the direction to 90 degrees.
Stainless steel 90° elbows have high strength, and strong resistance to impact and vibration, and stainless steel elbows can have properties such as leakproof, shockproof, and anti-deformation. Moreover, when transporting highly corrosive water resources, stainless steel elbows are very stable, and their corrosion resistance can provide them with long-term durability.
The 90°elbow formed by stainless steel stamping is the earliest forming process used in the mass production of seamless elbows. It has been replaced by the hot push method or other forming processes in the production of elbows with common specifications. It is still used when the product has special requirements.
Introduction
|
Item |
Stainless Steel 90°Elbows |
|
Standard |
ANSI B16.9, EN10253-4, DIN, GOST, JIS B2313, MSS SP 75, non-standard, etc. |
|
Material Grades |
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc. |
|
Surface |
pickled, sand rolling, polished, polishing etc. |
|
Type |
Casting, Welding |
|
size |
1/2-12” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Standard Marine Packing |
|
Application |
The petrochemical industry; aviation and aerospace industry; pharmaceutical industry, gas exhaust; power plant; shipbuilding; water treatment, etc. |

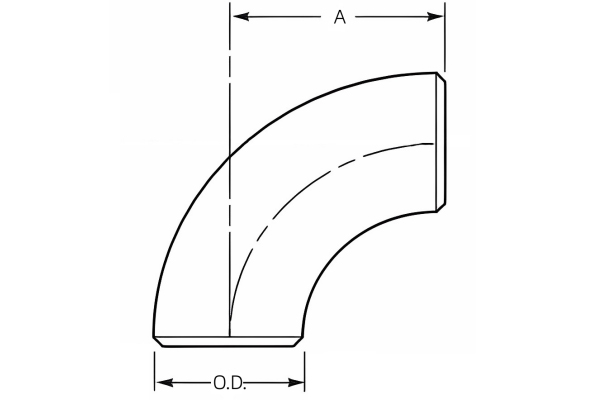

Unit: mm
|
DN |
O.D. |
A |
MSS SP-43 |
ASME/ANSI B16.9 |
||||||
|
Schedule 5S |
Schedule 10S |
Schedule 5S |
Schedule 10S |
|||||||
|
Wall Thickness |
Approx. WT. |
Wall Thickness |
Approx. WT.(kg) |
Wall Thickness |
Approx. WT. |
Wall Thickness |
Approx. WT. |
|||
|
15 |
21 |
38 |
1.65 |
0.05 |
2.10 |
0.06 |
2.75 |
0.08 |
3.75 |
0.11 |
|
20 |
27 |
29 |
1.65 |
0.05 |
2.10 |
0.07 |
2.85 |
0.09 |
3.90 |
0.11 |
|
25 |
33 |
38 |
1.65 |
0.10 |
2.75 |
0.17 |
3.40 |
0.18 |
4.55 |
0.23 |
|
32 |
42 |
48 |
1.65 |
0.13 |
2.75 |
0.23 |
3.55 |
0.27 |
4.85 |
0.40 |
|
40 |
48 |
57 |
1.65 |
0.20 |
2.75 |
0.34 |
3.70 |
0.40 |
5.10 |
0.50 |
|
50 |
60 |
76 |
1.65 |
0.30 |
2.75 |
0.50 |
3.90 |
0.70 |
5.55 |
1.00 |
|
65 |
73 |
95 |
2.10 |
0.56 |
3.05 |
1.80 |
5.15 |
1.50 |
7.00 |
1.80 |
|
80 |
89 |
114 |
2.10 |
0.80 |
3.05 |
1.10 |
5.50 |
2.30 |
7.60 |
3.00 |
|
90 |
102 |
133 |
2.10 |
1.10 |
3.05 |
1.50 |
5.75 |
3.00 |
8.10 |
3.80 |
|
100 |
114 |
152 |
2.10 |
1.30 |
3.05 |
1.90 |
6.00 |
4.00 |
8.55 |
6.10 |
|
125 |
141 |
190 |
2.75 |
2.70 |
3.40 |
3.30 |
6.55 |
7.00 |
9.55 |
10.00 |
|
150 |
168 |
229 |
2.75 |
4.00 |
3.40 |
5.00 |
7.10 |
11.00 |
10.95 |
15.80 |
|
200 |
219 |
305 |
2.75 |
6.90 |
3.75 |
9.50 |
8.20 |
22.00 |
12.70 |
32.00 |
|
250 |
273 |
381 |
3.40 |
13.10 |
4.20 |
16.00 |
9.25 |
40.00 |
12.70 |
48.00 |
|
300 |
324 |
457 |
3.95 |
23.00 |
4.55 |
26.00 |
9.55 |
56.00 |
12.70 |
72.00 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China High Strength 90°Welded Elbows Stainless Steel Thick Wall Tube Fittings suppliers and OEM/ODM High Strength 90°Welded Elbows Stainless Steel Thick Wall Tube Fittings manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
