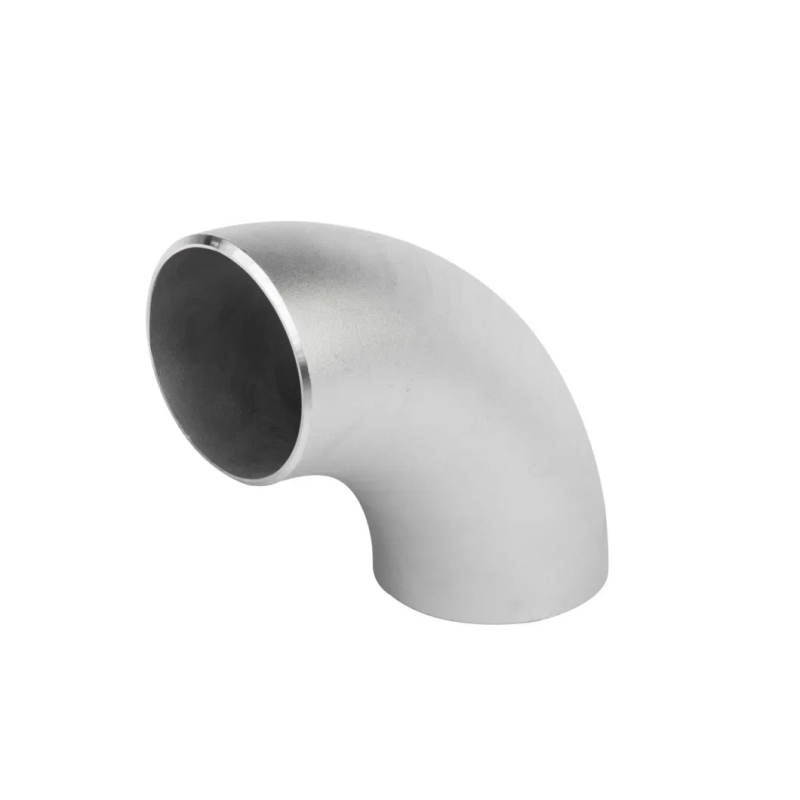

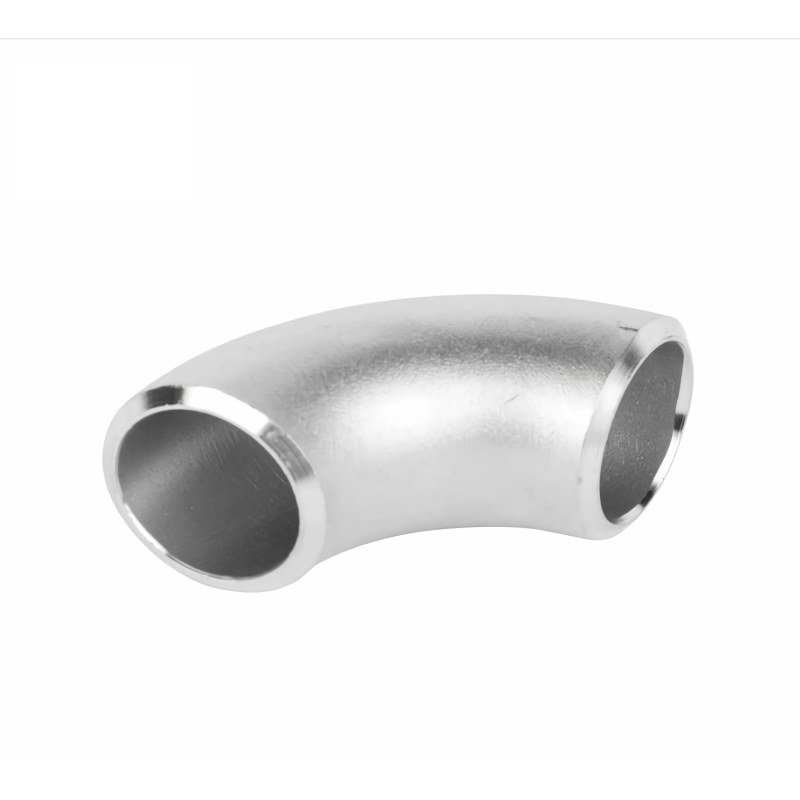

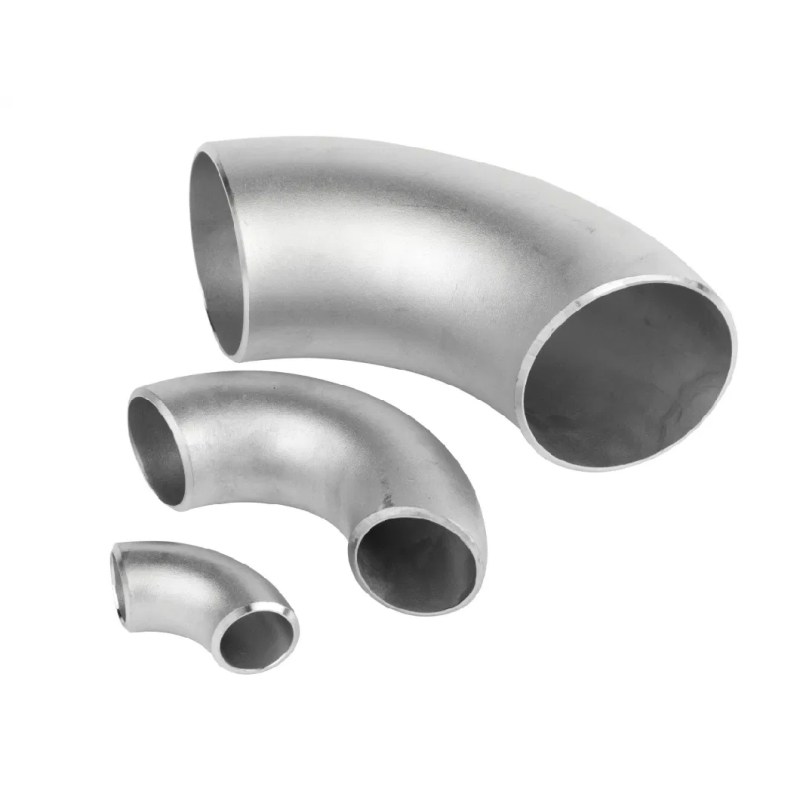

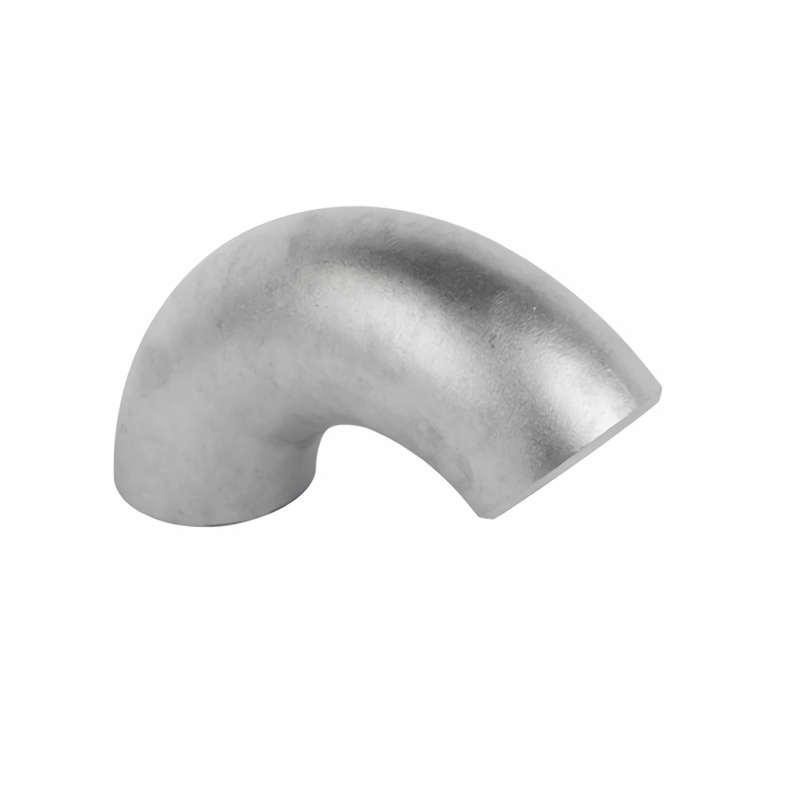

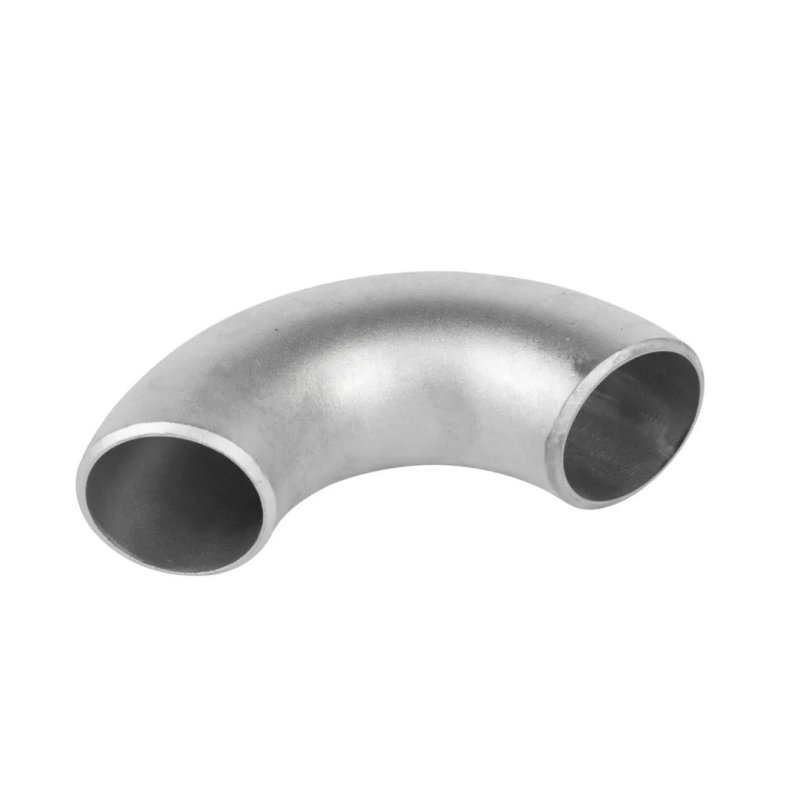

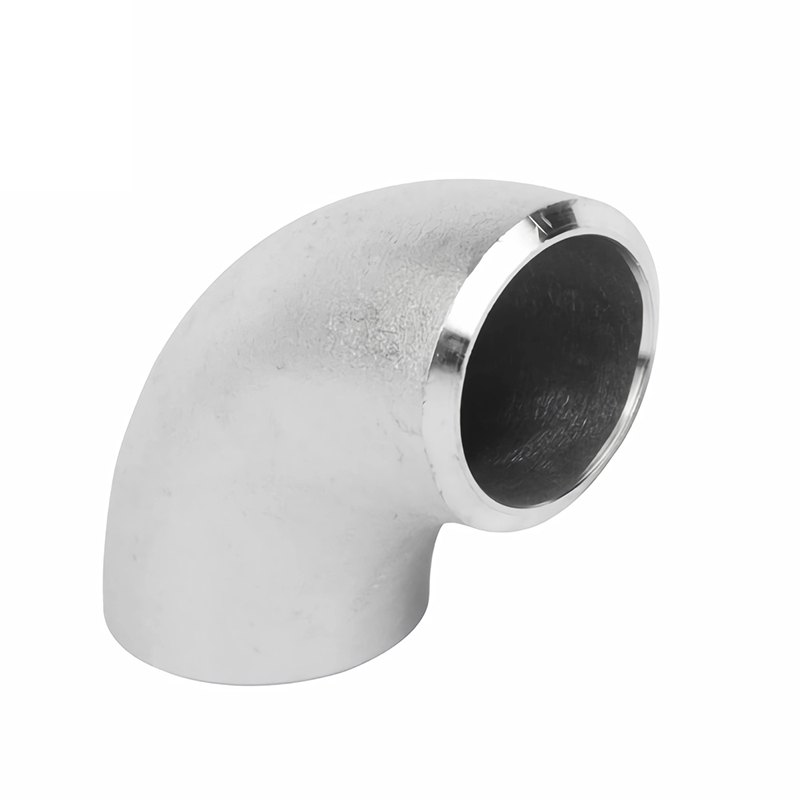

Stainless steel welded 90°Elbows is a kind of pipe fitting commonly used in our daily life and production. Because it is used at corner joints and needs to form a certain arc, it is named stainless steel elbow. As a common pipe fitting, it is widely used in pipe systems.
Stainless steel elbows come in a variety of types and features to meet different engineering needs. 90°stainless steel elbow is one of the commonly used elbow types. It is mainly used for elbow joints. It is one of the joints for pipeline installation. It connects two pipes with the same or different nominal diameters. It makes the pipe turn at a 90-degree bend.
The 90°stainless steel elbow has good fluid guidance and pressure and is suitable for occasions where the flow direction of the pipeline needs to be changed. Stainless steel 90°elbow has the characteristics of corrosion resistance, high strength, reliability, and long life. Using stainless steel elbow fittings helps ensure the operation and fluid transfer efficiency of your piping system.
Introduction
|
Item |
Stainless Steel 90°Elbows |
|
Standard |
ANSI,DIN,JIS,EN, GB (MSS SP-97) |
|
Material Grades |
Carbon steel, alloy steel, stainless steel 304, stainless steel 316, SDSS WCB, LCB, LC3, WC5, WC9, C5, C12, CA6NM, CA15, CF8M, CF8C, CF8, CF3, CF3M, CN7M, M35-1, N7M, CW6M, CY40, etc. |
|
Surface |
Sand Rolling, Sand Blasting, Acid Cleaning. |
|
Type |
Casting, Welding |
|
size |
1/2-12” |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Wooden Case or Pallet |
|
Application |
Suitable for Pipe lines connecting water, steam, air, gas, oil and so on. |

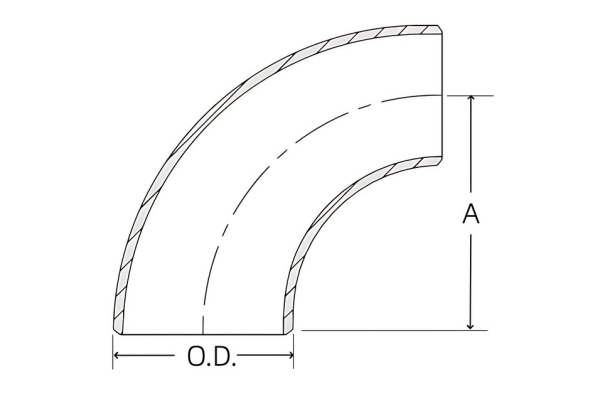

Dimensions ANSI B16.9
Unit: inch
|
Nominal Pipe Size |
O.D. |
Wall Thickness |
Long |
Short Radius |
|||
|
5S |
10S |
40S |
80S |
||||
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.50 |
-- |
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.12 |
-- |
|
1 |
1.3150 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
1.00 |
|
1 1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
1.25 |
|
1 1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
1.50 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
3.00 |
2.00 |
|
2 1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.75 |
2.50 |
|
3 |
3.50 |
0.083 |
0.120 |
0.216 |
0.300 |
4.50 |
3.00 |
|
3 1/2 |
4.00 |
0.083 |
0.120 |
0.226 |
0.318 |
5.25 |
3.50 |
|
4 |
4.50 |
0.083 |
0.120 |
0.237 |
0.337 |
6.00 |
4.00 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
7.50 |
5.00 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
9.00 |
6.00 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
12.00 |
8.00 |
|
10 |
10.75 |
0.134 |
0.165 |
0.365 |
0.500 |
15.00 |
10.00 |
|
12 |
12.75 |
0.156 |
0.180 |
0.375 |
0.500 |
18.00 |
12.00 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China SS Welded 90°Elbows Tube Fittings Stainless Steel Pipe Elbows suppliers and OEM/ODM SS Welded 90°Elbows Tube Fittings Stainless Steel Pipe Elbows manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
