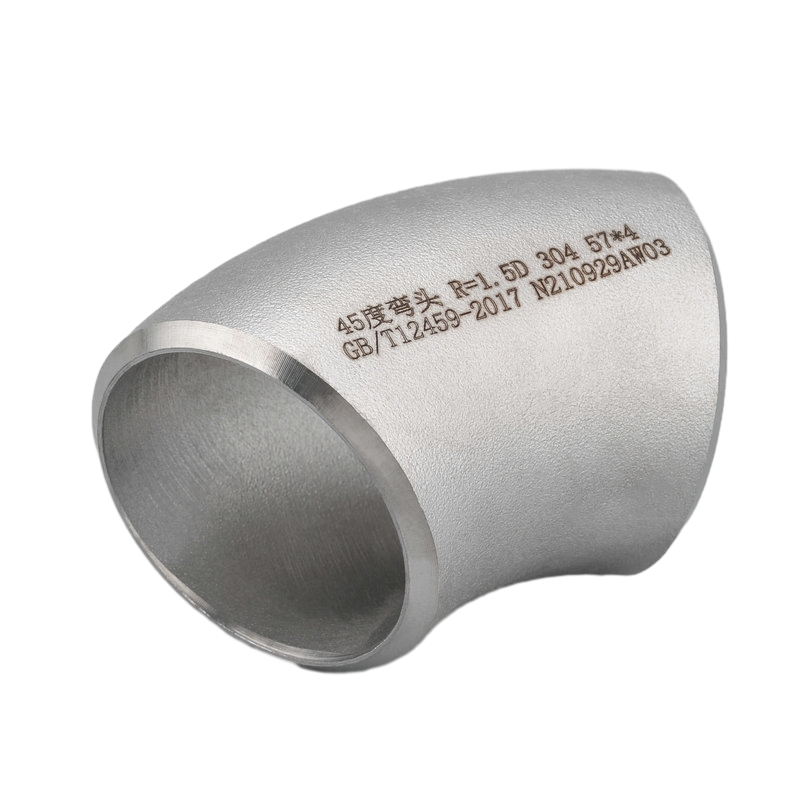

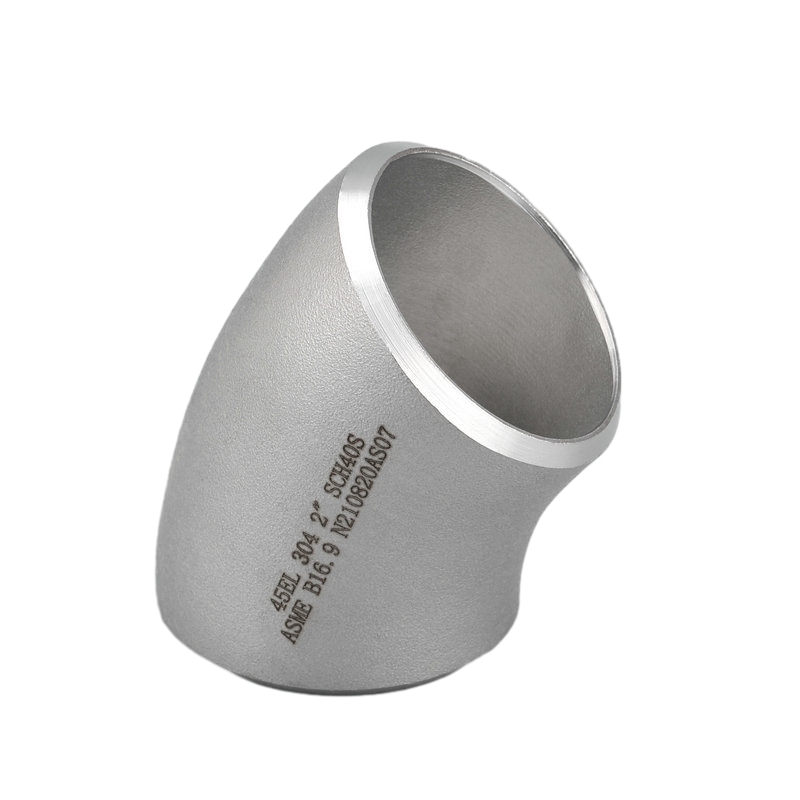

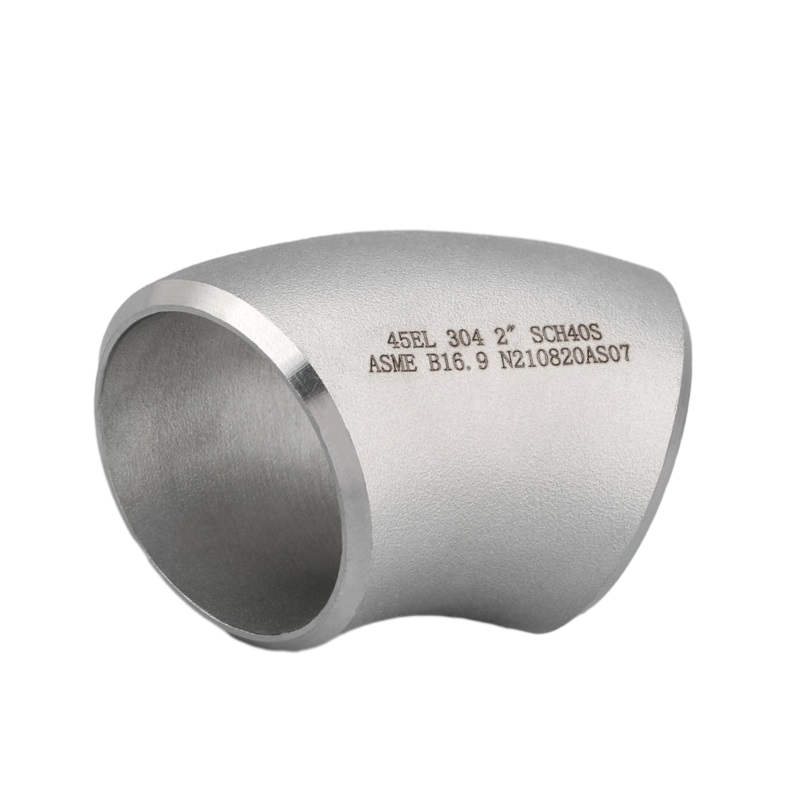

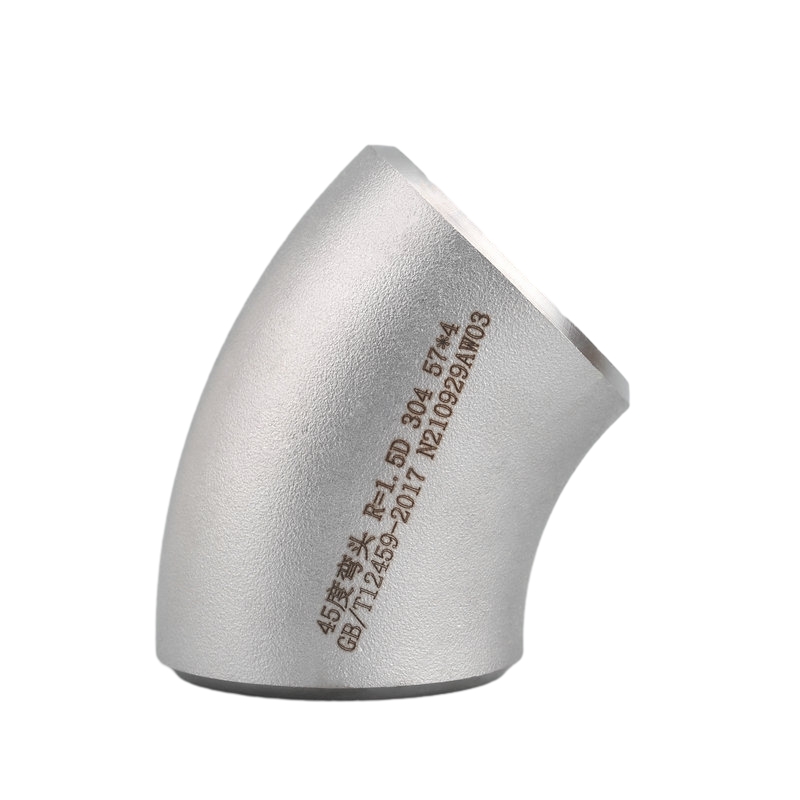

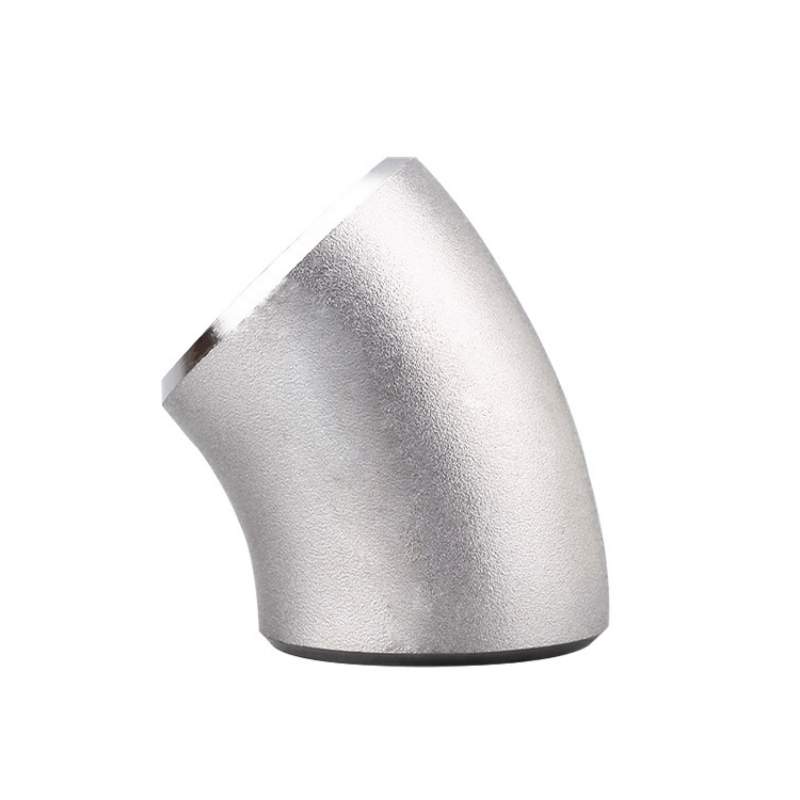

Stainless steel 45° welded elbow is a common type of elbow. The fittings are designed for internal socket-type welding or external butt welding. Used in systems where hard bends in the direction of flow need to be avoided. They can be used to redirect pipe horizontally, vertically, or a combination of both using multiple tandem elbows.
The 45-degree stainless steel elbow has smaller fluid pressure and a gentler turning radius. The butt weld fittings are constructed with welded, drawn, and annealed stainless steel tubing for applications where minimizing the number of sealed joints is critical.
Stainless steel 45° welded elbow is made of stainless steel material and has good corrosion resistance and mechanical properties. Commonly used are 304 and 316 stainless steel etc. Stainless steel vacuum tubing offers low outgassing under vacuum conditions, is chemically resistant, annealed for consistent leak-free welding, and has minimized corrosion concentration points.

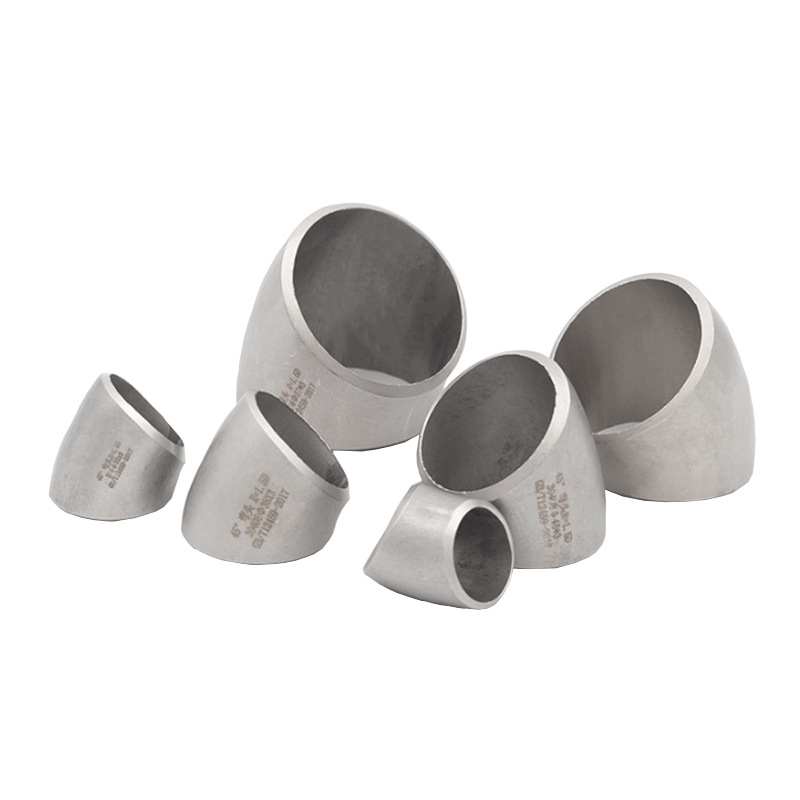

Stainless steel elbows come in a wide range of sizes and can meet the pipe connection needs of different specifications. Whether it is a small-diameter pipe or a large-diameter pipe, you can find stainless steel elbows of corresponding sizes. According to the angle, there are three commonly used elbows: 45°, 90° and 180°. In addition, according to project needs, other abnormal angle elbows such as 60° are also included.
Introduction
|
Item |
Stainless Steel 45°Elbows |
|
Standard |
ASME B16.9, ASME A403, GB12459-2005, DIN, GOST, JIS B2313 |
|
Material Grades |
Stainless steel: 201,TP304,TP316, TP304L, TP316L, 304L, 316L, TP321, TP310S, 904L, etc Duplex steel: 2205(S31803) S32205, 2507(S2750) S3276, etc |
|
Surface |
Pickled, sandblasting, rolling blast, brighten, matt polished, mirror polished, vanished, shinning |
|
Type |
Angle Type |
|
size |
DN15-1200 |
|
Delivery time |
Within 5-30 days after receiving the prepaid |
|
Packing |
Plywood Boxes or Pallets |
|
Application |
Chemical industry, oil, petroleum industry, construction industry, metallurgy, pharmaceutical, power industry, gas industry, domestic installation etc. |
|

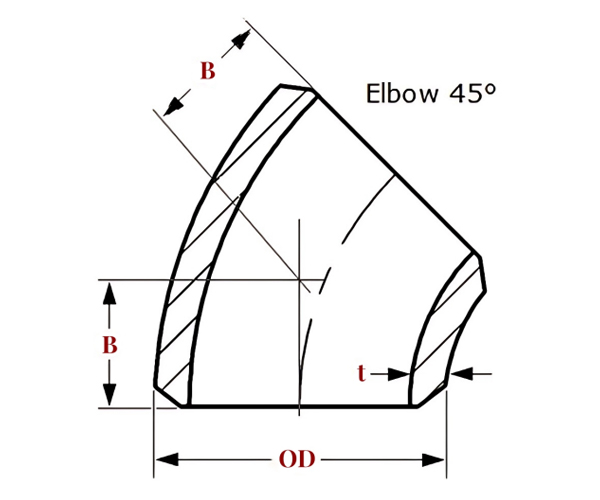

Nominal Diameter |
Outside Diameter at Bevel |
Long Radius |
|
DN |
OD |
B |
|
15 |
21.3 |
16 |
|
20 |
26.9 |
19 |
|
25 |
33.7 |
22 |
|
32 |
42.4 |
25 |
|
40 |
48.3 |
29 |
|
50 |
60.3 |
35 |
|
65 |
76.1 |
44 |
|
80 |
88.9 |
51 |
|
90 |
101.6 |
57 |
|
100 |
114.3 |
64 |
|
125 |
139.7 |
79 |
|
150 |
168.3 |
95 |
|
200 |
219.1 |
127 |
|
250 |
273.0 |
159 |
|
300 |
323.9 |
190 |
|
350 |
355.6 |
222 |
|
400 |
406.4 |
254 |
|
450 |
457.2 |
286 |
|
500 |
508.0 |
318 |
|
550 |
559 |
343 |
|
600 |
610 |
381 |
|
650 |
660 |
406 |
|
700 |
711 |
438 |
|
750 |
762 |
470 |
|
800 |
813 |
502 |
|
850 |
864 |
533 |
|
900 |
914 |
565 |
|
950 |
965 |
600 |
|
1000 |
1016 |
632 |
|
1050 |
1067 |
660 |
|
1100 |
1118 |
695 |
|
1150 |
1168 |
727 |
|
1200 |
1220 |
759 |
Xinhang Special Material Co., Ltd. Hangzhou Branch is famous China Stainless Steel 45°Welded Elbow Tube Fittings Horizontal Redirect Your Pipeline suppliers and OEM/ODM Stainless Steel 45°Welded Elbow Tube Fittings Horizontal Redirect Your Pipeline manufacturers, founded in 2007 and moved to Longyou Economic Development Zone, Zhejiang Province, in 2022. It covers an area of 130,000 square meters, more than 30 production lines, 300 workers, 20 R&D people, 30 inspection people and an annual output of 50,000 tons.
It has passed ISO9001:2008 quality management system, PED 97/23/EC EU Pressure Equipment Directive certification, China Special Equipment Manufacturing License (Pressure Tube) TS certification, ASME certification, provincial enterprise standardization management system, ISO14000:2004 environment management system, cleaner production (green enterprise), and a series of certifications, as well as China Classification Society (CCS), American Bureau of Shipping (ABS), British Register of Shipping (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Det Norske Veritas (DNV), and Korean Register of Shipping (KR) factory certification.
The main products include stainless steel pipes, pipe fittings, flanges, valves, etc., which are widely used in petroleum, chemical industry, nuclear industry, smelting, shipbuilding, pharmaceuticals, food, water conservancy, electric power, new energy, mechanical equipment, and other fields. The company adheres to the corporate tenet of "quality for survival, reputation for development" and wholeheartedly serves every customer to create a win-win situation.
